A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.

Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

How you choose to connect multiple solar panels depends both on the size of your off-grid solar system and your power needs.

Connecting solar panels in a series increases the voltage of the system, leaving the system current output the same as a single panel. The total amount of voltage of a series connected array can be measured by multiplying the voltage output of a single panel by the number of panels. Or if you have panels of different voltages you add the voltage of each panel to get the total voltage of the array.

Connecting solar panels in parallel increases the current of the array and maintains the voltage output of a single panel. The total current of a solar array connected in parallel can be measured by multiplying the current of a single panel by the number of panels. Make sure the open circuit voltage of the connected panels does not exceed the maximum DC input voltage of the power station or controller.

The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.

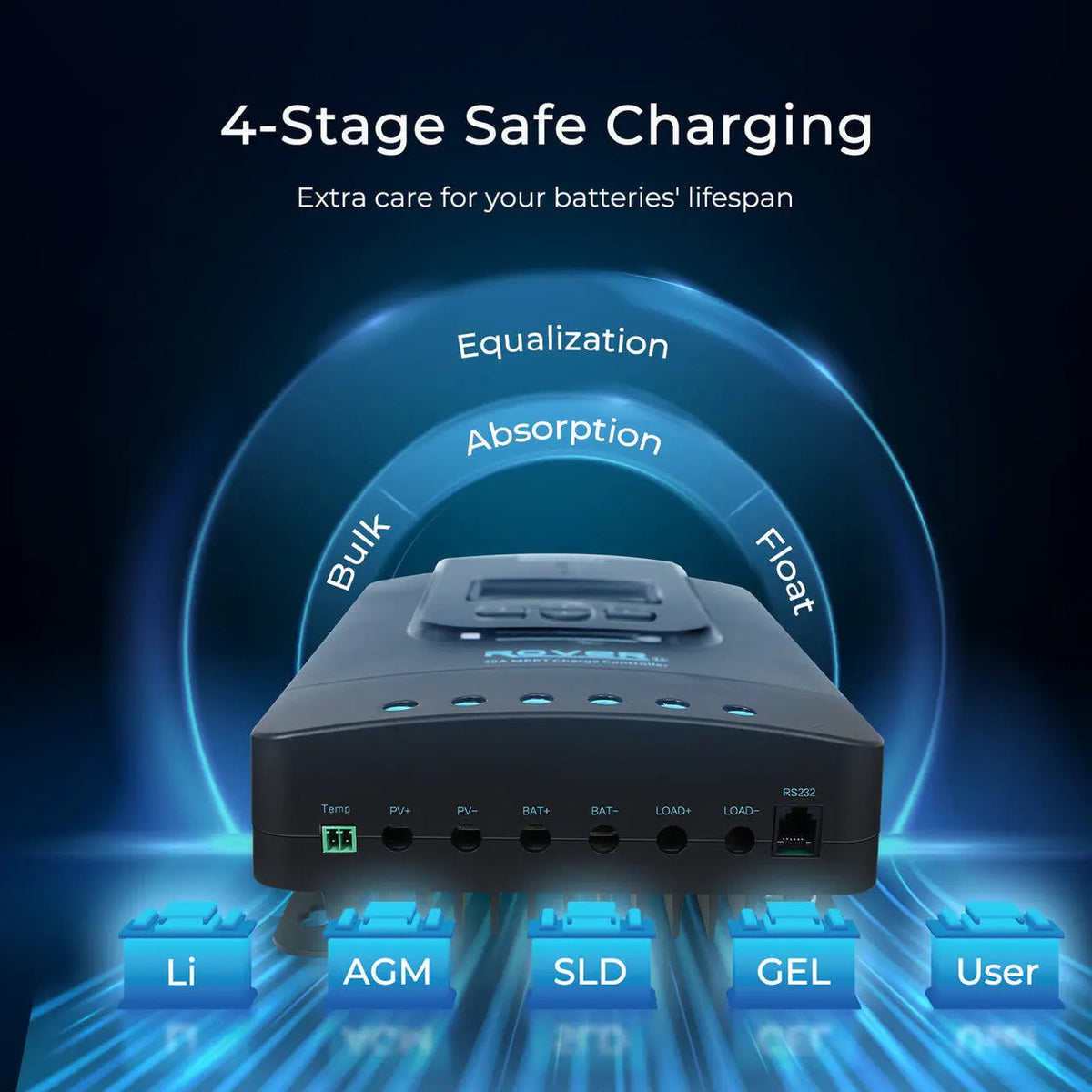

Yes, you can add more solar panels in series/parallel to increase the power output. The Rover 40A solar charge controller has a maximum PV input current of 40A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You are limited by the maximum input voltage and current the charge controller can handle. Building a system operating at around 90% of the rated voltage and current is safer to ensure tolerance for any system overvoltage or overcurrent.

In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the body of your AC home appliances. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power.

Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.

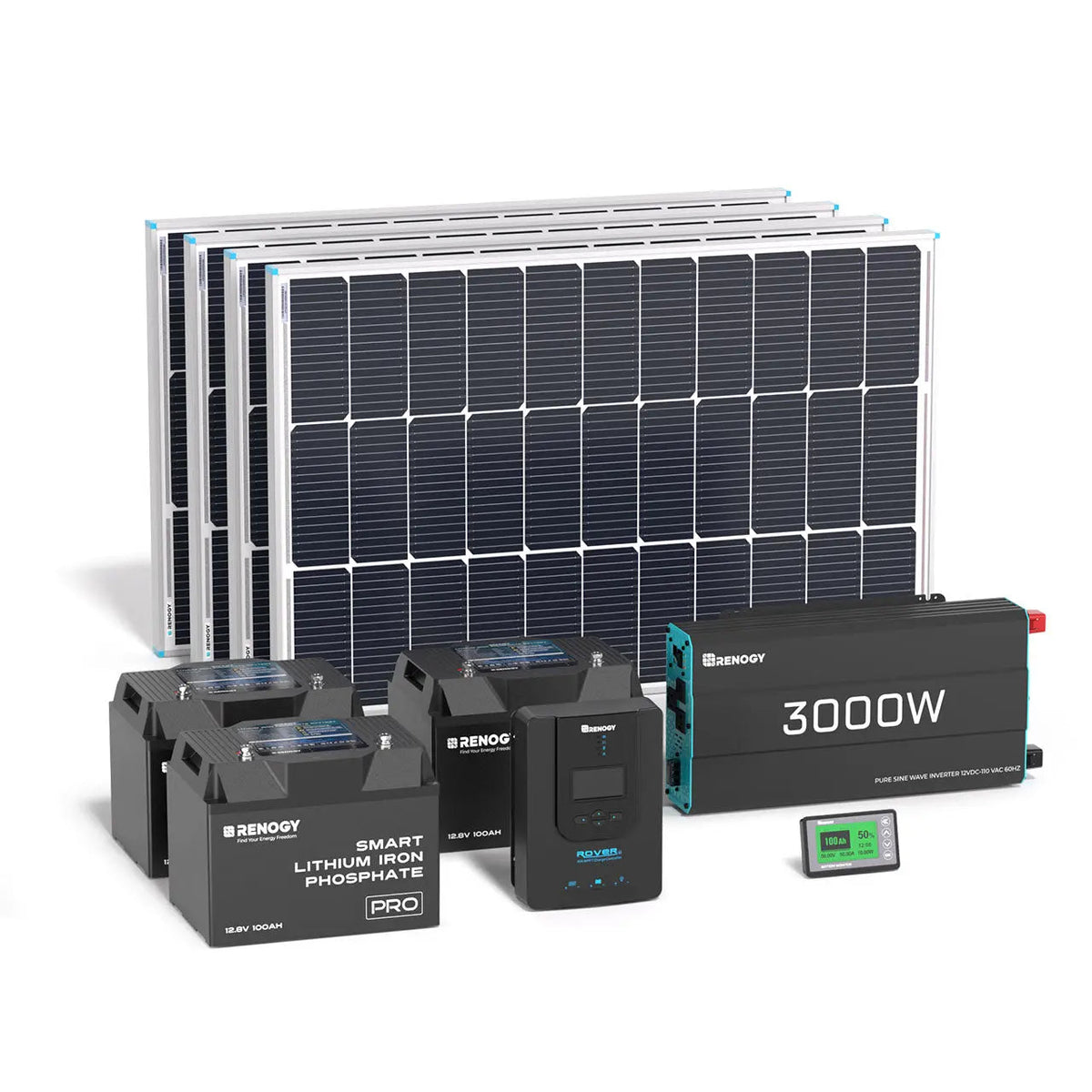

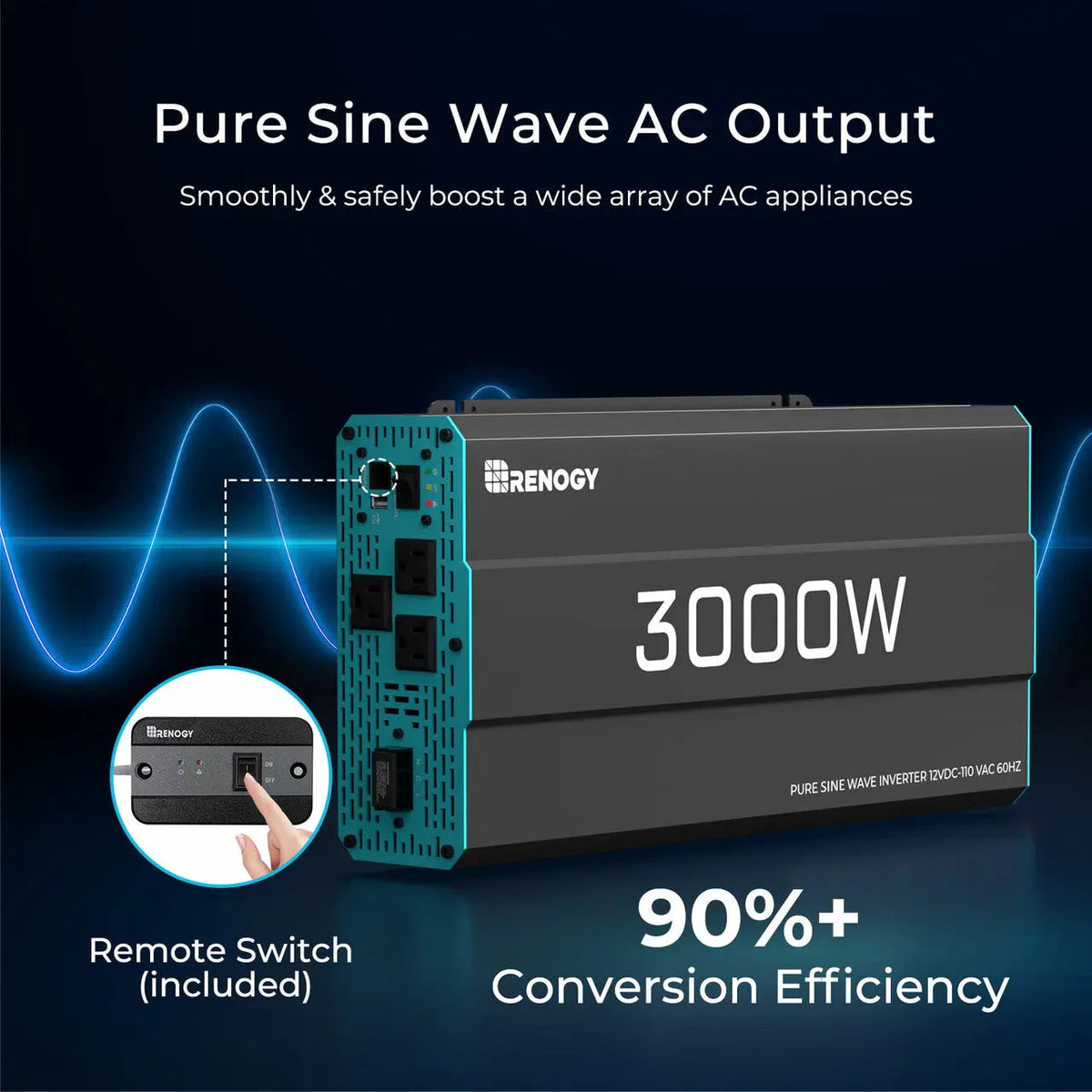

If you intend to use this solar power kit as a power supply for home appliances (e.g. coffee maker, TV, etc.), then you will need an inverter to convert the output voltage from a 12 VDC system to a 120V AC output socket. Renogy offers a variety of inverter products to suit your unique system and meet your power demand.
