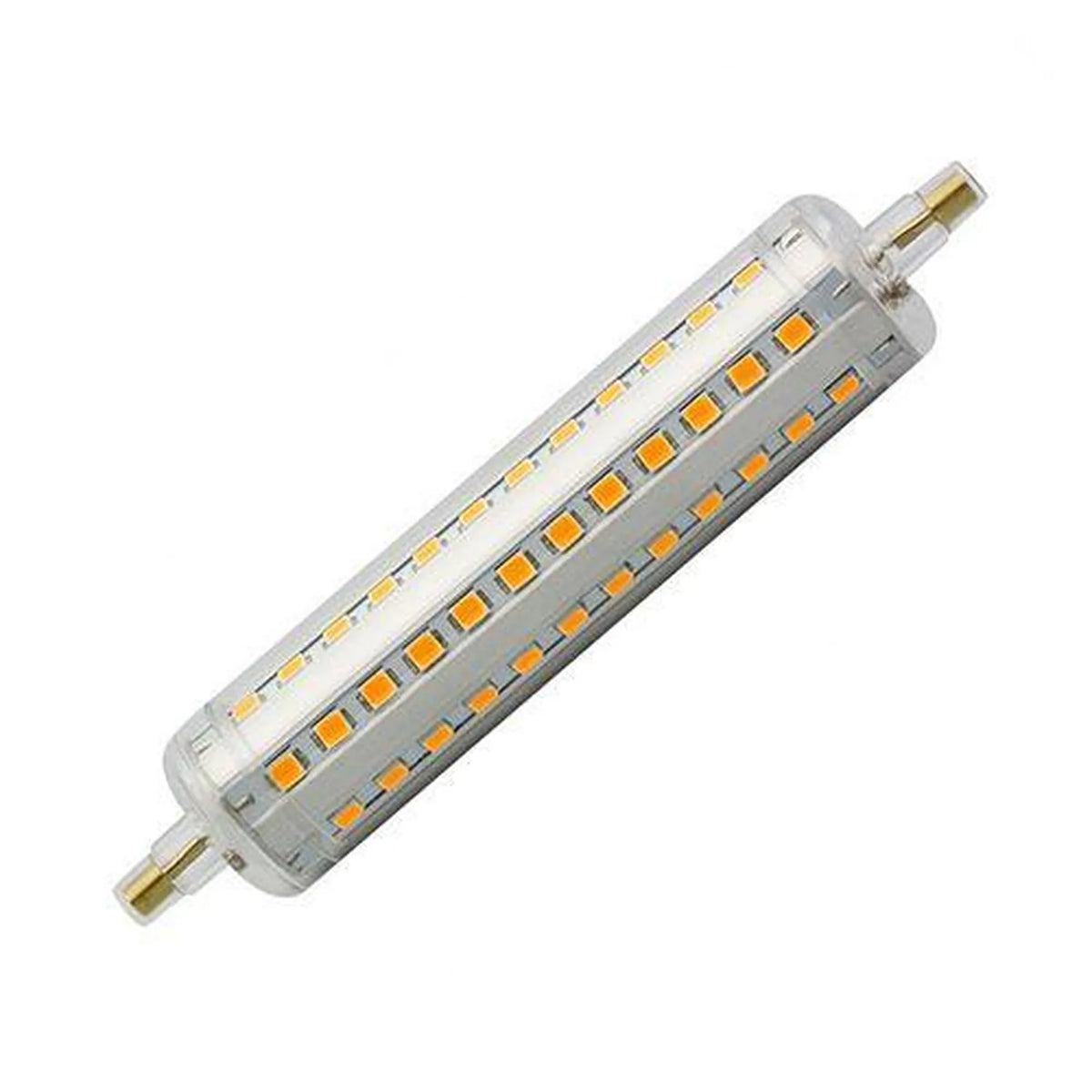

The Ledison LED R7S Bulb 20W is a direct replacement for halogen R7S linear lamps used in floodlights, wall lights, uplighters and architectural fittings. Built to the exact 189mm length of a standard halogen tube, it drops straight into existing fittings without modification.

R7S LED bulb key features

• Light output, 2000lm from a 20W rated power
• Efficiency, 100lm/W
• Base and length, R7S fitting, 189mm pin to pin, 22mm diameter
• Beam angle, 360 degrees for even light distribution in all directions
• LED chips, 90 x SMD2835 LEDs on a copper PCB
• Colour rendering, CRI greater than 80

Applications

The 360-degree cylindrical shape suits floodlights, uplighters, security fittings and decorative wall lighting where the original halogen lamp threw light in every direction. The transparent thermal-resistant polycarbonate housing covers the internal driver and protects it from dust.

Colour temperatures available

This bulb is supplied in three colour temperatures: warm white at 3000K, natural white at 4000K and cool white at 5500K, giving flexibility across indoor and outdoor lighting projects.

Electrical and environmental ratings

Rated for 100-265Volt at 50/60Hz, with an average lifetime of 50,000 hours and an operating temperature range of -20°C to 40°C. Certified to TUV, ROHS, CE and UL. Covered by a 5 year manufacturer warranty. This version is not dimmable.
