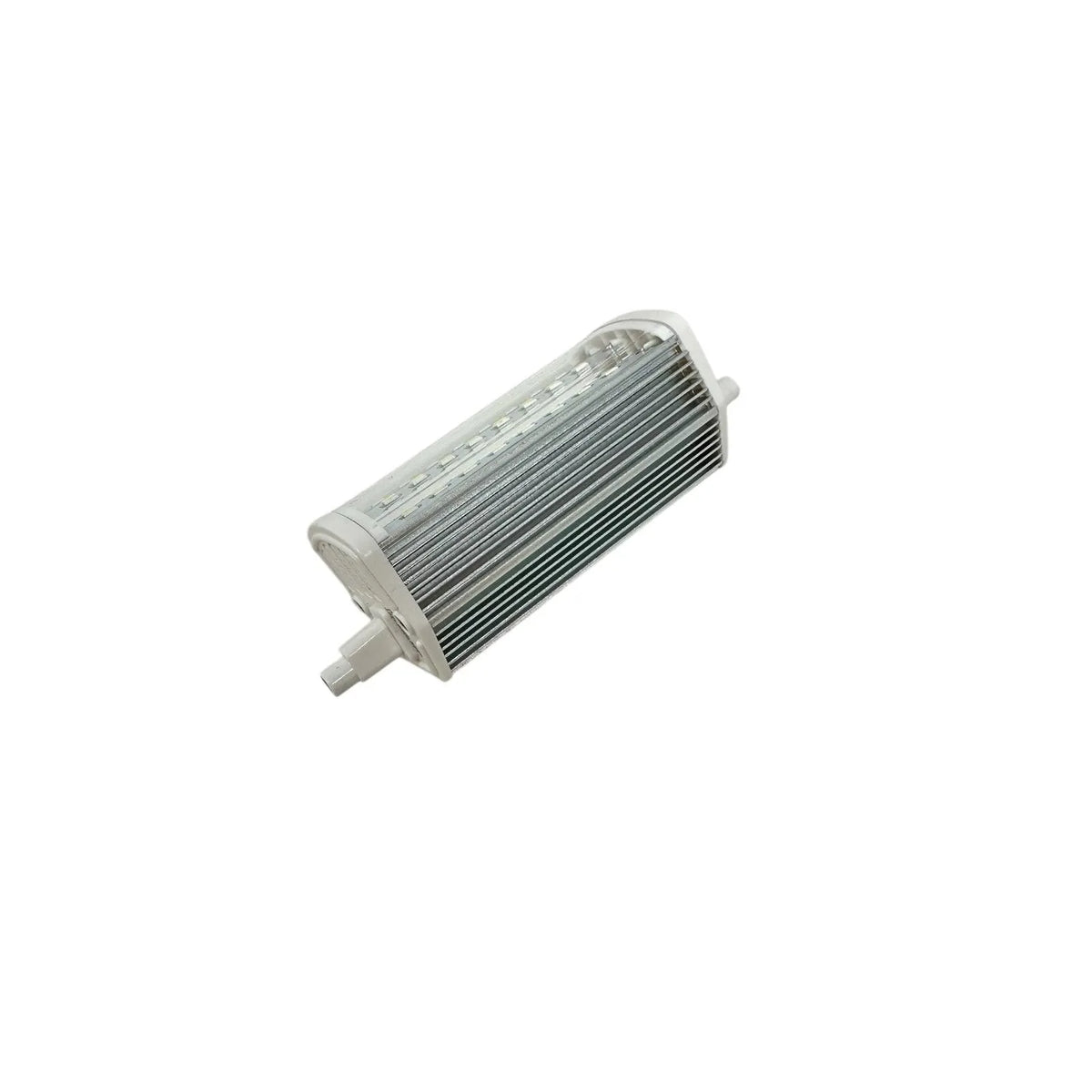

This 10W R7S LED bulb is a direct replacement for halogen tubes of the same fitting size, giving cool white light without the running cost of the lamp it replaces. It outputs 800 lumens of flicker-free light and runs on a 100-240VAC supply.

Key features

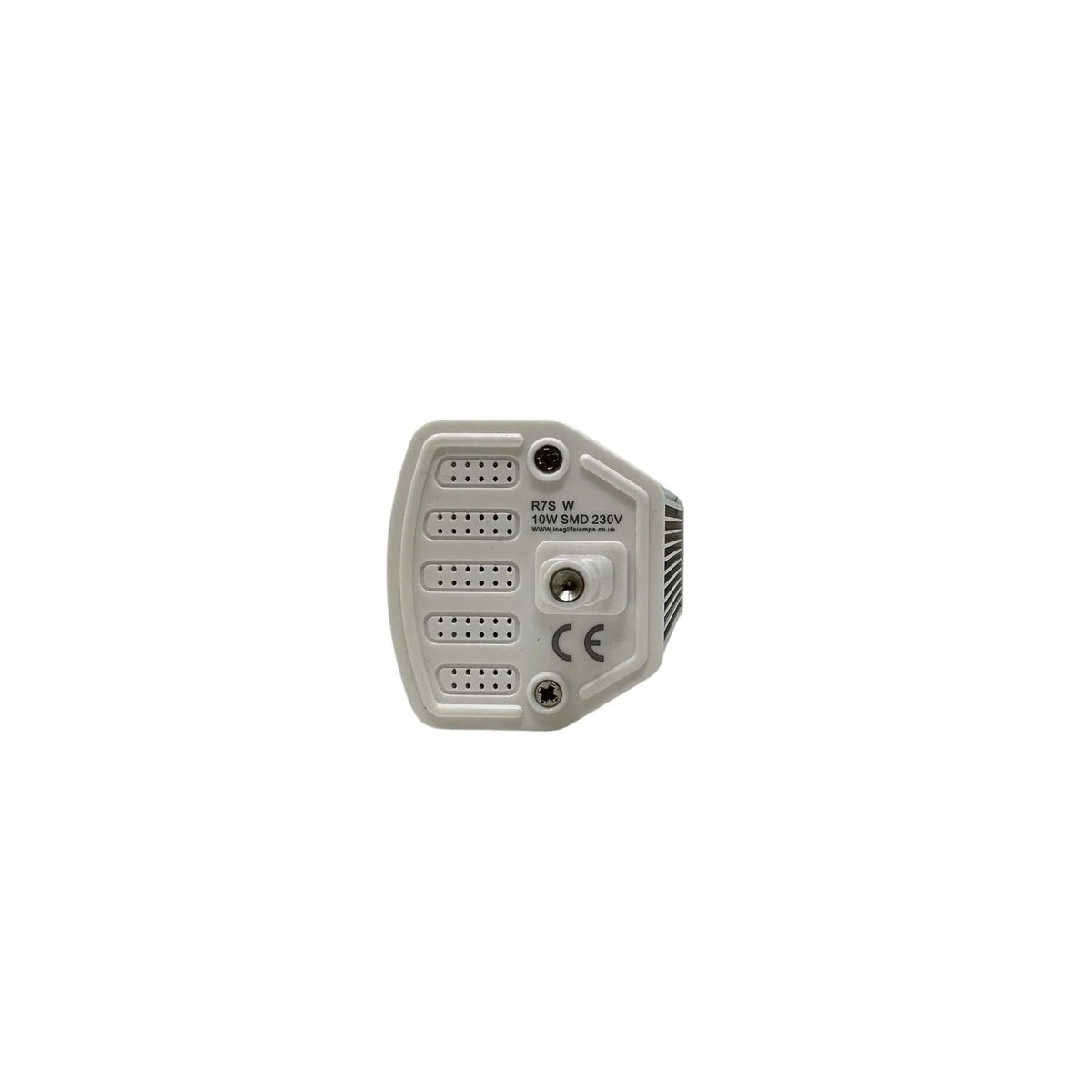

• Fitting, R7S, 118mm pin to pin
• Output, 800 lumens, cool white
• Beam, 120 degree cylindrical design
• Input, 100-240VAC
• Dimmable, no
• Lifespan, over 35,000 hours, with a 30,000 hour life expectancy stated for the range
• Warranty, 5 year standard warranty

Construction

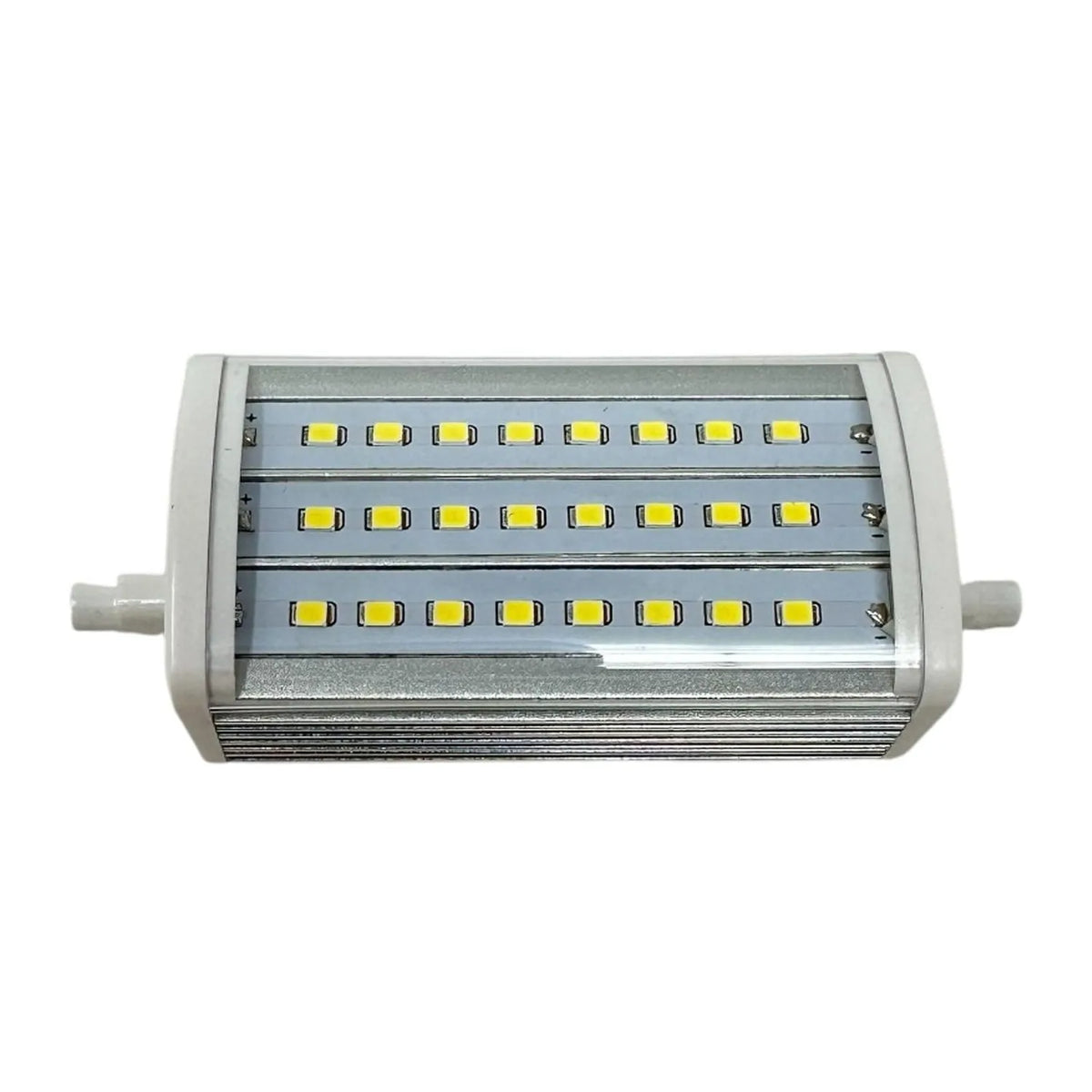

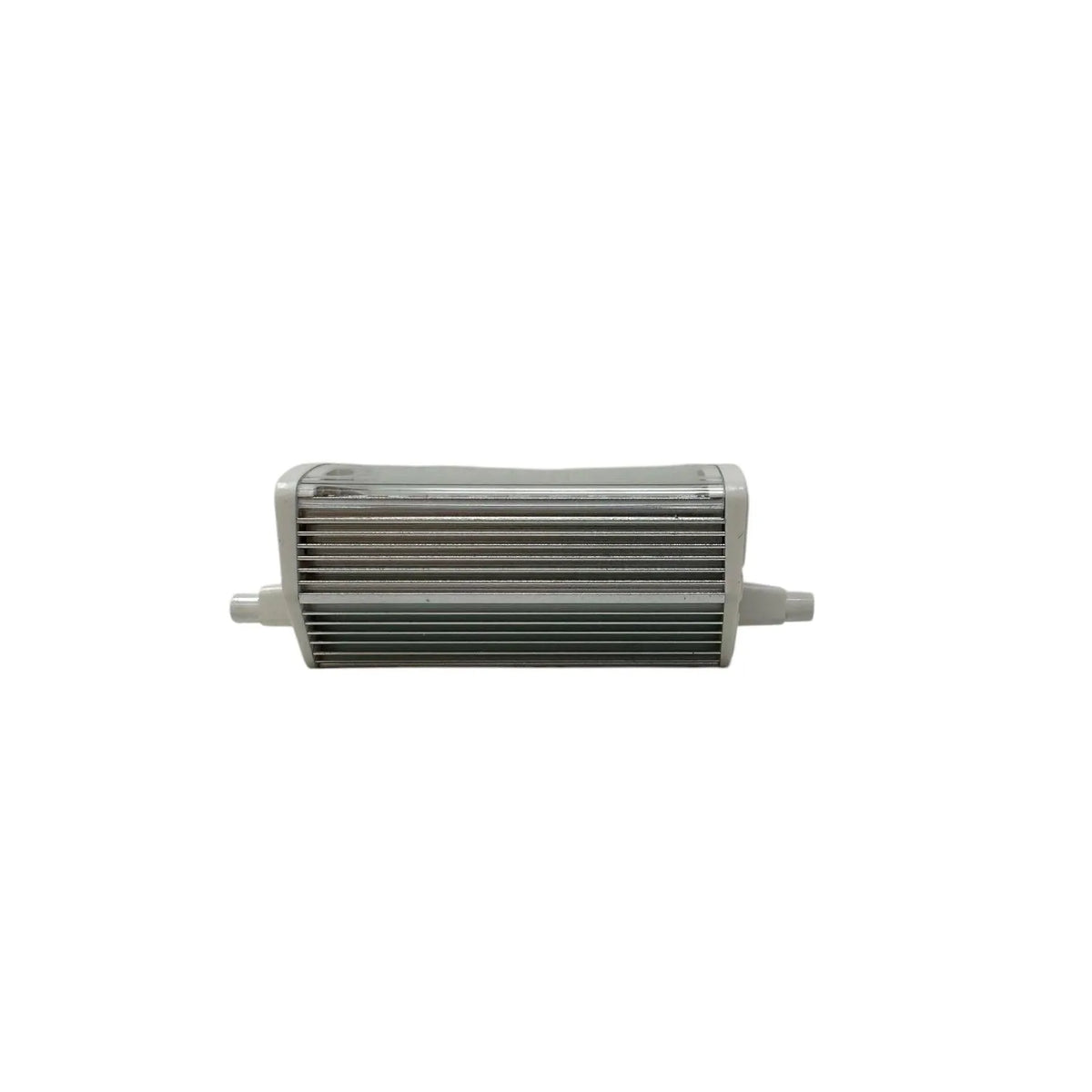

An aluminium housing carries heat away from the LED chips, and a clear plastic lens protects them. This keeps the bulb running cool in enclosed fittings where halogen lamps would otherwise build up heat.

Applications

Use it anywhere an R7S halogen tube is currently fitted: floodlights, security fittings, and linear fixtures that take the 118mm format. Swapping in this LED version cuts energy use while keeping the same fitting and shape, so no rewiring or new fixture is needed.

Replace the halogen tube directly and the new bulb should sit in the existing holder without modification, since it shares the same R7S base and pin spacing.
