Features

1) maglev generator Core-less generator, generating efficiency.

2)3 blades with curved design,low start speed, low noise.

3)20 years use life and 1 year for warranty, warmly welcome to our factory.

4)Small ,light ,stable and safe, special control principle expended the wind speed to 2.5 ~ 25m/s.

5)CE RoHS TUV SGS.

6)High efficiency, matching with hybrid generator system with solar panels for home use, LED street light, Garden lights, boat,camping etc.

Product technical data

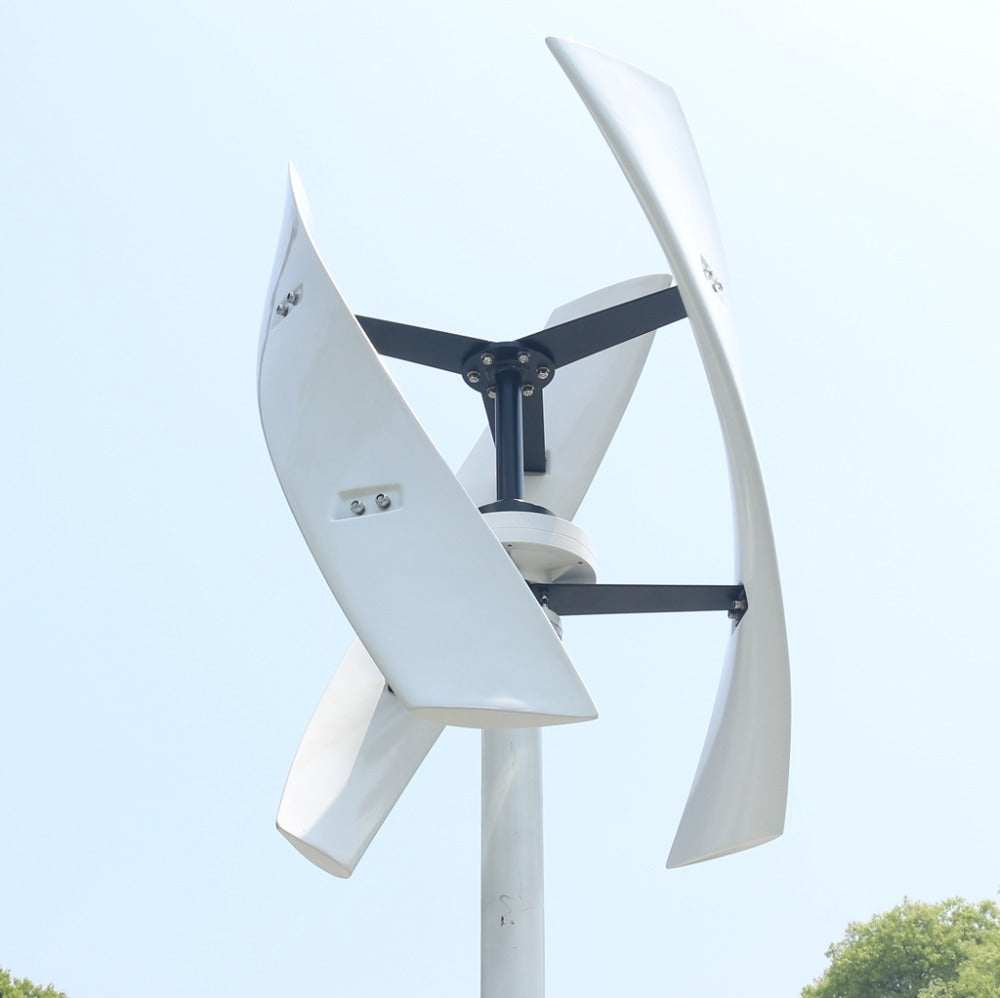

Model RX-400X

1)Started wind speed (m/s):1.3 m/s

2)Cut-in wind speed (m/s): 2.5 m/s

3)Rated Wind speed (m/s): 10 m/s

4)Rated voltage(AC): 12/24V

5)Rated power(W): 400W

6)Max power(W):410W

7)Rotor Diameter of Blades(m): 0.6m

8)Product assembly weight (Kg) <20Kg

9)Blades height(m): 0.8m

10)Safe wind speed (m/s) ≤40m/s

11)Blades quantity 3PCS

12)Blade material glass/basalt

13)Generator:Three phase permanent magnet suspension motor

14)Control System: Electromagnet

15)Mount Height(m):2~12m

16)Generator protection grade IP54

17)Work environment temperature: -25ºC ~+45ºC

18)Work environment humidity  ≤90%

19)Altitude: ≤4500m

20)Overspeed protection: Electromagnetic brake

21)Overload protection: Electromagnetic brake and the unloading unit

Product Size

Please refer to the actual size.Manual measurement errors cannot be avoided.The error of 1-2cm is within the normal range.
