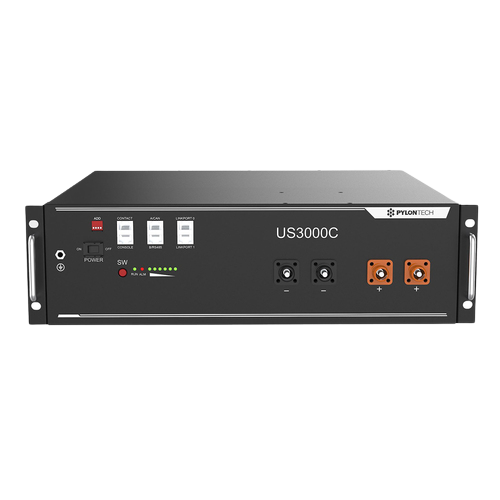

Pylontech | US3000C | 48-volt 3.5kWh | Lithium Battery
£638.00
Sale price
£638.00
Regular price
£2,128.00
Skip to product information
Pylontech | US3000C | 48-volt 3.5kWh | Lithium Battery
£638.00
Sale price
£638.00
Regular price
£2,128.00
Shipping calculated at checkout.
US3000C
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
US3000C is the latest ESS battery system provided by Pylontech. It’s designed around providing a longer service life at higher power output/density per module. Besides its high storage capacity and ease of installation it provides the ability to scale up to commercial sized storage systems and are used effectively in these high power demand environments.
Note that a Pylontech cable kit will be required to connect a single battery or battery bank to an inverter charger.
Features and benefits
- The expected design life is 15+ years
- Warranty of 10 years (>6000 cycles with 80% end-of-life capacity)
- Greater depth of discharge (DOD 90%)
- Usable capacity of 3.2kWh @ 48VDC
- Working temperatures of between 0°C to 50°C
- The internal molecular structure of the LFP batteries is more stable and therefore safer, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO
- Advanced BMS that allows you to report alarms in real-time
| Nominal Voltage(V) | 48 | ||||
| Nominal Capacity (Wh) | 3552 | ||||
| Usable Capacity (Wh) | 3200 | ||||
| Dimension(mm) | 442x420x132 | ||||
| Weight(Kg) | 32 | ||||
| Discharge Voltage(V) | 45~53.5 | ||||
| Charge Voltage(V) | 52.5~53.5 | ||||
| Charge / Discharge Current (A) | 37 (Recommend) | ||||
| 74 (Max) | |||||
| 100 (Peak@15s) | |||||
| Communication Port | RS485ˈCAN | ||||
| Single string quantity(pcs) | 8 | ||||
| Working Temperature/ć | 0~50 | ||||
| Shelf Temperature/ć | -20~60 | ||||
| Humidity | 5%~85% | ||||
| Altitude (m) | <2000 | ||||
| Design life | 15+ Years (25ć/77̧) | ||||
| Cycle Life | >6000, 25℃ | ||||
| Authentication Level | IEC62619/CE /UN38.3 |
