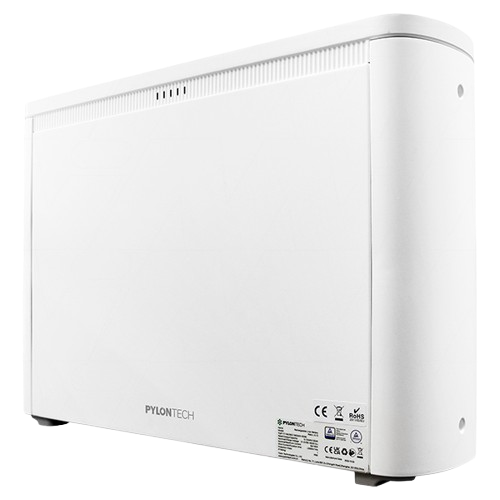

Pylontech Pelio 51.2V 100Ah 5.12kWh Slim-line ESS Module - PELIO-L
£1,607.00
Sale price
£1,607.00
Regular price
£2,377.00
Skip to product information
Pylontech Pelio 51.2V 100Ah 5.12kWh Slim-line ESS Module - PELIO-L
£1,607.00
Sale price
£1,607.00
Regular price
£2,377.00
Shipping calculated at checkout.
Pelio-L 51.2V
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Pylontech Pelio-L is a modern, slim-profile energy storage solution designed for residential and light commercial applications. Featuring a clean white steel enclosure and flexible installation options—floor or wall-mounted, indoors or outdoors—the Pelio delivers both style and practicality.
With scalable capacity from 5.12kWh to 102.4kWh, a built-in advanced BMS, and full remote monitoring capability, the Pelio system offers dependable performance and long-term reliability for any energy-conscious home or business.
Features & Benefits:
- Scalable & Modular design for systems 5.12kWh to 102.4kWh (up to 20 modules)
- Lightweight and Slimline design
- High Capacity 51.2V 100Ah modules 1C discharge capability
- Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Advanced BMS with over discharge, over charge, over current and high/low temperature protection to ensure safe operation
- IP65 Rated and suitable for Indoor or Outdoor installation

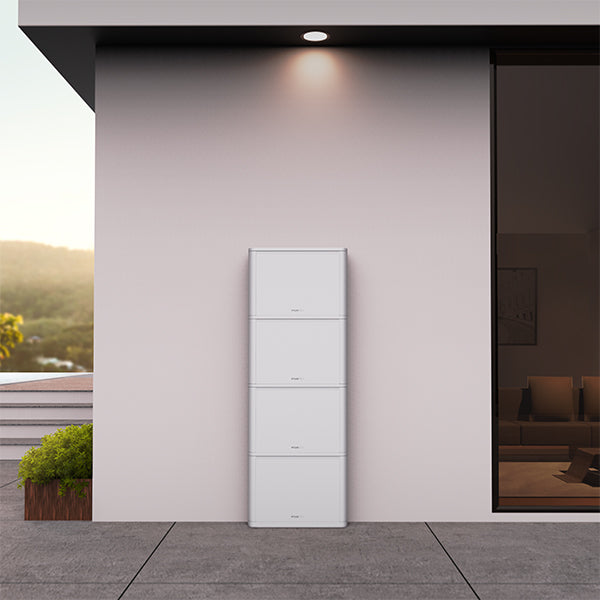

- Floor or Wall mountable to adapt to any location (Wall – 3 modules max. Ground – 4 modules max)
- 24/7 Wifi Monitoring with simple to use mobile App
- Monitor your energy production and consumption in real time
- 15 year design life
- Compatible with many available Hybrid inverters
- Meets international standards: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
- Clean Energy Council Approved (CEC)
Warranty: The Pelio-L comes with a standard warranty of 10 years.
Specifications:
Chemistry LiFePO4 System Voltage (V) 51.2V System Capacity (kWh) 5.12kWh System Capacity (Ah) 100Ah Charge Voltage (V) 56.0V – 56.8V System Recommended Charge/Discharge (A) 80A (1 cable set) System Max. Charge/Discharge (A) – 15 Minutes 100 – 120A (1 cable set) System Peak Charge/Discharge (A) – 15 seconds 120 – 200A (1 cable set) Discharge Voltage (V) 44.8V – 56.8V Depth of Discharge (DoD) 95% Communications RS485, CAN Operation & Connection WIFI (2.4G), USB2.0 Protection Class IP65 Communications RS485 / CAN Design Life (Years) 15 years Operating Temperature Charge -0°C to +50°C Operating Temperature Discharger -10°C to +50°C Altitude <4000 metres Humidity 5% – 95% RH – No Condensation
