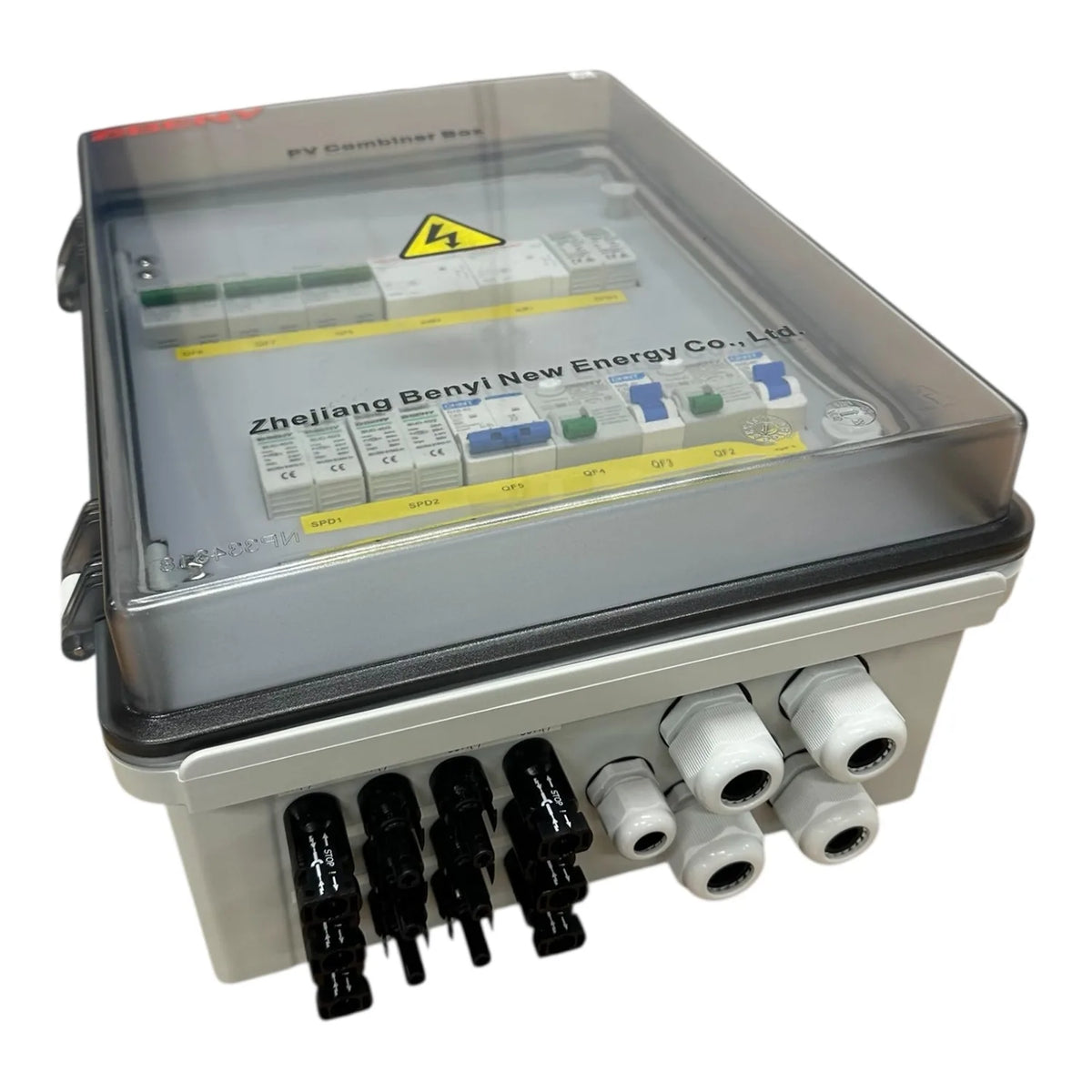

This Voltacon combiner box brings AC and DC protection together in one IP65 rated enclosure, sized 430 x 330 x 180mm. Built for hybrid and off-grid solar systems up to 7kW single phase, it covers PV string protection, battery DC isolation, inverter AC protection, EV charger supply and surge protection in a single pre-wired unit.

How the solar pv combiner box works

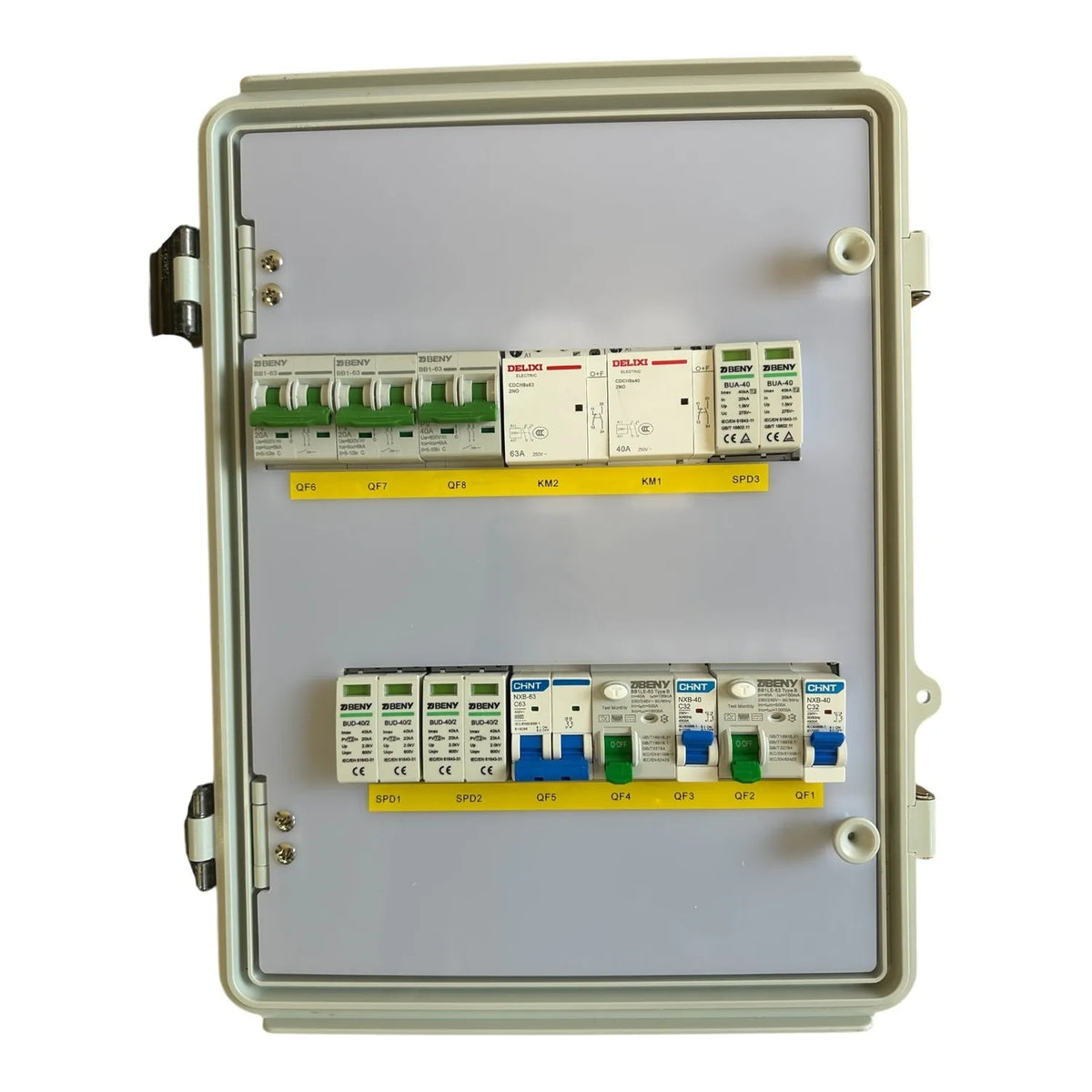

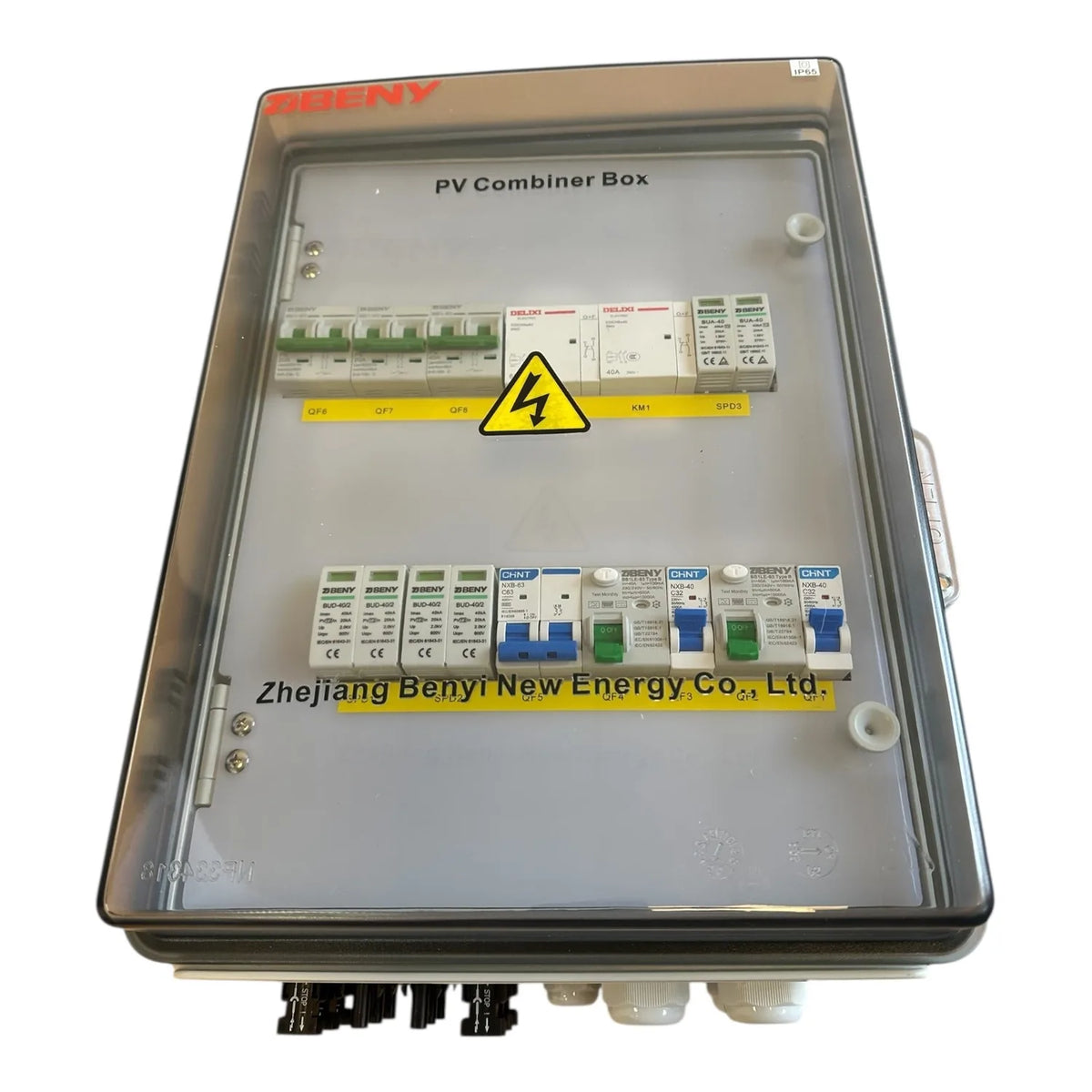

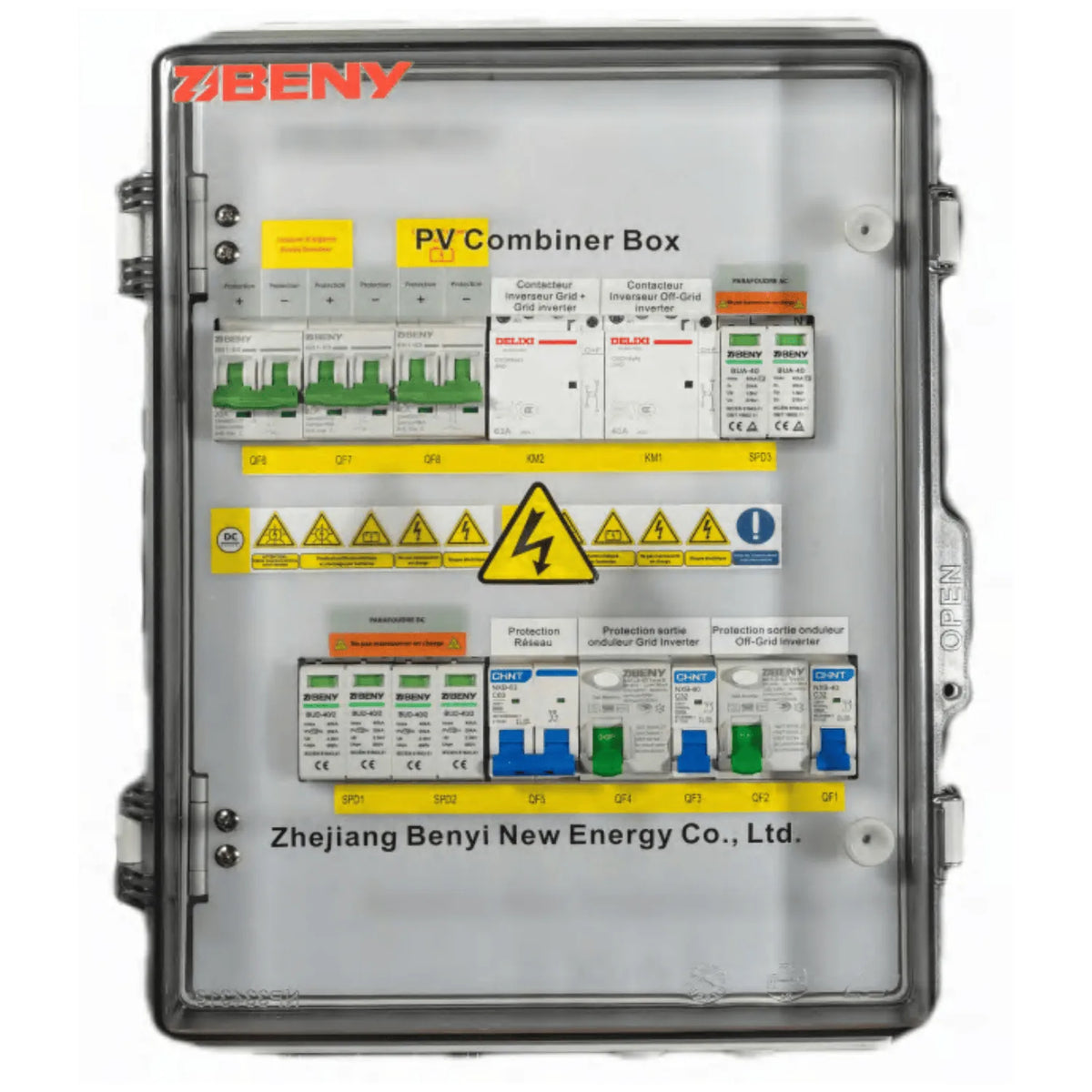

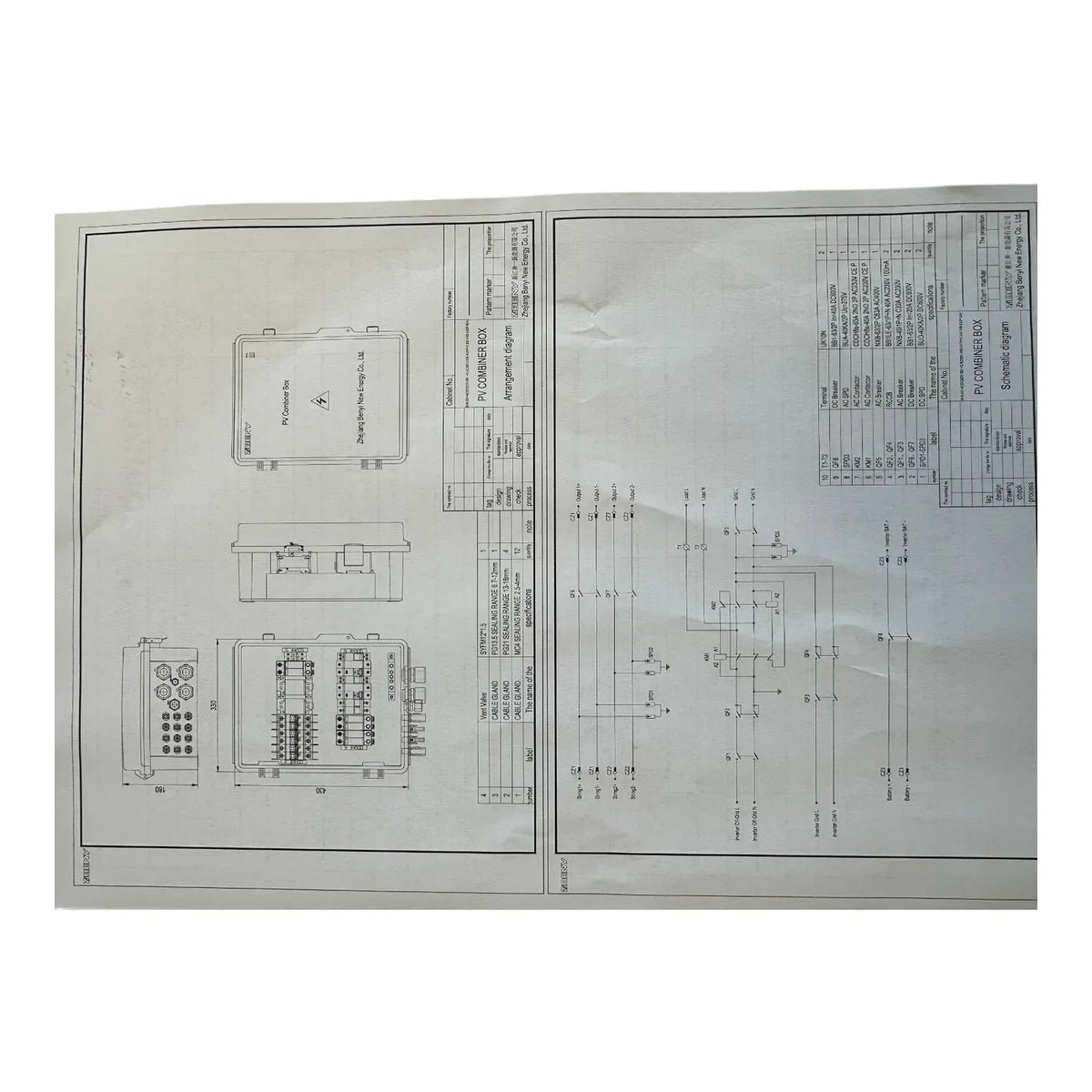

The enclosure follows a single-line diagram layout, with each power interface on its own protective device and kept logically separate from the others.

• Two independent MPPT solar PV strings, protected to 600V DC
• EV charger supply on a dedicated MCB-protected circuit
• Inverter AC output protected for systems up to 7kW single phase
• Dedicated DC isolator for battery connection control
• AC surge protection on both grid/generator input and inverter output

Key features

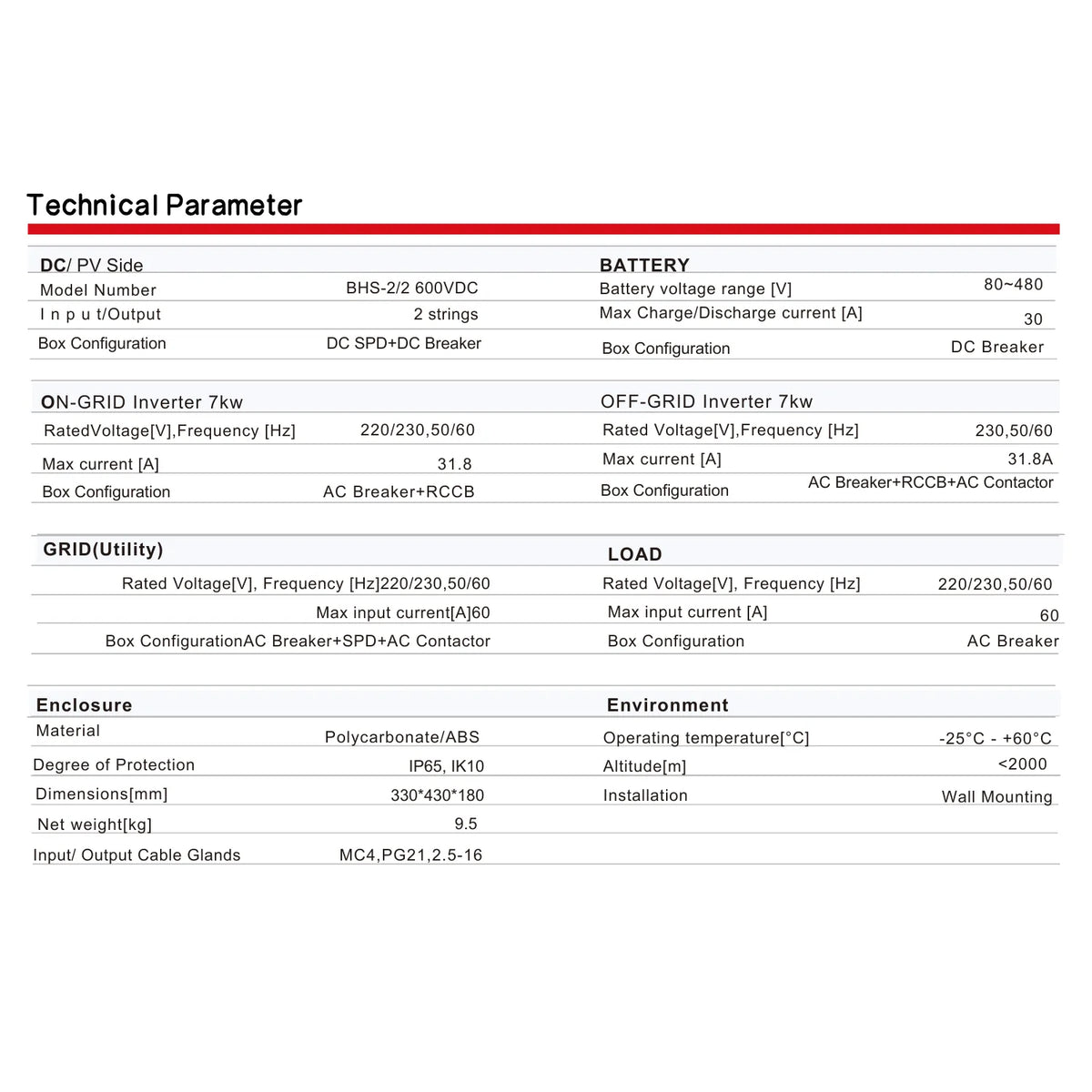

• Enclosure, IP65 rated PC, 430 x 330 x 180mm
• PV section, 2-string input and output, up to 600V DC, MC4 connectors
• DC PV breaker, 2-pole, 600V, 20A
• Battery DC breaker, 2-pole, 600V, 40A, MC4 connectors
• On-grid AC protection, 1P+N, 230V, 32A breaker with Type B 2-pole 40A 100mA RCCB
• Off-grid AC protection, 40A 230V contactor, 2-pole 230V 63A grid/load breaker, 63A 230V grid/load contactor
• Surge protection, 600V DC on the PV side, 2-pole 275V AC surge protection device

Applications

Suited to single phase hybrid solar systems up to 7kW and off-grid setups combining PV, battery and optional generator or grid backup. It also works well where EV charging needs its own protected supply, or where a single organised AC/DC enclosure is preferred over separate boards.

Installation notes

Installation must be carried out by a qualified electrician. Check inverter compatibility and AC/DC ratings before connecting. A Type B RCD is required for EV charger applications and is included. All connections must comply with current wiring regulations and local grid connection requirements.
