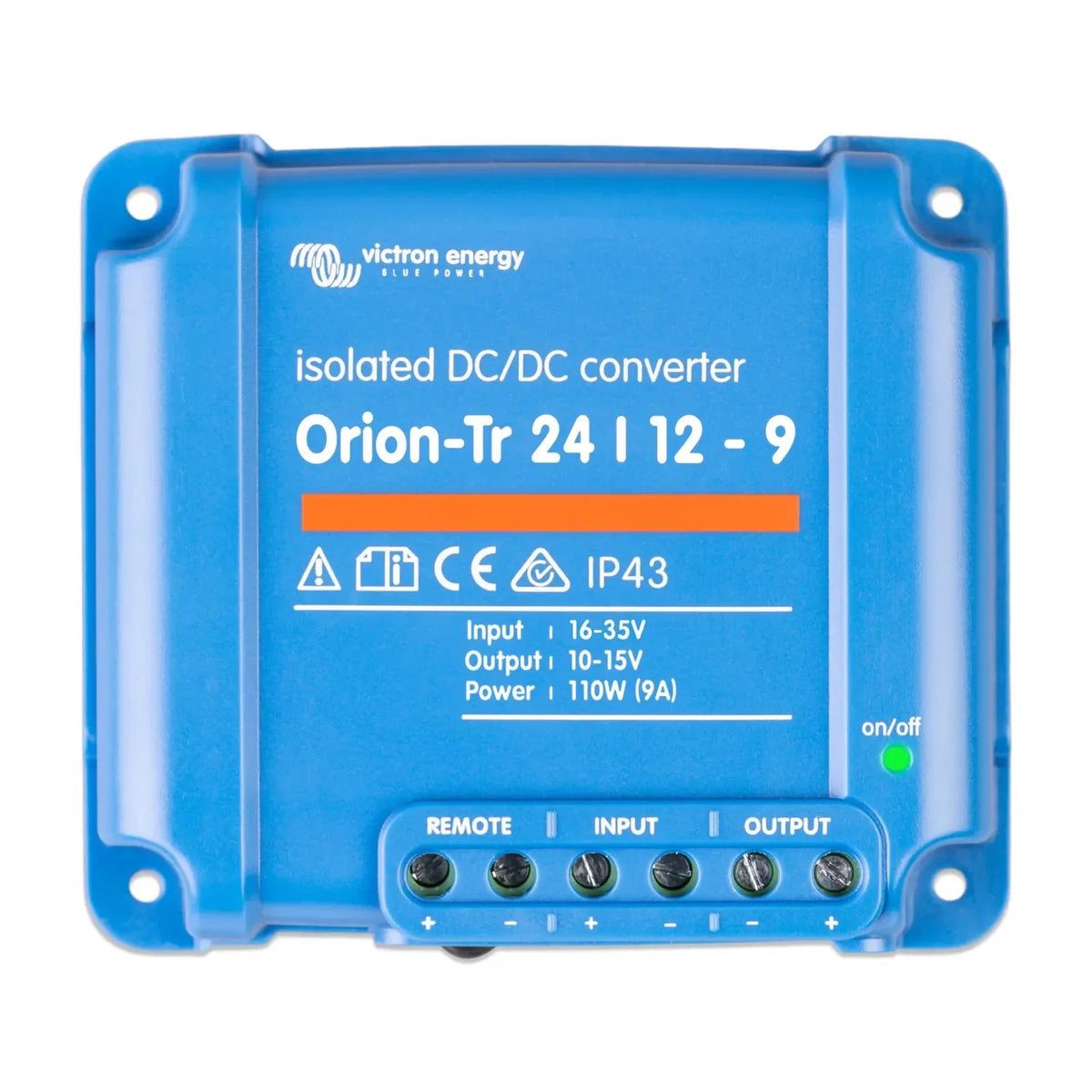

The Victron Orion-Tr 24/12-9A is a galvanically isolated DC-DC converter that takes a 24V DC input and delivers a regulated 12V DC output at up to 9A continuous, giving 110W of usable power. It suits vehicles, boats and off-grid systems where two battery banks need to stay electrically separate from one another.

Key features

• Galvanic isolation, transformer-based, so the input and output share no common electrical path, preventing ground loops.
• Conversion, 24V input to 12V output at 9A continuous, up to 110W.
• Wide input tolerance, copes with the normal voltage swing of a real 24V battery bank during charge and discharge.
• Compact build, weighs 0.5kg, small enough for panel boards, lockers and engine bays.
• Stable regulated output, 12V loads stay protected from fluctuations on the 24V side.
• Fully encapsulated, protection against vibration and moisture, suited to mobile and marine environments.

How it works

The Orion-Tr range uses an isolated transformer topology. In dual-battery setups this stops a 24V service bank from creating a ground fault path when it feeds 12V accessories, and it keeps a fault on the 12V side from feeding back into the 24V bank.

At 110W, it's suited to loads like lighting circuits, control electronics, communications gear, or charging a smaller 12V battery from a larger 24V bank. It is a converter for continuous load supply, not a battery-to-battery charger. If you need to charge a 12V battery from a 24V source with proper charge profiles, the Orion-Tr Smart range is the correct product instead.

Applications

• Powering 12V accessories and control circuits from a 24V vehicle or coach electrical system.
• Marine installations where a 24V bank needs to run isolated 12V instrument or navigation circuits.
• Off-grid cabins and mobile setups running a 24V bank alongside a 12V supply rail.
• Telecoms and industrial enclosures needing a stable isolated 12V supply from a 24V DC bus.
• Dual-battery systems where electrical isolation between banks is a safety requirement.

What's in the box

• 1x Victron Orion-Tr 24/12-9A (110W) Isolated DC-DC Converter

Installation notes

Fit this with correct fusing on both input and output sides, matched to the wire gauge used, in a ventilated location away from direct water ingress. For marine use, follow the relevant NMEA or flag-state wiring standards. It is not suitable for use with AC supplies.
