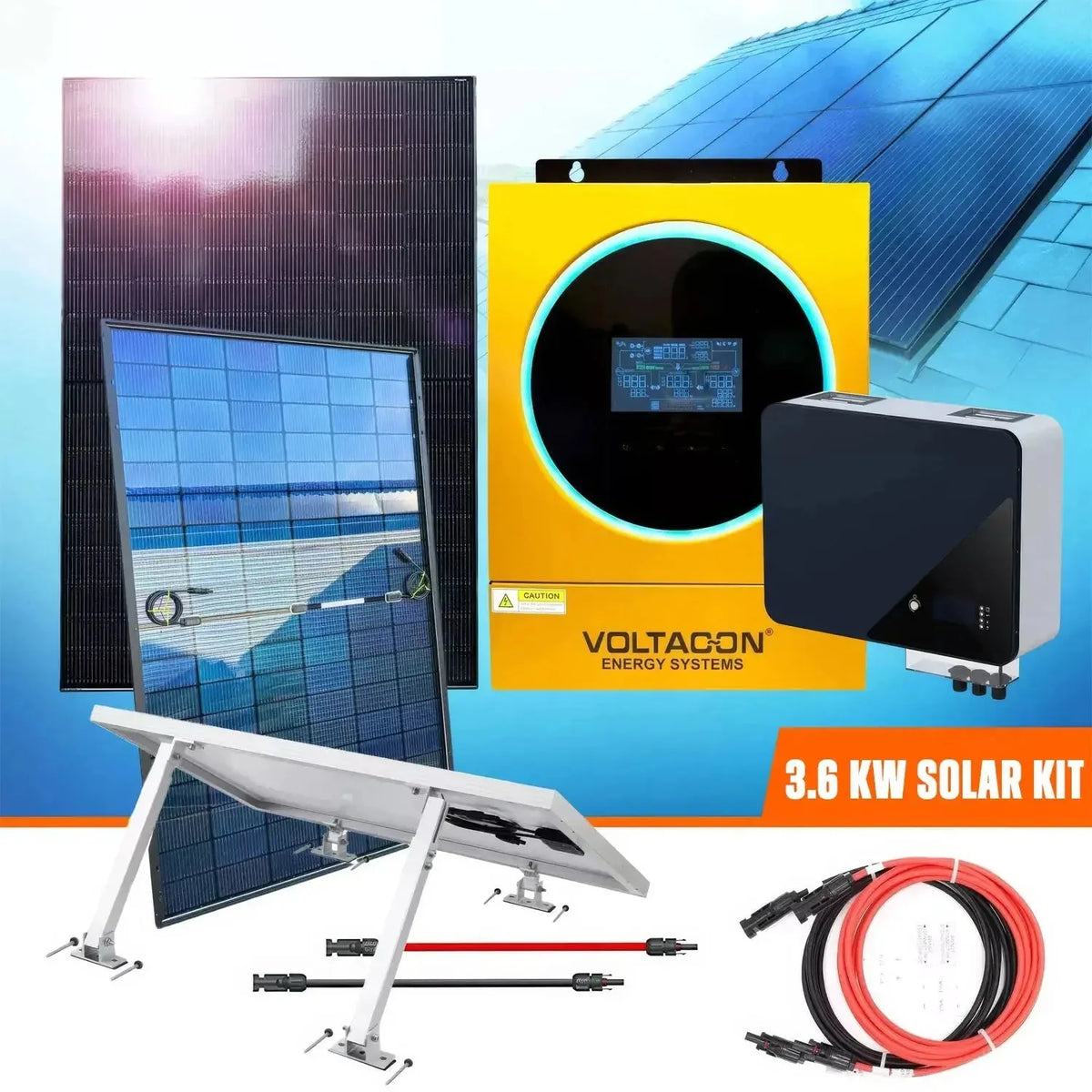

A complete off-grid solar power kit built around a Voltacon 3.6kW solar inverter with integrated MPPT battery charger. The kit delivers 3600W continuous AC output and pairs the inverter with 6 x 440W bifacial panels, a 2.5kWh 24V lithium battery and the cabling, protection devices and mounting hardware needed to get the system running.

Off grid solar panel kit with battery and inverter

• Inverter output, 3.6kW continuous AC, pure sine wave
• Battery, 2.5kWh 24V lithium with active cell balancing, IP65 enclosure
• Solar array, 2640W from 6 x 440W bifacial panels
• Expansion, additional battery units can be added, up to 16 in parallel
• DC cabling, 25 metres red and 25 metres black 6mm² solar cable
• Protection, AC consumer unit with surge protection, Mersen DC battery isolator with 2 x 100A fuses, solar string fuses, 25A AC isolator

Applications

Suited to off-grid homes, remote buildings and cabins, backup power for essential loads, and agricultural buildings or workshops without a grid connection.

Mounting and setup

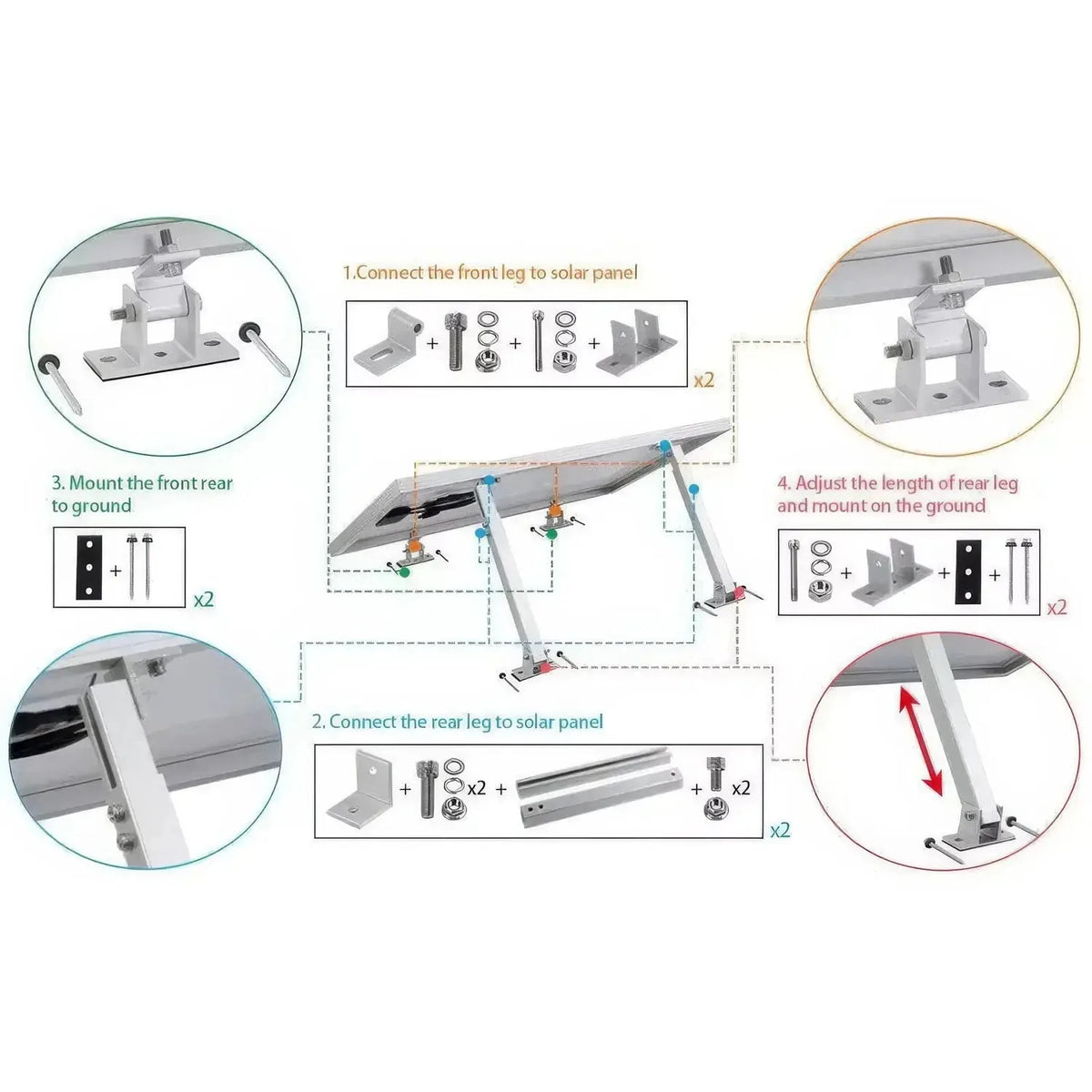

The mounting kit for the 6 panels allows an adjustable tilt of 15 to 30 degrees. A full wiring diagram and setup instructions are included, and installation should be carried out by a qualified installer.

What's in the box

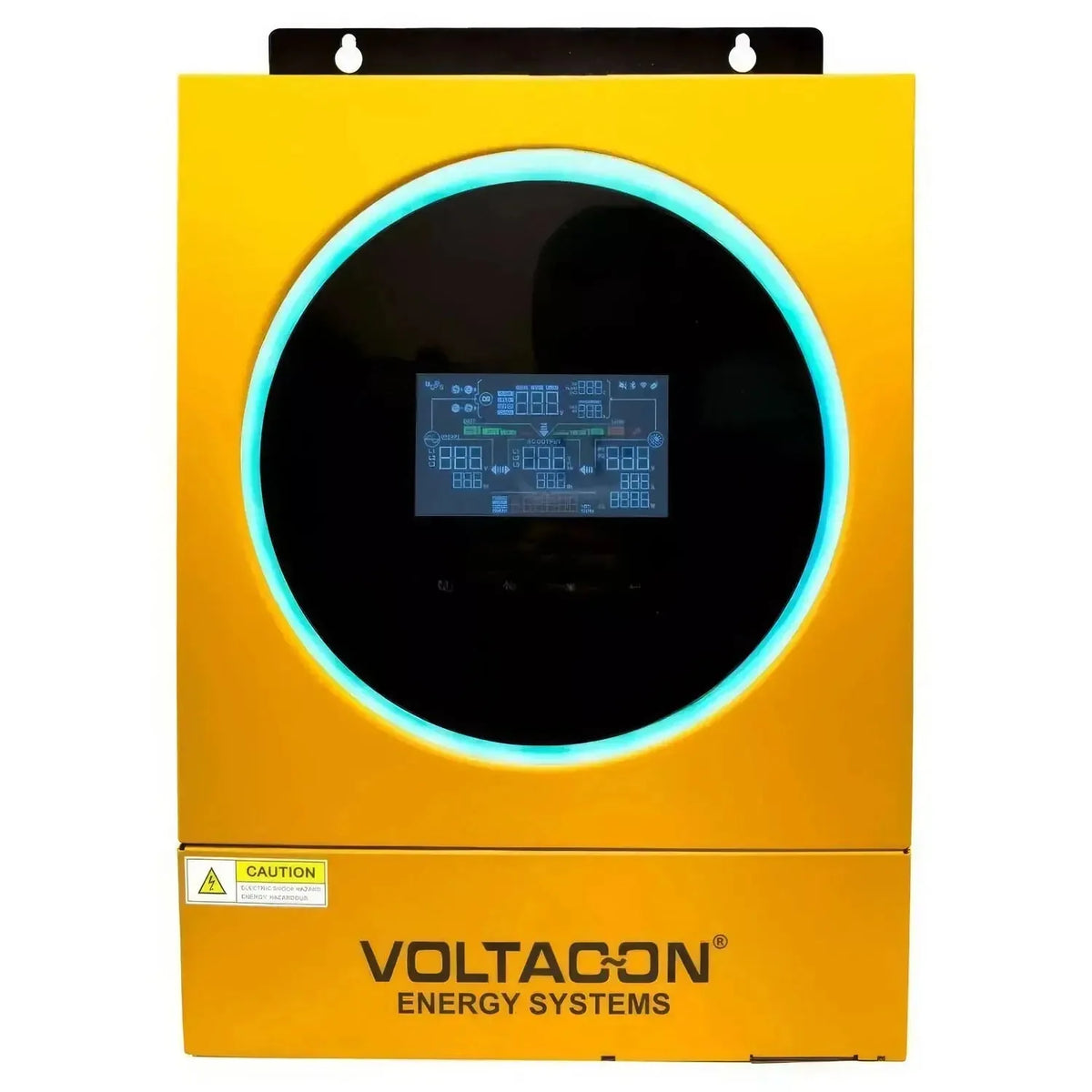

• 1 x Voltacon 3.6kW solar inverter with MPPT charger, 230VAC

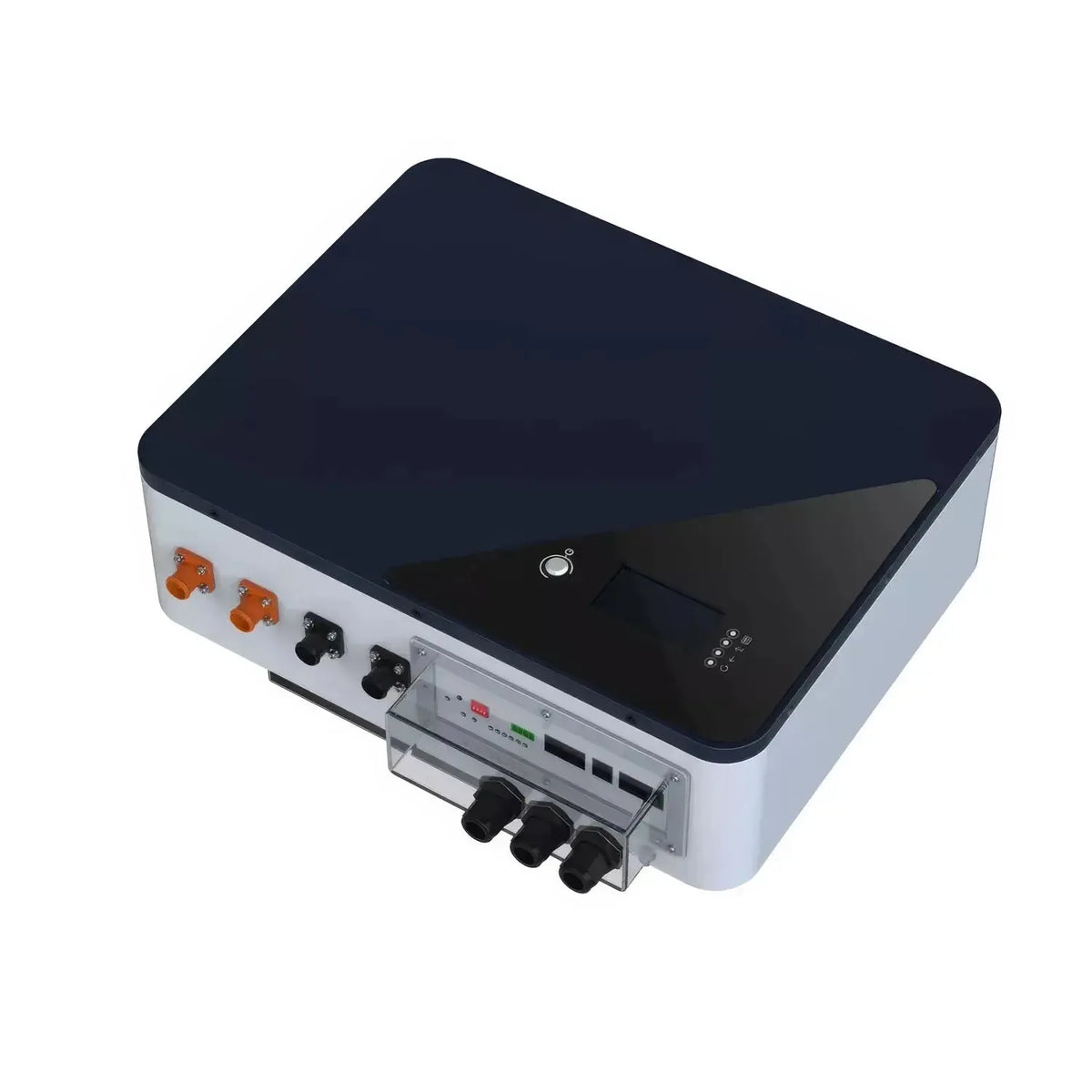

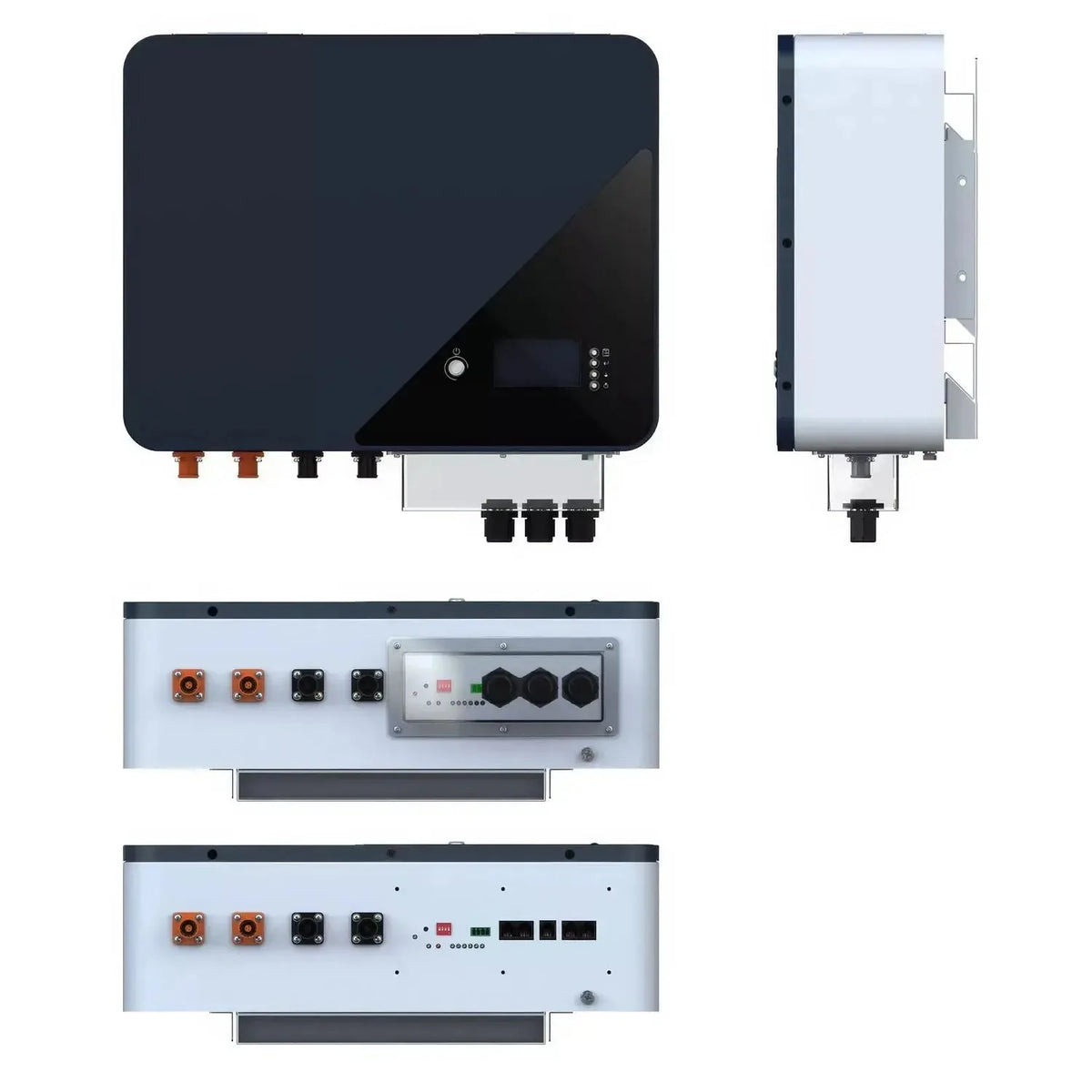

• 1 x 2.5kWh 24V lithium battery (expandable)

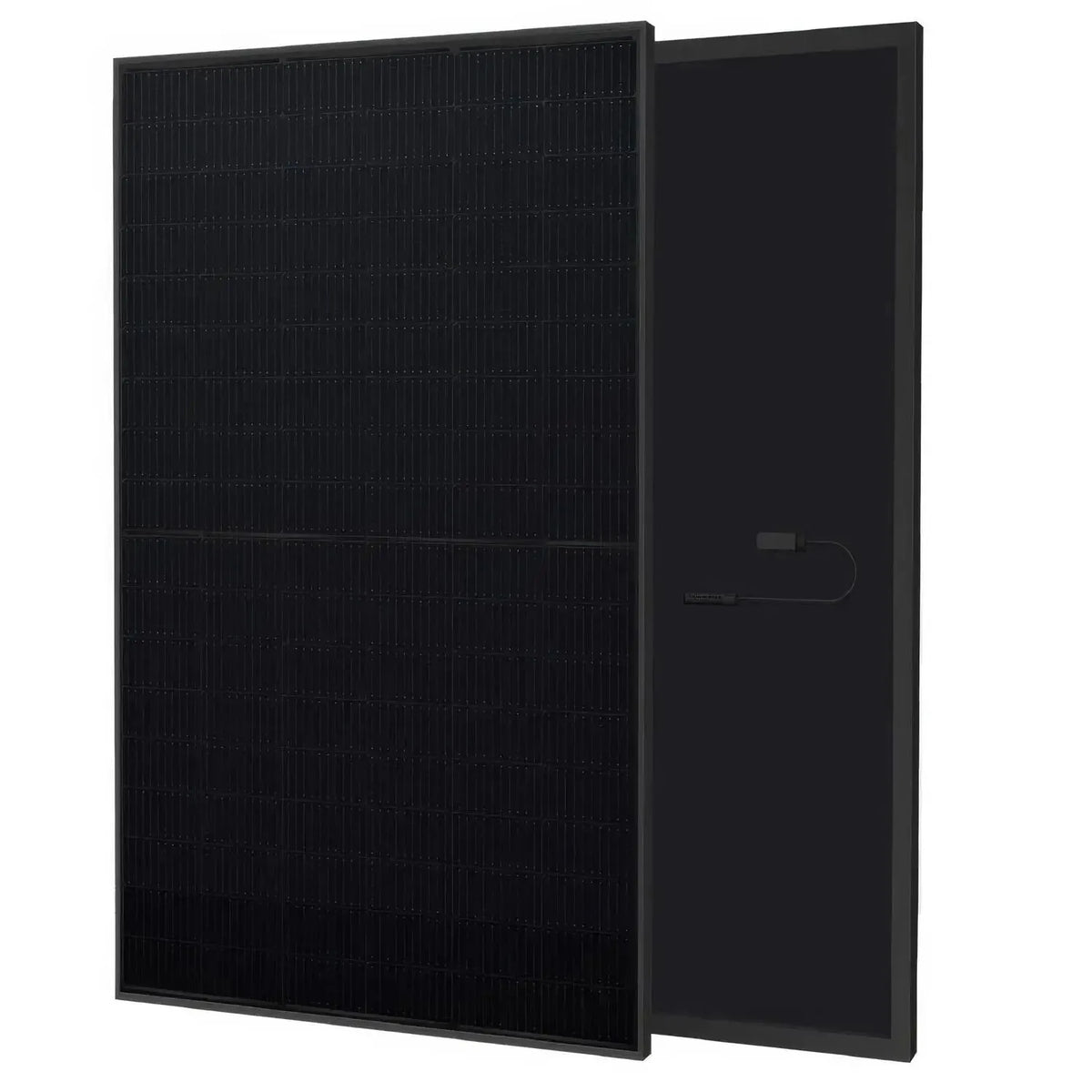

• 6 x 440W bifacial solar panels (2640W total)

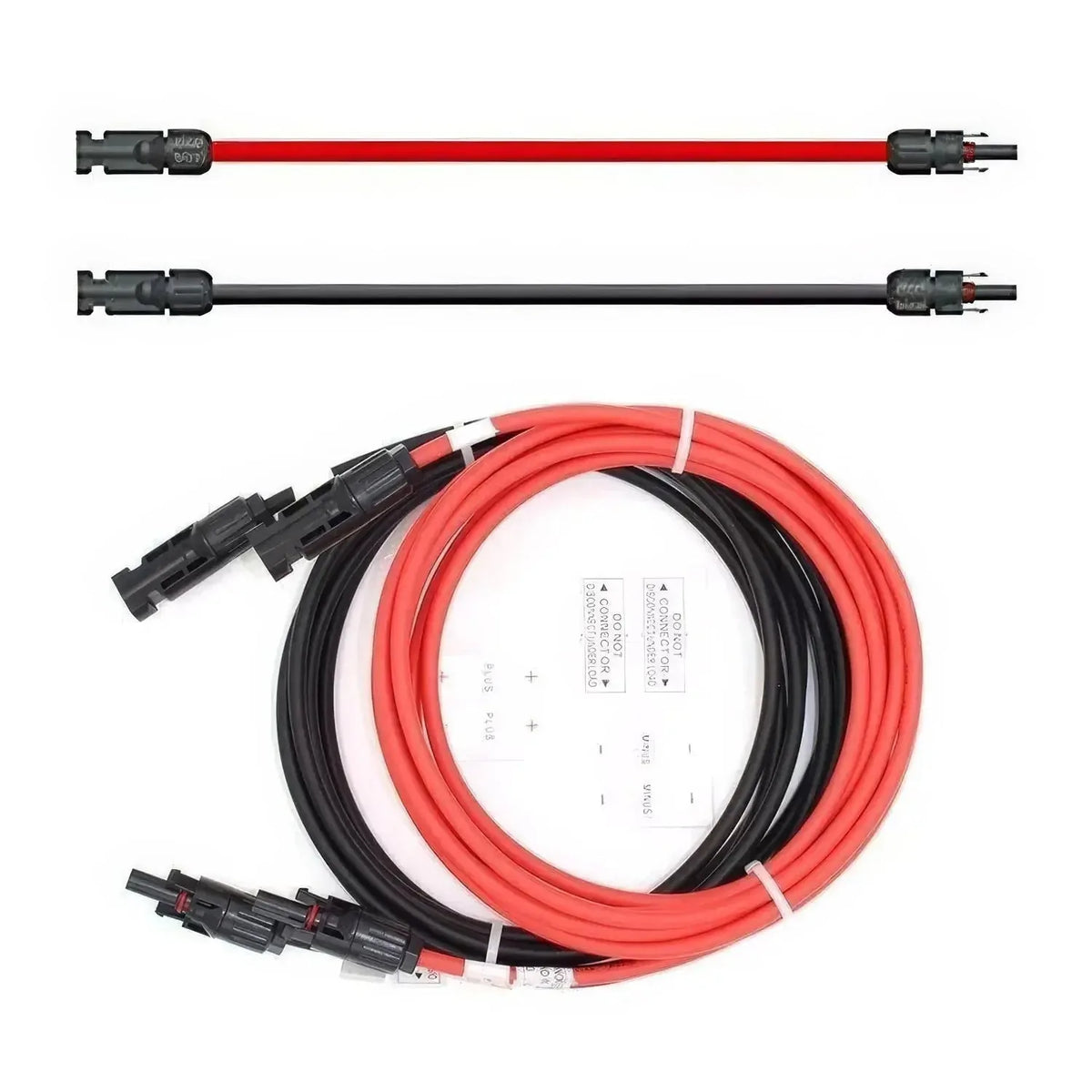

• 25m red and 25m black 6mm² solar DC cable

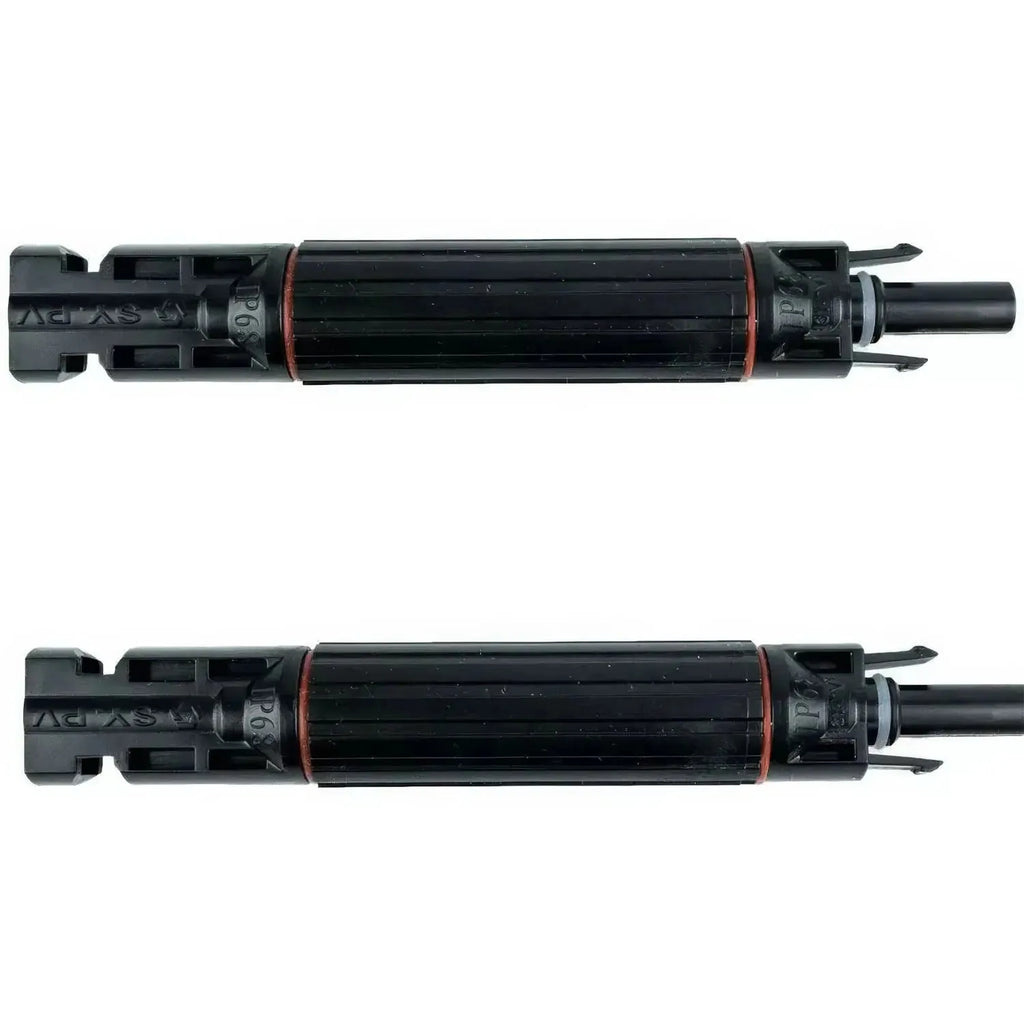

• 2 x solar panel connectors
• 5m 6mm² 3-core AC cable, 230V
• 1 x AC consumer unit with surge protection
• 2 x solar string fuses
• 1 x solar panel DC isolator
• 1 x AC isolator 25A

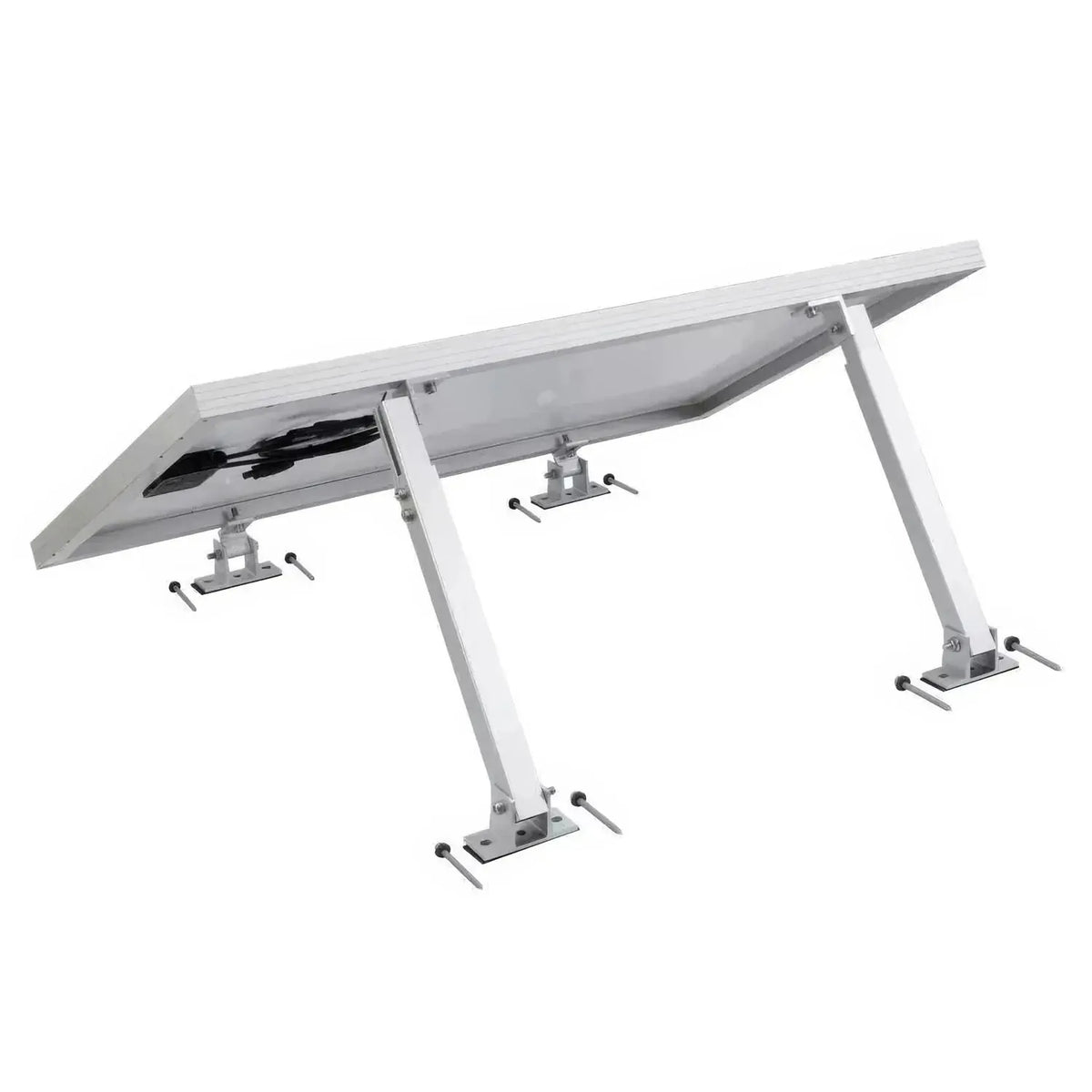

• 6 x panel mounting kit, adjustable 15 to 30 degree tilt
• 1 x Mersen DC battery isolator with 2 x 100A fuses
• Wiring diagram and setup instructions

Battery specification

Warranty: 1 year on the inverter, 5 years on the battery, 30 years on the panels.
