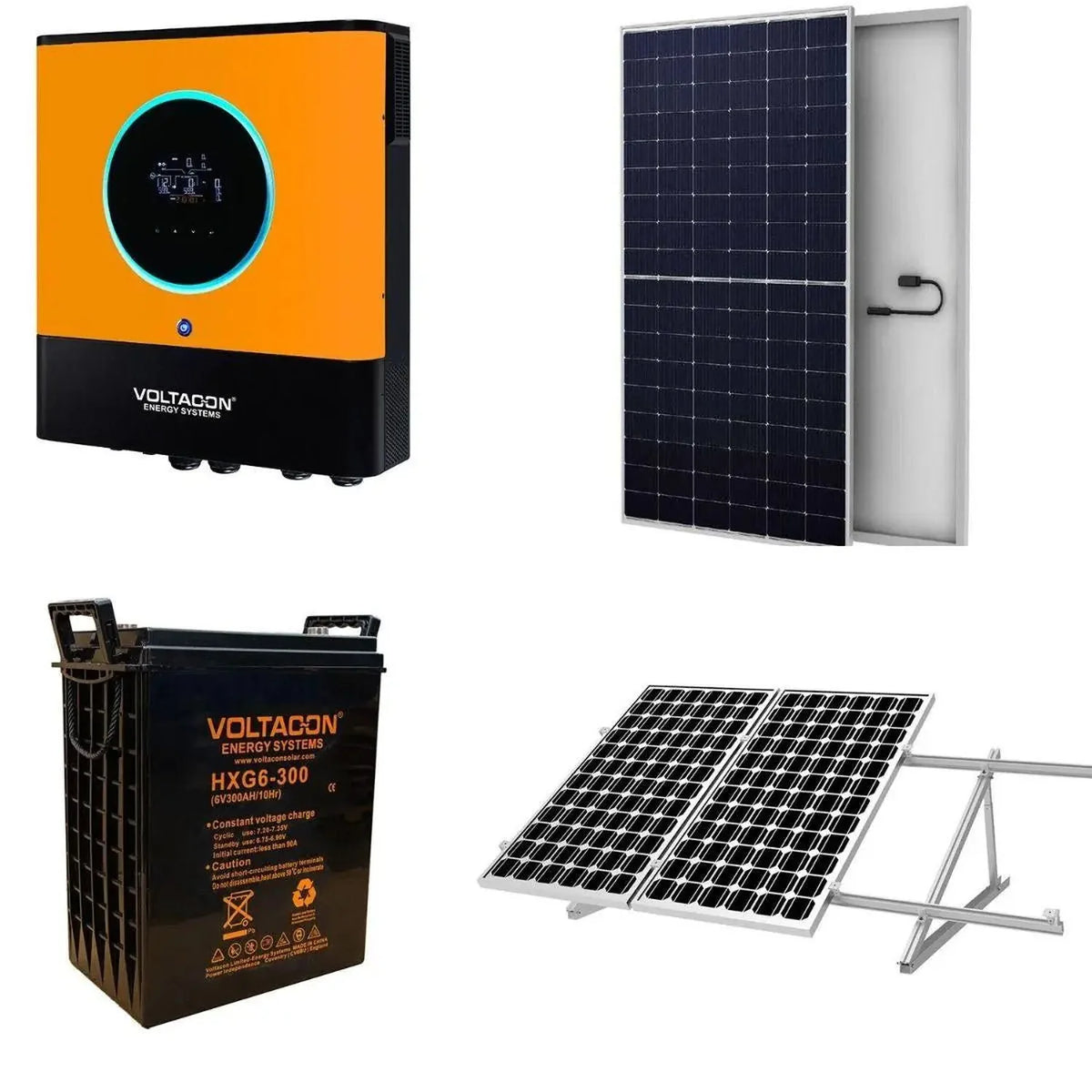

This Voltacon off-grid solar power kit pairs a Conversol MAX-II 8kW dual-MPPT inverter-charger with 14.4kWh of AGM/GEL battery storage and ten 430W half cut monocrystalline solar panels. Designed, assembled and tested by Voltacon in the UK, it is supplied palletised with a wiring diagram, full component list and UK technical support.

Off-grid solar power kit features

• Inverter, Conversol MAX-II 8kW with dual independent MPPT chargers

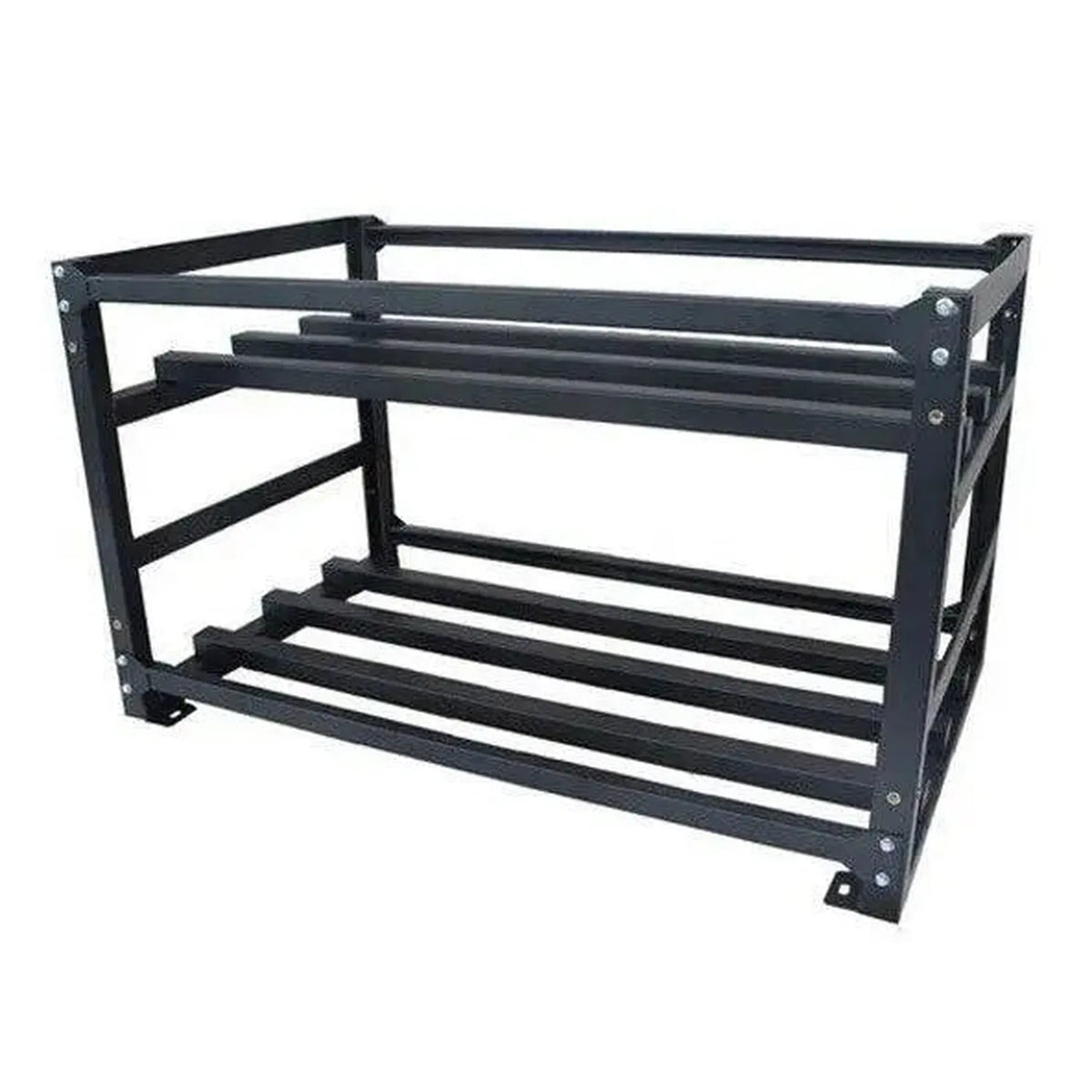

• Battery storage, 8x 300Ah 6V AGM/GEL maintenance-free batteries, 14.4kWh total, mounted on steel racks in two shelves of four

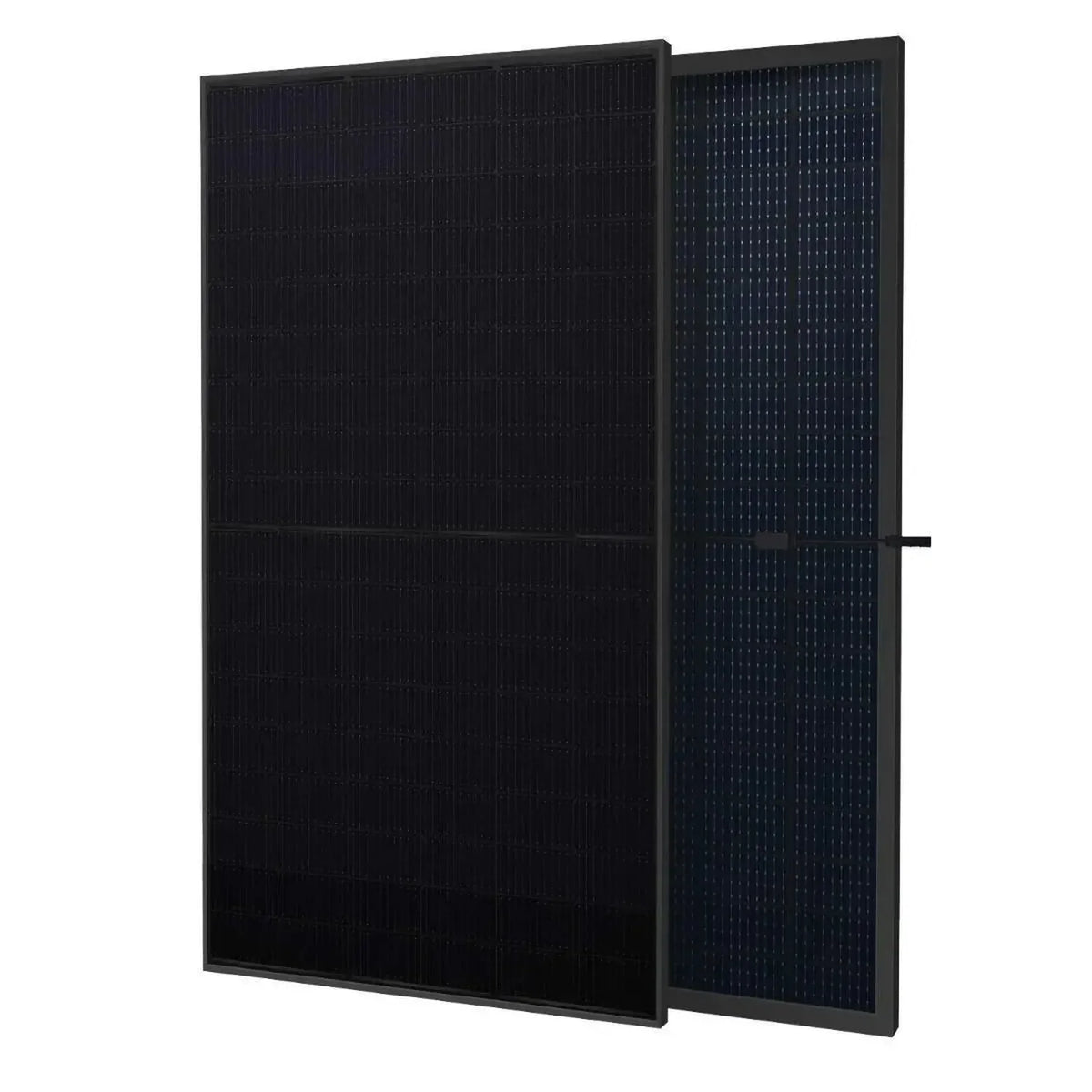

• Solar panels, 10x 430W half cut monocrystalline panels, 4,300W total PV
• Expandability, inverter accepts up to 8kW PV and the system can scale to 48kW with 6 parallel units
• Monitoring, Solar Assistant monitoring with Orange Pi controller included

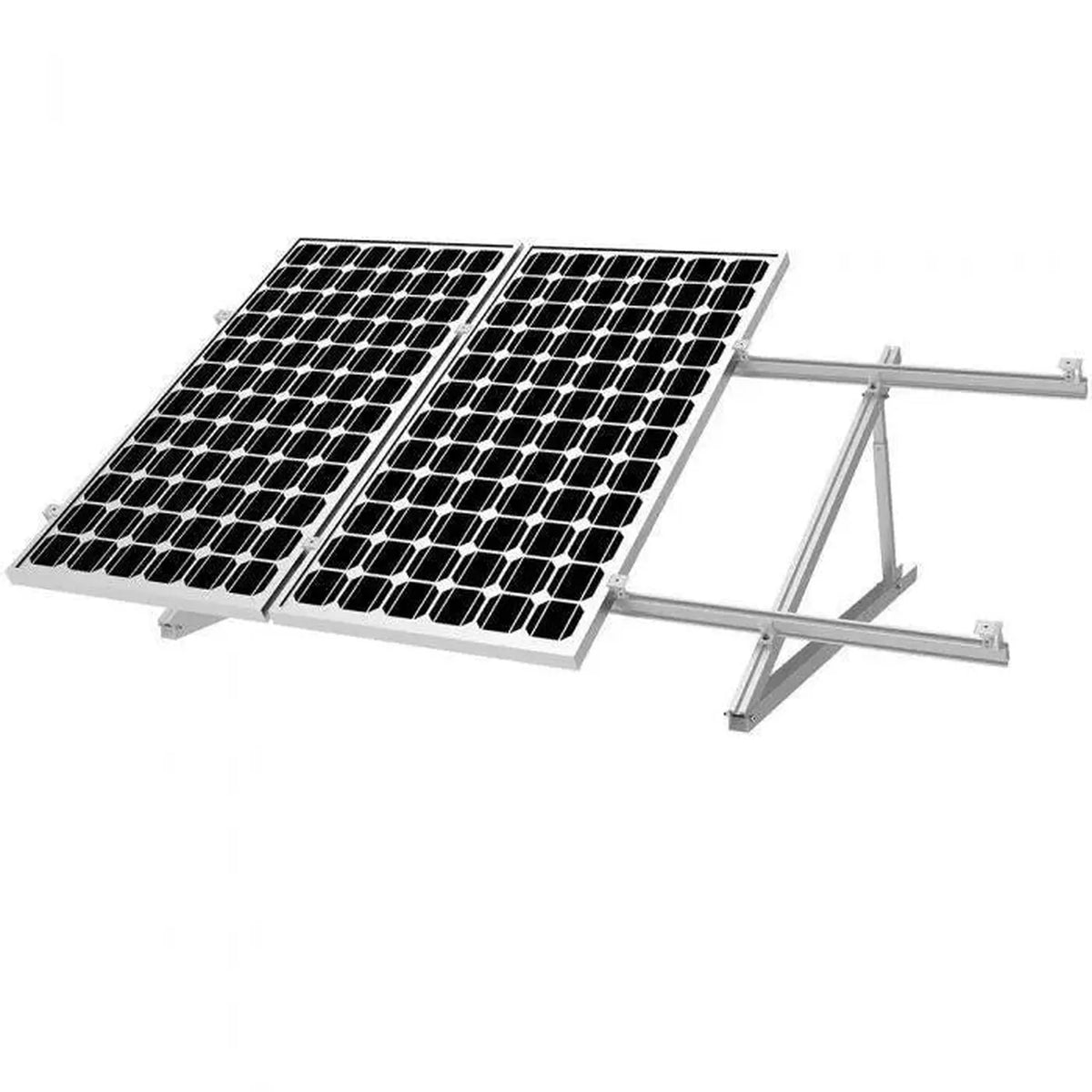

• Mounting, adjustable triangle structure for 30-degree ground or flat surface installation

What's included

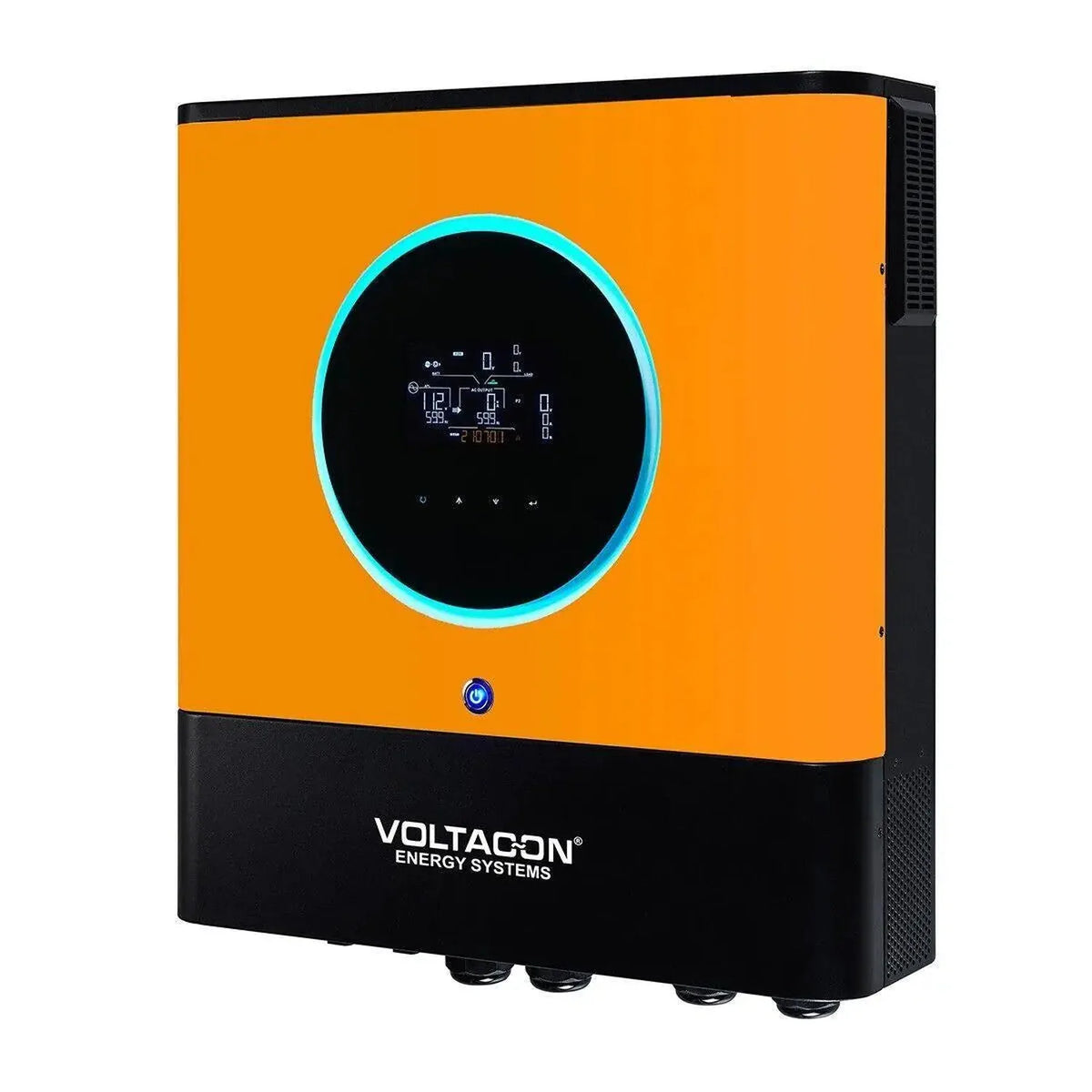

• 1x Conversol MAX-II 8kW dual-MPPT inverter-charger

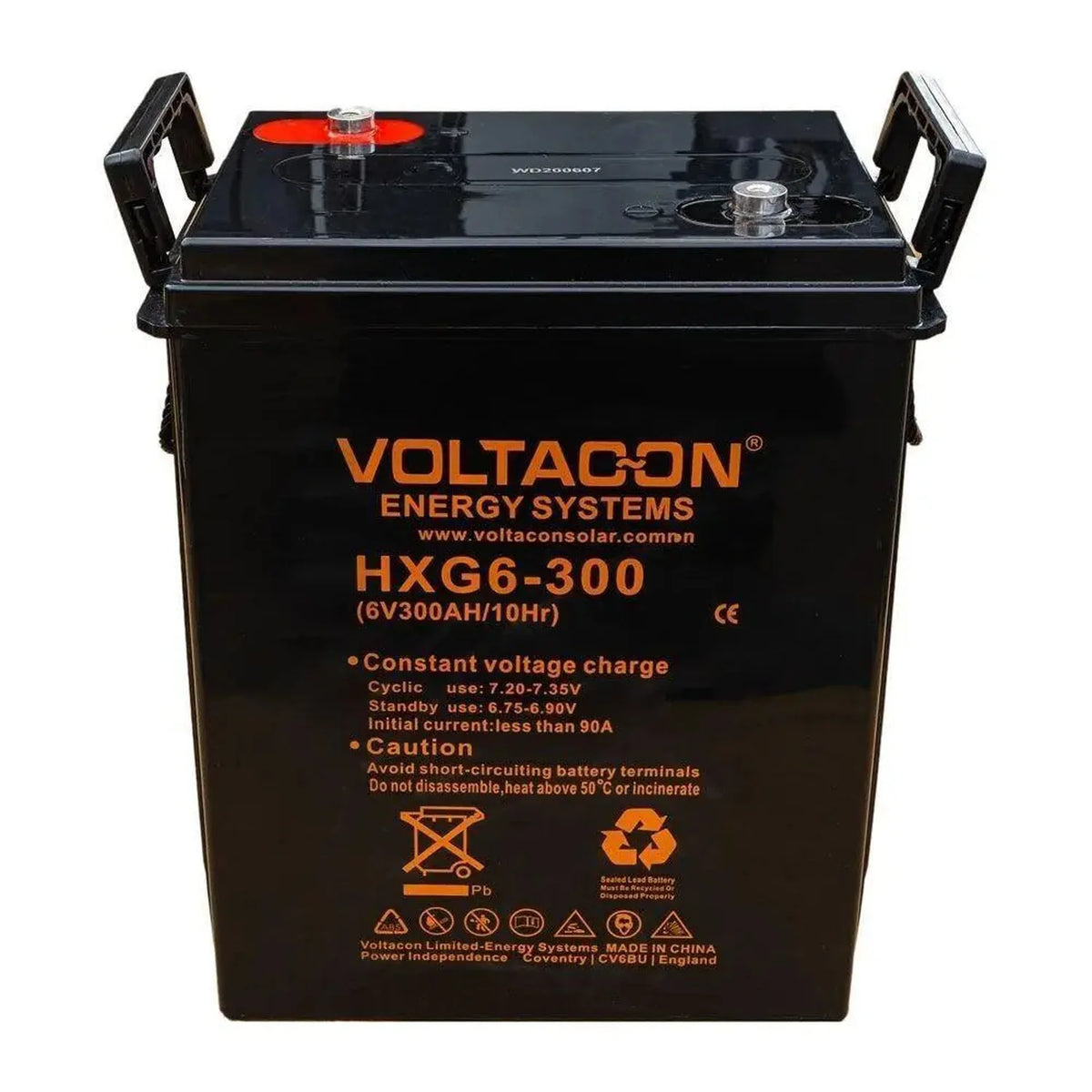

• 8x Voltacon 300Ah 6V AGM/GEL batteries on steel battery racks
• 10x 430W half cut monocrystalline solar panels
• Adjustable triangle mounting structure

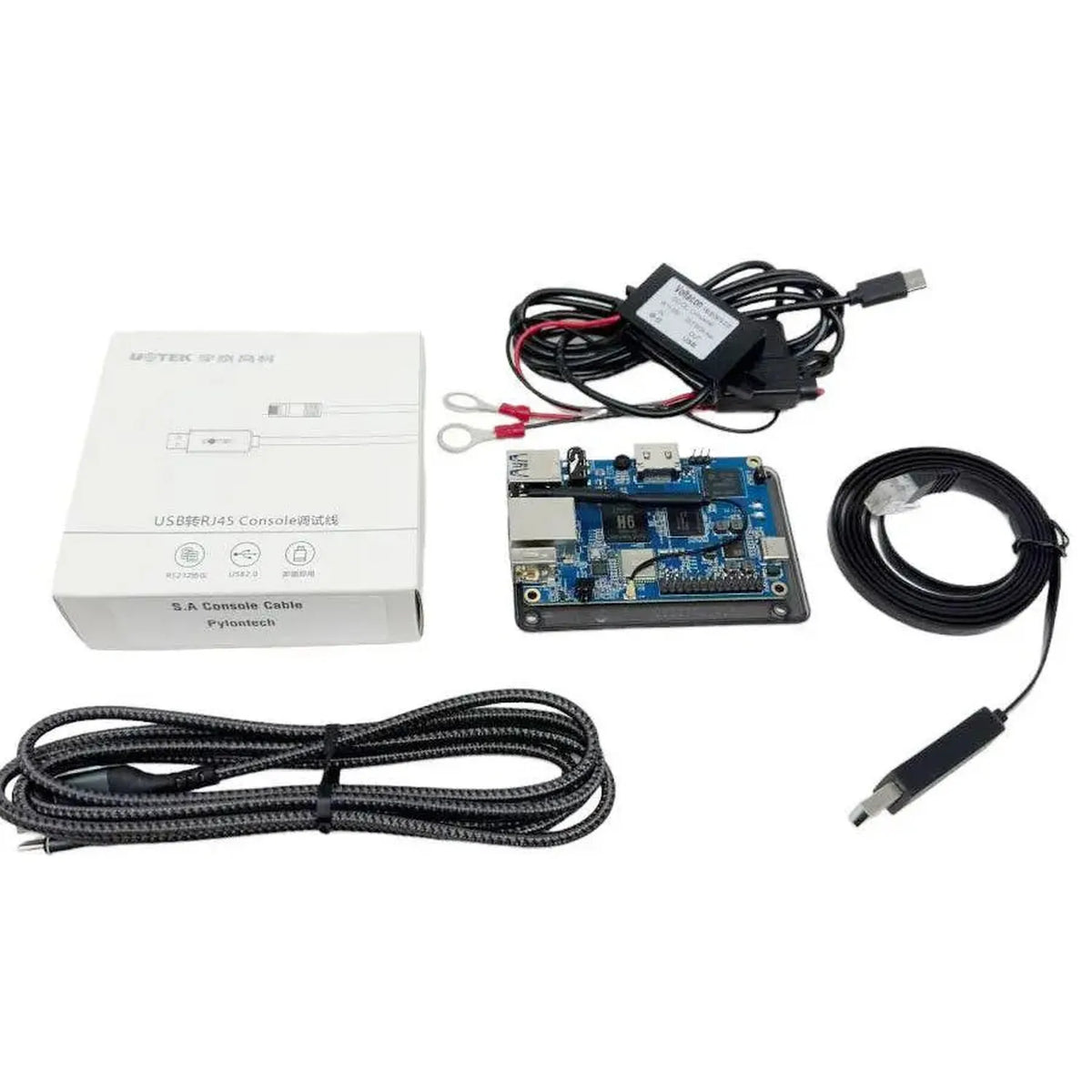

• 1x Solar Assistant monitoring kit (Orange Pi)
• 1x 200A fuse disconnector set (48V)

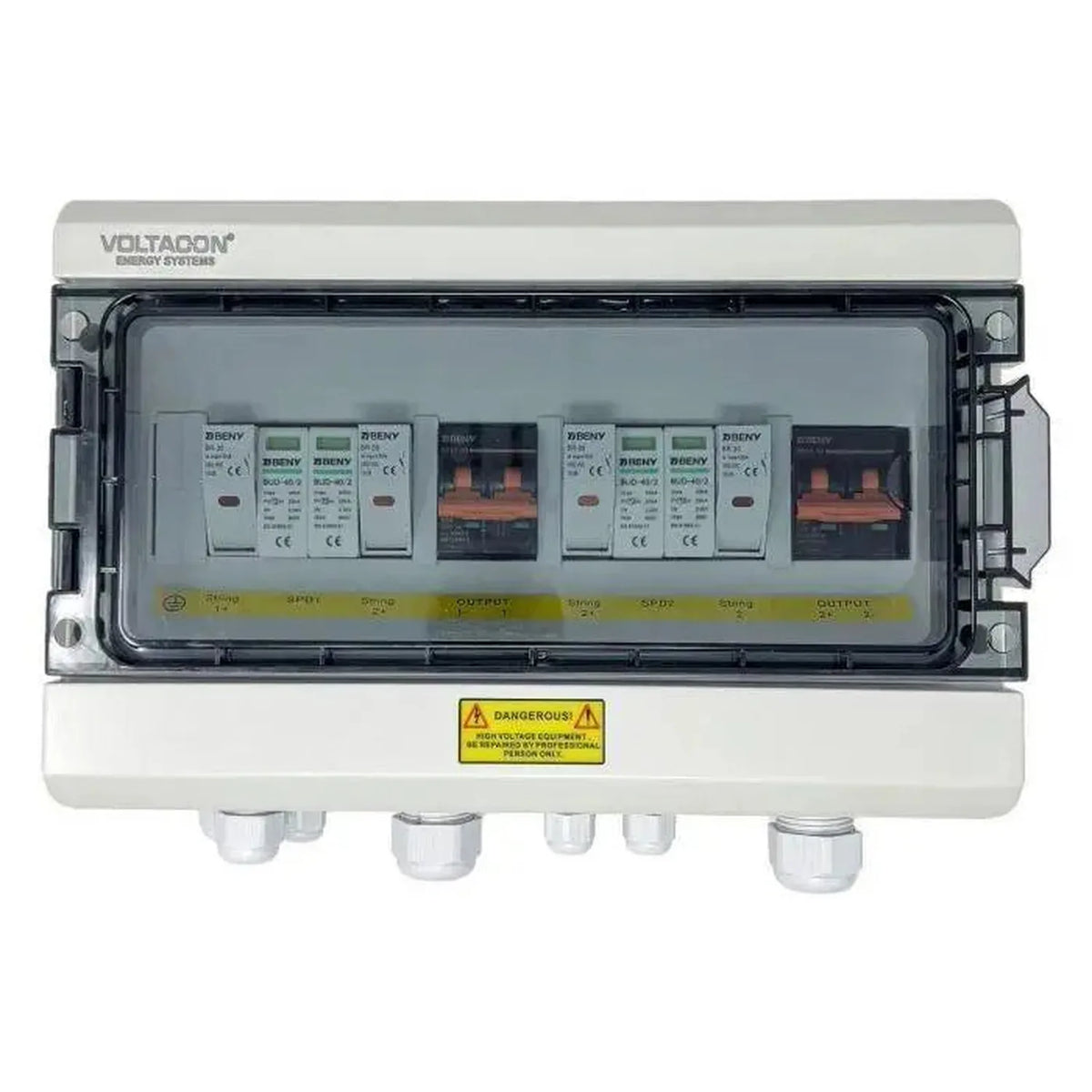

• 1x Solar PV combiner box with DC isolator, 20A inline fuses and surge protection
• 1x 40A AC isolator
• 25m red and 25m black 6mm solar cable
• Wiring diagram and installation instructions

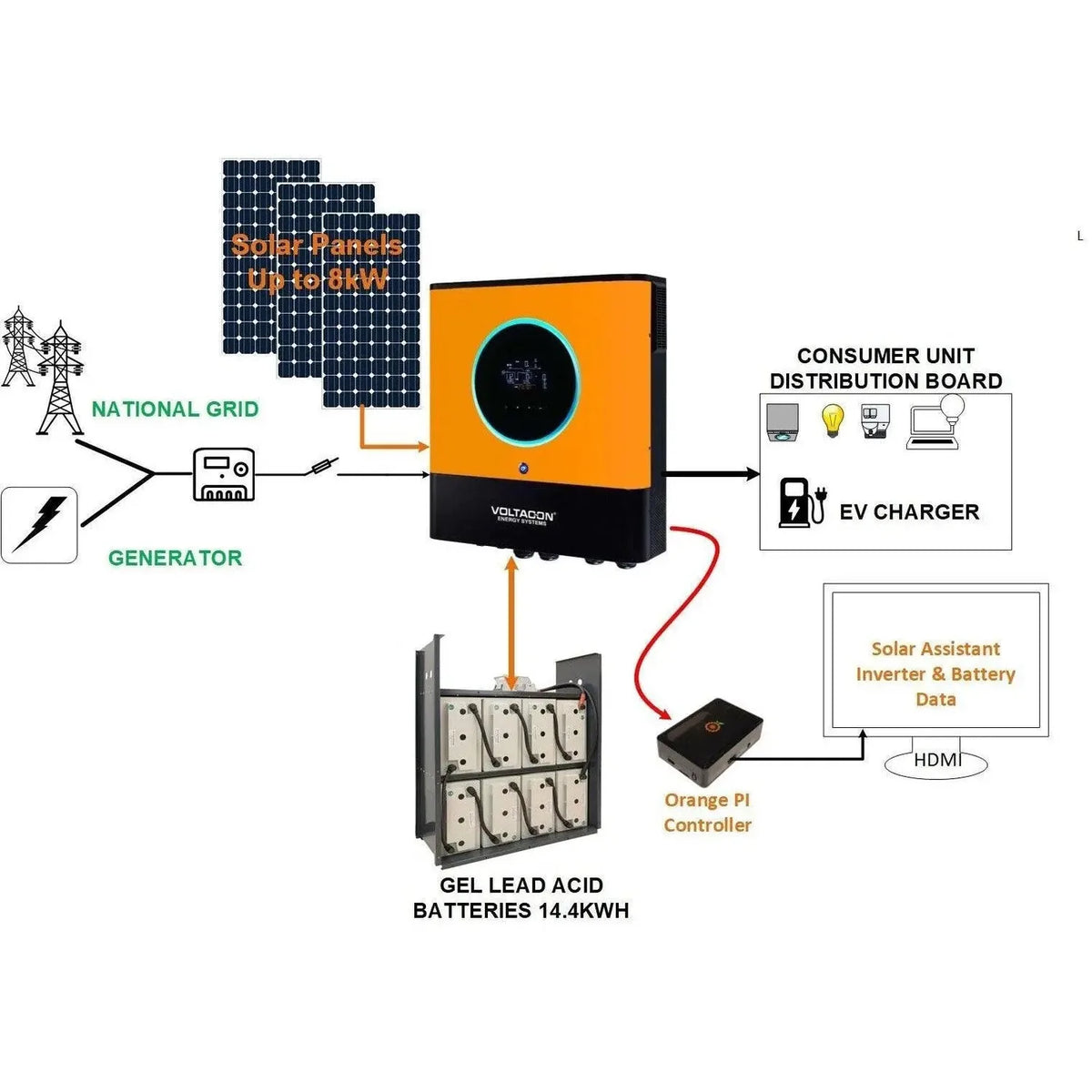

How the system works

The dual MPPT design lets two independent solar strings connect to the inverter at once. The kit covers one MPPT input at 4.3kW, and a second PV string of up to 4kW can be added later without swapping hardware. The AGM/GEL battery bank uses sealed valve-regulated lead-acid technology, so there is no electrolyte checking or topping up, and it can be expanded with an identical set of 8 batteries. Batteries arrive filled and charged.

Grid notification and compliance

Because this off-grid solar kit has no grid export, it does not require a G98 or G99 notification to the DNO, which simplifies approval compared with grid-tied systems. All electrical work must still meet IET Wiring Regulations and be carried out by a qualified electrician.

Applications

• Domestic off-grid properties and rural buildings
• Farm and agricultural off-grid power
• Remote site power for workshops, cabins and outbuildings
• Generator-backup off-grid systems

Installation and safety notes

This kit must be installed by a qualified electrician. Battery connections, DC fusing, AC output wiring, earthing and ventilation must follow IET Wiring Regulations and the component manufacturers' installation guidelines. DIY installation of high-current DC or inverter systems is not recommended.
