Description

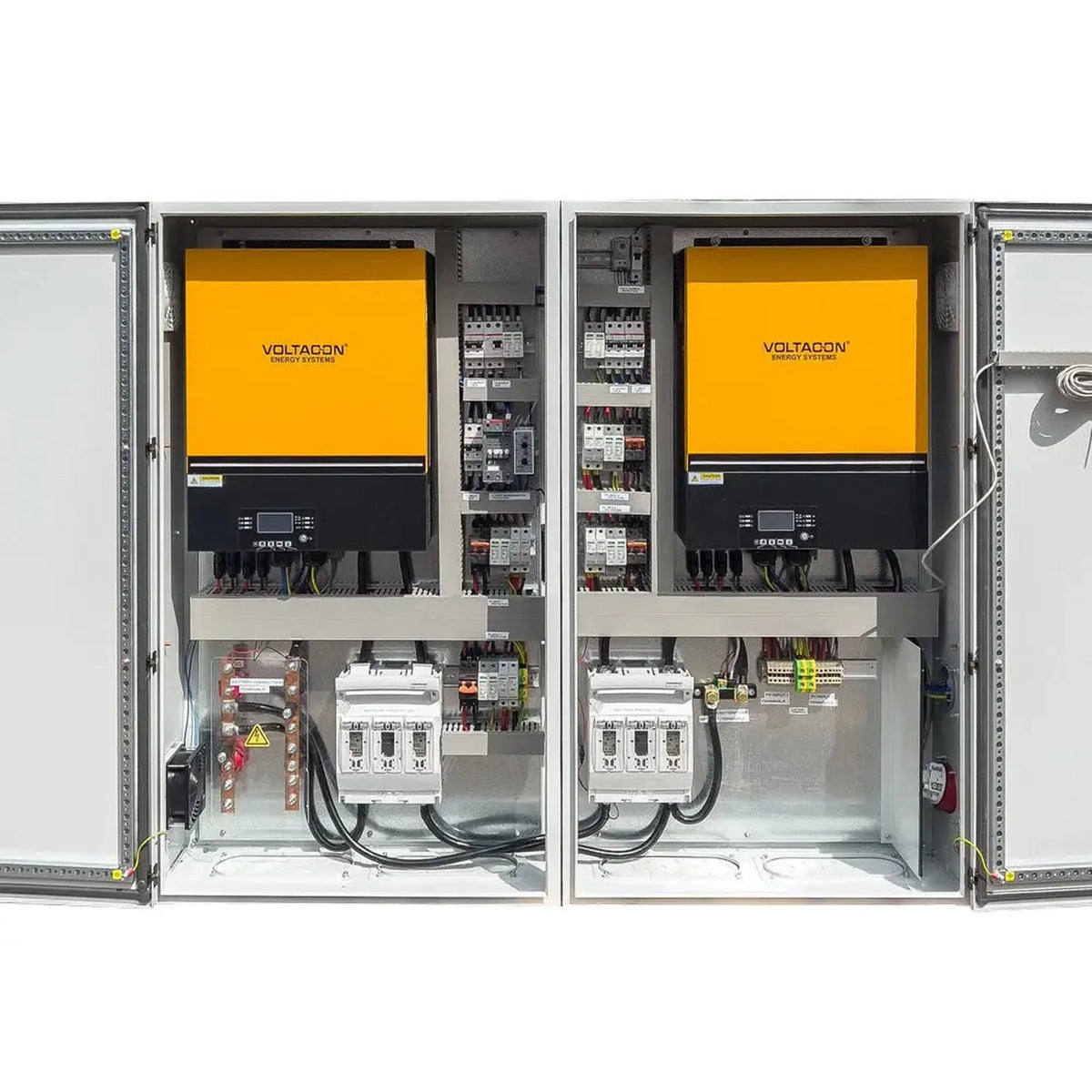

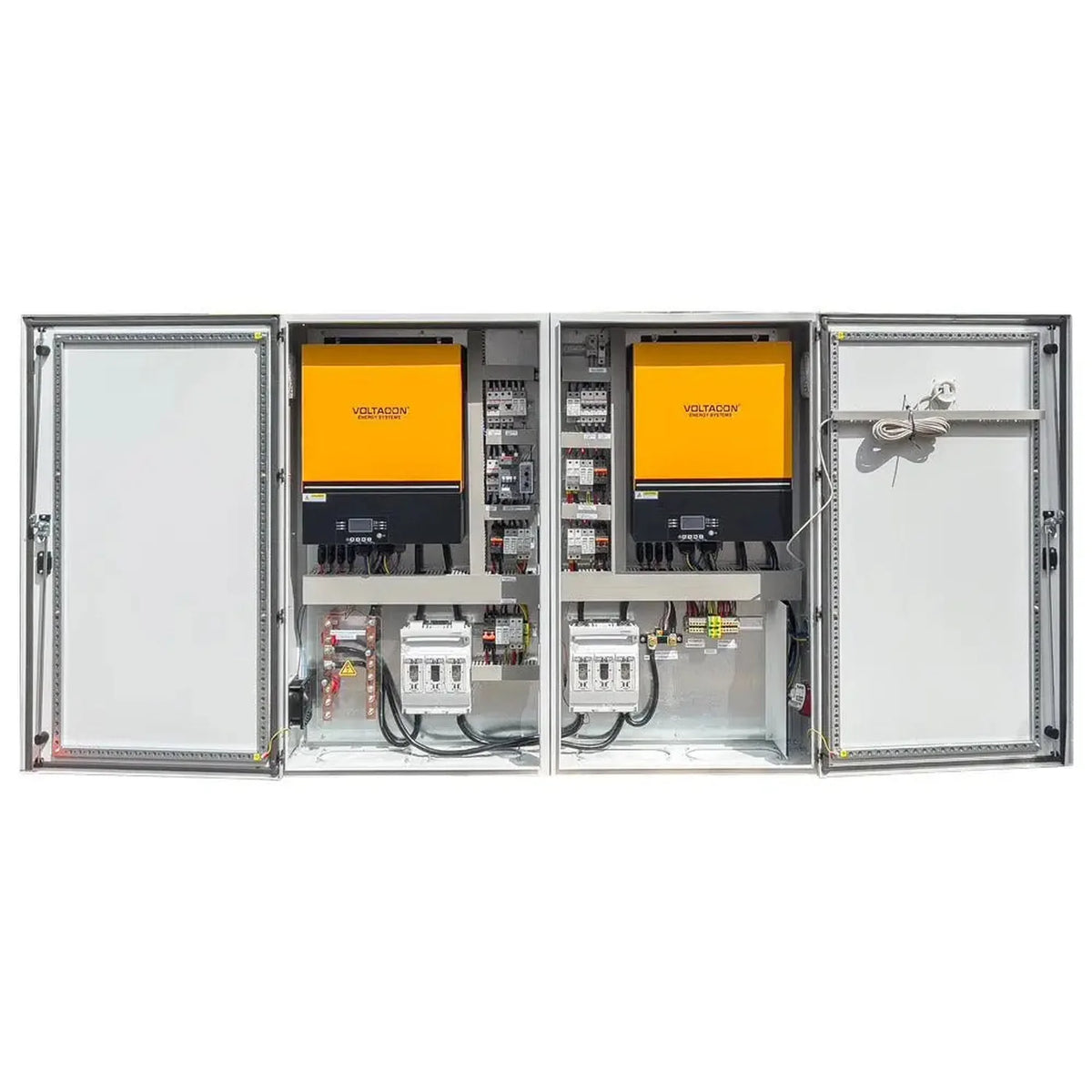

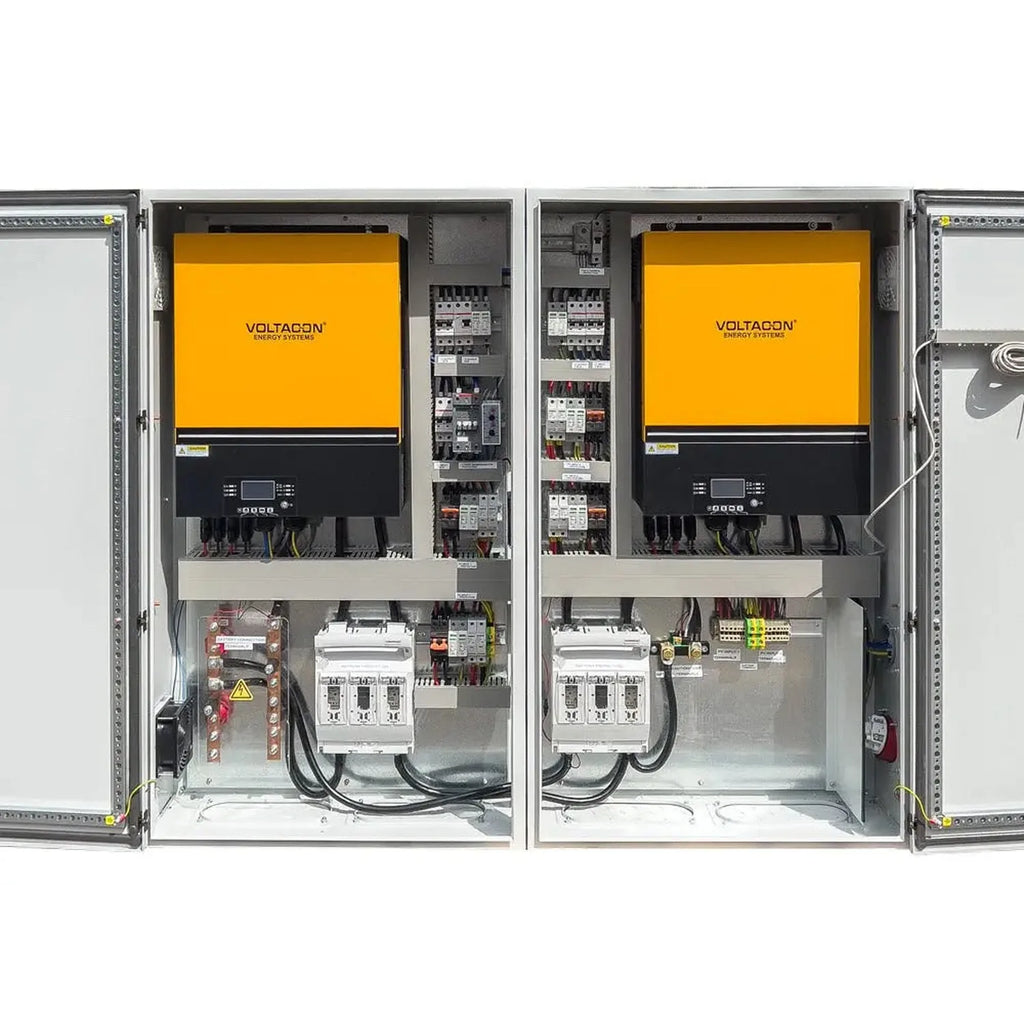

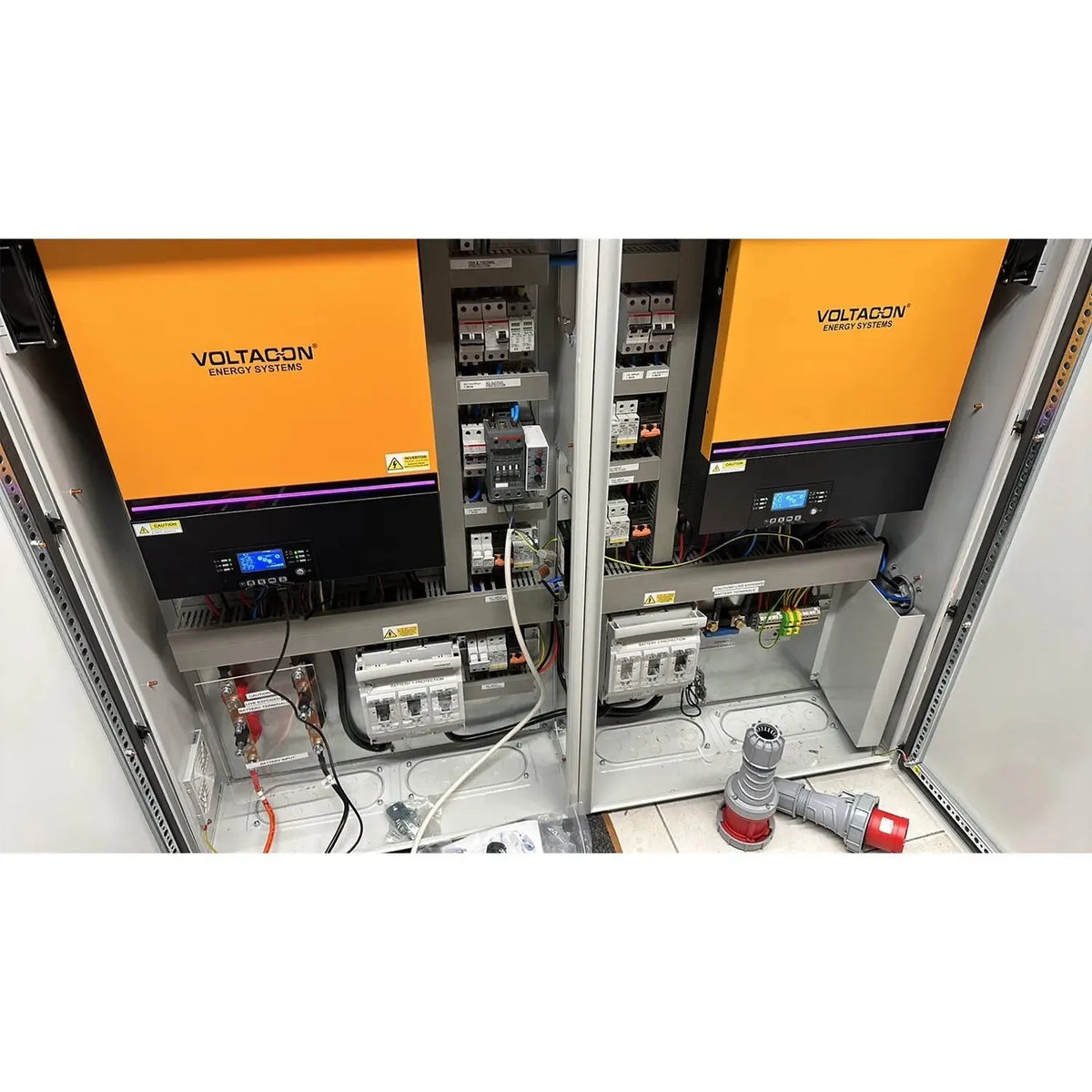

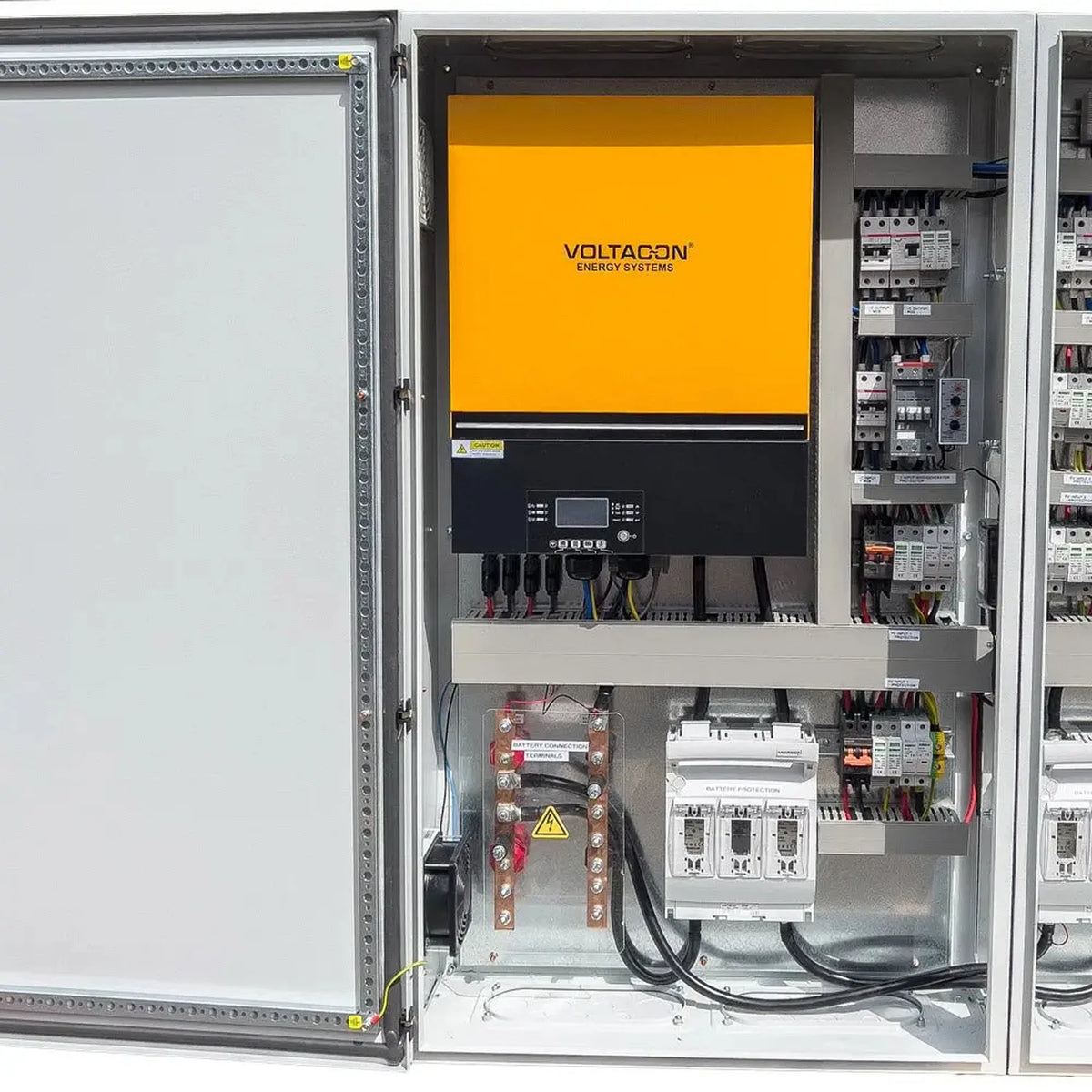

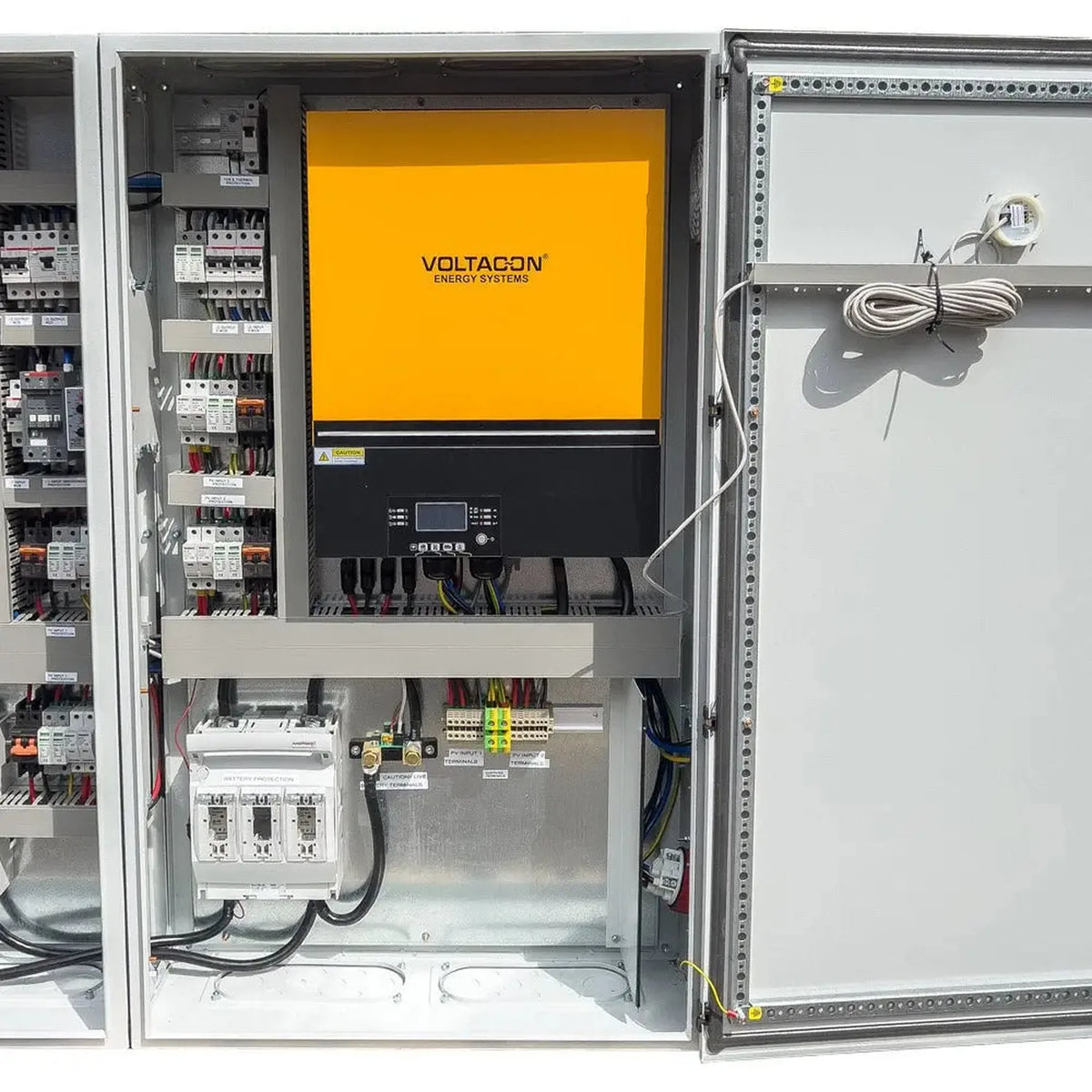

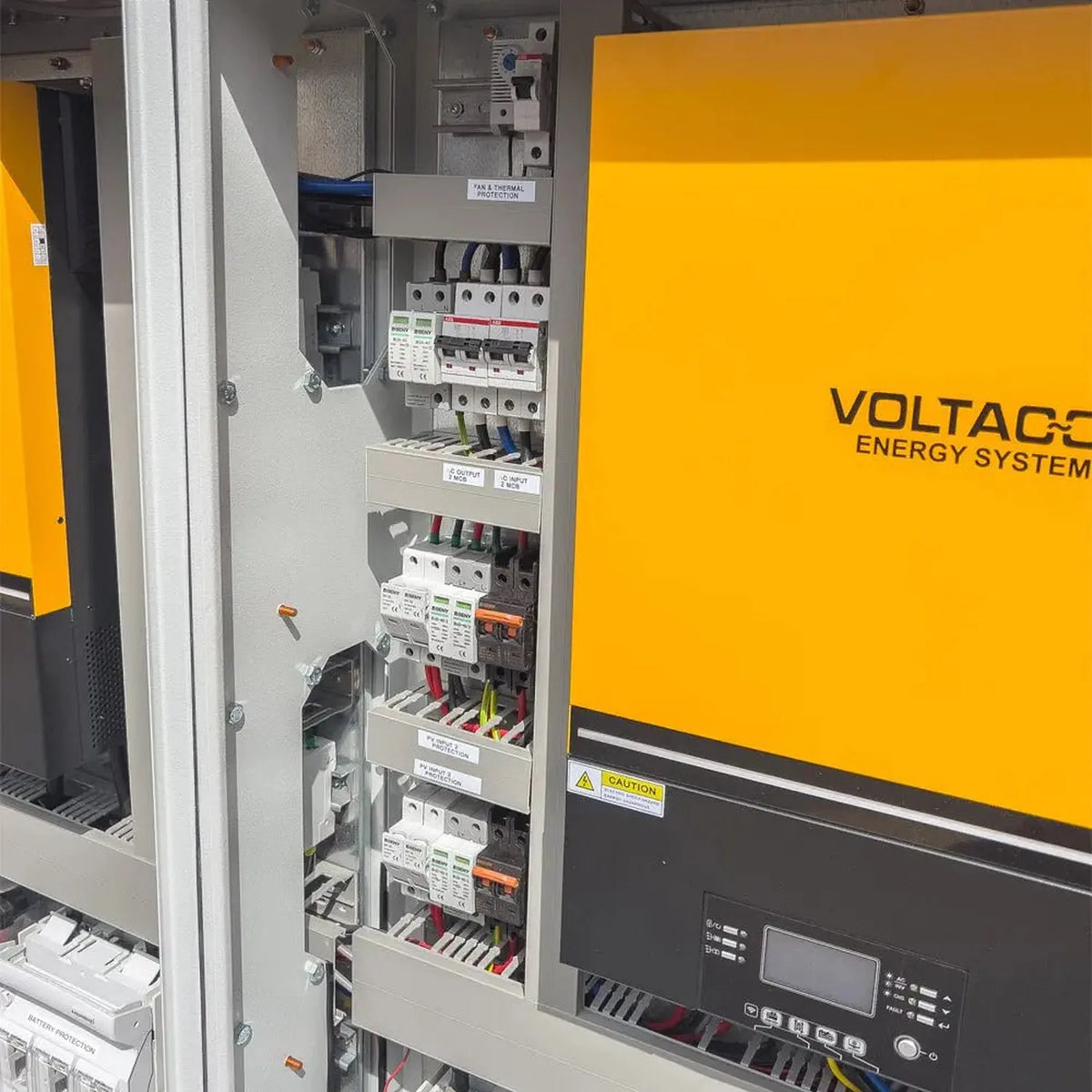

The Voltacon 16kW off-grid solar control cabinet is a single phase energy system built around two parallel Conversol MAX 8kW inverter-chargers with four independent MPPT controllers. It arrives fully wired and tested in the UK, so a plug and play off grid solar system is ready for fast on-site commissioning on domestic and commercial installations. Solar Assistant monitoring with Orange Pi is included and pre-configured.
Key features
- Output, 16kW single phase via 2x Conversol MAX 8kW inverters in parallel
- Solar input, 4 independent MPPT charge controllers, up to 16,000W total PV input
- DC distribution, 1000A copper busbar via Victron Lynx Distributor with 200A fuses

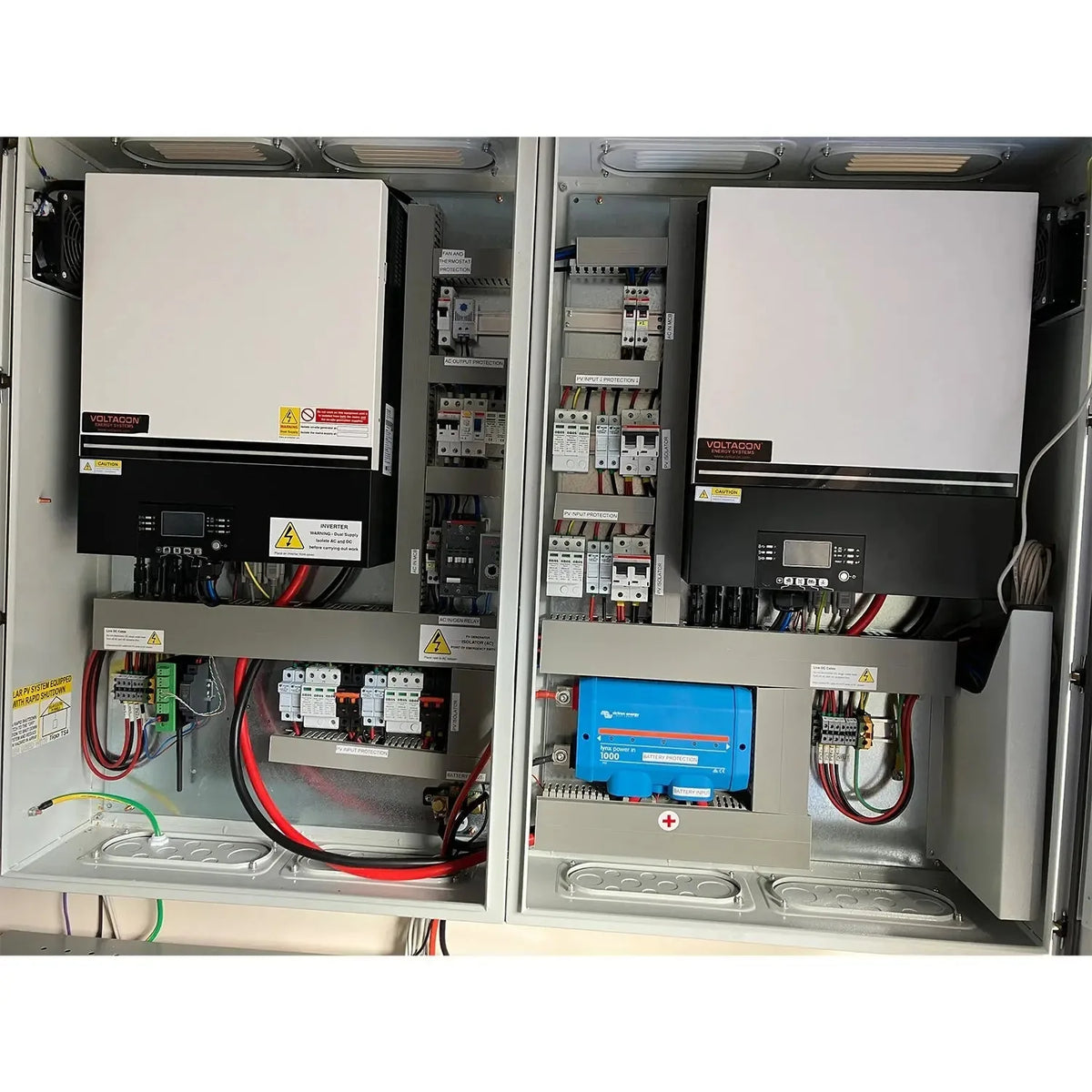

- Battery monitoring, Victron SmartShunt 1000A with Bluetooth connectivity
- Cabling, 70mm² heavy duty battery cables and double-insulated solar cabling with fused terminals
- Remote monitoring, Solar Assistant controller (Orange Pi 3 LTS) with free licence, Wi-Fi access with no annual fees
Product overview
The cabinet integrates the off-grid power components into a single assembled enclosure, cutting on-site installation time compared with building a system from individual parts. The four independent MPPT controllers let multiple solar array strings be managed separately.
The Victron SmartShunt 1000A gives battery state of charge readings via Bluetooth from any Android device. The Solar Assistant controller monitors inverter performance in real time and gives remote access over Wi-Fi at no ongoing cost.
Dimensions

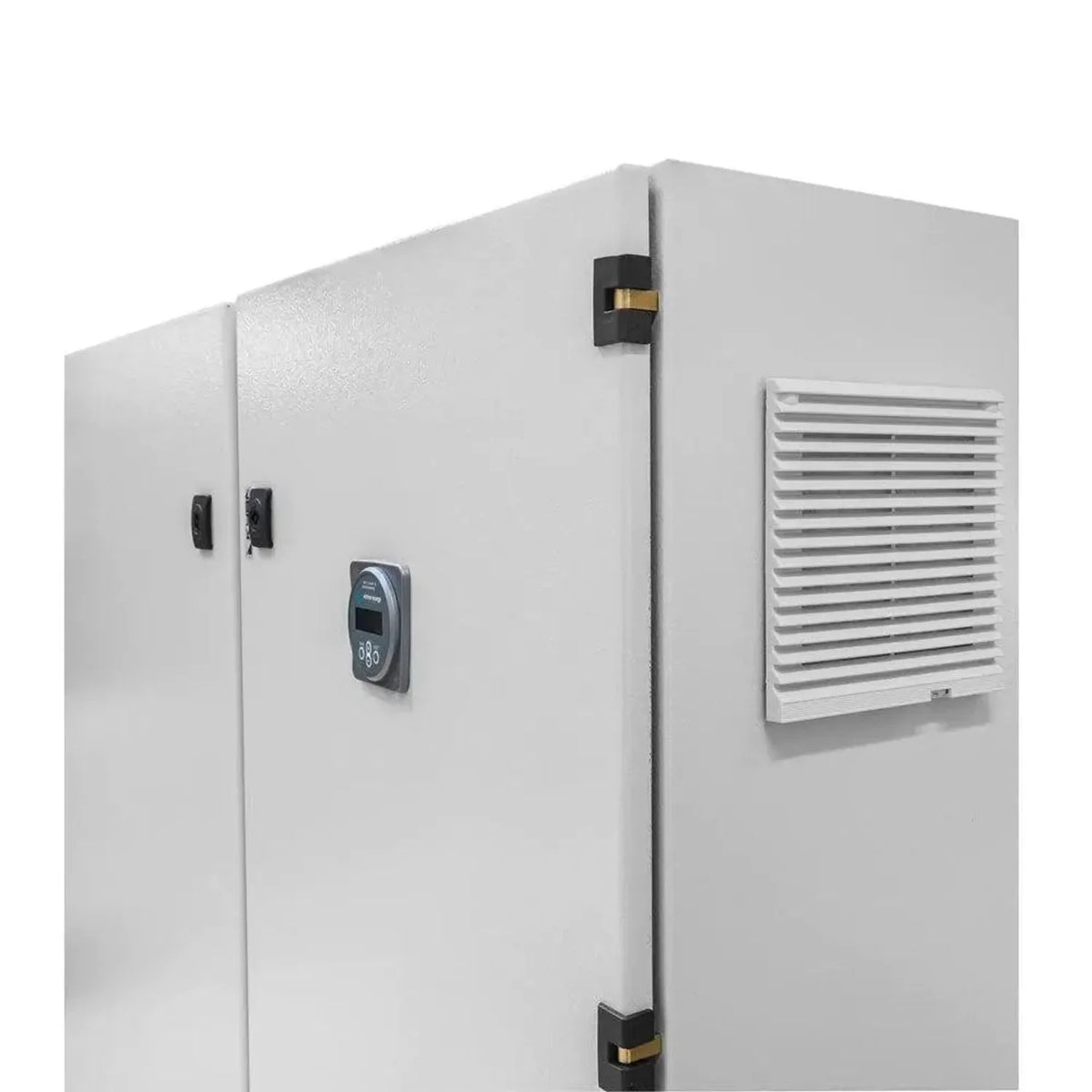

The cabinet measures 140cm wide x 120cm high x 25cm deep (model SP-1648-EM).
Applications

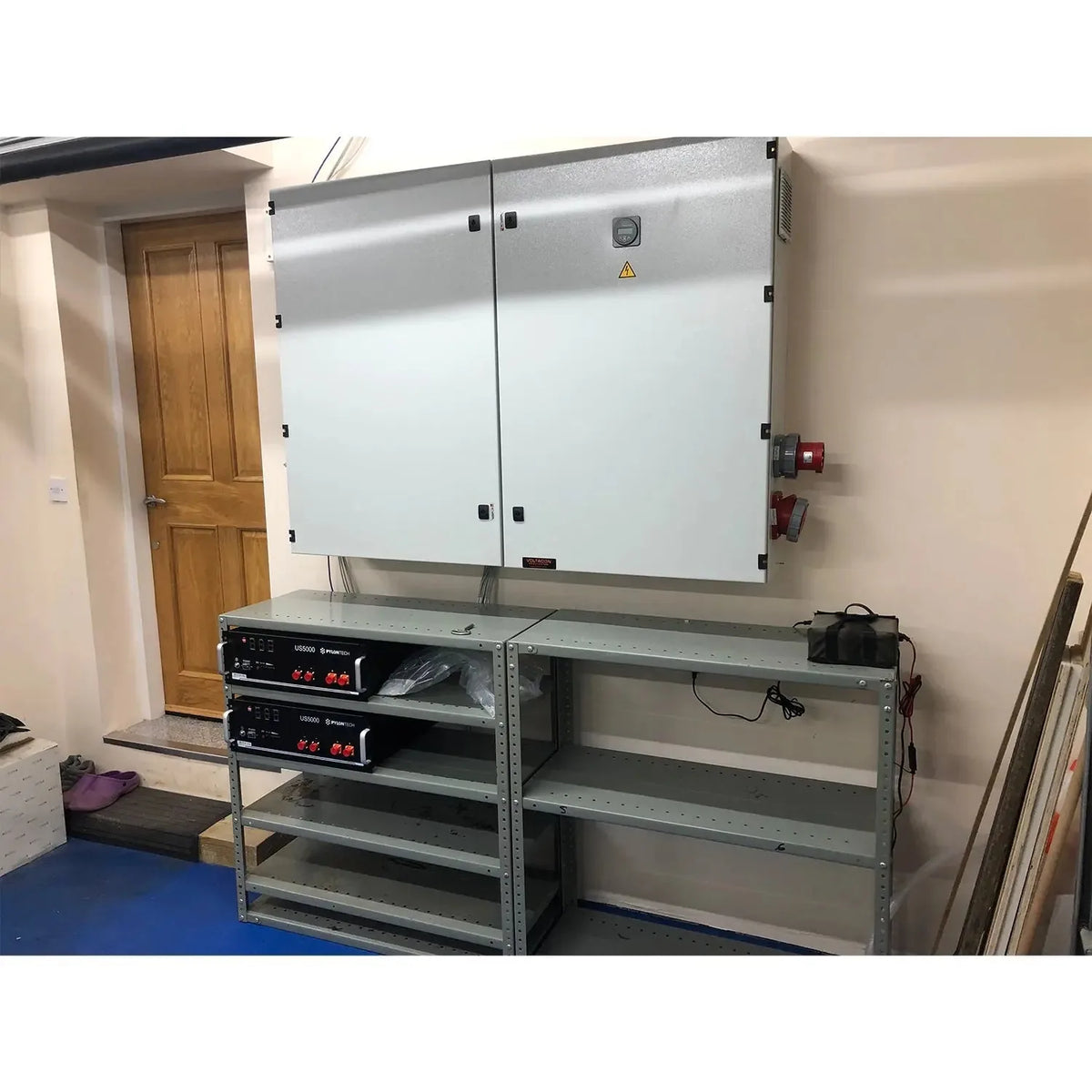

Suited to domestic and commercial off-grid solar power systems, high demand single phase backup power installations, remote properties without a grid connection, and generator backup setups with soft start.
What's in the box
- 2x Conversol MAX 8kW inverter-chargers in parallel configuration
- 4x independent MPPT solar charge controllers
- Victron Lynx Distributor with 200A fuses (1000A busbar)
- Victron SmartShunt 1000A with Bluetooth
- Solar Assistant controller (Orange Pi 3 LTS), pre-configured with free licence

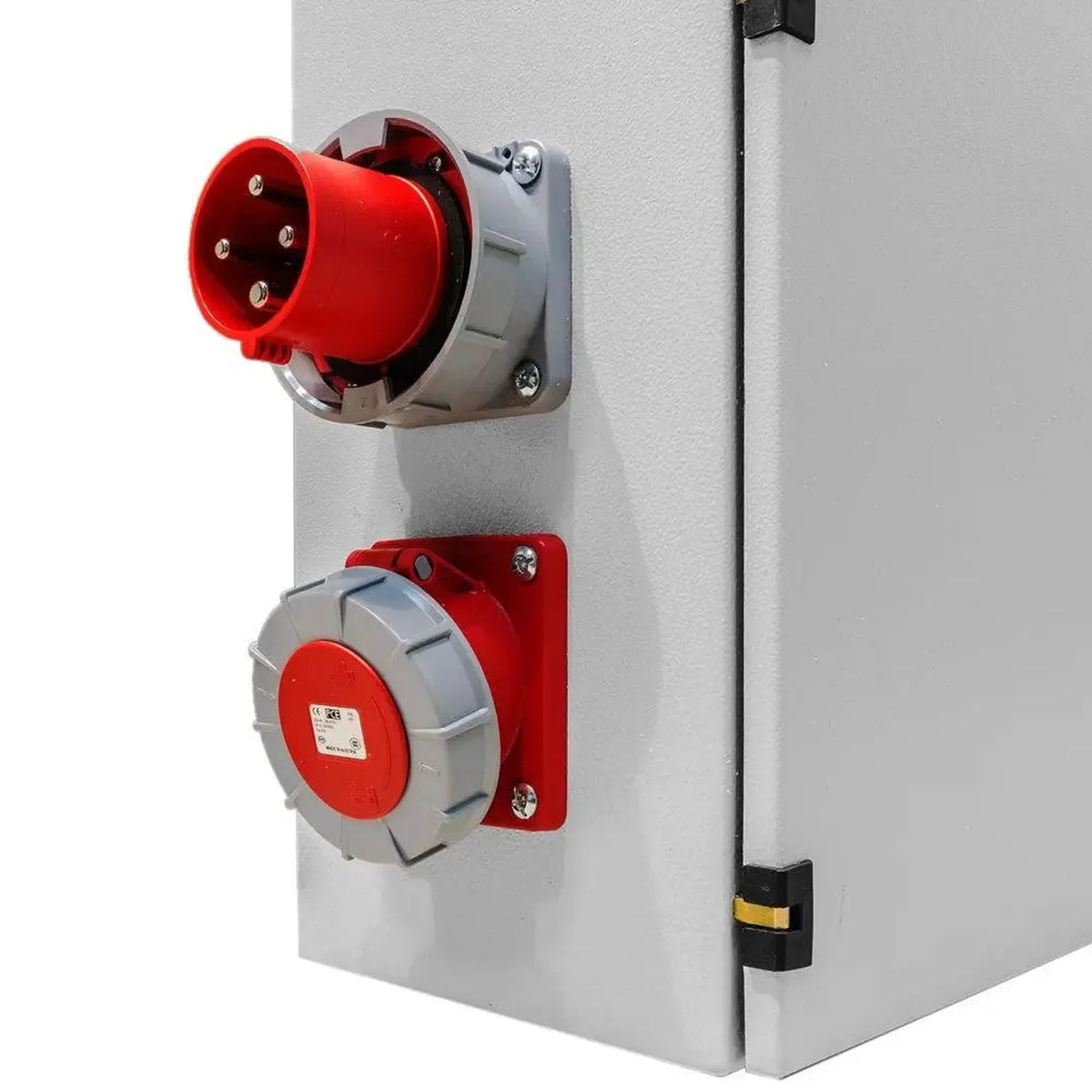

- AC circuit breaker, RCD, and generator output breaker with soft start
- DC disconnectors for PV and battery
- 70mm² battery cables
- Double-insulated solar cabling with fused terminals
- USB to RS232 cables for inverters and Pylontech batteries
- VE.Direct cable for SmartShunt monitoring
Installation and safety
This cabinet must be installed by a qualified electrician experienced in off-grid and battery storage systems. Battery connections, DC fusing, AC supply, earthing and ventilation must comply with IET Wiring Regulations and the manufacturer's installation guidelines. DIY installation of high-current DC or inverter systems is not recommended.
