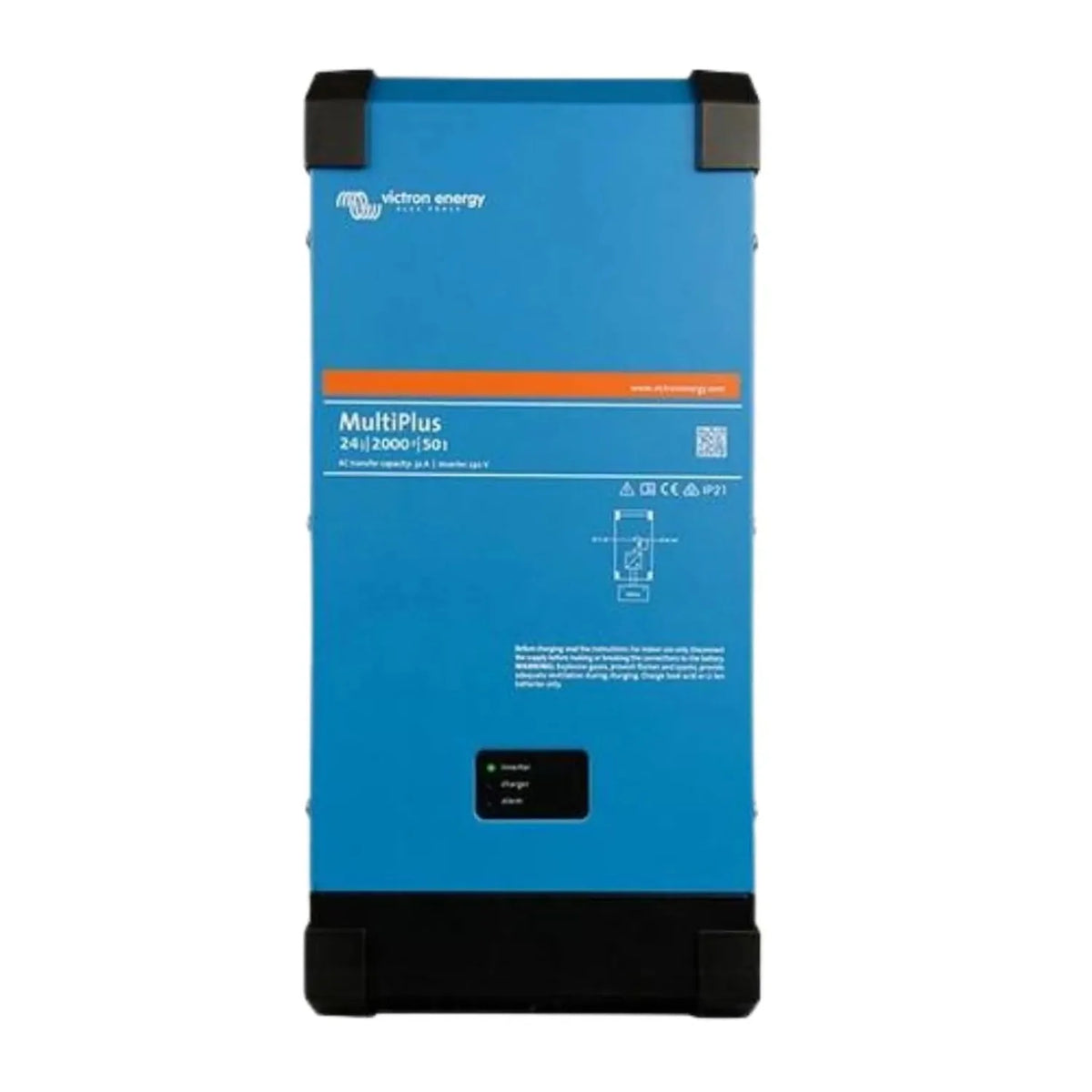

The Victron MultiPlus 24/2000/50-32 combines a true sine wave inverter and a battery charger in one unit, built for 24V DC battery banks with 230V AC output. It suits off-grid cabins, marine installations, vehicle conversions and backup power systems that need a programmable inverter charger.

Key features

• Inverter output, 2000VA at 230V AC from a 24V DC bank.
• Charger, 50A three-stage (bulk, absorption, float) with an adaptive charge algorithm.
• AC transfer switch, 32A, switching automatically to shore power or generator.
• PowerAssist, the inverter tops up a limited AC source so loads can draw more than that source alone provides.
• VE.Bus, parallel and three-phase operation across multiple units, configured with Victron's VEConfigure software.
• GX compatibility, works with Victron GX devices for monitoring and control.

How it works

When AC input is present, the unit charges the battery bank and passes power through to connected loads. If AC is lost, it switches to inverter mode in under 20 milliseconds. The 50A charger's adaptive algorithm adjusts the charge curve to the battery's behaviour, and a programmable relay handles generator start/stop or alarm signalling.

Applications

Fits off-grid properties and rural cabins on 24V systems, marine vessels needing shore power charging, coach and expedition vehicle conversions requiring 230V AC, and backup supplies for critical loads. Multiple units can run in parallel where higher AC output is needed.

Technical specifications

Installation notes

Fitting should be carried out by a qualified electrician familiar with DC battery systems and 230V AC wiring, using correctly sized DC cabling and fusing. Any grid or generator connection must comply with BS 7671. VE.Bus configuration needs Victron's VEConfigure software and an MK3-USB adapter or suitable interface cable. Do not install in an enclosed space without ventilation.

What's included

• 1x Victron MultiPlus 24/2000/50-32 230V VE.Bus inverter charger
