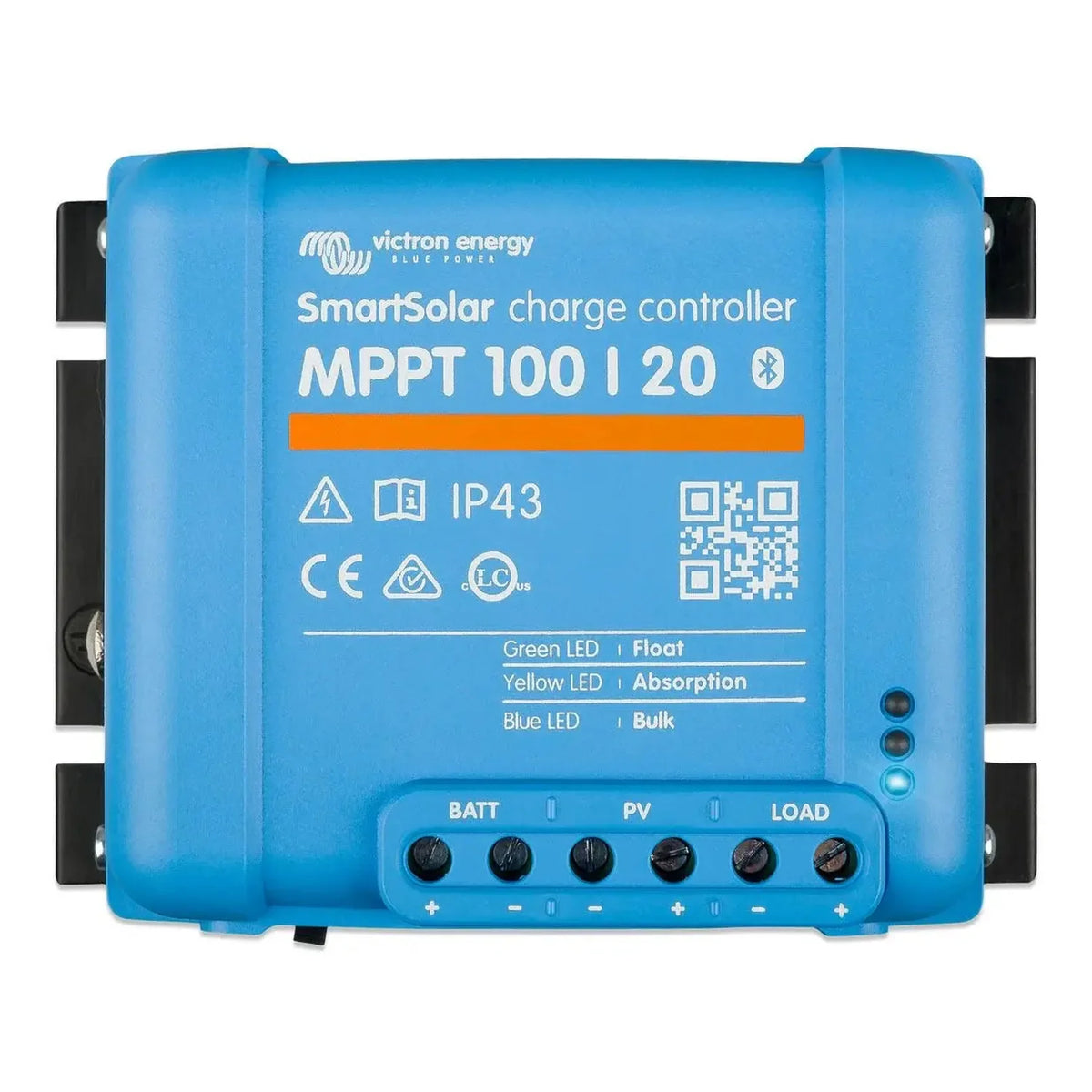

The Victron SmartSolar MPPT 100/20 is a solar charge controller for 12V, 24V and 48V battery systems, with a maximum PV open-circuit voltage of 100V and a maximum charge current of 20A. It suits professional installers and off-grid system builders who need a compact MPPT controller with built-in Bluetooth monitoring and full VictronConnect compatibility.

Victron 48V MPPT charge controller features

• PV input, maximum open-circuit voltage of 100V, suitable for series-connected panel strings.
• Charge current, 20A maximum, across 12V, 24V and 48V battery banks.
• Bluetooth, built in, for direct configuration and monitoring via the VictronConnect app on iOS and Android, no dongle required.
• MPPT tracking, continuously tracks the maximum power point to capture available energy as light and temperature change.
• Battery chemistries, configurable charge profiles for lithium (LiFePO4), AGM, gel and flooded batteries.
• Load output, programmable street lighting and timer functions.
• Weight, 0.74 kg.

How it works

A multi-stage MPPT algorithm draws the maximum available power from the connected PV array and delivers it to the battery at the correct charge voltage. Unlike PWM controllers, MPPT converts excess PV voltage into extra charge current, useful in colder climates where panel voltages rise. On a 48V battery system, the 20A output represents up to 960W of charge power from a 100V-maximum input.

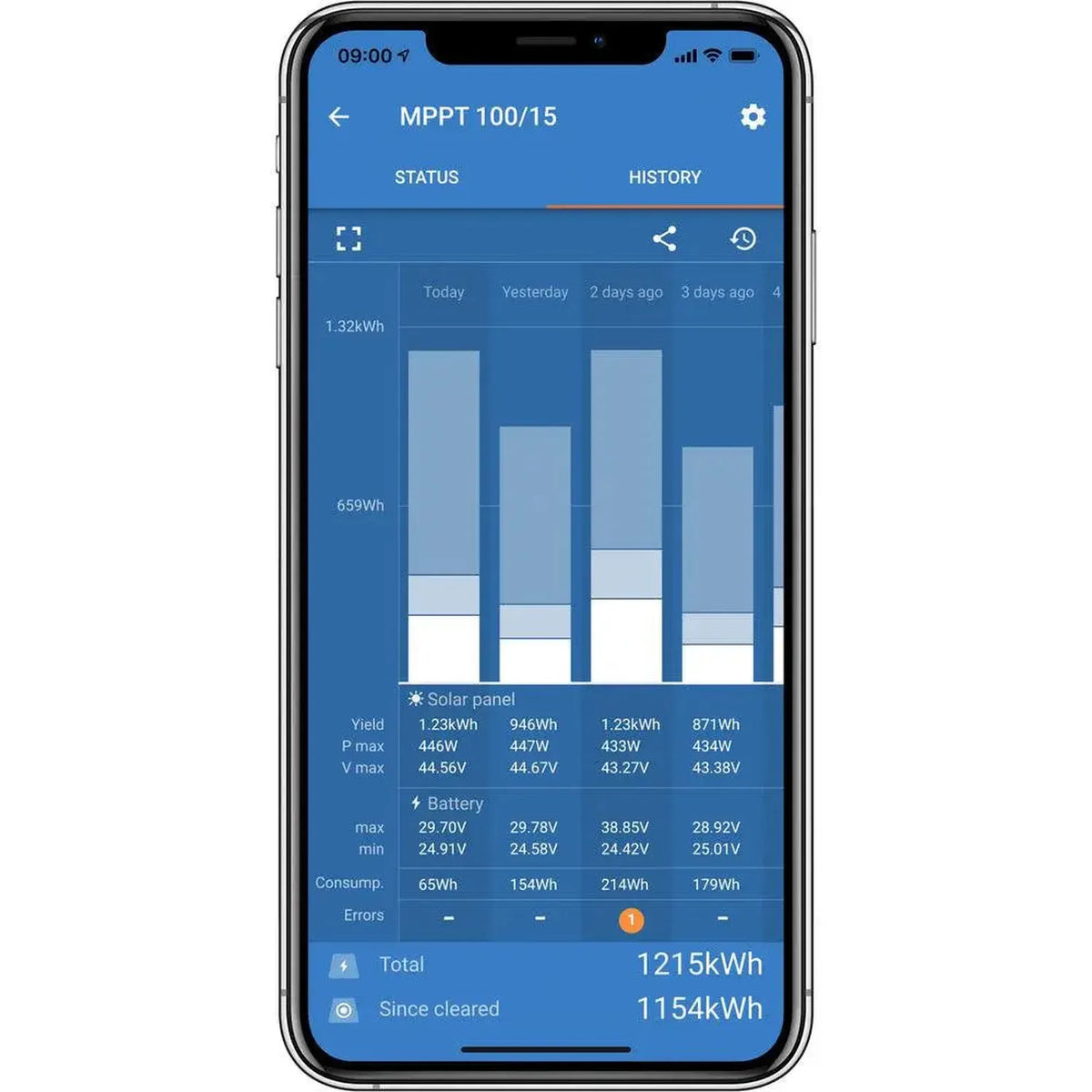

Bluetooth lets you configure and monitor the controller from a phone, with no extra hardware needed. VictronConnect shows charge settings, historical data, battery voltage trends and fault logs. An optional VE.Direct port connects the unit to a Victron GX device such as CCGX, Cerbo GX or Venus GX, extending monitoring to the VRM online portal.

Applications

Fits off-grid cabins, shepherd huts and rural buildings running 12V, 24V or 48V systems, plus marine and narrowboat installations. It also suits motorhomes and campervans needing Bluetooth monitoring, remote telecoms and CCTV equipment with small DC loads, and agricultural sites relying on VRM remote monitoring. It also drops into a wider Victron ecosystem built around a Cerbo GX or other GX device.

What's included

• Victron SmartSolar MPPT 100/20 charge controller (retail unit)

Installation notes

Installation should be carried out by a qualified electrician or experienced solar installer. The PV array's open-circuit voltage must never exceed 100V, including in cold weather when panel Voc rises. Check the battery chemistry setting in VictronConnect before commissioning, particularly for lithium batteries. A VE.Direct cable is needed separately to connect to a Victron GX device. This unit is not grid-tied.
