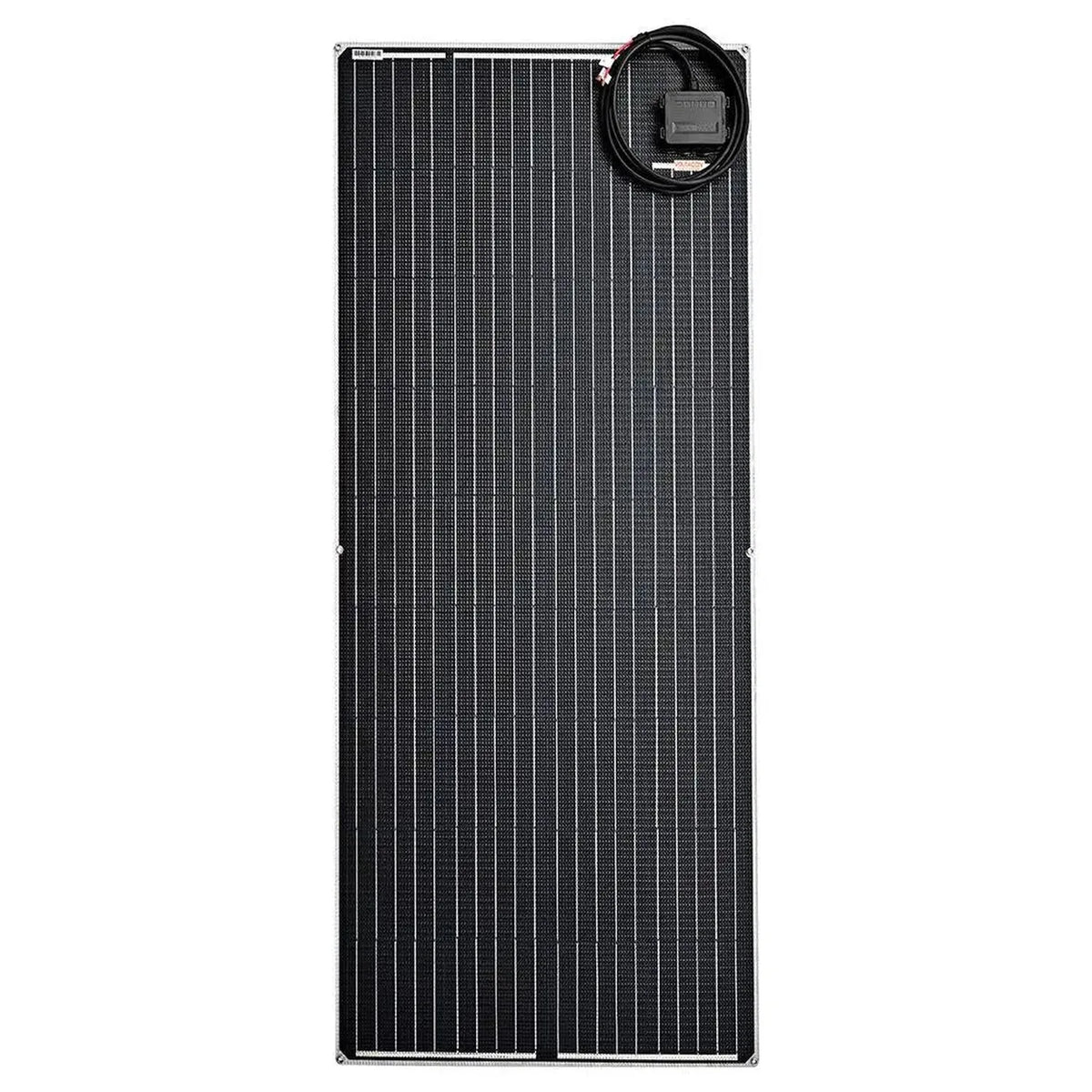

This 195W flexible monocrystalline solar panel uses an ETFE top coating and rated cell efficiency of 22.42%. It weighs 3kg and flexes through a 248-degree arc, making it suitable for curved or uneven surfaces where a rigid panel will not fit.

Key features of this monocrystalline flexible solar panel

• Power output, 195W maximum power with 22.42% cell efficiency.
• ETFE coating, self-cleaning, scratch-resistant and UV-stable surface layer.
• Flexibility, bends through a 248-degree arc for contoured mounting.
• Weight and thickness, 3kg, less than 5mm thick.
• Junction box, IP66-rated with a pre-fitted twin-core double-insulated 3m cable.
• Cell count, 36 solar cells.

Applications

Designed for campervans, motorhomes, caravans and boats, or any surface unable to take a rigid frame. It works with MPPT chargers at 12V, 24V and 48V.

Mounting

Fix using silicone structural adhesive on the rear of the panel. Grommets are supplied for static, non-mobile installations only. For vehicle or marine fitting, a qualified installer should confirm the correct bonding method.

Build

The ETFE layer resists cracking and UV degradation better than PVF or glass laminates, and its self-cleaning surface helps maintain output outdoors. The panel's positive and negative terminals are clearly marked on the junction box.
