The Athled Modular LED Flood Light is a made-to-order fitting for sports courts, stadiums and large outdoor areas. This listing covers the 300W module, which can be combined with additional 300W units to build 600W or 900W fixtures depending on mounting height and beam requirements.

LED flood light for football field and tennis court projects

Each Athled module suits football pitches, tennis courts, commercial yards, warehouses and industrial sites where a fixed-output floodlight won't match the lux level or beam control needed. The system is built to order, so the module count, beam angle and configuration can be set to match the site plan.

Key features

• Module power, 300W per module, expandable to 600W (2 modules) or 900W (3 modules)
• Efficiency, up to 170 lumens per watt
• Luminous flux, up to 51,000 lumens from a single 300W module
• Weatherproofing, IP66 rated for outdoor use
• Impact protection, IK10 rated
• Surge protection, 20kV lightning arrester
• Beam angles, 30 degree, 60 degree, 90 degree and asymmetric options
• Rotation, 360 degree rotatable module for aiming
• Lens, replaceable for servicing
• Start-up, instant start, no warm-up time
• Service life, over 50,000 hours
• Warranty, 5 years as standard

Applications

Built for football pitches, tennis courts, sports grounds, commercial parks, yards and industrial lighting where the final layout needs to match pole height and required lux level. Aluminium cooling fins manage heat across all three module configurations.

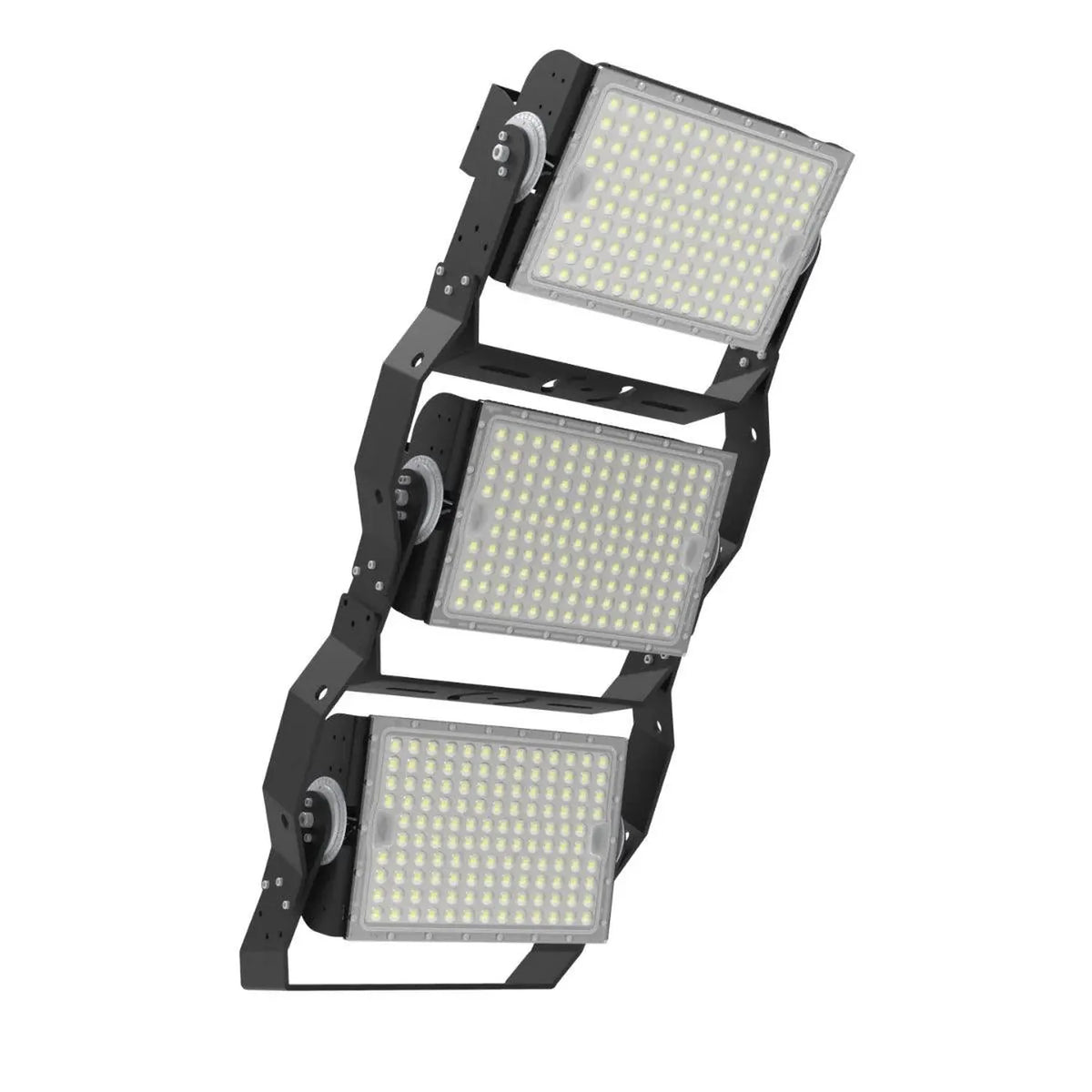

Modular build options

Order one module for a 300W fixture, two for 600W, or three for 900W. Each configuration ships with the correct bracket arrangement as a complete unit, giving installers flexibility on power output without changing the fitting family.
