The Athled Modular LED Flood Light is an outdoor lighting system built around a 240W module, designed for sports courts, stadiums, commercial yards, warehouses and other large outdoor spaces. This listing covers the 240W module, which can be combined with additional modules to build 480W or 720W fittings depending on the project.

240W modular LED flood light for football field and tennis court projects

Instead of one fixed size fitting, the system is built from 240W modules stacked to match the required light level.

• 1 module: 240W LED flood light
• 2 modules: 480W LED flood light

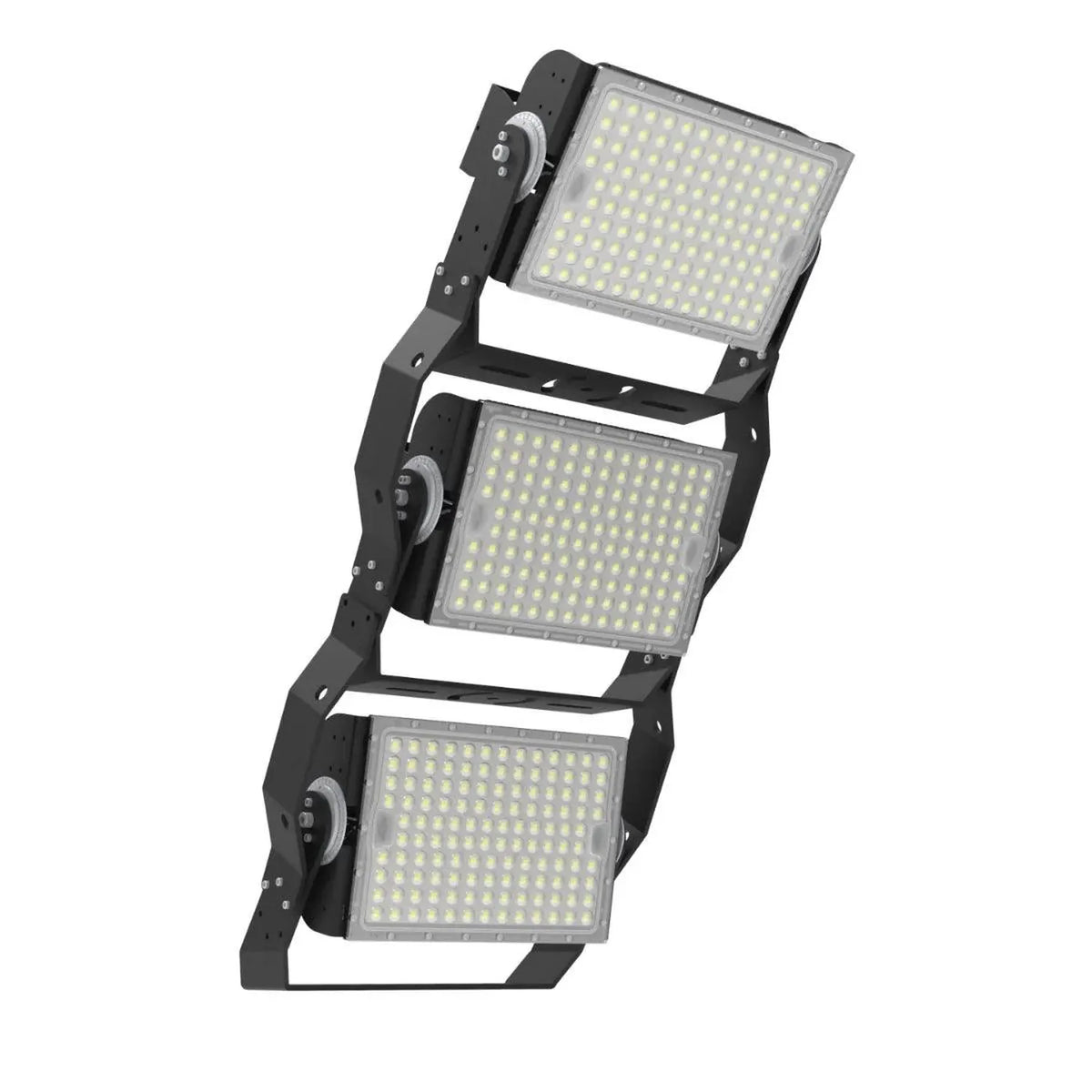

• 3 modules: 720W LED flood light

Each configuration is supplied with the correct bracket arrangement and is manufactured on demand, with module count, beam angle and lighting configuration selected to suit the site.

Key features

• Efficiency, up to 180 lumens per watt from the 240W module
• Luminous flux, up to 43,200 lumens from a single 240W module
• Weatherproofing, IP66 rated for outdoor use
• Impact protection, IK10 rated
• Surge protection, 20kV lightning arrester fitted
• Beam control, 30 degree, 60 degree, 90 degree and asymmetric options, with a 360 degree rotatable module
• Build quality, aluminium cooling fins, replaceable lens, instant start with no warm up time
• Service life, rated over 50,000 hours, with a 5 year warranty

Applications

Suited to football pitches, tennis courts, commercial parks, yards and industrial lighting projects where beam angle, mounting height and total output need to be matched to the site layout rather than fixed in advance.
