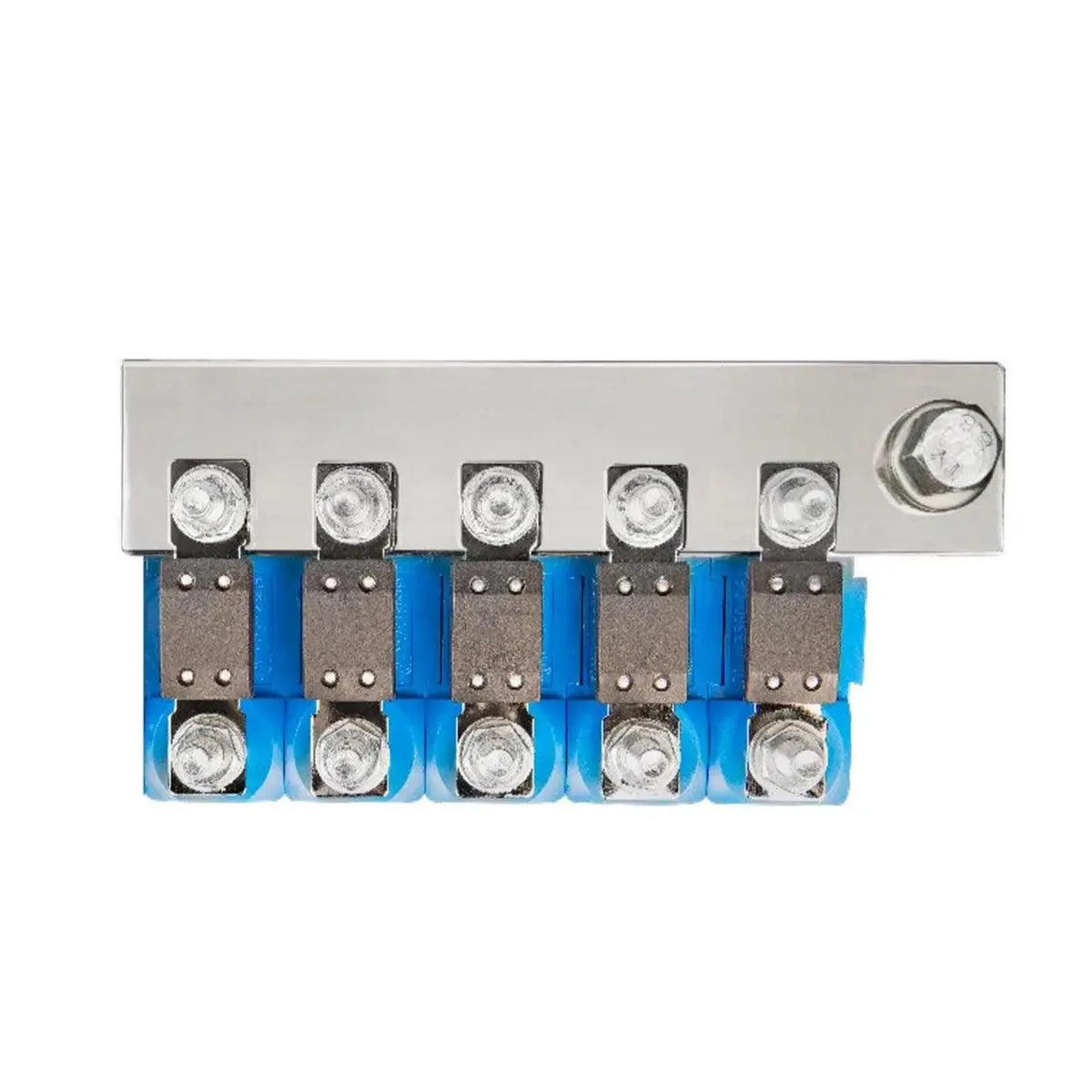

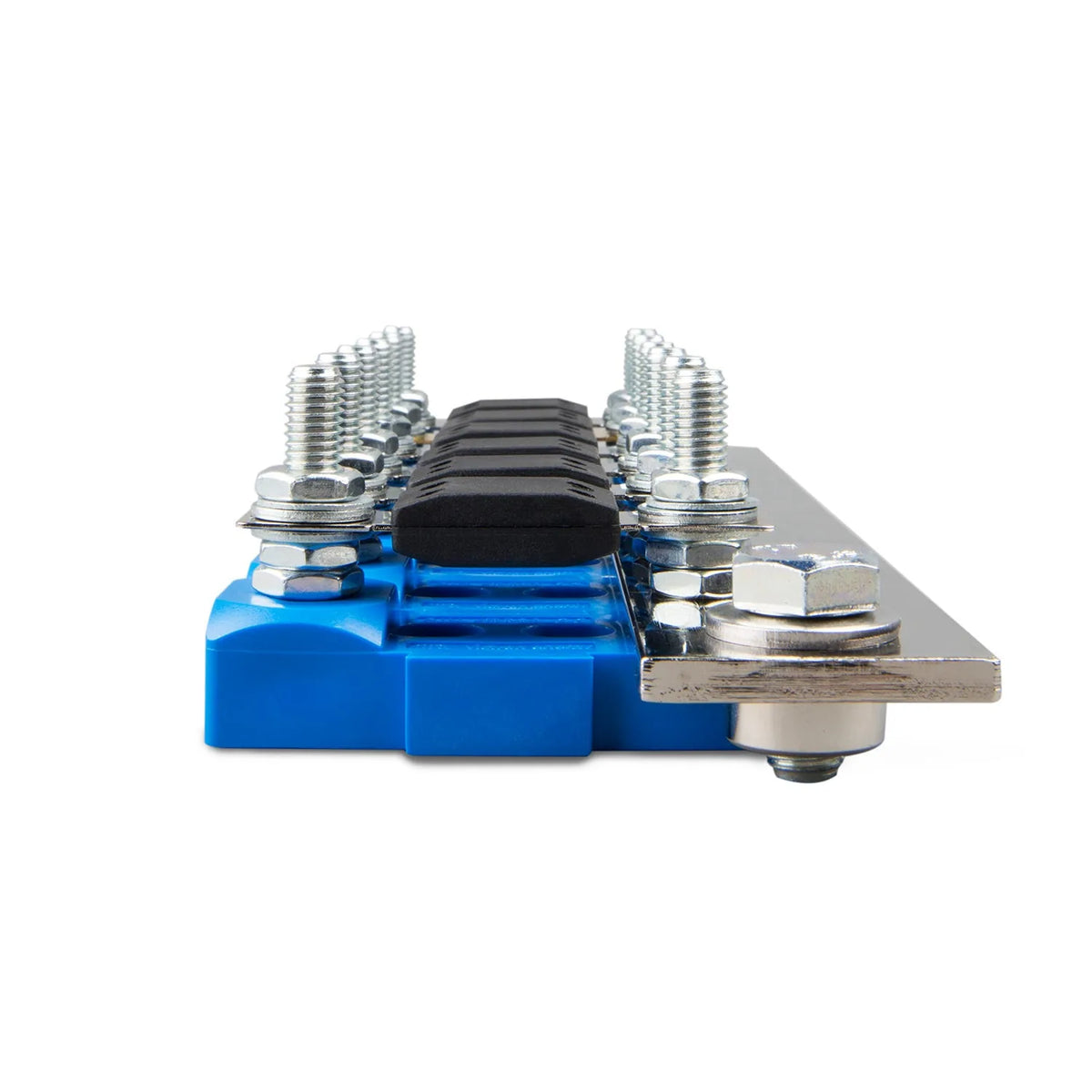

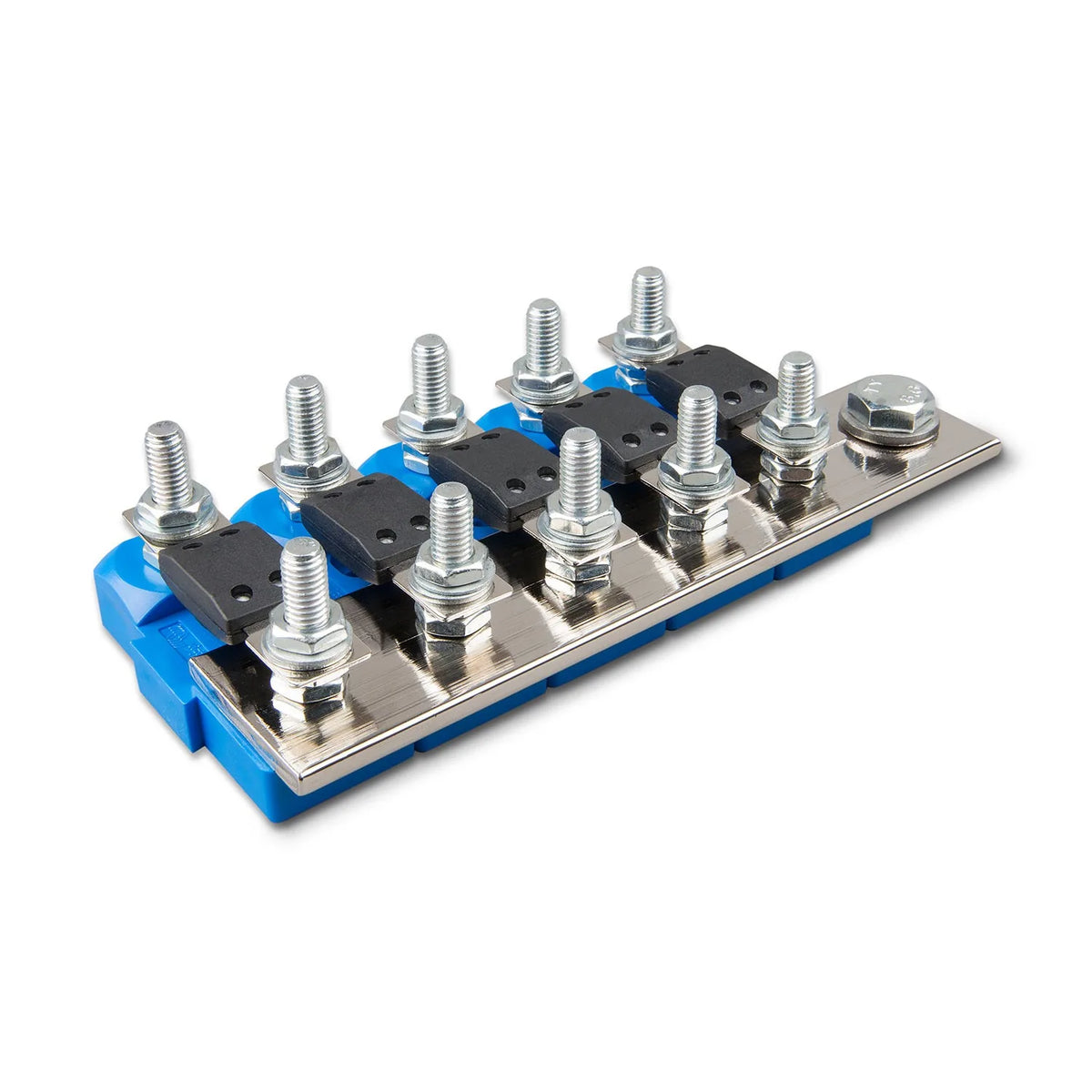

The CIP100400060 is a busbar built to link up to five CIP100200100 MEGA fuseholders into one assembly. It suits DC distribution systems where several high-current circuits need to meet at a common point, such as battery banks, inverter setups and marine or vehicle electrics.

Key features

• Positions, connects up to five CIP100200100 MEGA fuseholders on a single busbar.
• Fit, made specifically for the Victron MEGA fuseholder range, so contact and mounting line up exactly.
• Wiring, brings multiple fused circuits onto one connection point rather than separate runs.
• Weight, 0.17 kg, useful where panel space is tight.

Applications

Fits DC distribution boards in off-grid and battery-based solar systems, marine electrical setups with several fused high-current circuits, and 12V or 24V motorhome or vehicle wiring with multiple independent loads. It also works well in inverter and battery bank builds where several MEGA fuses share a common rail.

Compatibility

This busbar is compatible exclusively with the CIP100200100 MEGA fuseholder and is fixed at five positions. Check how many fuseholders your installation needs before ordering, since the layout cannot be extended or reduced.

What's in the box

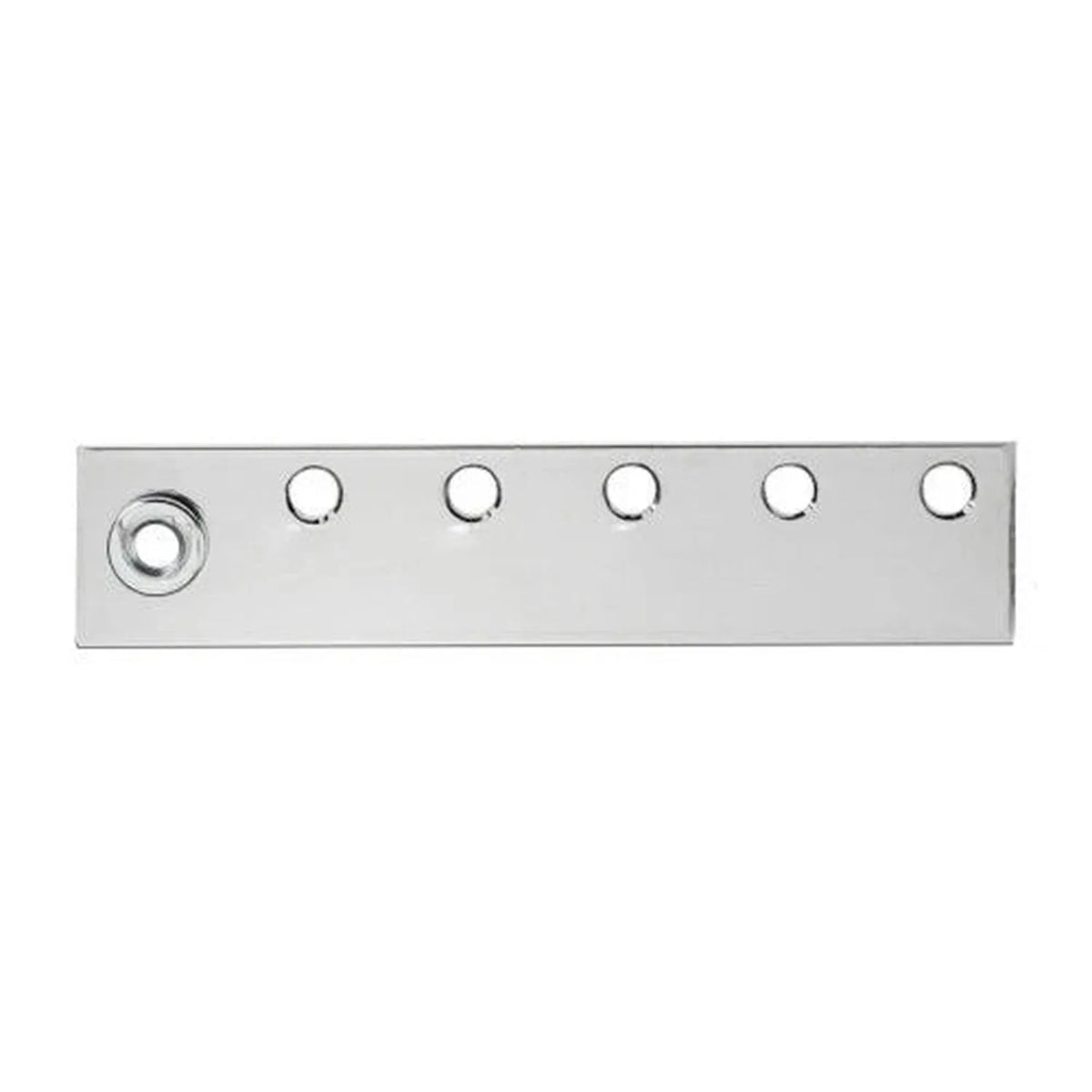

• 1 x CIP100400060 busbar for connecting 5 x CIP100200100 MEGA fuseholders

Installation notes

This is a passive connection part; fuseholders and fuses are sold separately. Torque all connections to the fuseholder's stated specification, and have the work done by someone experienced with high-current DC systems. Check that the combined current of the connected circuits stays within the rating of the busbar and cabling.
