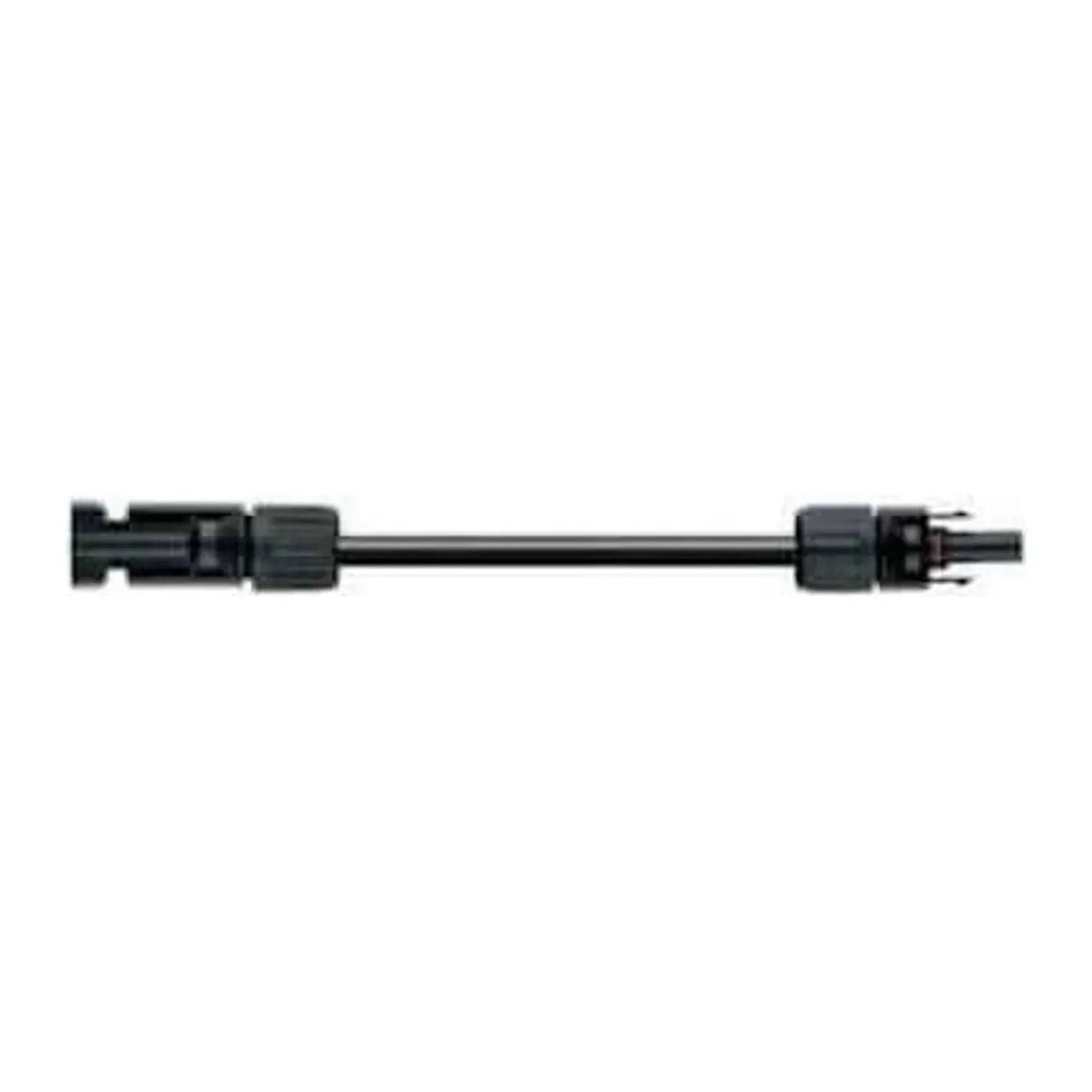

This Victron Energy adapter cable converts an MC4 female connector to an MC3 male connector, letting solar panels or cables terminated in MC4 plug into MC3-compatible charge controllers, junction boxes or existing wiring. At 15cm long, it is built for short-reach connections rather than cable runs.

Key features

• Connector type, MC4 female to MC3 male
• Cable length, 15cm
• Weight, 35g
• Direct fit, no tools or crimping needed to join MC4 and MC3 systems

Product overview

MC4 and MC3 connectors do not mate directly, which becomes a problem when a newer panel needs to connect to an older MC3-based controller, or when an existing MC3 system is being extended with MC4 equipment. This cable bridges that gap without re-terminating either end.

The MC4 female end takes a standard MC4 male plug from a panel or extension cable. The MC3 male end plugs straight into an MC3 female socket on the receiving equipment. Its short length suits use at the connection point between a panel lead and a controller input, or inside a combiner box where space is tight.

Applications

• Connecting MC4-terminated solar panels to MC3-input charge controllers
• Adding MC4 panels into existing MC3-based off-grid systems
• Use inside combiner boxes or junction enclosures where connector types differ
• Retrofit installations where replacing existing MC3 wiring is impractical

What's in the box

• 1x Solar adapter cable, MC4 female to MC3 male, 15cm

Installation notes

This adapter is intended for low-voltage DC solar PV circuits. Check the cable and connectors are rated for your system's voltage and current before fitting. Solar PV wiring should be carried out by a qualified electrician or accredited installer, with connections fully seated and weatherproofed where exposed to the elements.
