From shore power to onboard network
You need to be careful when introducing shore power onboard, especially when the yacht is made of aluminium or steel. An incorrectly configured system can result in electrolysis, which will slowly but surely corrode the metal components. It is also important to protect the engine, rudder, rudderstock, propeller and thruster on composite yachts. A Mastervolt isolation transformer will help preserve your valuable boat and provide you with the security of a correctly earthed 230V system.

Select the right transformer for your system:

Lightweight Mass GI transformer

Ultra modern high frequency electronic switch technology

Lightweight and compact

Integrated Soft Start function

Connect to power from 90–255V and from 45–65Hz

Units can be parallel coupled for higher capacity

Higher efficiency, limited heat development

IVET-D isolation transformers

High quality toroidal transformer in robust casing, including circuit breaker

Standard Soft Start for the suppression of inrush current at shore connection

Multi tap version for both 230V/50Hz and 120V/60Hz shore voltage

IVET heavy-duty series

High-quality isolation transformers without casing (for self installation)

Optional Soft Start, in synthetic casing

Capacities of 25–22kW

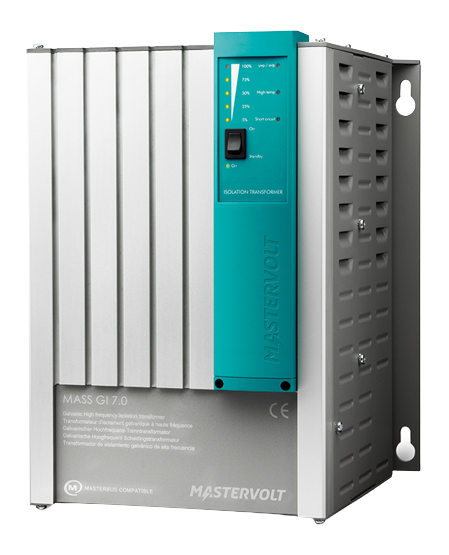

Modern transformer technology: Light, silent, reliable and easy
Mastervolt’s Mass GI offers the latest high frequency switching technology as well as Soft Start for peak loads when connecting to the shore.
Weighing a mere six kilograms, LED lights on the casing indicate load and overload. The transformer can be remote controlled via a
panel and has the option of automatically starting the generator when there is a shore current overload.

Higher capacity via parallel switching
Parallel switching of the Mass GI units increases the shore
power capacity. Two 16A/3.5kW units ensures 32A/7kW, four
units give 64A/14kW.

Global solution
The IVET-D multi-tap is suitable for 230V/50Hz and 120V/60Hz
(American or Caribbean).

Install anywhere
With its maritime, aluminium casing, this isolation transformer
can be fitted in any position on a wall or floor. No rubber
mountings are necessary because the unit does not vibrate or
hum. The Mass GI also features professional connections with
strain relief cable glands.

Practical tips:

Determine shore and onboard current: 230V, 120V or both

Determine the capacity. Maximum load with onboard power usage: amount of amps and kW

Note sizes and weight; the mass GI is 75% lighter and 60% smaller compared to low frequency transformers

Remember:

Detection system for IVET heavy duty automatically supplies onboard system with 230V in case of a 120V/60Hz shore connection (or vice versa)

Systemswitch or Masterswitch for integrating shore power, generator and/or inverter

Connects to 12V or 24V system, battery charger or Mass Combi
