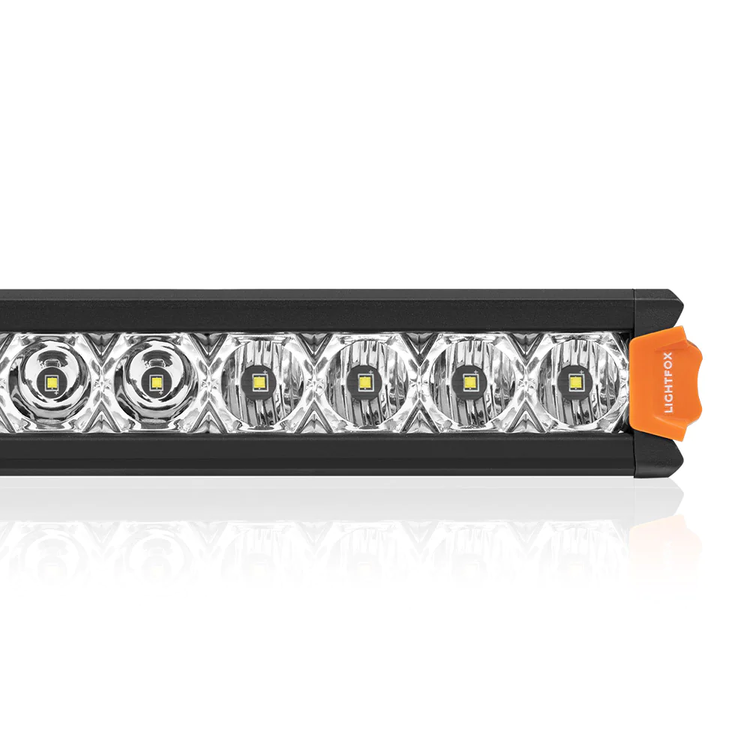

If you’ve been searching for a light bar to cut through the dark, then the following arsenal by Lightfox must be the one you are looking for. This 20" LED light bar has been optically upgraded with Lightfox’s Vision Drive Tech that integrates a 13° spot beam and 60° flood beam to provide smooth and clean beams and is visually enhanced by OSRAM’s® finest OSLON® LEDs, which deliver focused beam-shaping and light guides, to throw light at 1Lux@453m and secure 12,580LM for complete off-road visibility. Engineered with 5,500K CCT, this 20-inch LED light bar features still crisp white light but is a little bit warmer & easier on your eyes. AkzoNobel powder defies extreme UV exposure and corrosion, and a screwless front frame with UV resin construction delivers IP-68 protection. Dual mounting options allow for greater flexibility, particularly for installation in tight places or roof racks, and colour caps will add visual appeal to make you one of the most enviable spotlights on the road.


Features

• Vision Drive Tech: This technology integrates curved and metalized reflectors to maximize light harvesting and provide smooth and clean beams.

• Ultra Vision: Lightfox offers a combination of 13° spot beam and 60° flood beam with single row configuration to give you perfect visibility in any conditions.

• Super Luminosity: Powered by OSRAM’s® finest OSLON® LEDs, this 20-inch LED light bar delivers 12,580LM and 1Lux@453m with focused beams.

• Warmer Color Temp: This 20-inch light bar features 5,500K CCT, which means it is still crisp white light but a little bit warmer & easier on your eyes.

• Optimally Engineered: The built-in circuit board protects the 20-inch LED light bar from flashing and reverse polarity, and the breather eliminates condensation.

• IP-68 Protection: This 20-inch LED bar light adopts a screwless design on the front with UV resin to deliver complete protection against dust and heavy washdown.

• Tough Construction: AkzoNobel powder protects aluminium housing from UV exposure & corrosion, and anti-scratch PC lens and forged iron brackets are built to last.

• Super Versatility: This 20’’ light bar can be mounted in tight spaces, thus suiting a wide range of vehicles while maintaining the factory look of the vehicles.

• Dual Mounting Options: Side and bottom mounts allow it to be mounted on a variety of positions, particularly for installation in tight places or roof racks.

• Personalized Customization: Available in Yellow, Orange, Grey, Black and Red, the colour caps add the visual appeal that makes you the spotlight on the road.

SPECIFICATIONS

Bulb Type: LED
Chip: 5W*20 OSRAM OSLON
Theoretical Output: 100W
Housing & Heat Sinks: Aluminum
Lens: Strengthened PC
Coating: AkzoNobel Powder
Sealing Material: UV Resin
Side Bracket: Forged Iron
Bottom Bracket: Aluminum
Raw Lumens: 12,580LM
Lux Rating: 1Lux@453m
Colour Temperature: 5,500K
Reflector Distribution: 4 Flood + 12 Spot + 4 Flood
Spot Beam: 13°
Flood Beam: 60°
Amp Draw: 6.2A@12V
Expected Lifespan: 50,000 Hours
Relative Light Intensity: 78% (150°C)
Operating Temperature Range: -40°C (-40°F) ~ 150°C (302°F)
Waterproof: IP-68 Rating
Package Size: 62 x 7.5 x 7.5cm
Gross Weight: 1.3kg

Package Includes

1 x Lightfox 20” LED Single Row Light Bar
2 x Side Mounts
2 x Bottom Mounts
1 Set Of Mounting Hardware
4 Pairs of Colour Caps
1 x User Manual

Warranty

5 Years Warranty


Download The User Manual HERE
