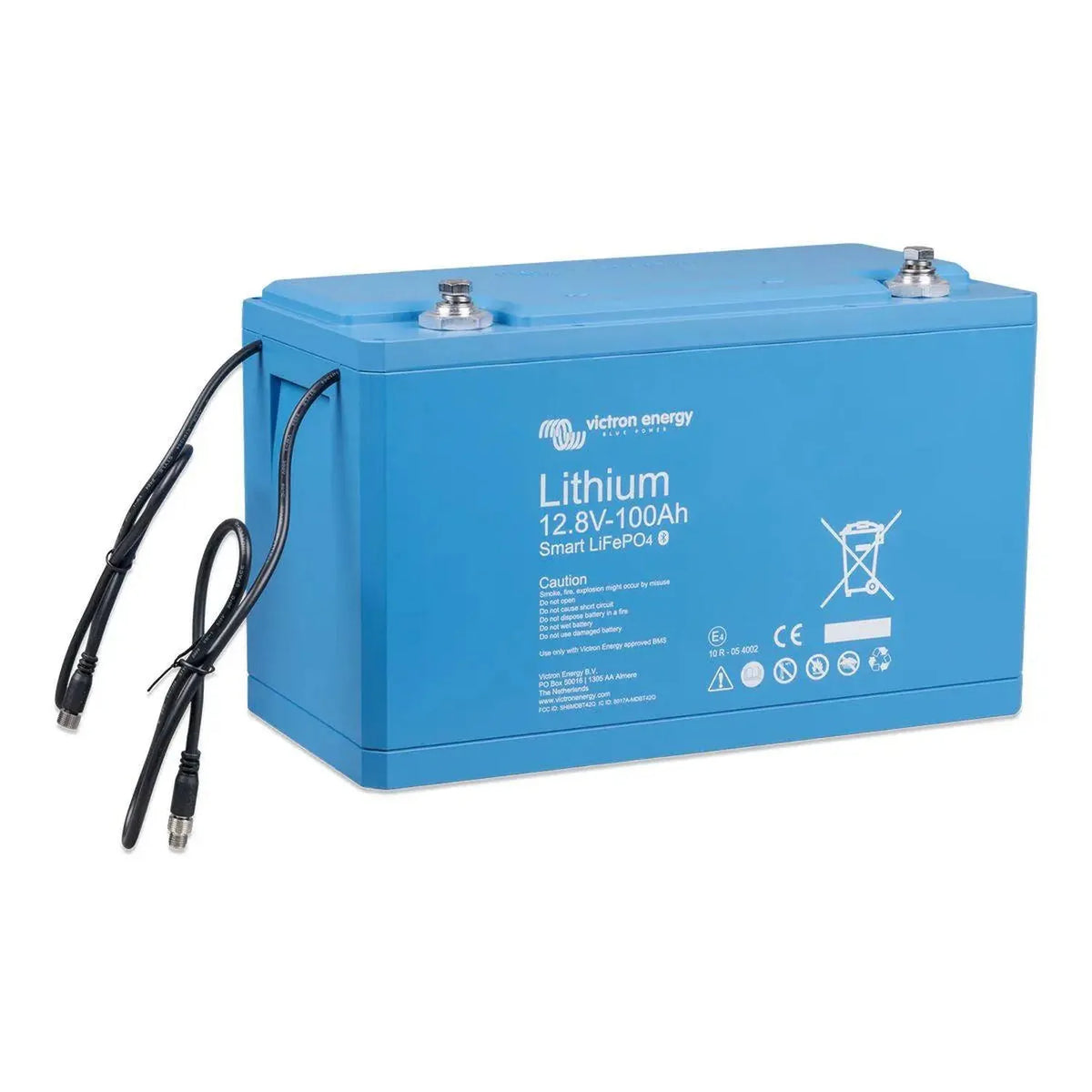

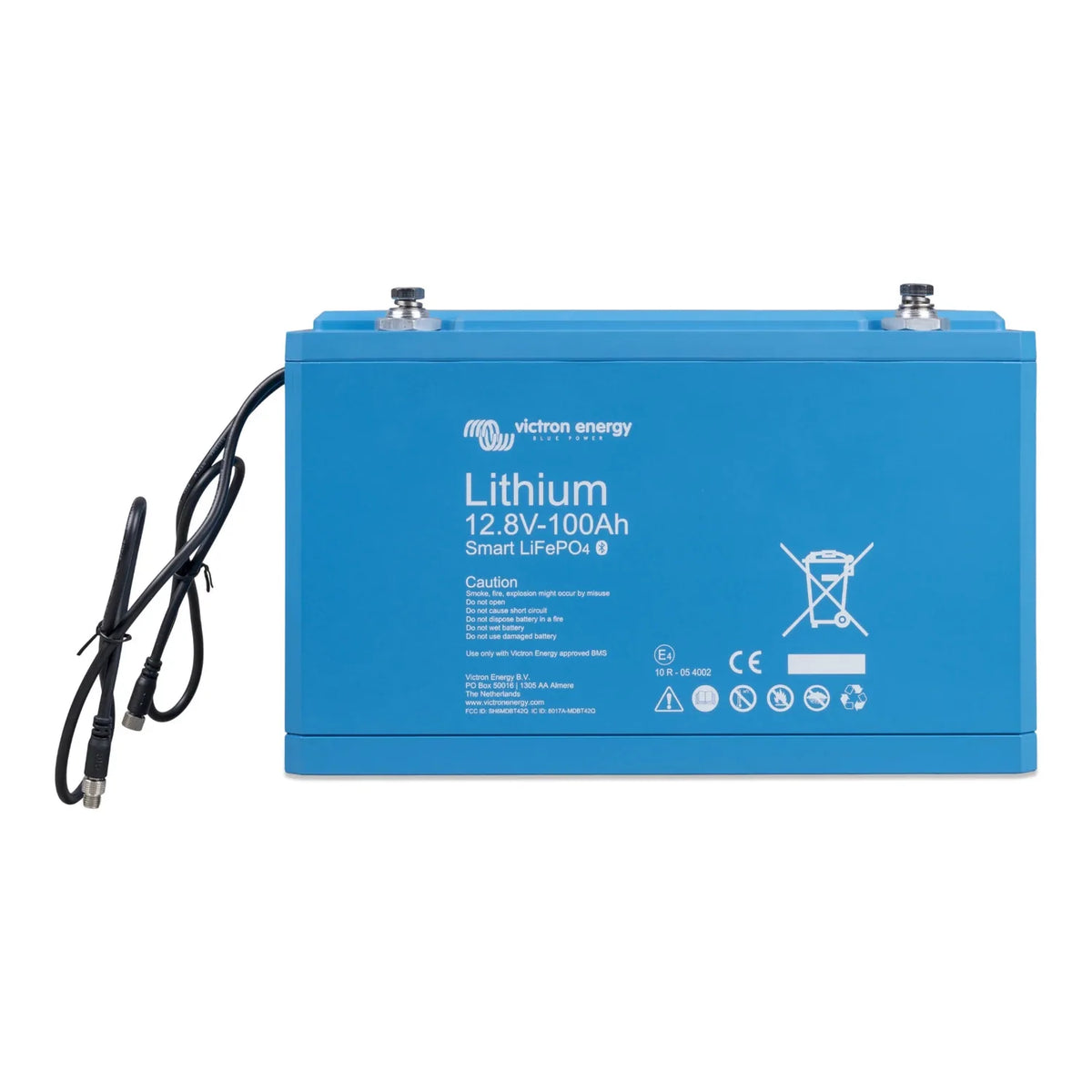

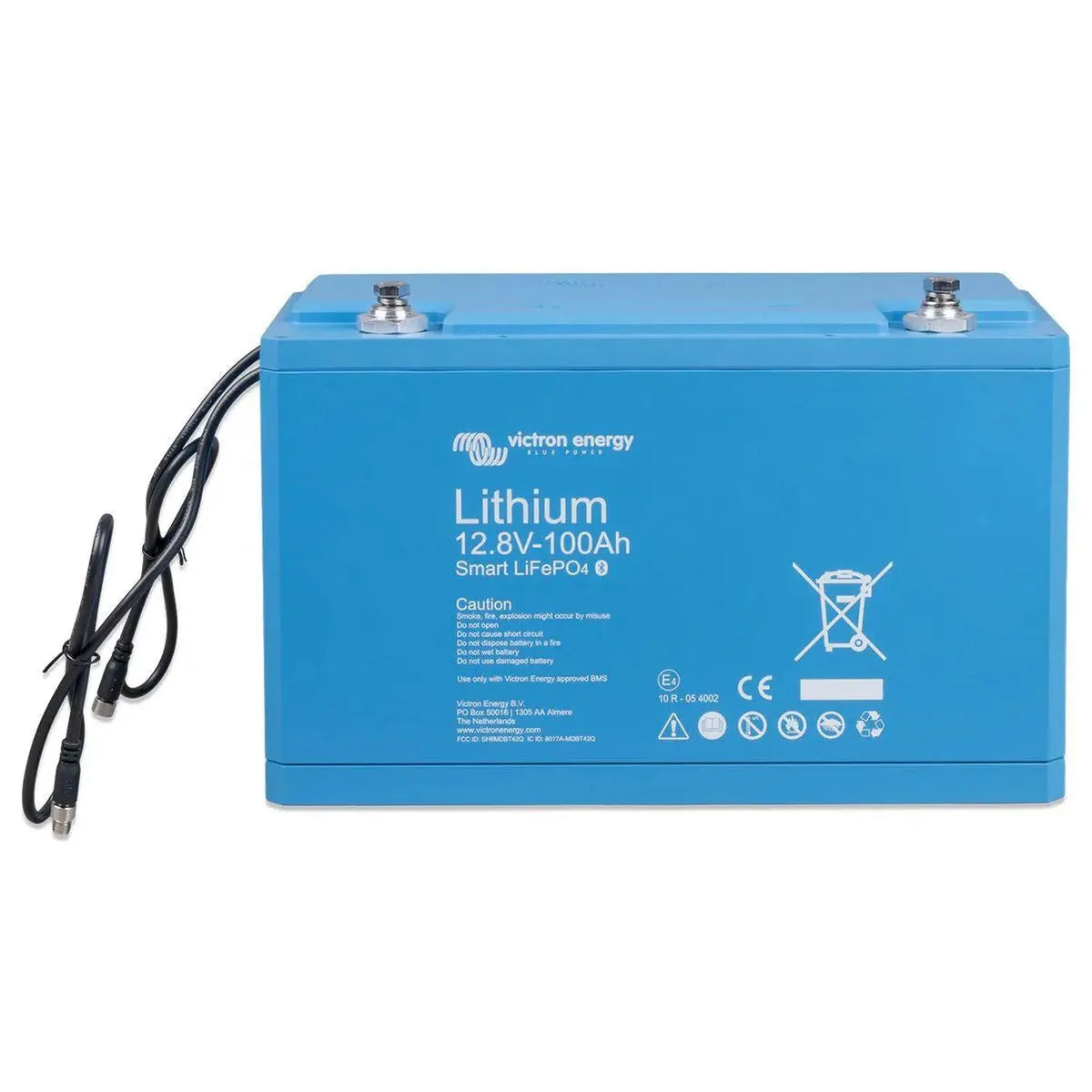

The Victron LiFePO4 battery combines lithium iron phosphate chemistry with an integrated Bluetooth module, built for solar storage, off-grid systems, marine and vehicle use. Rated at 12.8V nominal with 100Ah capacity, it delivers 1.28kWh of usable energy from a single unit.

Key features of this Victron LiFePO4 battery

• Chemistry - Lithium iron phosphate (LiFePO4), offering a stable cell with longer cycle life than lead-acid.
• Connectivity - Integrated Bluetooth links directly to the VictronConnect app for state of charge, voltage, current and temperature monitoring.
• Capacity - 12.8V nominal, 100Ah, 1.28kWh usable energy.

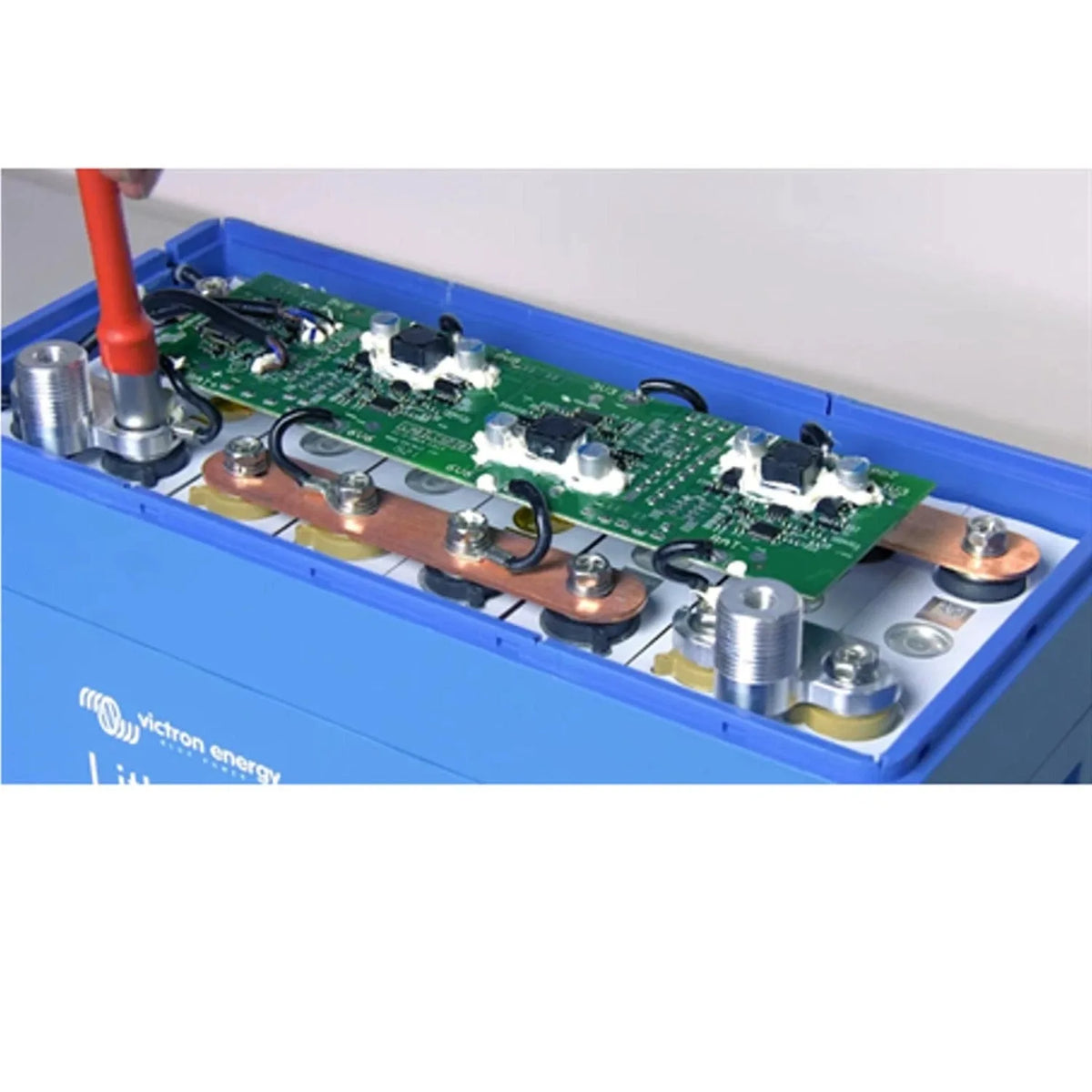

• Protection - Built-in BMS guards against over-charge, over-discharge, over-temperature and short circuit conditions.
• Weight - 14.01kg, lighter than an equivalent lead-acid battery of the same capacity.
• System integration - Works with Victron charge controllers and inverter/chargers via VE.Bus and VE.Direct, and can be wired in series or parallel with other units.

Applications

Suited to off-grid solar storage in residential, agricultural and remote sites, marine house battery banks, motorhome and campervan leisure systems, and backup power for telecoms and security equipment. It also works well in mobile power setups and as an addition to existing Victron-based battery banks.

Installation notes

Fit by a qualified electrician or system integrator familiar with lithium battery systems. Set the charge source to a LiFePO4 charge profile before connecting, and do not mix chemistries in the same bank. When wiring units in series for 24V or 48V systems, check that the BMS and charge sources are rated for the resulting voltage.

What's in the box

• 1x Victron LiFePO4 12.8V 100Ah Smart battery
