The Ledison S1-T is a touch glass panel dimmer switch built around an AC Triac circuit, designed to control dimmable LED, halogen and incandescent lighting. Input and output are both AC100-240V, and brightness is set using a virtual sliding bar on the tempered glass front.

LED touch dimmer switch features

• Model, S1-T
• Dimming control, touch slide plus RF 2.4GHz wireless
• Dimming levels, 256 levels across a 0-100% range
• Output, max 1.2A, 120W / 288W output power

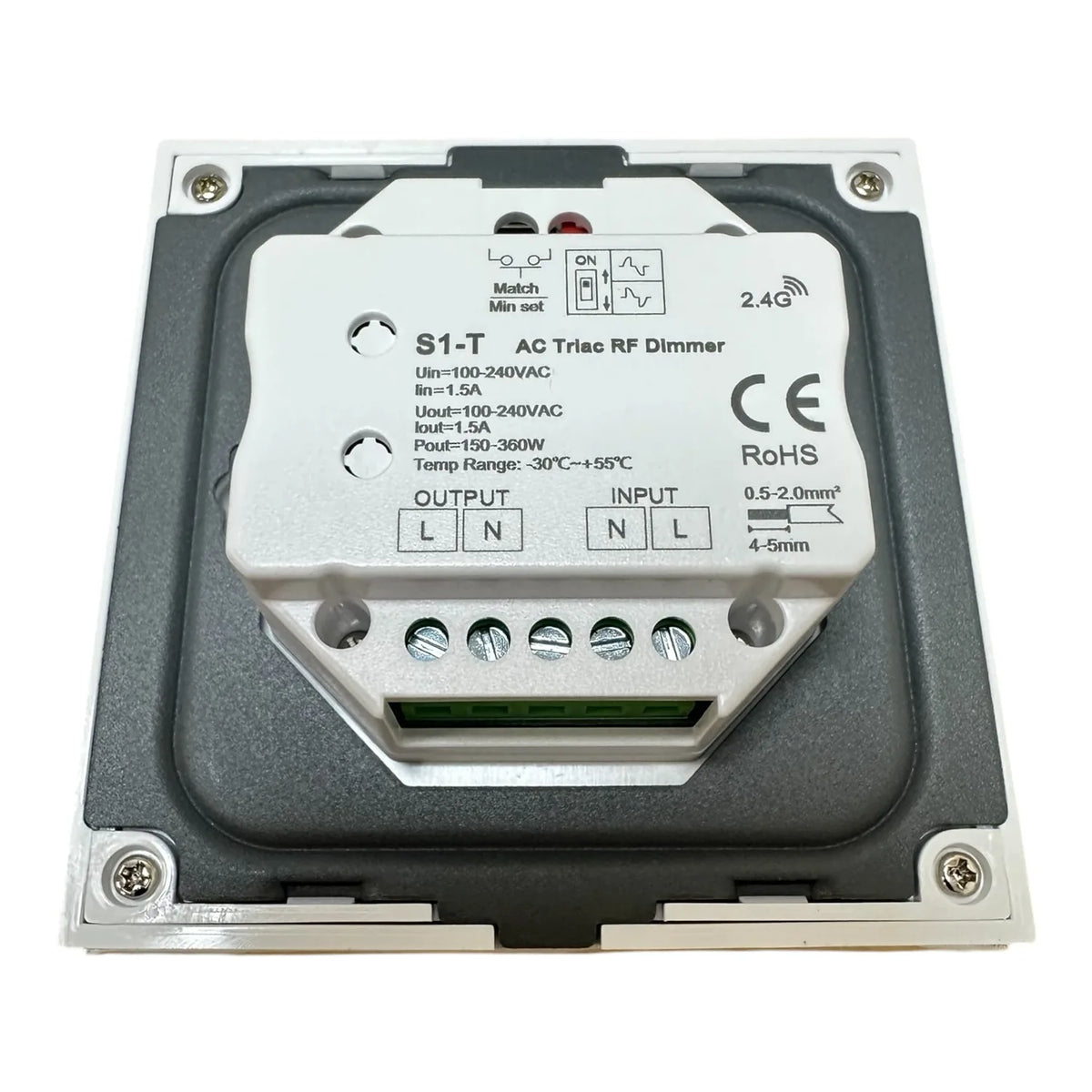

• Dimming type, leading edge or trailing edge, selected via an internal DIP switch
• Load compatibility, dimmable LED, halogen and incandescent lamps

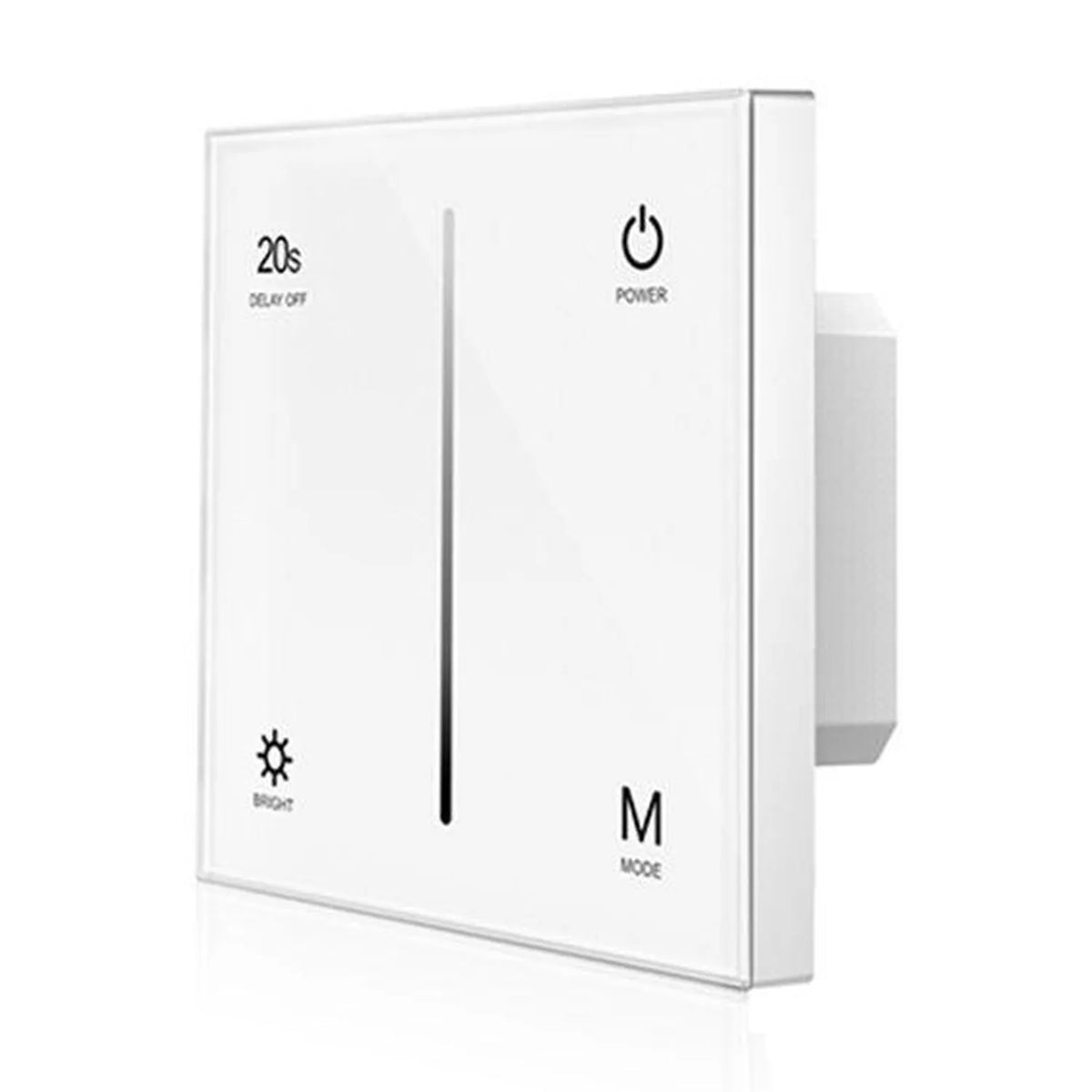

Touch panel and RF control

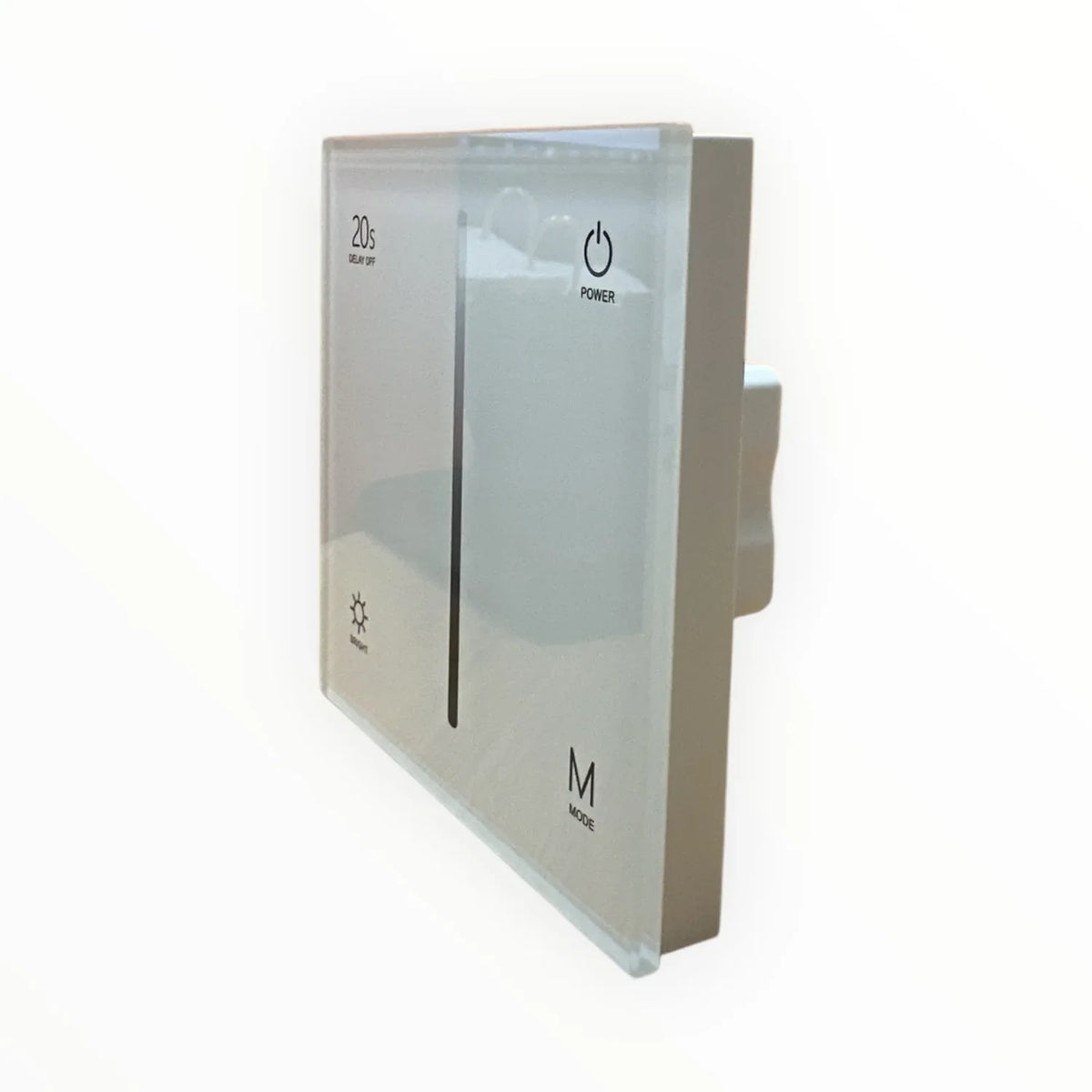

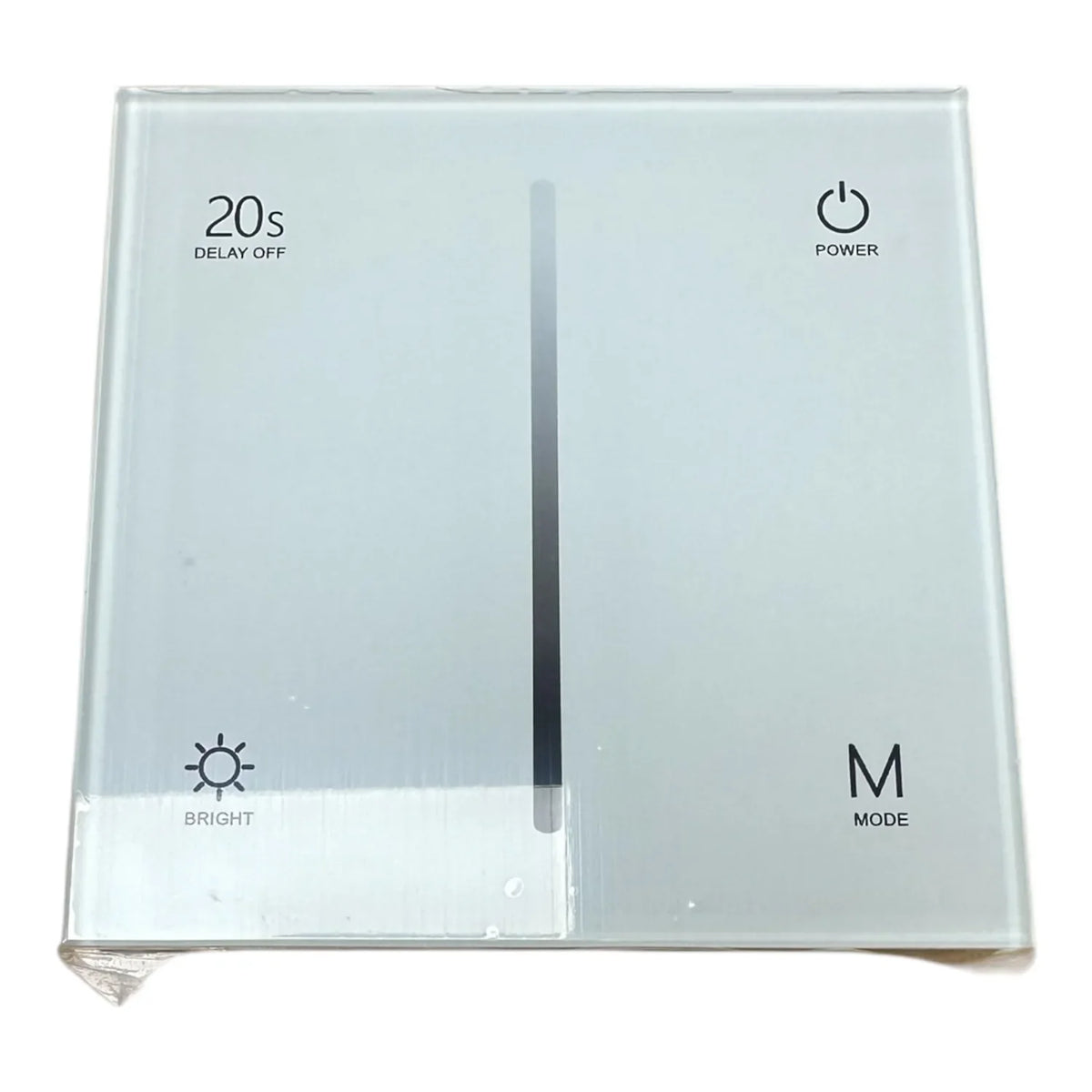

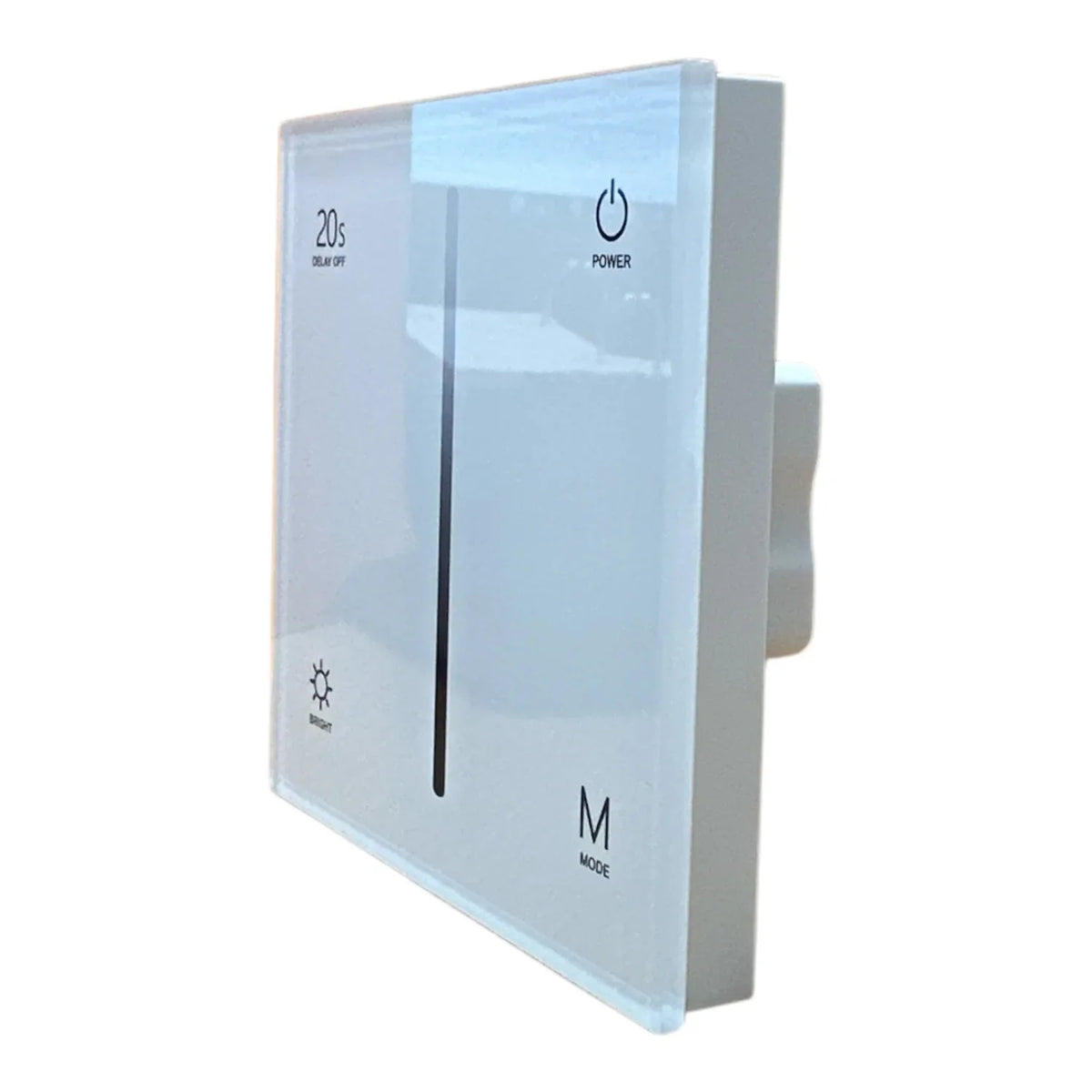

The glass surface responds to touch on a central sliding bar and includes backlighting so the panel stays visible in low light. Paired with a compatible Skydance remote, the dimmer can be switched on and off or adjusted in brightness from up to 30 metres away, which suits both home and commercial rooms where a wall switch is not always convenient to reach.

Installation and build

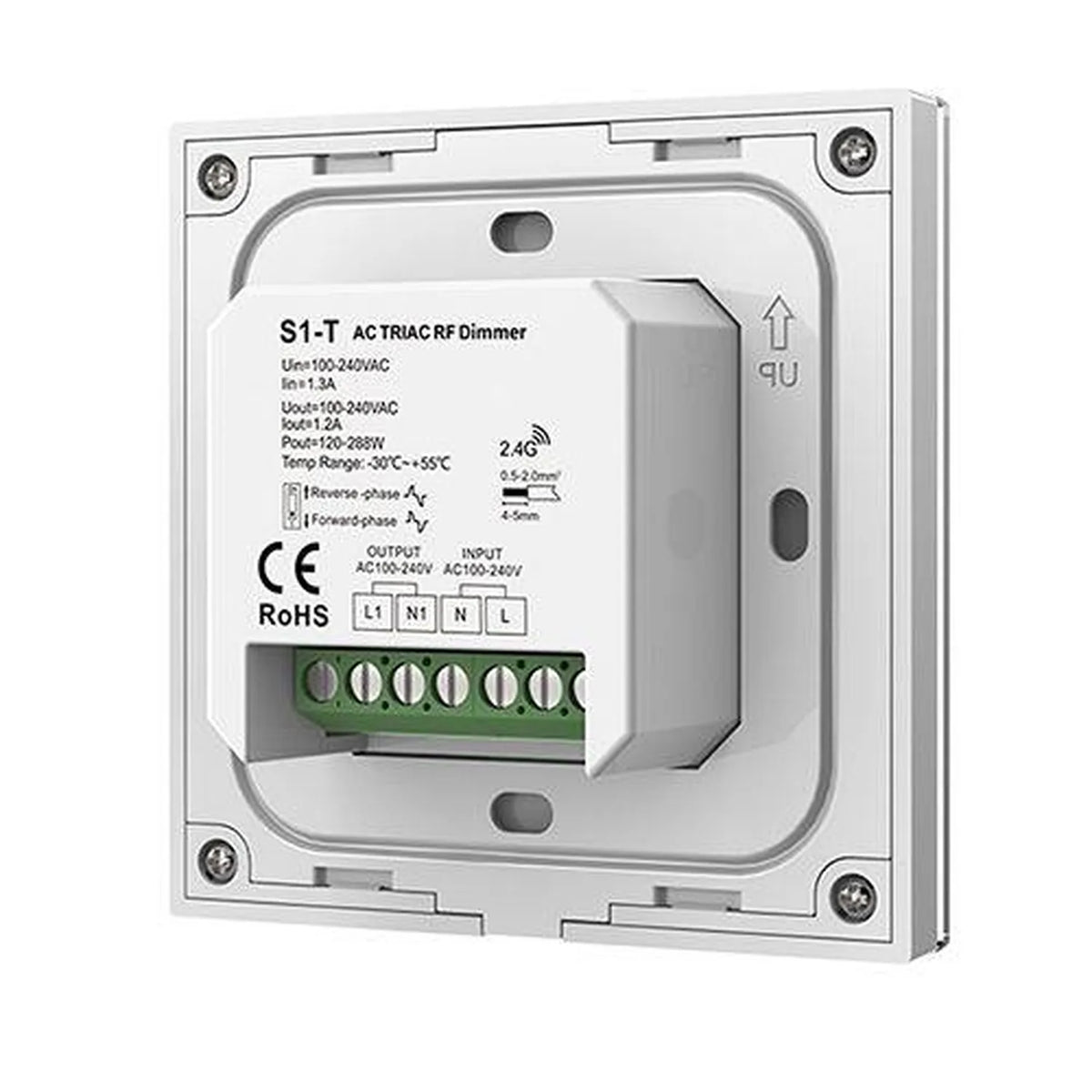

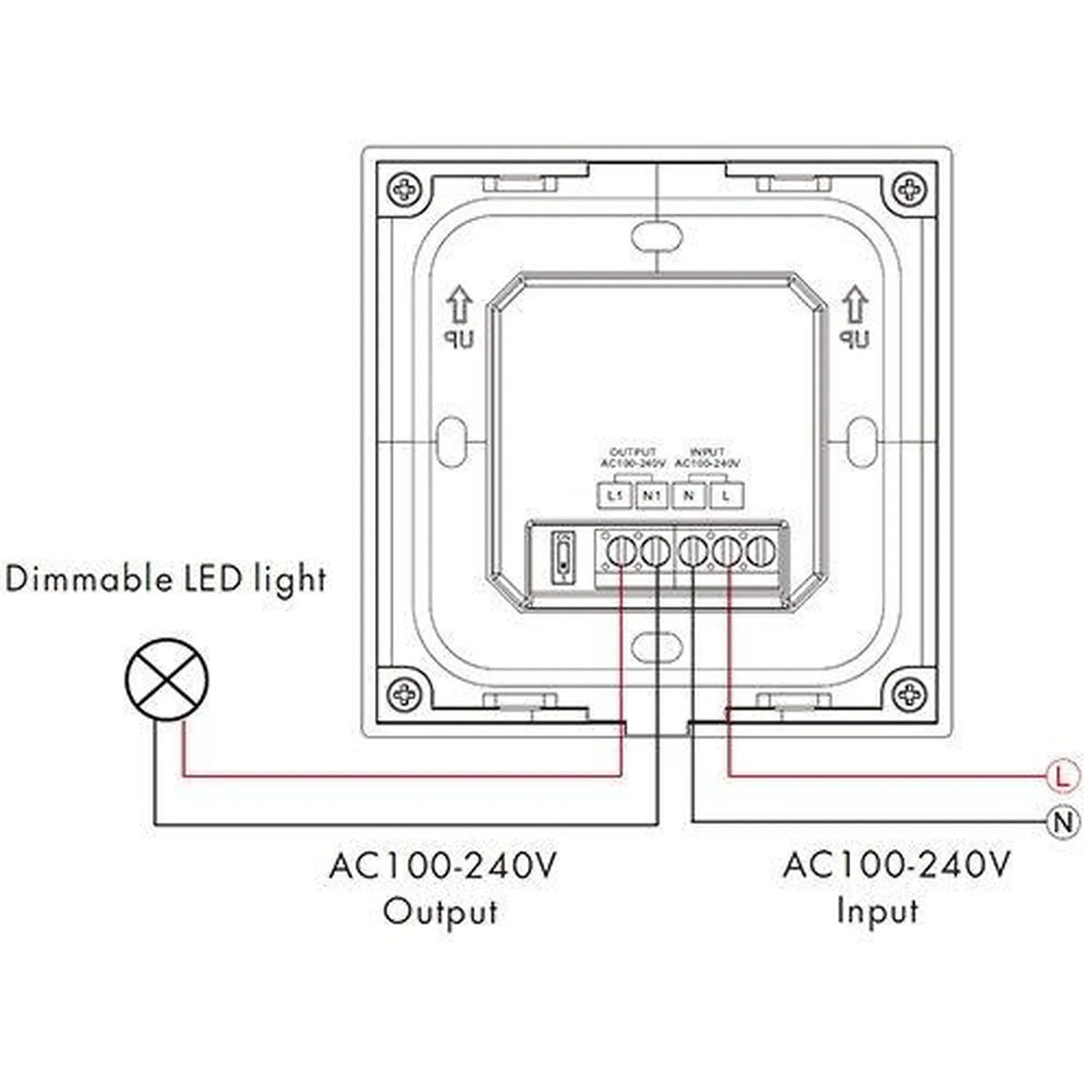

Wiring uses standard AC live and neutral connections along with the LED output wiring, and the unit fits a standard European 86-size back box. The dimmer measures 86 x 86 x 36.5mm and carries an IP20 rating, so it is intended for indoor, dry locations only.

Certifications and operating range

The S1-T is CE marked and meets EMC and LVD requirements, including EN55015, EN61547 and EN61347. It operates across a -30°C to +55°C range and is covered by a 5-year manufacturer warranty.
