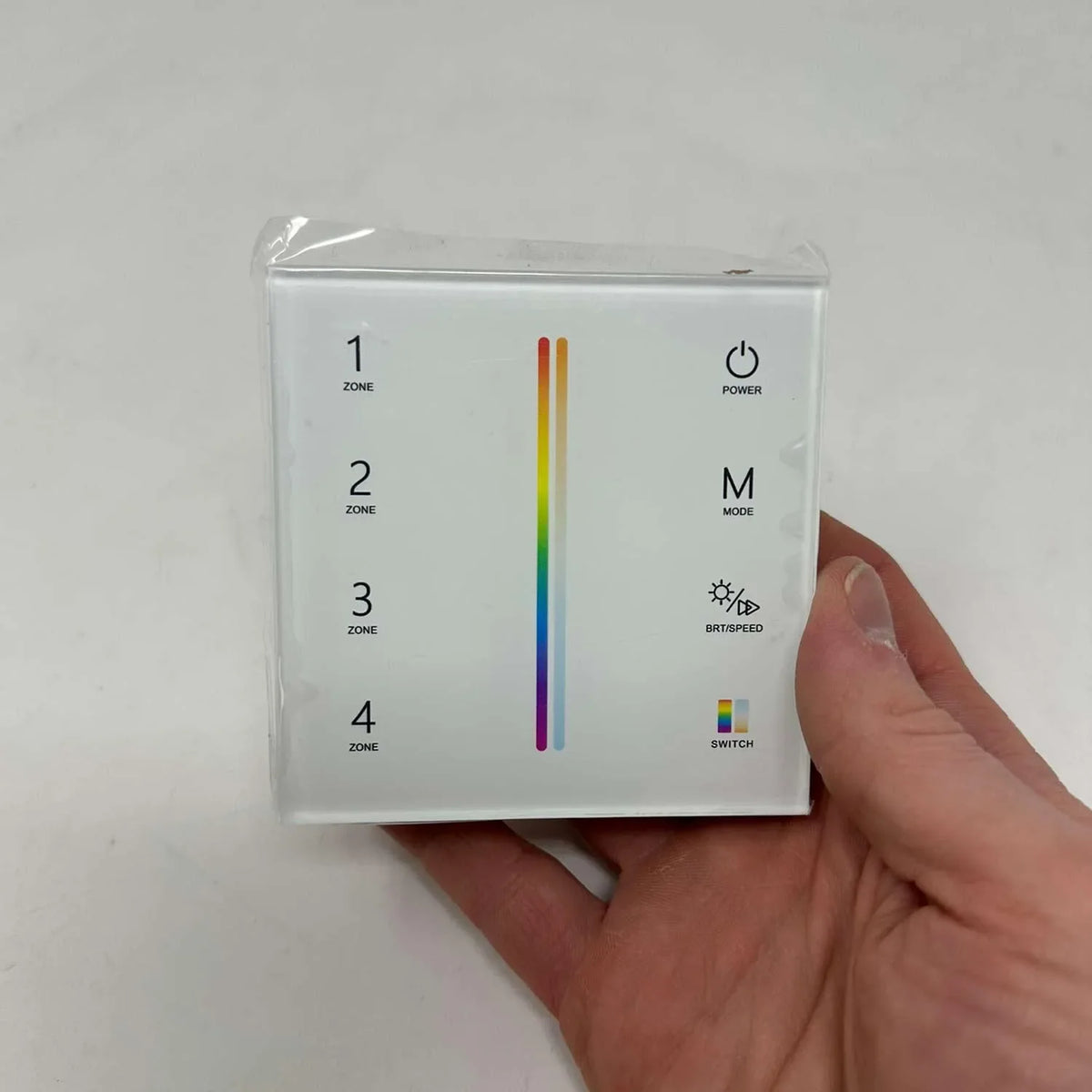

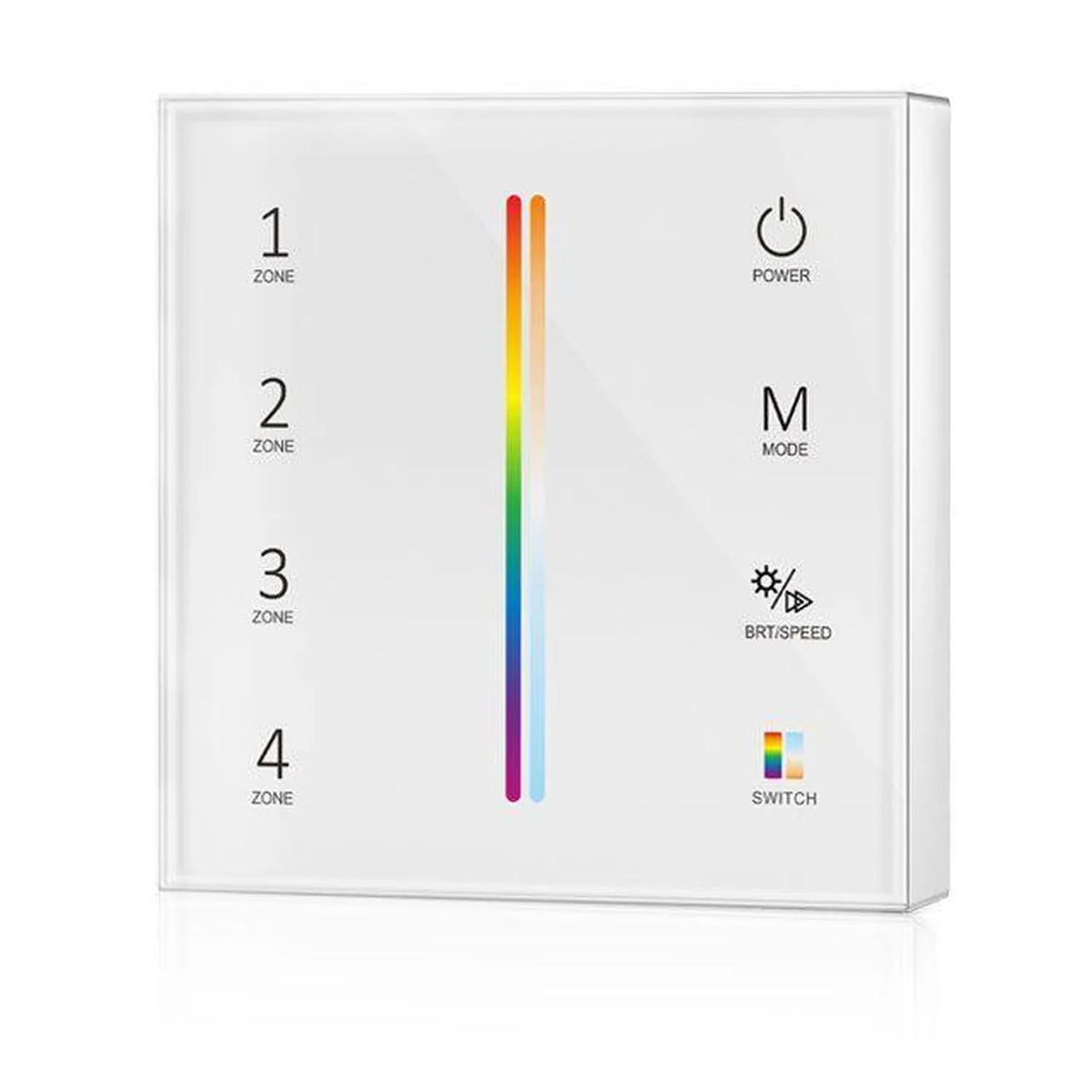

The Ledison T15-1 is a wall-mounted LED RGB CCT controller with a touch panel front, built for smooth colour and colour temperature control across multiple lighting zones. It combines DMX512 output with 2.4GHz RF remote control, so it suits both DMX-based installations and simpler RF setups.

Touch dimmer switch for LED lights with 4-zone control

• Zone control, manages up to 4 zones independently from one wall panel.
• Output signal, DMX512 and RF 2.4GHz, with 20 DMX output channels.
• Input signal, touch key operation plus RF 2.4GHz.
• Dimming, 256 dimming levels across a 0 to 100% range.
• RF control distance, 10m in barrier-free space.

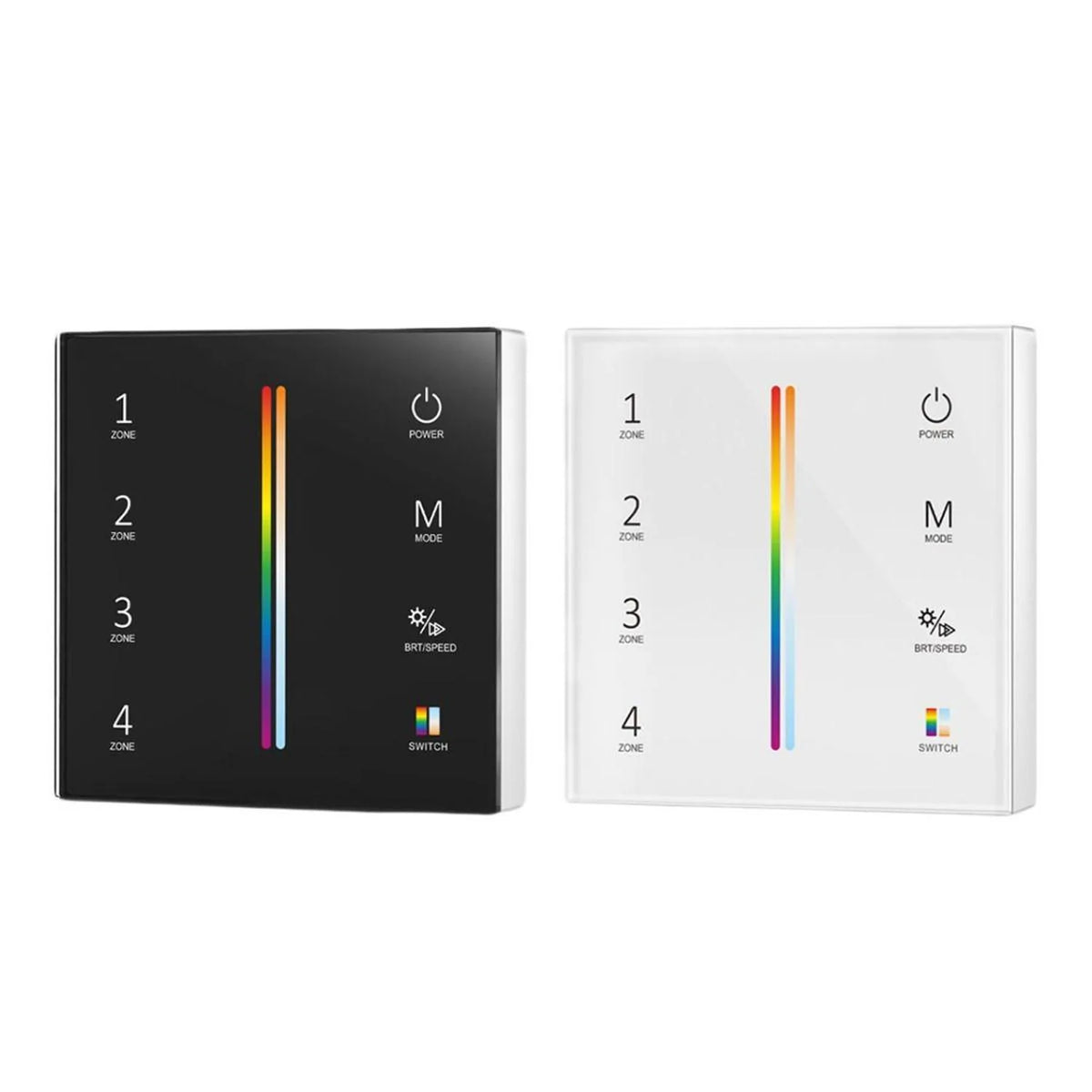

• Finish, available in white or black glass panel.

Applications

Each zone can drive multiple RF 2.4G LED controllers, and the DMX512 output is compatible with DMX decoders from a range of suppliers. This makes the T15-1 useful in smart LED strip installations, architectural lighting, showrooms, commercial spaces and home interiors where more than one lighting area needs separate control from a single touch panel.

Build and operating conditions

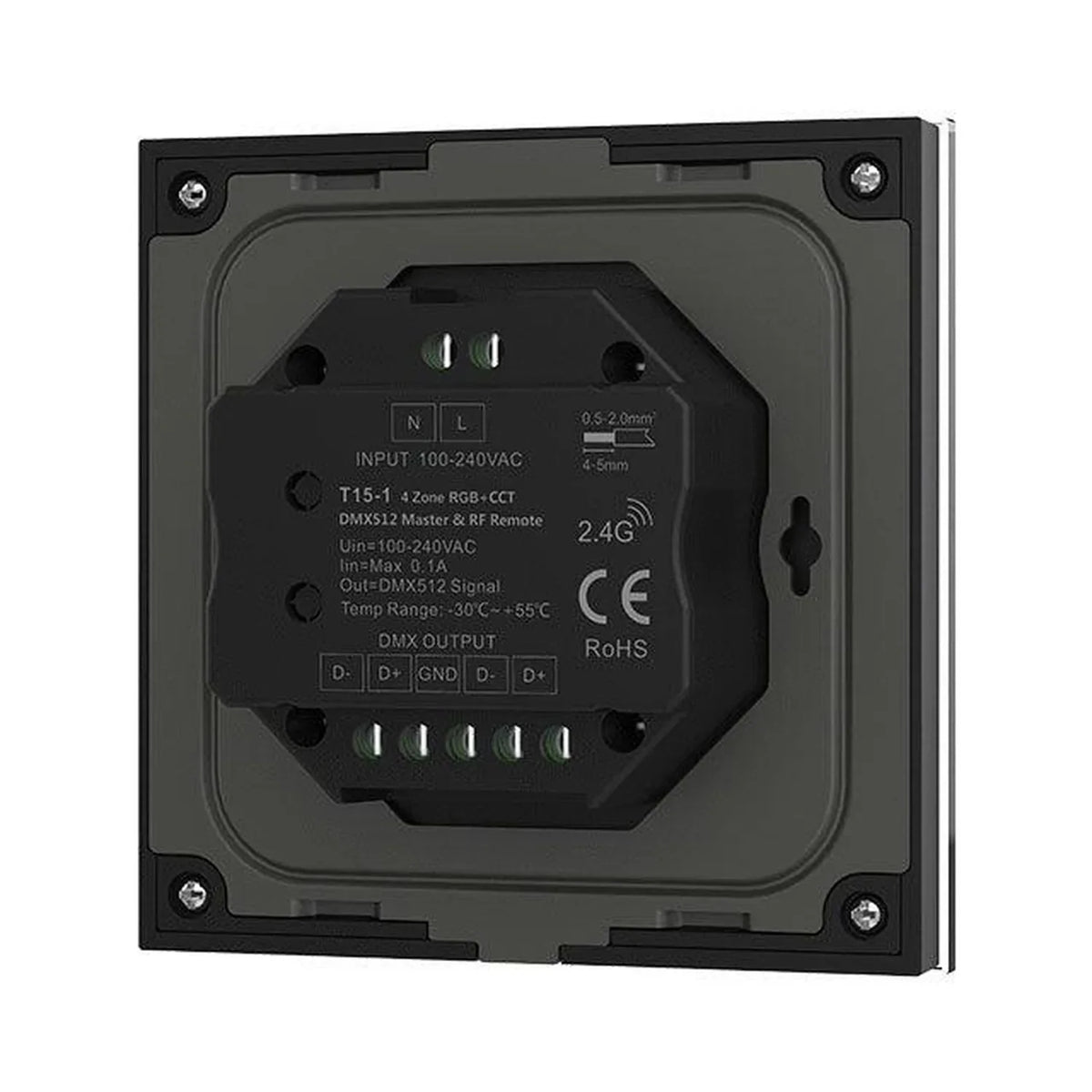

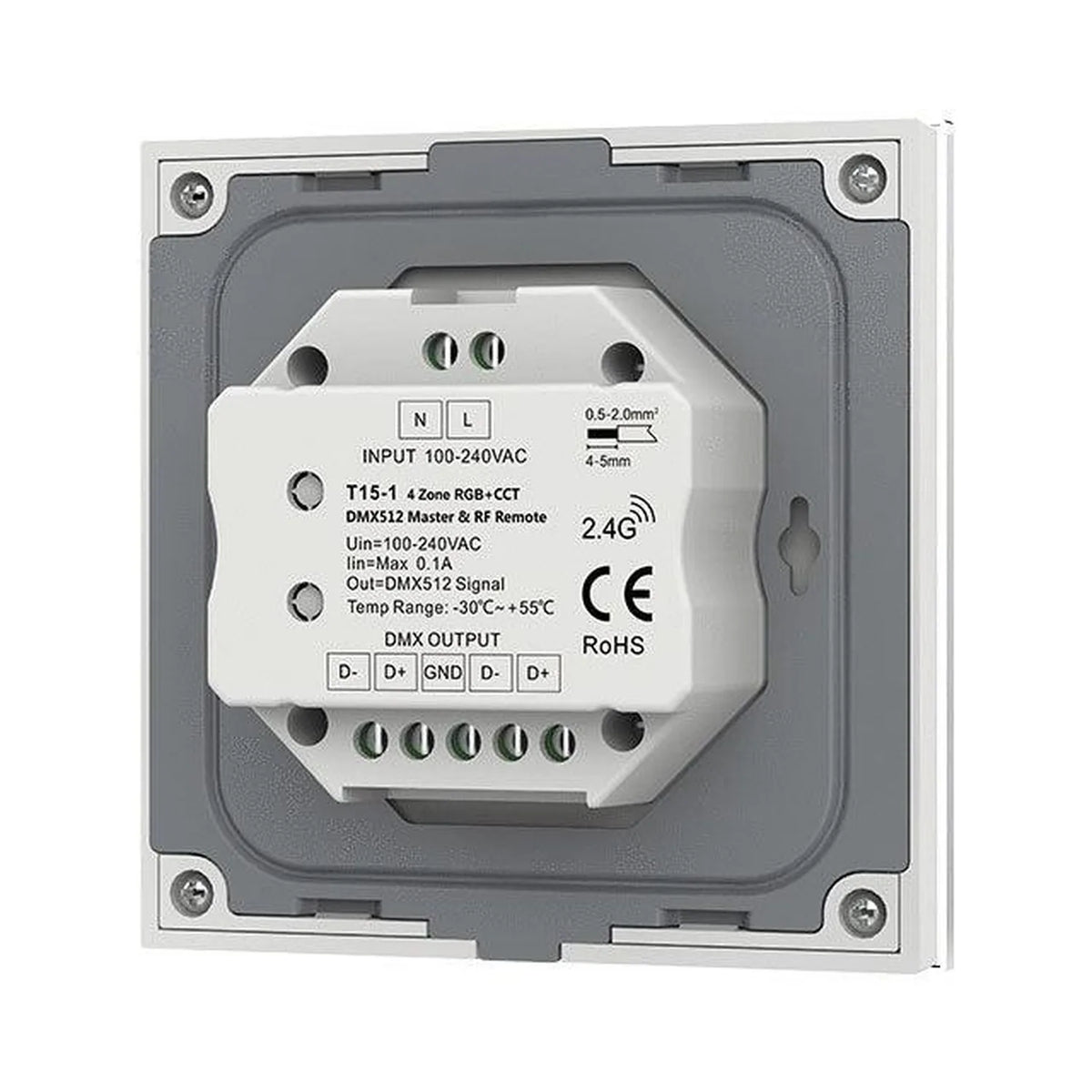

The controller runs from a 100-240VAC input with a maximum input current of 0.1A. It measures 112mm x 112mm x 50mm and weighs 0.230kg. Operating temperature is rated from -30°C to +55°C, with a maximum case temperature of +65°C. IP rating is IP20, so it is intended for indoor or enclosed installation. It carries a 5 year warranty.
