This kit pairs a 120cm LED T8 tube with the Liteplan NLP/1S/80-K emergency conversion pack, giving a linear LED fitting the ability to switch to emergency mode during a mains power failure. The tube runs at 20W with a normal light output of 2000 lumens, while the conversion pack keeps the fitting lit for 3 hours once mains power is lost.

Key features

• Combined kit: 120cm LED T8 tube and Liteplan NLP/1S/80-K emergency conversion pack supplied together.
• Emergency duration: 3 hours from the LiFePO4 lithium iron phosphate battery.
• LED load range: suitable for LED loads from 6V to 80V.
• Automatic current adjustment: matches output current to the connected battery and LED load.
• Average emergency power: 2.6W.
• Certification: third party tested and certified by TÜV.

Applications

The kit suits corridors, utility areas, commercial spaces, offices and workshops, and any indoor location where a linear LED fitting needs emergency lighting backup. The NLP/1S/80-K is designed for integral use inside the luminaire itself, so it sits within the fitting rather than as a separate accessory.

Tube and emergency pack details

120cm LED T8 tube

The tube is a 120cm LED T8 unit rated at 20W with a normal light output of 2000 lumens, intended for use in compatible T8 fittings.

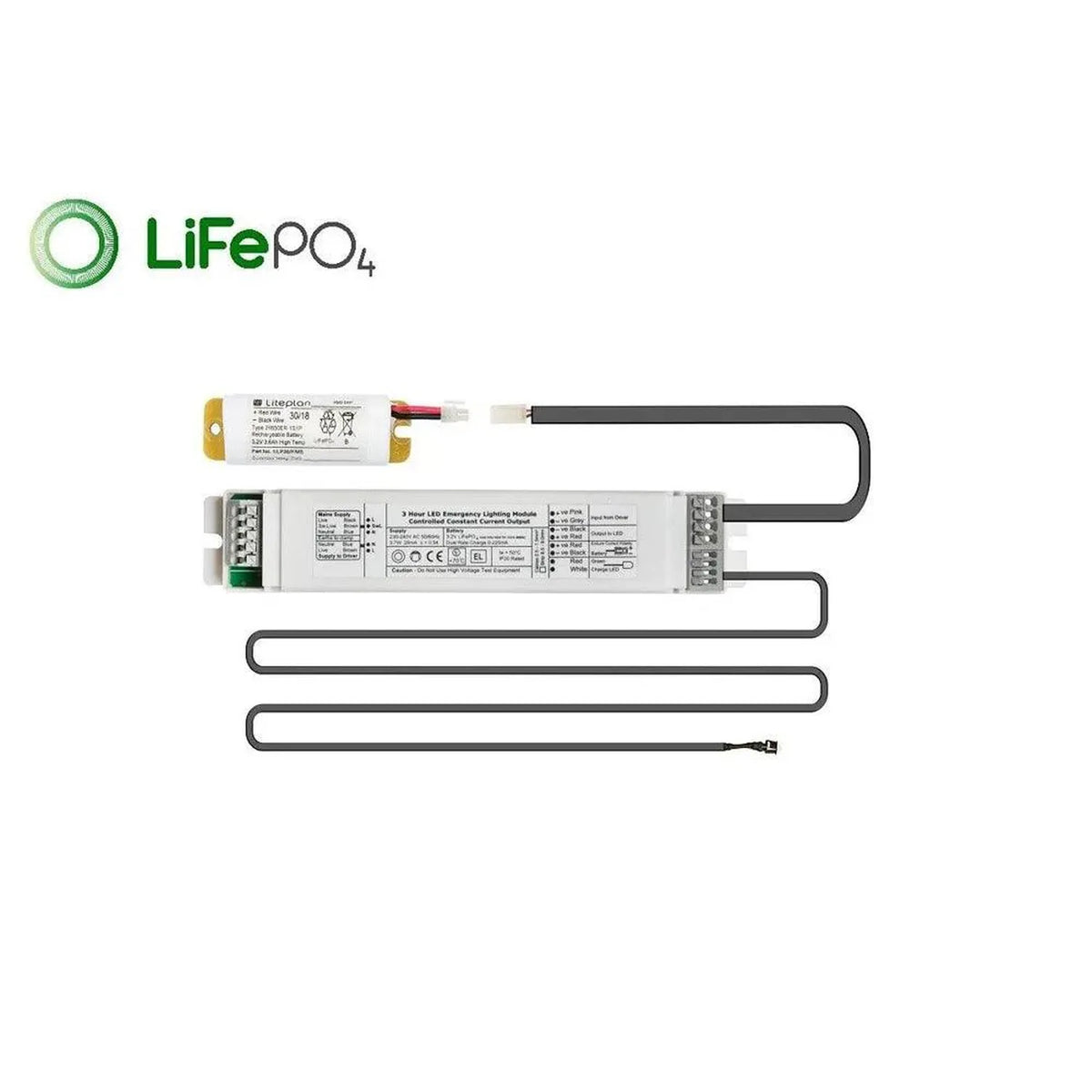

Liteplan NLP/1S/80-K emergency pack

The conversion pack includes deep discharge protection and battery temperature protection, and draws low power during charging. It runs from long life LiFePO4 batteries and is built as a slim module suited to linear lighting fittings.

What's in the box

• 120cm LED T8 tube, 20W
• Liteplan NLP/1S/80-K emergency conversion pack
