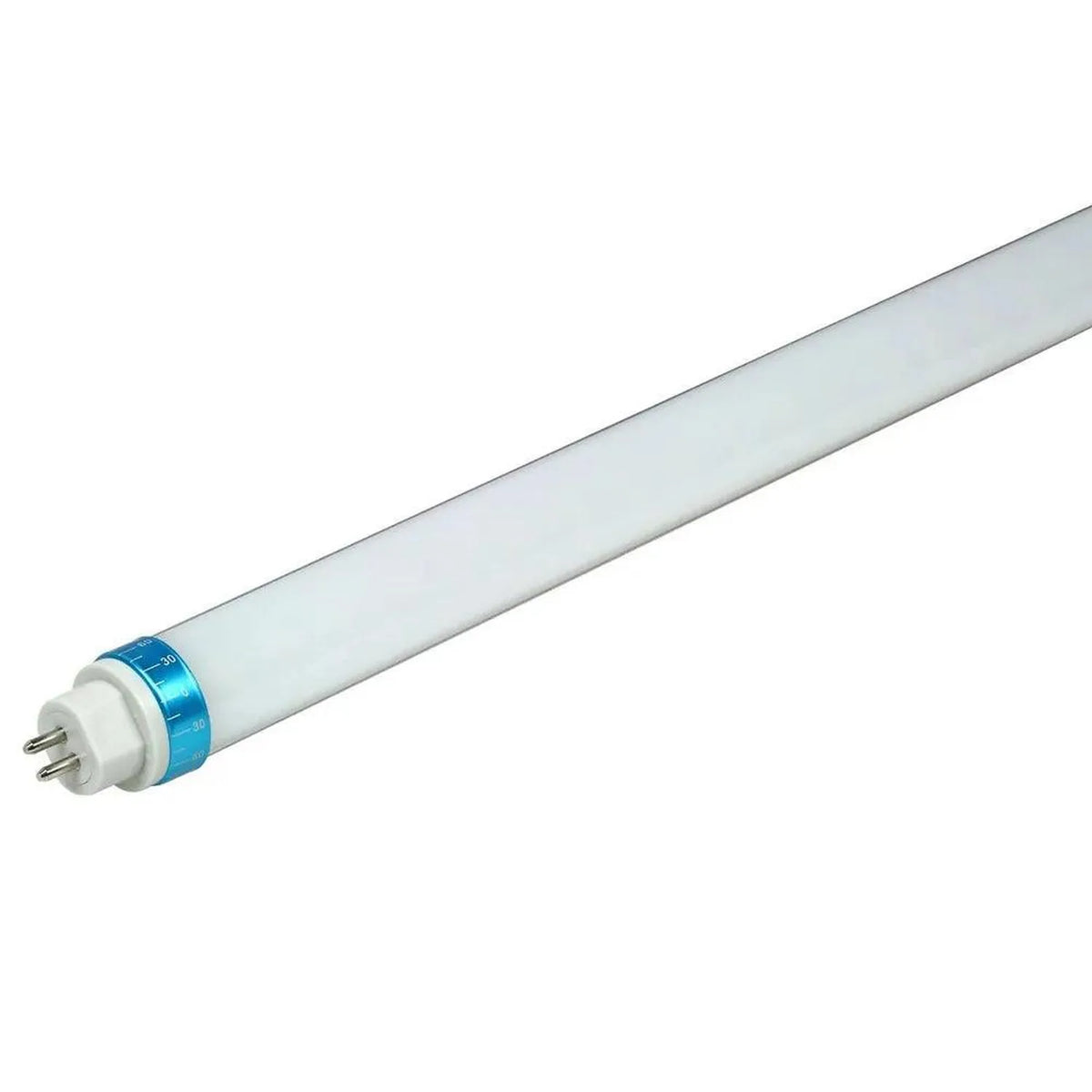

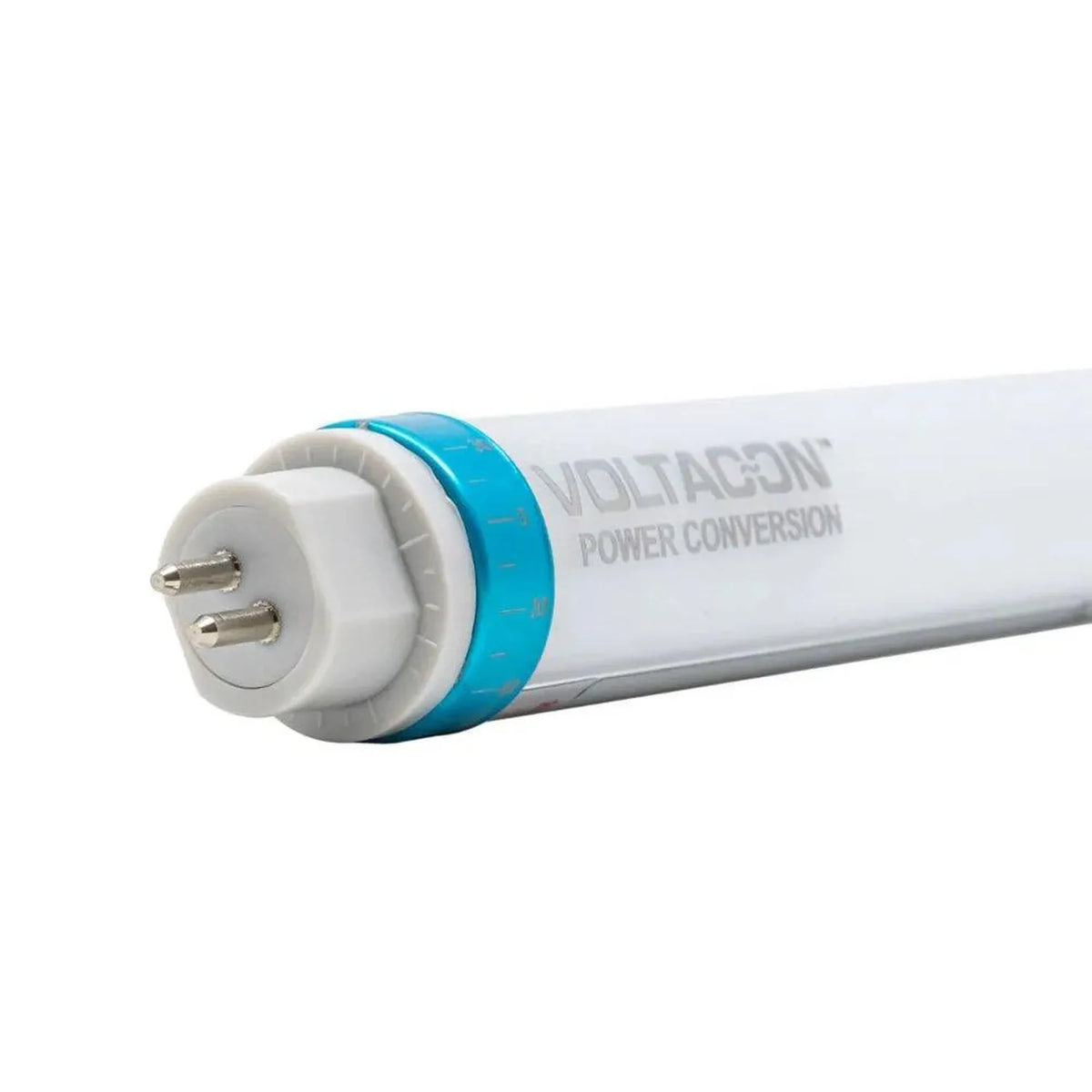

This T5 LED tube light measures 30cm (302mm) and runs on just 6W, producing 720lm of output. It is a direct mains powered tube with a built-in isolated driver, so no external control gear is needed. The aluminium housing and rotating end caps make it a straightforward retrofit for existing fluorescent T5 fittings.

Key features of this T5 LED tube light

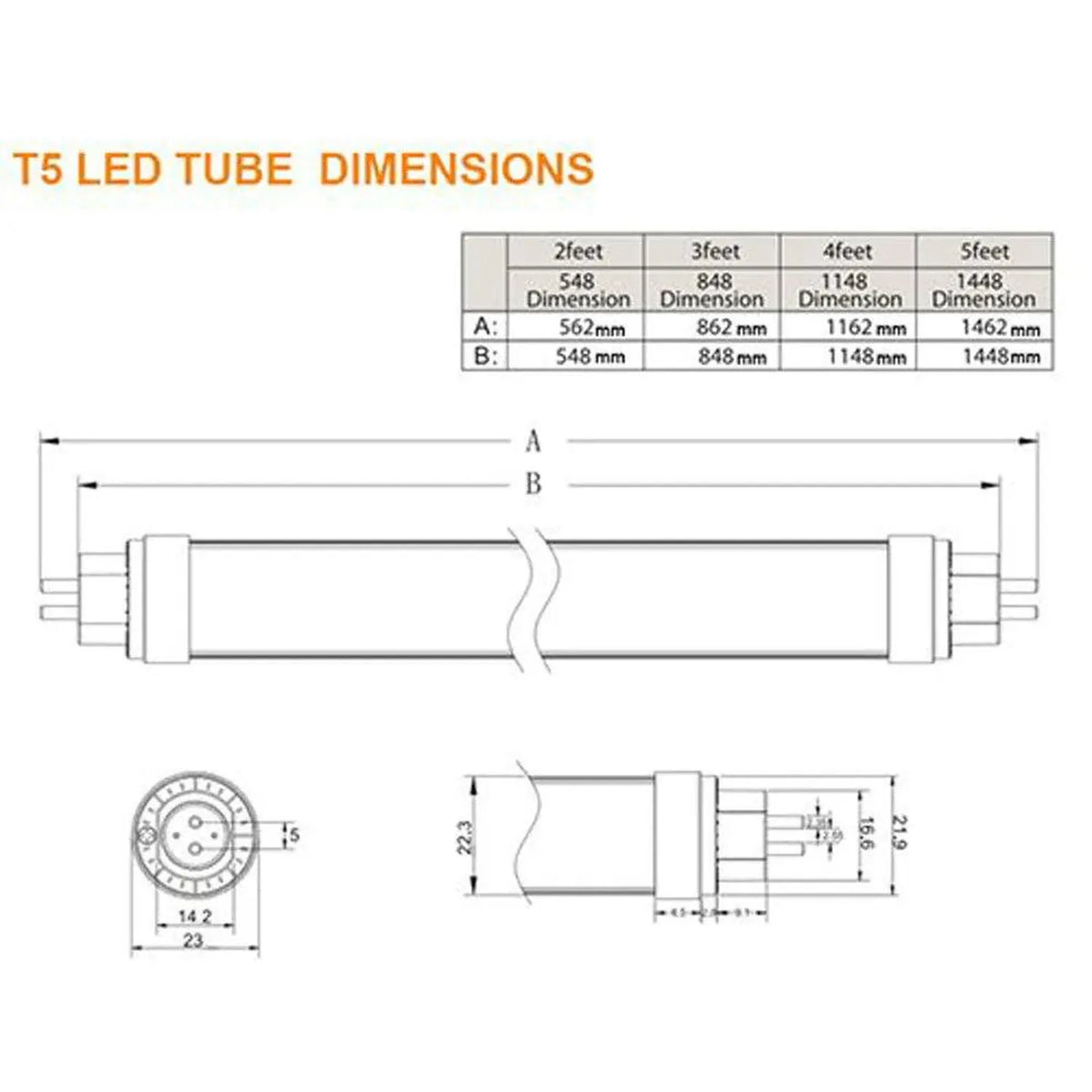

• Fitting, T5, 302mm length pin to pin
• Power, 6W rated wattage, 720lm output
• Voltage, direct mains operation, built-in driver removes the need for a separate power supply
• Housing, aluminium body with a 22mm diameter

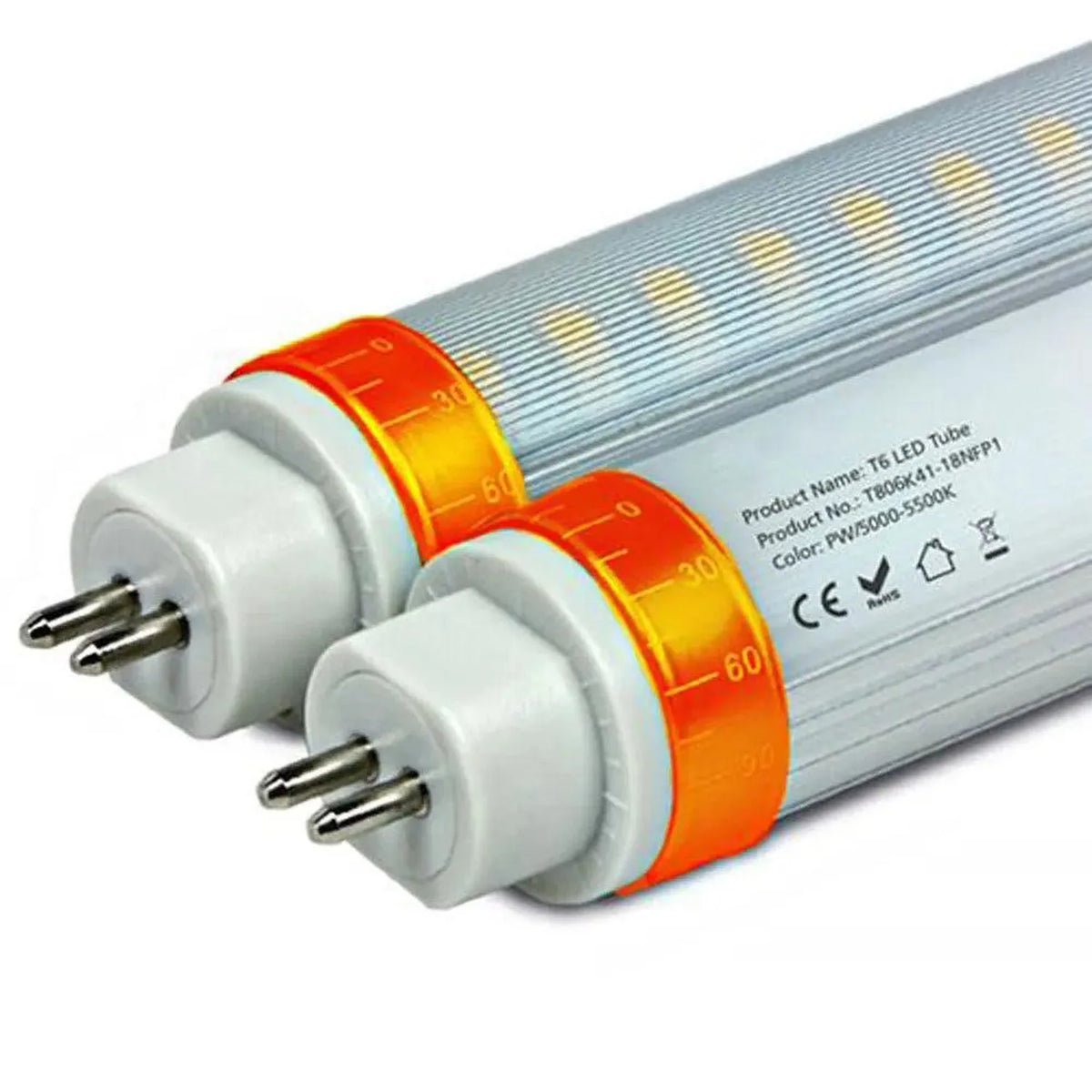

• End caps, rotate 180 degrees and lock into position for flexible aiming
• Lifespan, rated for 50,000 hours, with no UV emission

Direct mains, built-in driver

The driver sits sealed inside the tube itself, so the fitting takes power straight from the mains supply within the stated AC voltage range. That keeps wiring simpler than a conventional T5 fluorescent setup and removes an external ballast from the installation.

Applications

Suited to retrofitting standard T5 fittings in commercial, retail and domestic settings. The tube uses a slightly wider T6 body of 22mm to accommodate the internal driver, while still matching the length and mounting of common T5 fittings. Some double-ended fittings may need quick rewiring, since this tube is single-ended.

Build and construction

SMD 2835 LED chips are used across the board for even light distribution. Thermal vias on the board help carry heat away from the LEDs to support consistent performance.

Certification

Manufactured to TÜV Rheinland, CE, RoHS and UL standards, covering safety requirements including protection against electric shock.
