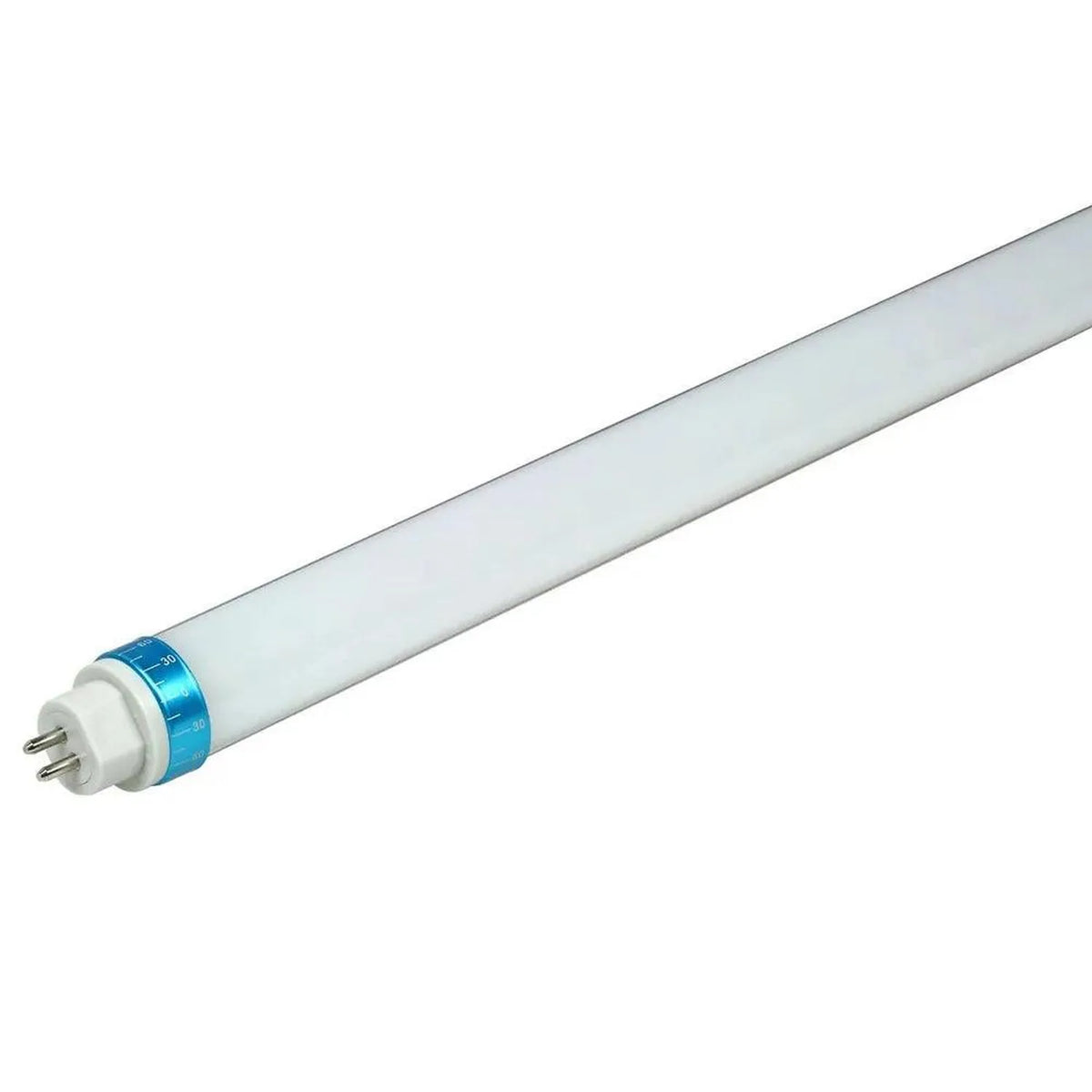

This T5 LED tube light measures 60cm (563mm) and runs on 10W of power, wired directly to the mains with no external driver needed. A built-in power supply sits inside the tube itself, so it works straight from an AC voltage source between 90V and 305V AC. The aluminium housing and rotating end caps make it a straightforward retrofit for existing T5 fluorescent fittings.

T5 LED tube light features

• Light output, 1200lm at 10W, giving 120lm/W typical efficiency
• Colour rendering, CRI >76
• Beam angle, 120°
• Input voltage, 100-305VAC, 50/60Hz
• Lifespan, up to 50,000 hours
• LED chips, SMD 2835 for even light distribution

Installation notes

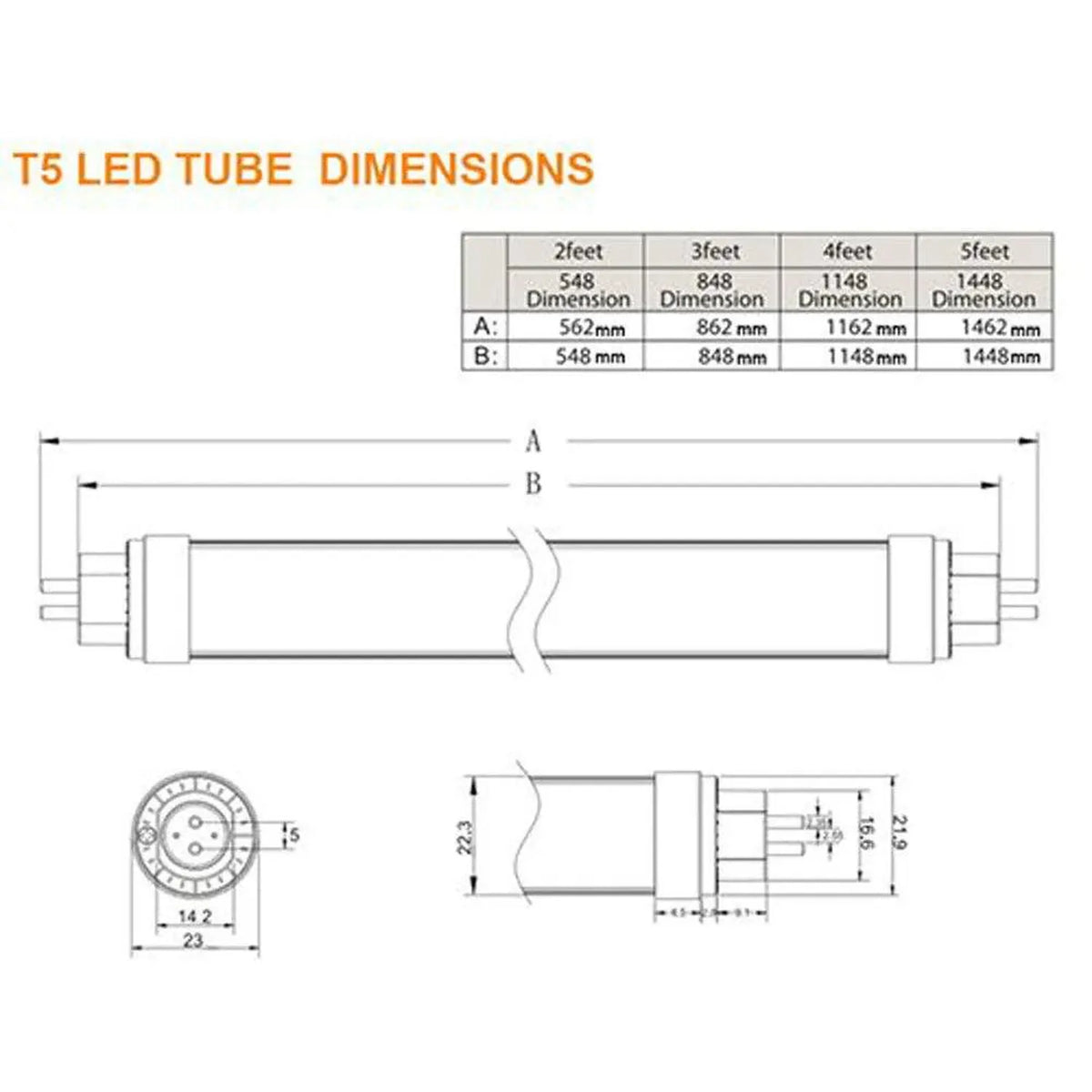

The end fittings rotate 180 degrees and lock into position, which helps when aligning the tube during fitting. This is a hybrid T6/T5 design: it matches standard T5 length and fitting compatibility but uses a wider 22mm body to house the internal driver safely. If your existing fitting is double-ended, a quick rewiring is needed since these tubes take a single-ended power connection.

Build and safety

Thermal vias in the board carry heat away from the LEDs to support reliable operation. The tube emits no UV light. It is certified to TÜV Rheinland, CE, RoHS and UL standards, covering electric shock protection and electromagnetic compatibility requirements for the UK, EU and USA.

Applications

Suited to retrofitting existing T5 fluorescent fittings in offices, retail units, workshops and domestic spaces where a direct mains-powered LED upgrade is wanted without replacing the fitting itself.
