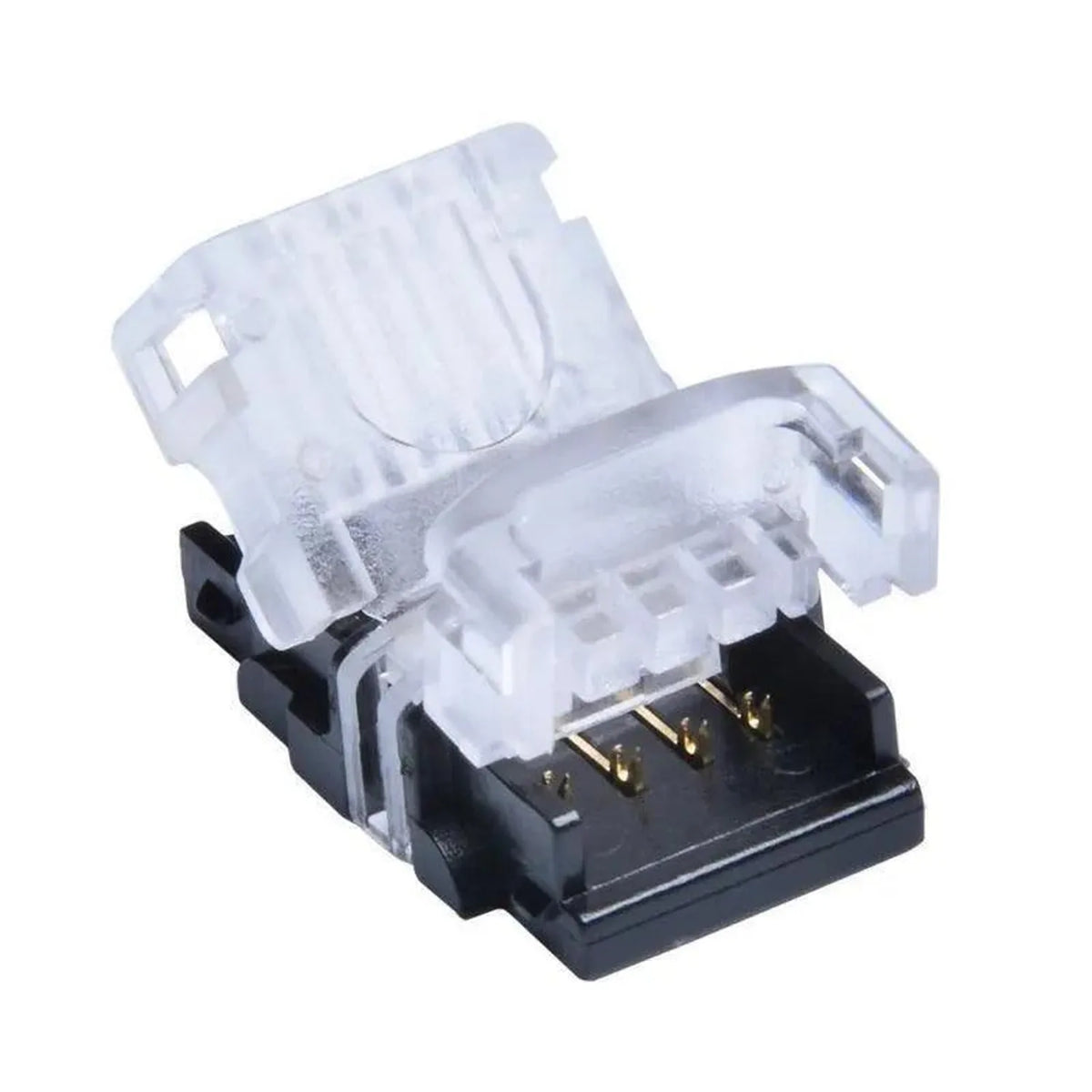

This board to wire connector joins an LED strip board directly to a power cable without soldering. Press the cover down with a plier and the pin makes a copper contact, extending strips to several metres with a simple, tool-light fitting.

Key features of this LED strip connector

• Current rating, 5A, suitable for long LED strip runs
• Strip width, accepts 10mm wide LED strips
• Wire range, 22~20AWG / 0.34~0.54 mm² conductor wire
• Cover, transparent, so no dark spots or shadows along the joint
• Connection type, insulation piercing contact, no need to strip the wire insulation
• Rating, IP20, for non-waterproof flexible LED strip lighting

How it works

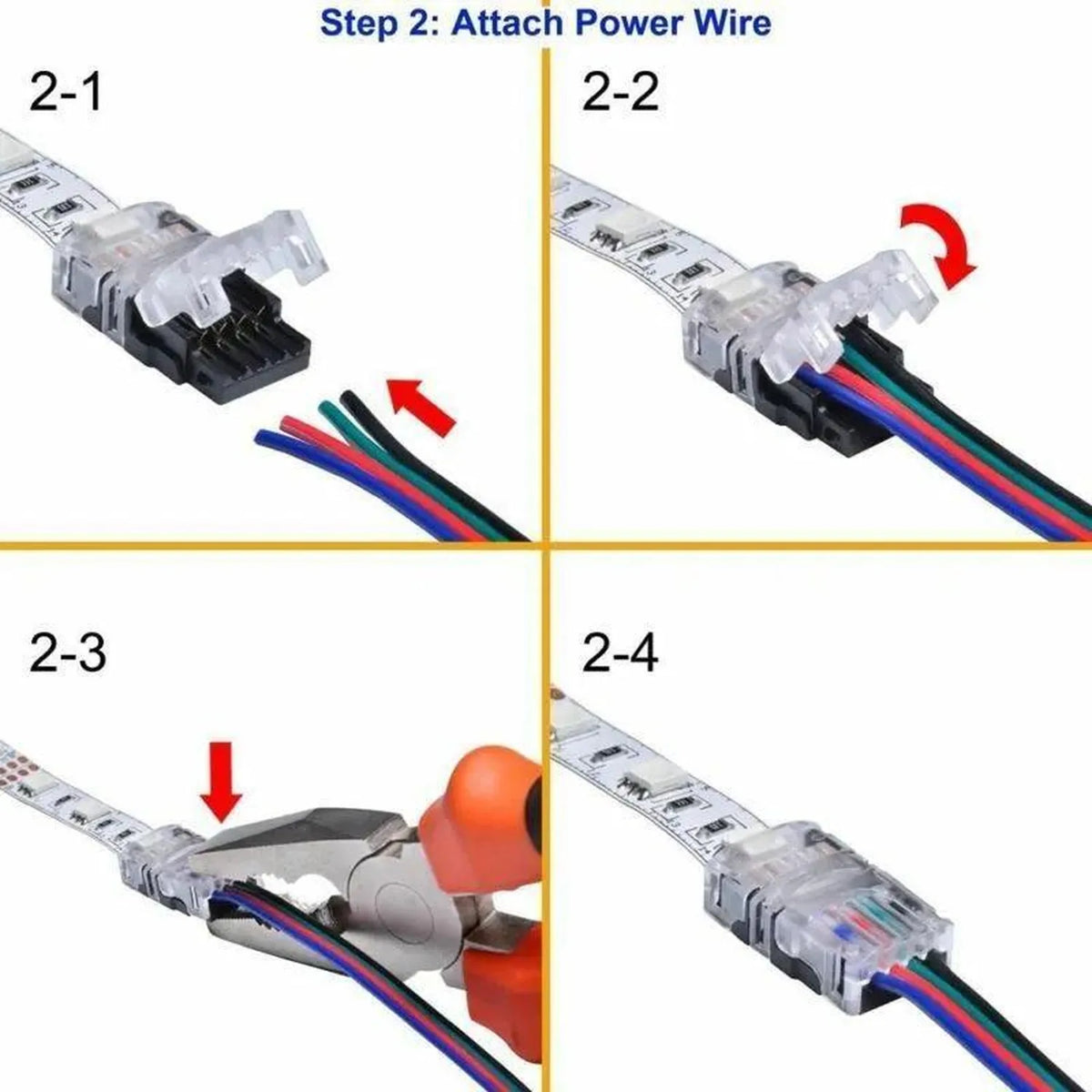

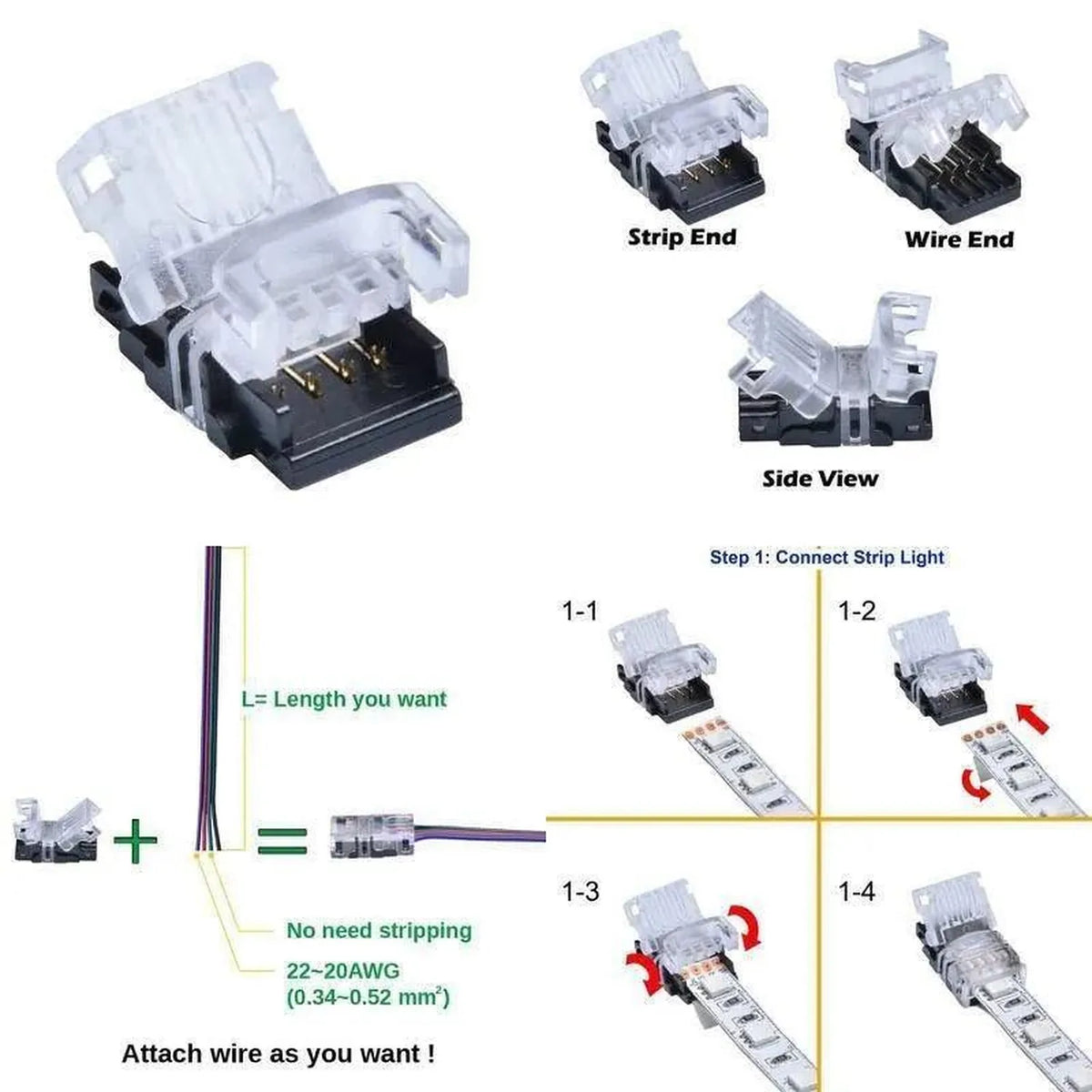

Place the strip above the connector pin and press the cap down. The sharp pin pierces the flexible PCB from the back and makes contact with the copper pads. The same pressure method pierces the wire insulation to reach the conductor, so the strip locks in without solder or crimping tools.

Applications

Use it to link single colour, RGB, 5 in 1 colour and dual colour CCT strips to a power supply, or to route the supply to a different location using a continuous length of wire. Available in 2-way, 3-way, 4-way and 5-way versions to suit the strip type. A separate wire-to-board connector exists for epoxy resin strips.

What's in the box

• 10 pcs RGB IP20 non-waterproof strip light connector (strip to wire)
