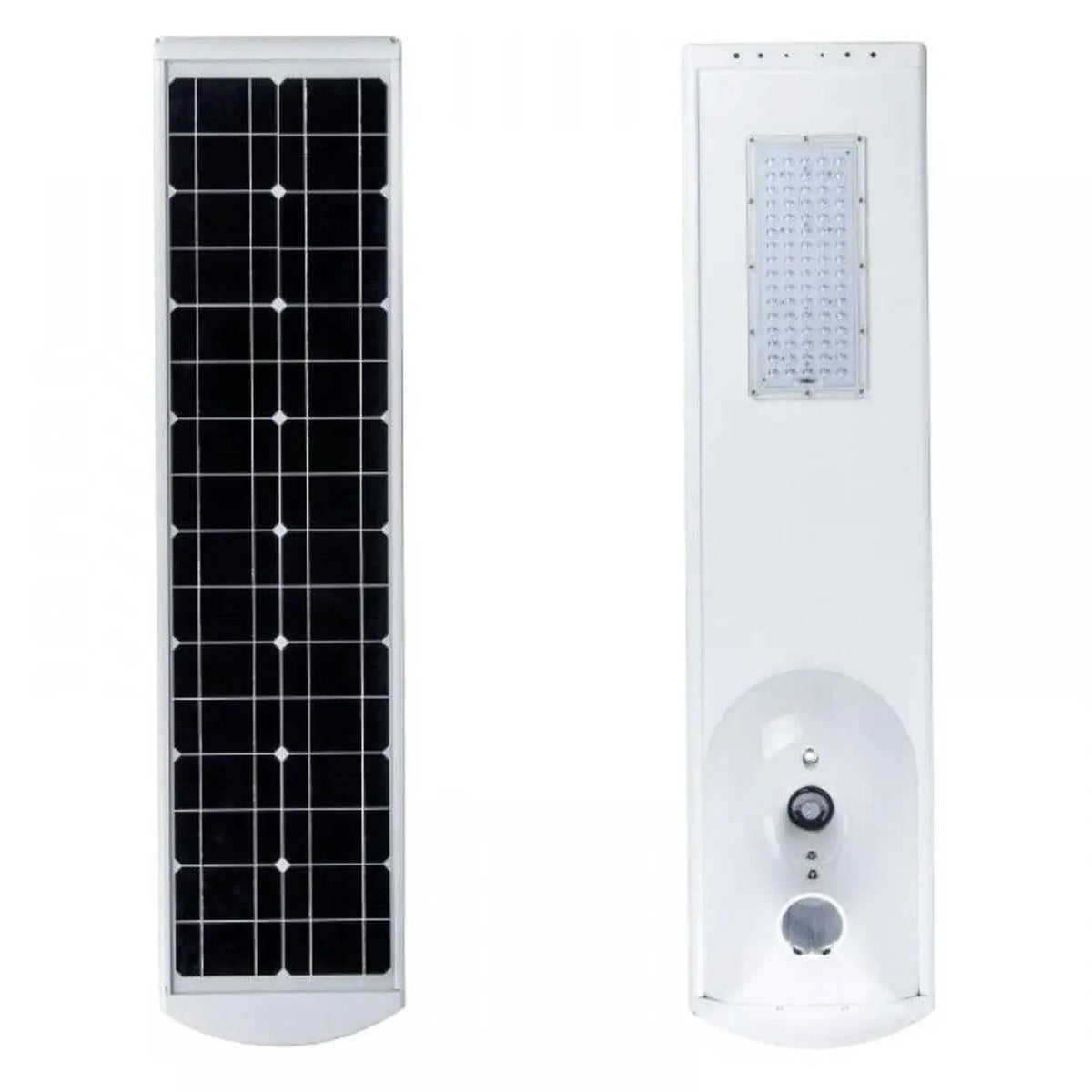

This 40W LED solar street light combines a built-in photovoltaic panel, lithium battery and PIR daylight sensor in one IP65 aluminium housing. There is no mains wiring to run: the unit mounts straight onto a post and manages its own charging and light output.

Solar street light with motion sensor

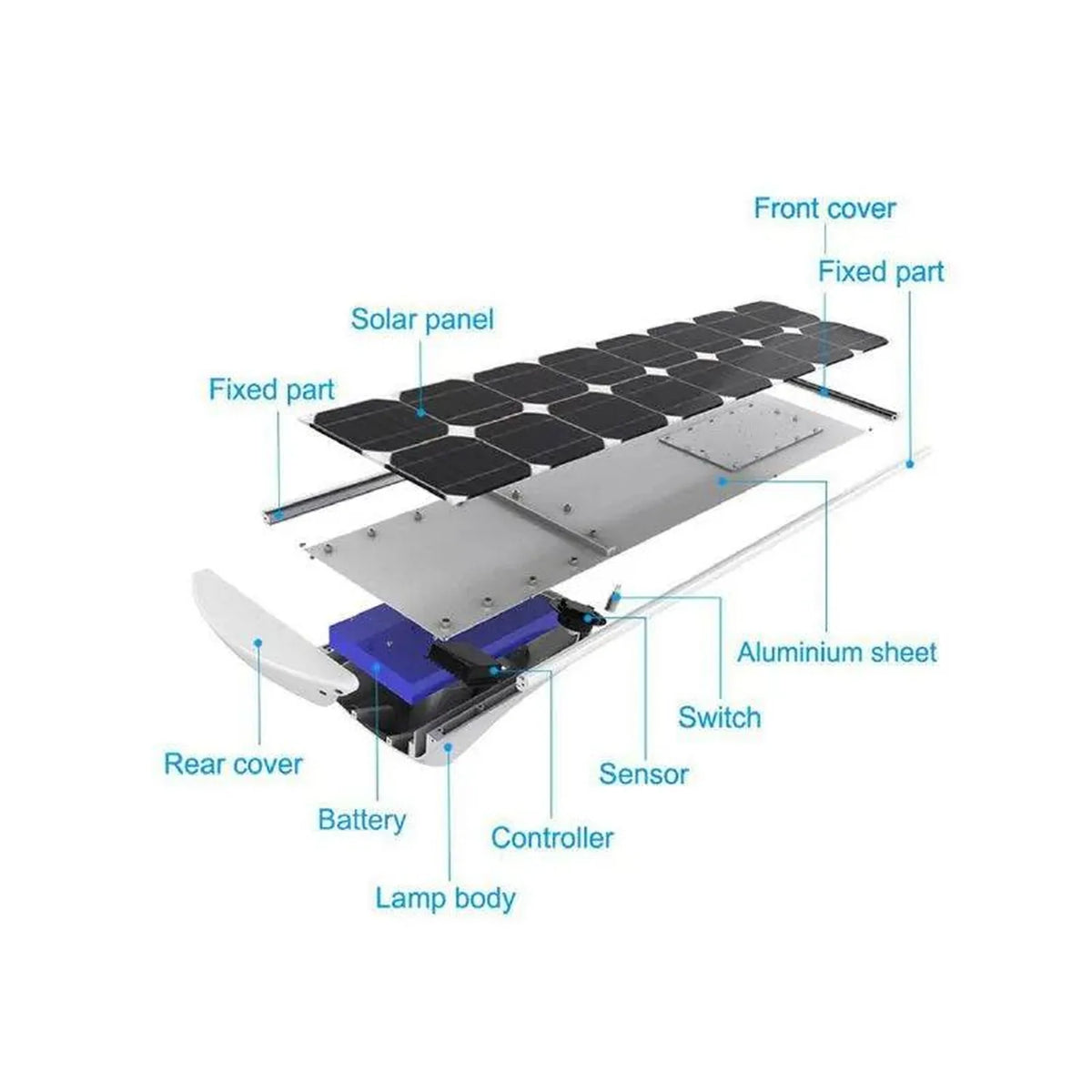

Electrical connections sit under the solar panel and are rated IP67, with the battery charger, lithium battery and LED array pre-wired at the factory. The integrated light sensor reads daylight levels and brings the LED array up from 0% to 100% gradually, reaching full output only once it is fully dark.

Key features

• Luminous flux, 4800lm

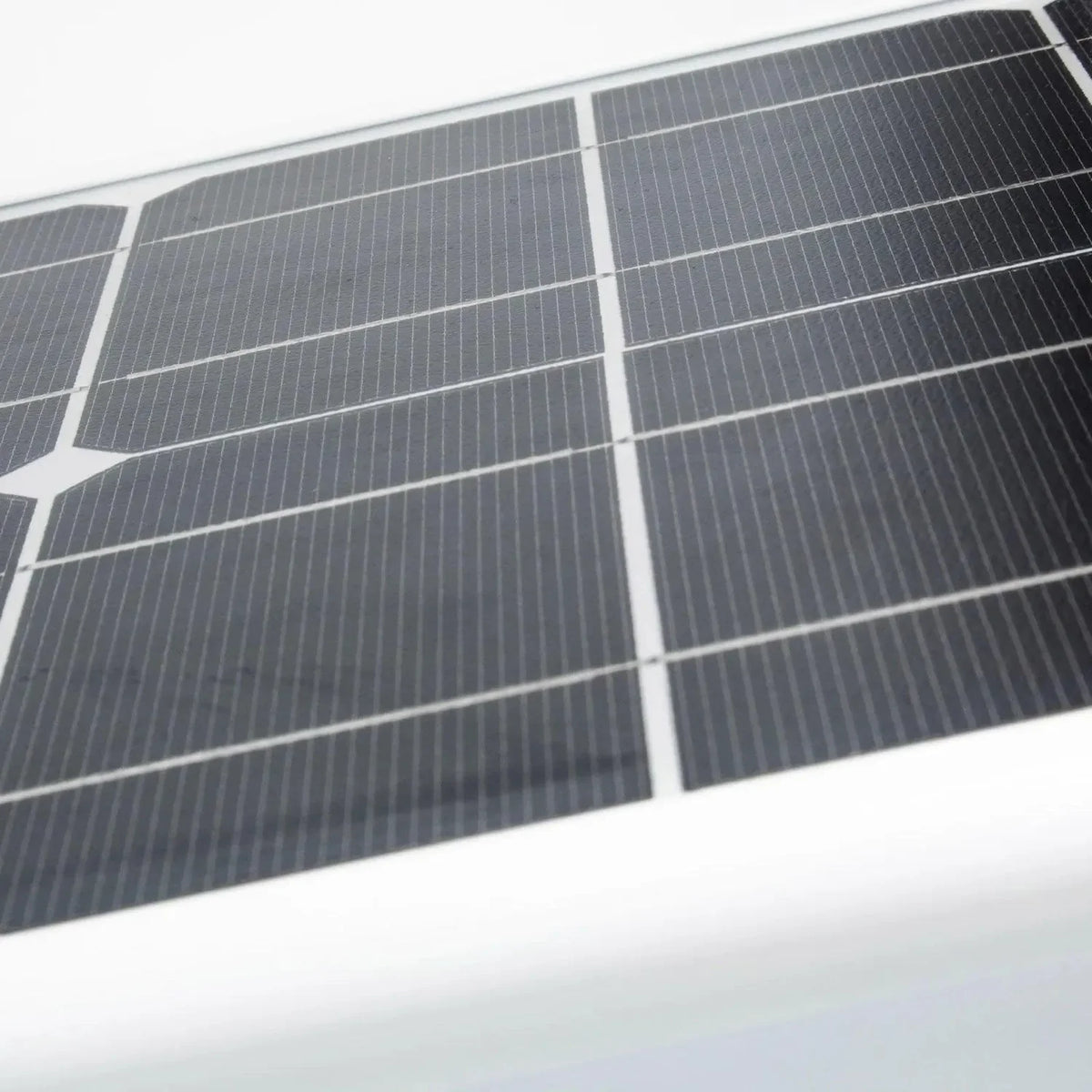

• Solar panel, 18V 48Wp monocrystalline

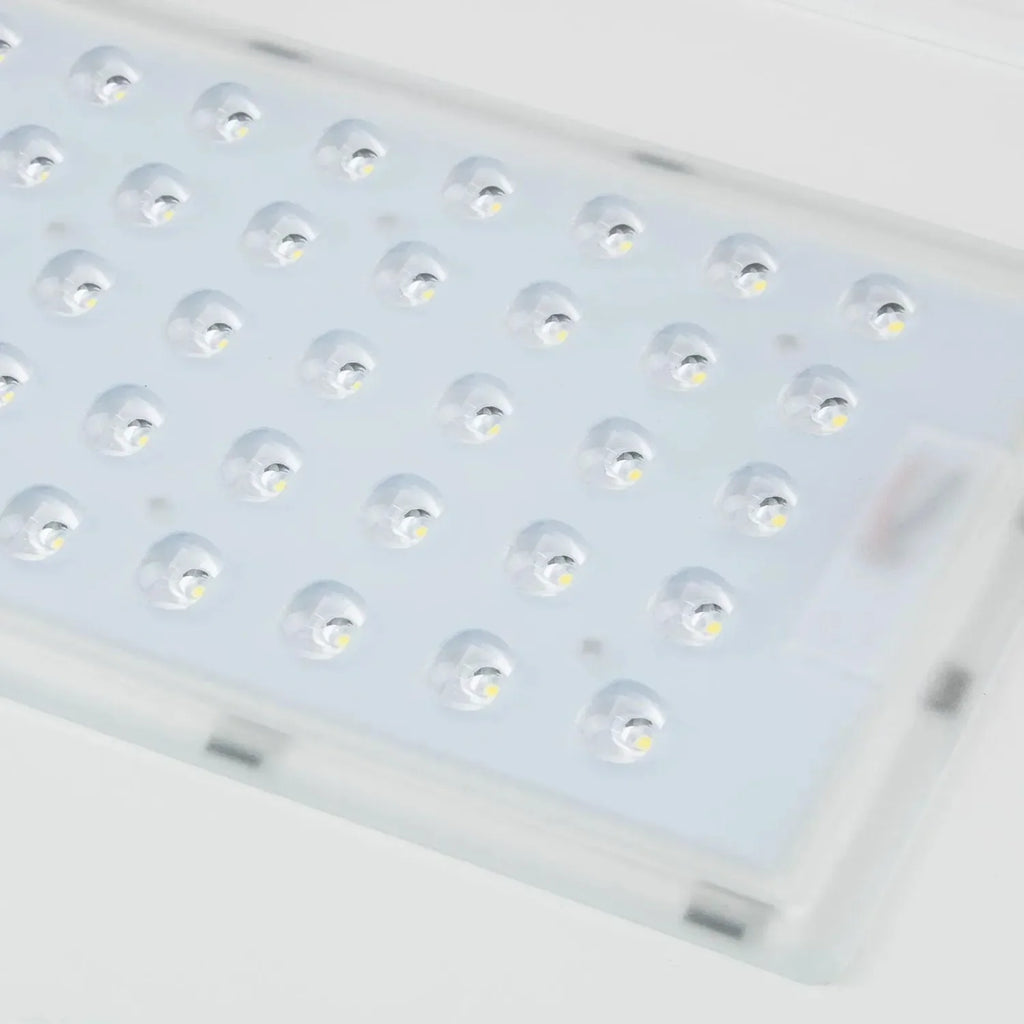

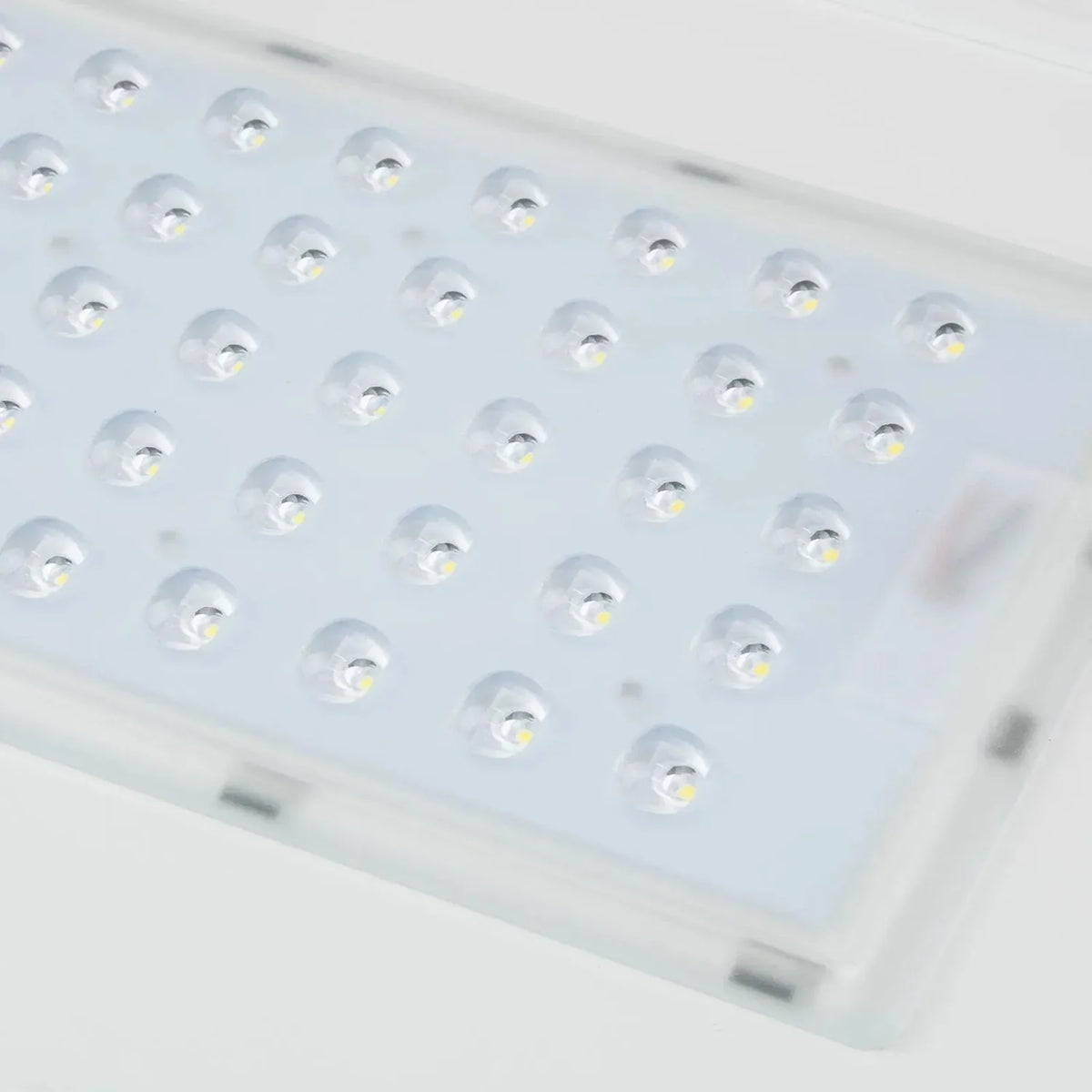

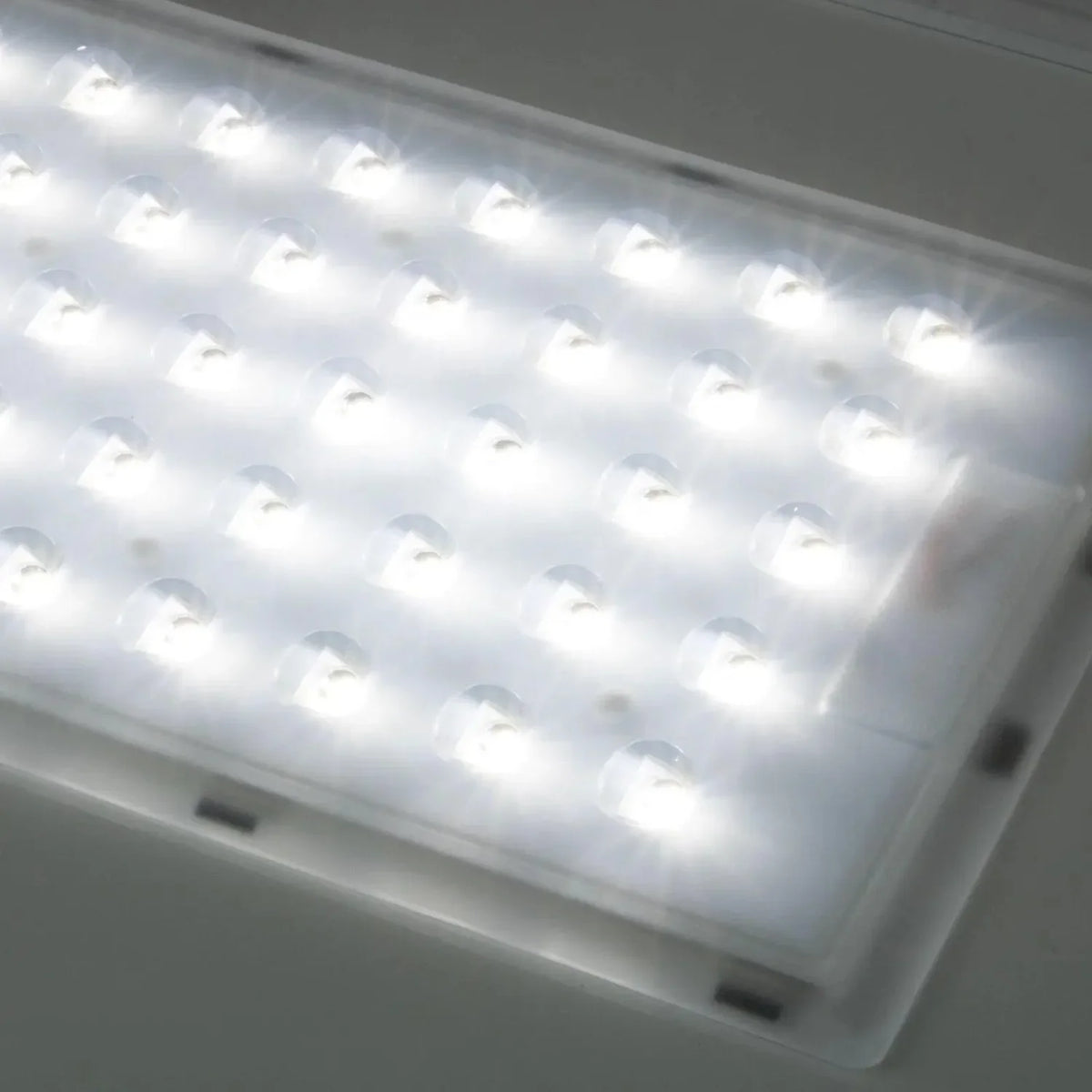

• LED chip, 60 LEDs, Philips3030
• Battery, LiFePO4 lithium 12.8V 18AH, over 10 year life expectancy

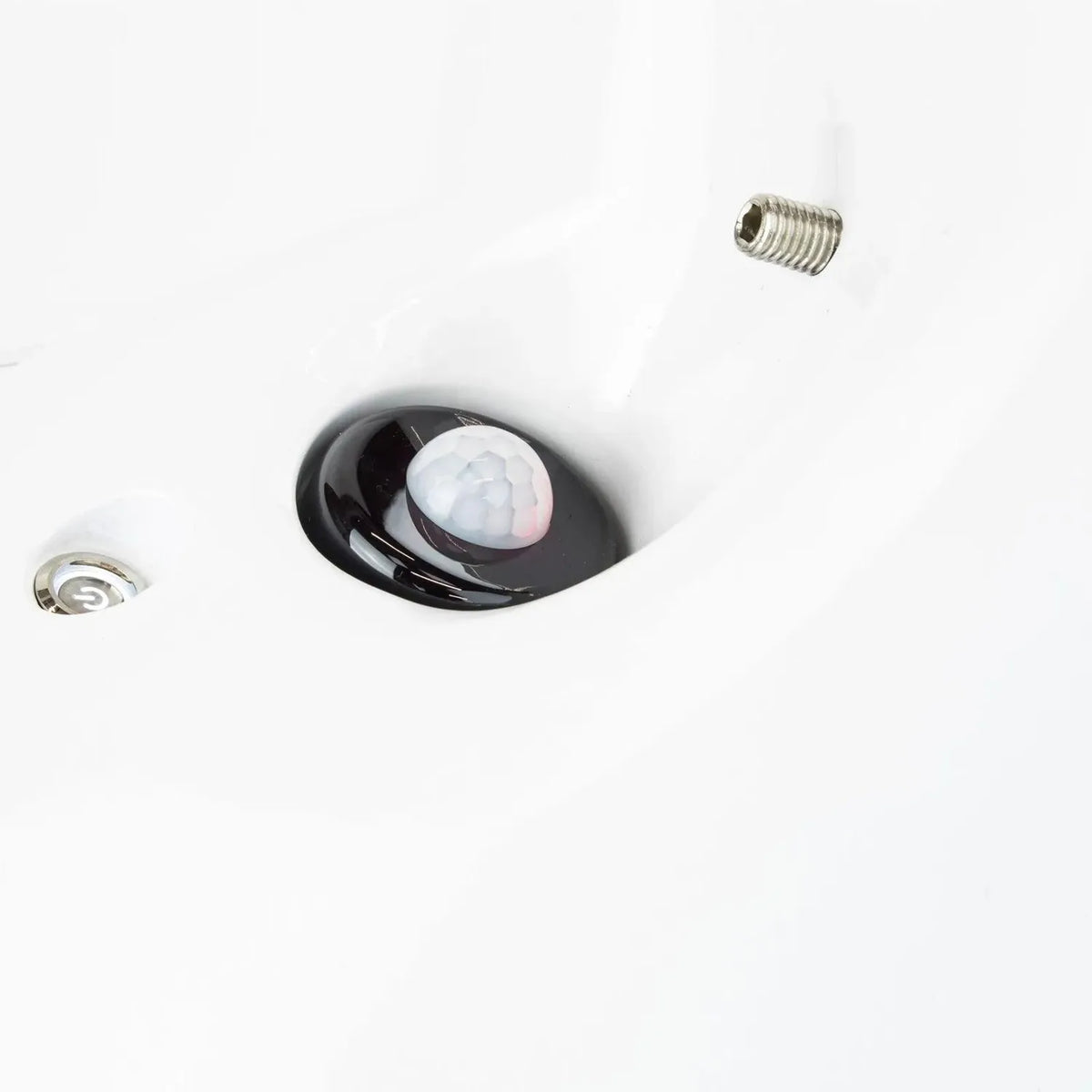

• Control, light sensor plus motion sensor
• Beam angle, 60° x 150°

Operating hours

Runtime is fully automated with enough backup power for a night, allowing for adequate daily recharge. Output runs at full power for 6 hours, 50% power for 12 hours, or 30% power for 24 hours.

Applications

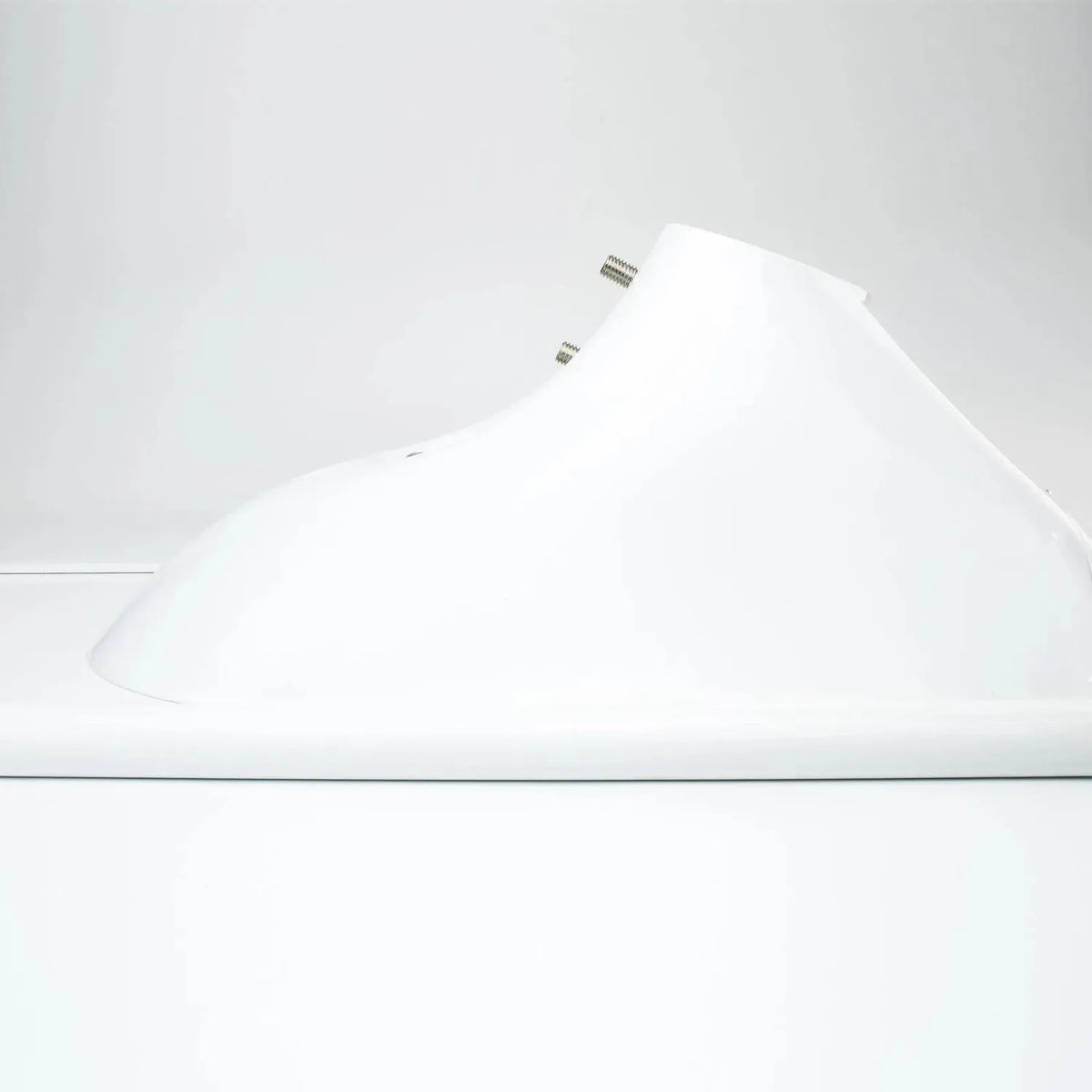

Suited to installations without access to mains voltage: driveways, pathways, rural roads and car parks. Single pole mounting with an adjustable angle covers install heights of 3 to 6 metres, using two M10x80 brackets and stainless steel screws for a Φ60mm pole.

Working conditions

The unit operates between 0°C and +60°C, with lighting time of 6 to 12 hours per day allowing for up to 3 rainy days.
