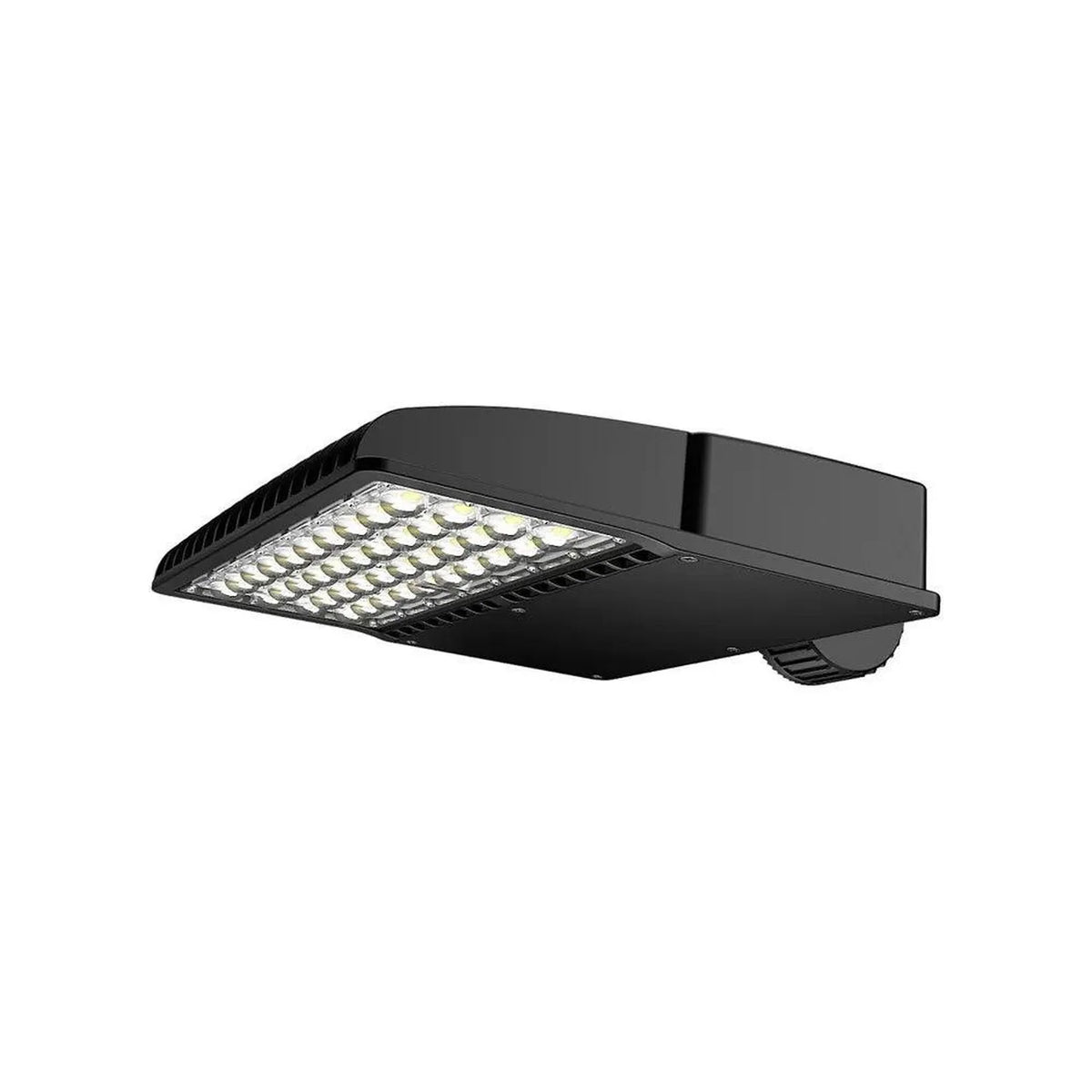

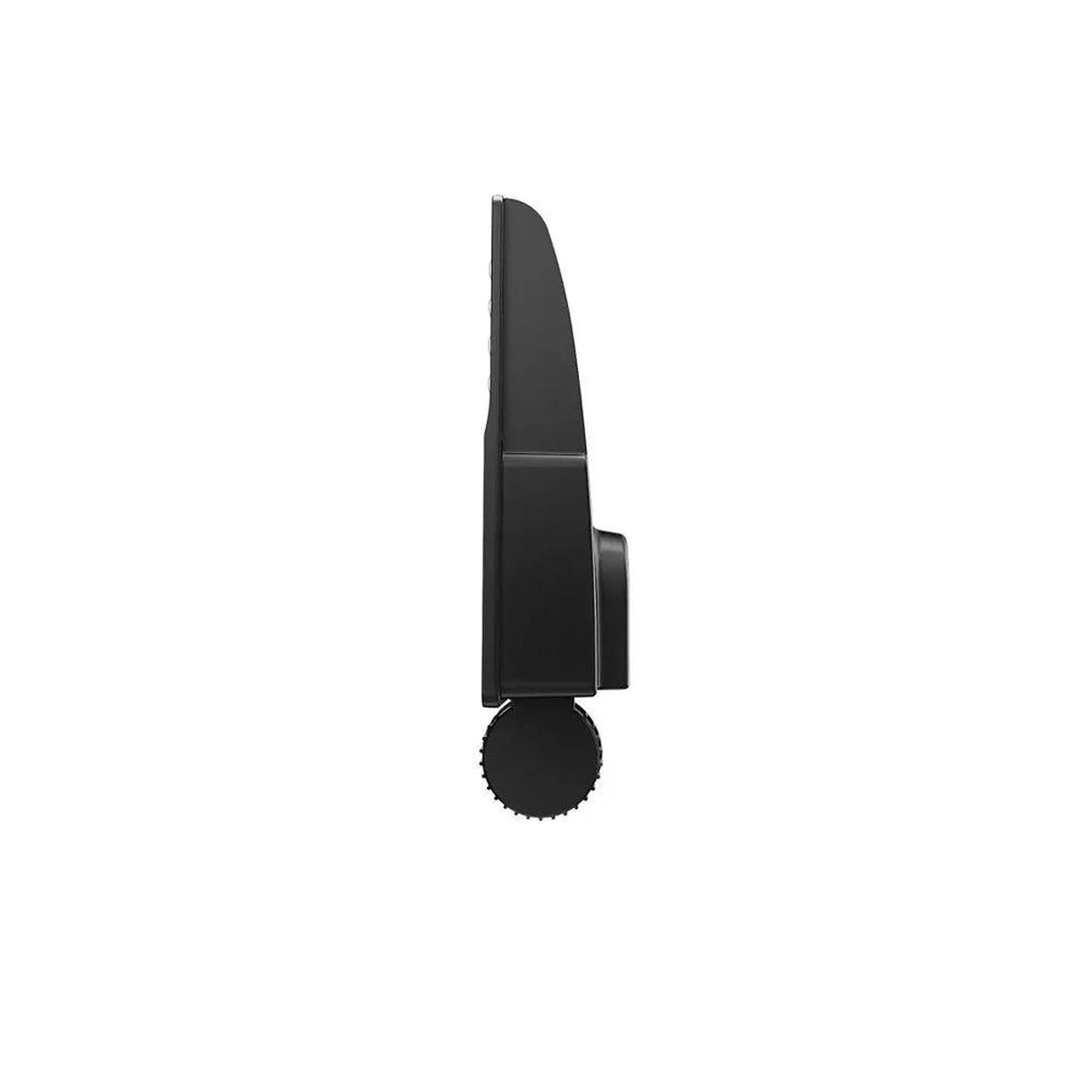

The Atlas is a 100W LED street light producing 14500lm from Nichia LED chips rated at 160lm/W. It is built for pole and wall mounting on roads, car parks and pathways where consistent, even light coverage matters.

Key features for this led street light

• Luminous flux, 14500lm at 100 Watt rated power
• Voltage, 100-265Volt, 50/60Hz
• Colour temperature, 4000K natural white and 5500K cool white options
• Colour rendering, Ra70, with typical efficiency of 145lm/W
• Protection, IP65 rated magnesium alloy heatsink with electrophoresis and TGIC powder paint finish
• Dimmable, yes

Construction

The heatsink is cast from a magnesium alloy with large fins to help dissipate heat, and the IP65 rating is supported by the alloy body. The surface finish uses electrophoresis and TGIC powder paint, giving a non-corrosive fitting suitable for coastal and salty environments.

Optic lens

Each high-power LED chip carries its own micro magnify toughened glass lens for controlled light distribution. This helps remove shadows and dark patches between fittings, which matters on motorways and larger car parks.

Installation

Four mounting kits are available, covering square poles, round poles, wall mounting and direct fitting onto poles up to 70mm in diameter, so one fitting suits most street lighting layouts.

Certification and warranty

The Atlas carries CE, UL and RoHS compliance, with a 5 year warranty and an average lifetime of 80,000 hours.
