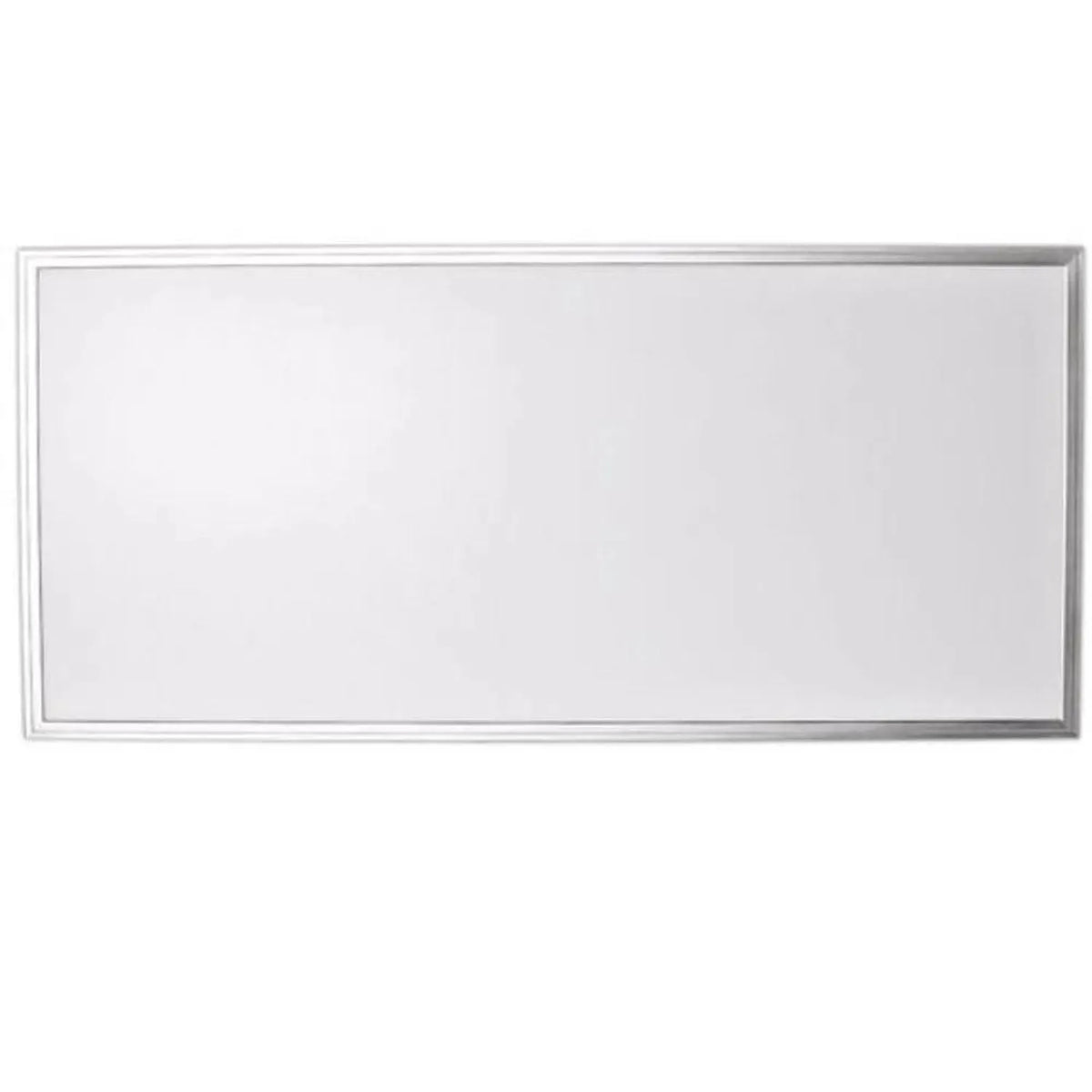

This 60W LED panel light measures 1200x600mm and is built for recessed, suspended or surface mount ceilings. It replaces T8/T5 fluorescent tubes (4x36W) in commercial fittings and uses a Philips Xitanium driver to run the LED chips at the correct voltage and current.

Key features of this LED panel light

• Colour temperature, adjustable via a three way switch on the rear: warm, natural or cool white
• Slim profile, only 13mm thick with an aluminium frame for heat dissipation
• Low glare, even, shadow free light distribution with UGR below 19
• Driver, Philips Xitanium, UL and TUV certified for LED panel applications
• Dimmable, compatible with 1 to 10V, AC Triac and DALI dimming
• Diffuser, Tpa-rated fire resistant material that will not drip plastic in a fire, meeting British Standards for emergency lighting construction

Applications

Suited to offices, factories, supermarkets, schools and universities where a slim, even light source is needed above a suspended ceiling grid or as a surface mounted fitting. Mounting options include suspension cables and a surface mount kit.

Driver and lumen maintenance

The panel carries a Lumen Maintenance (LM80) certificate, and Voltacon offers a warranty covering light output as well as the fitting itself. The driver is rated to maintain output over the panel's rated life.

Testing and certification

The panel has passed IEC 60598-1 (2008) and IEC 60695-2-11 850°C glow wire testing. An emergency conversion pack is available separately for this range.
