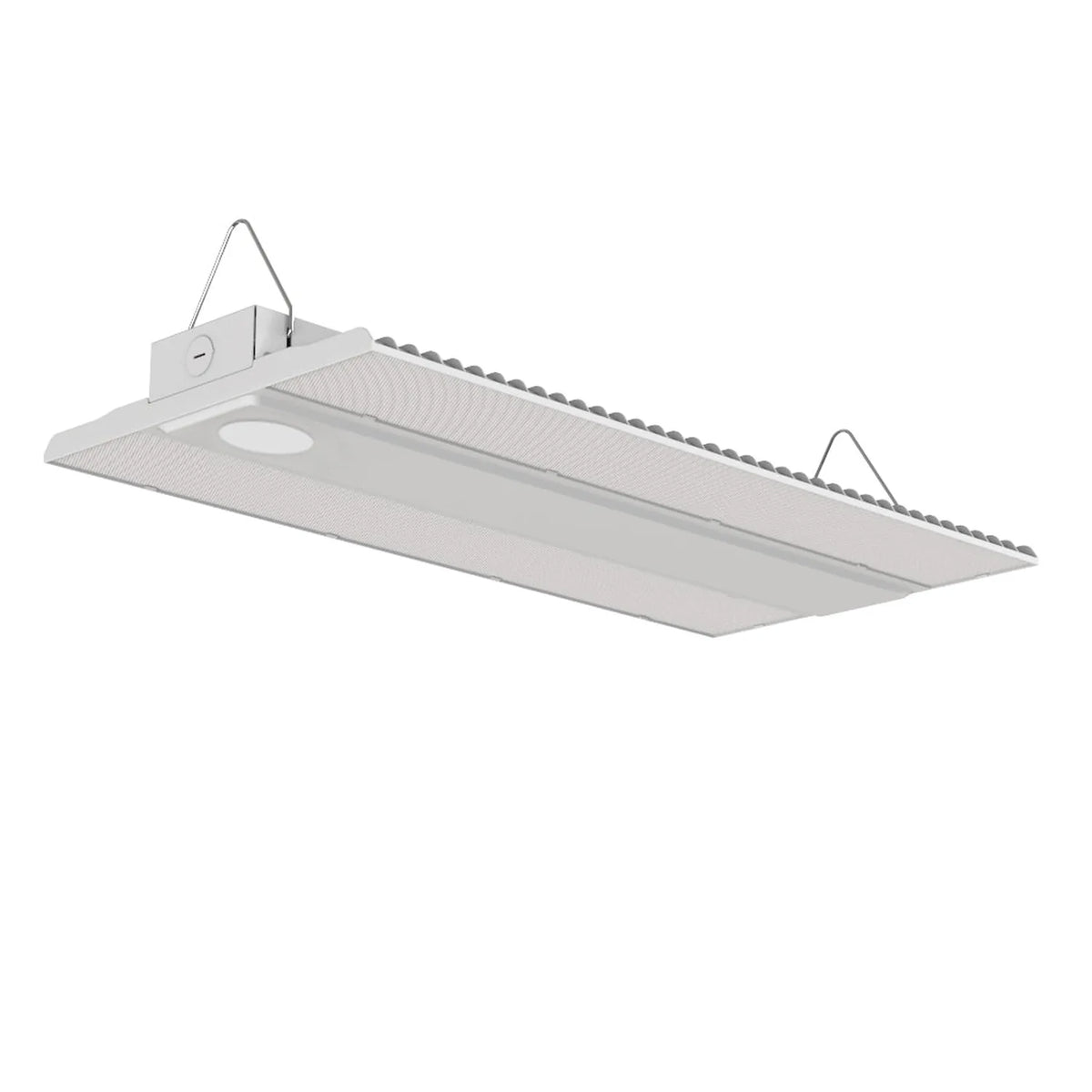

The ZEUS Linear LED High Bay is a 150W industrial fitting for warehouses, workshops, factories and other large commercial spaces. It produces 22,500 lumens from Philips 2835 LED chips, giving a luminous efficiency of 150lm/W, and carries an IP44 rating for protection against dust and moisture.

Key features of this led linear high bay

• Output, 150W consumption delivering 22,500 lumens at 150lm/W
• LED chips, Philips 2835
• Beam angle, 120° for even light spread across large floor areas
• Colour rendering, CRI >80, power factor >0.9
• Protection rating, IP44
• Tri Colour and 1-10V dimmable, colour selectable with dimming down to 1-10V

Construction and control

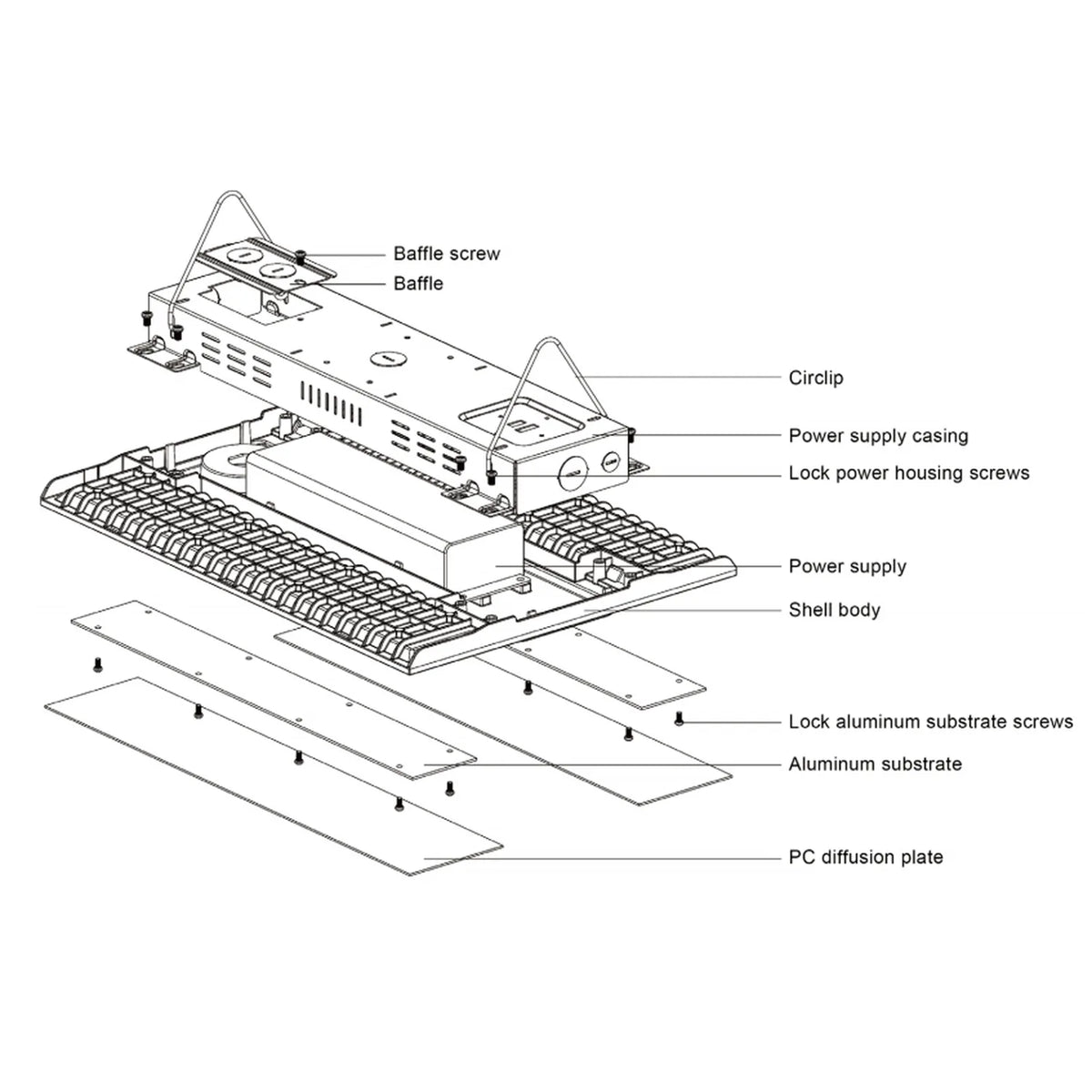

The housing is aluminium with a tempered glass or PC lens, built to handle demanding indoor environments. Input voltage runs from AC100-277V at 50/60Hz, and the fitting comes with a 110cm suspension chain for warehouse and high-ceiling installation.

Optional control functions include a microwave motion sensor, 0/1-10V dimming, DALI control, Zigbee smart lighting and an emergency backup function, letting the fitting work as a standalone light or as part of an automated system.

Applications

Suited to warehouses, factories and workshops, indoor parking areas, retail stores and supermarkets, sports halls and exhibition centres, agricultural buildings and commercial storage facilities.

Specifications summary

• Model: HF-LHB150W-D

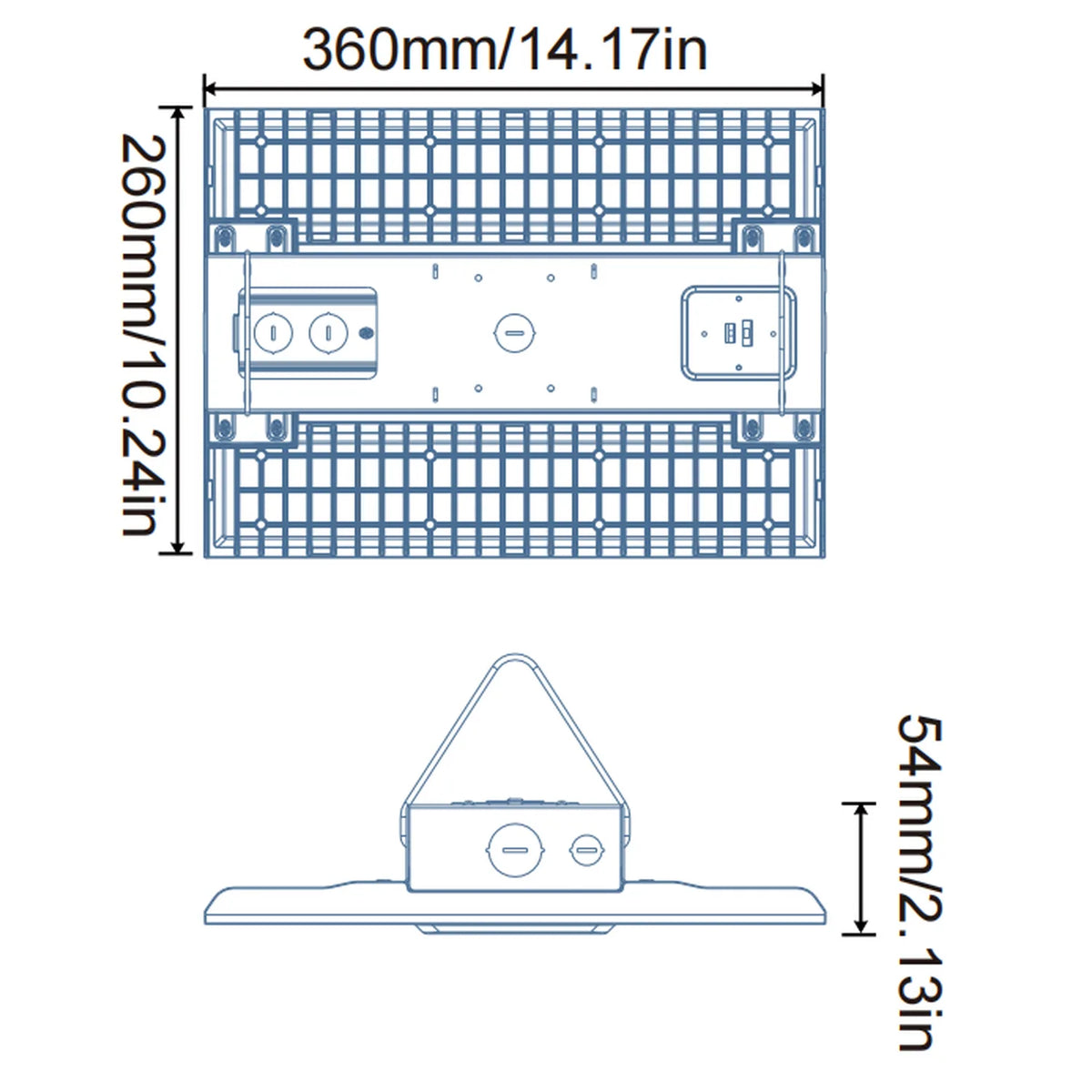

• Dimensions: 360 × 260 × 54mm
• Net weight: 2.75kg
• Warranty: 5 years
