The Athled 600W LED Flood Light is built for large sports facilities, including tennis courts, football pitches and industrial yards. It delivers up to 102,000 lumens at up to 170 lm/W, giving strong, even coverage across wide playing areas after dark.

LED flood light for tennis court use

Consistent light across the full court reduces shadows and helps players and officials follow play clearly. The fitting suits both new floodlight installations and upgrades to existing sports lighting columns.

Key features

• Output, 102,000 lumens
• Efficiency, up to 170 lm/W
• IP rating, IP65 weatherproof

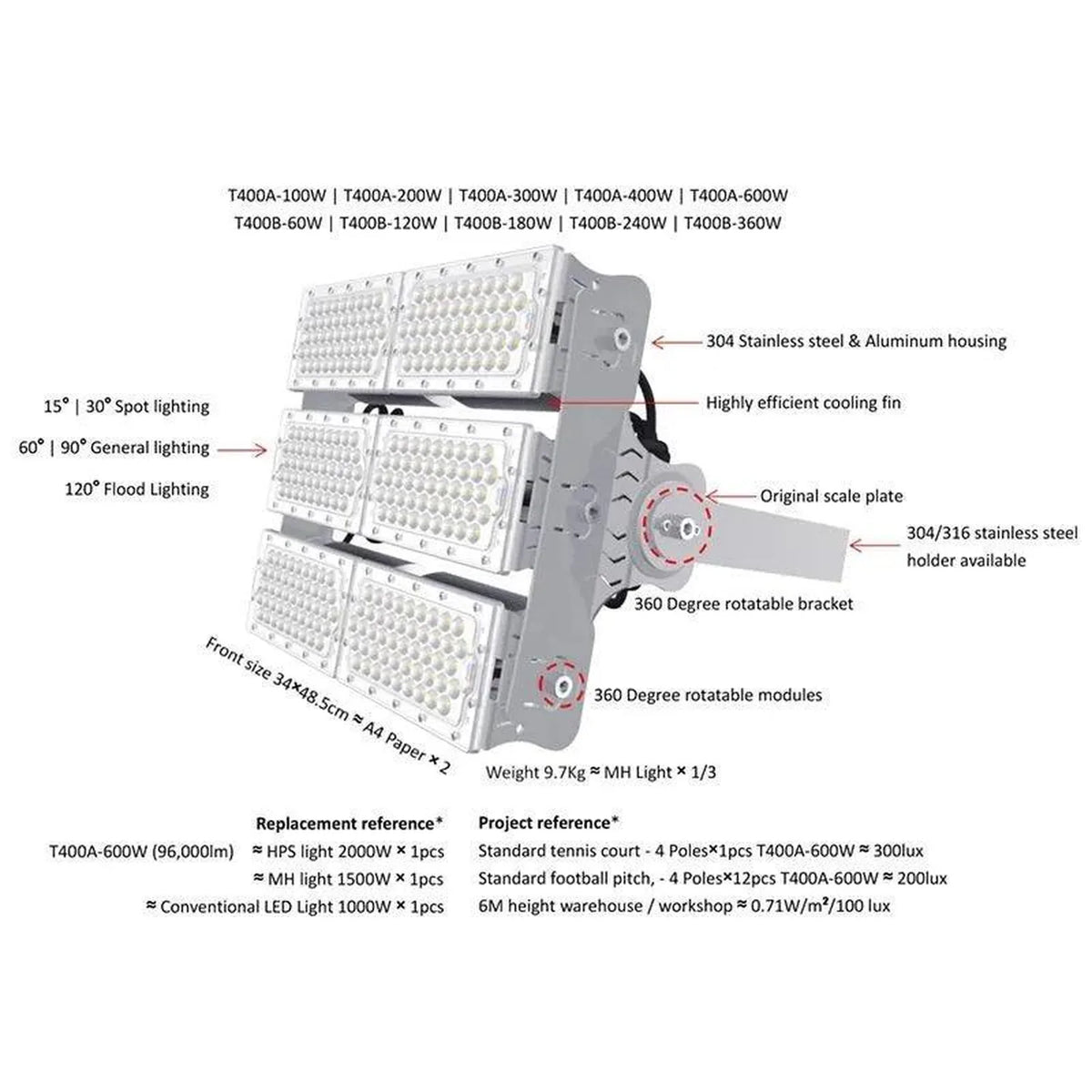

• Mounting, 90° rotatable LED modules on a 360° adjustable bracket
• Optics, replaceable lens system with 10°, 30°, 60°, 90° and 120° beam options

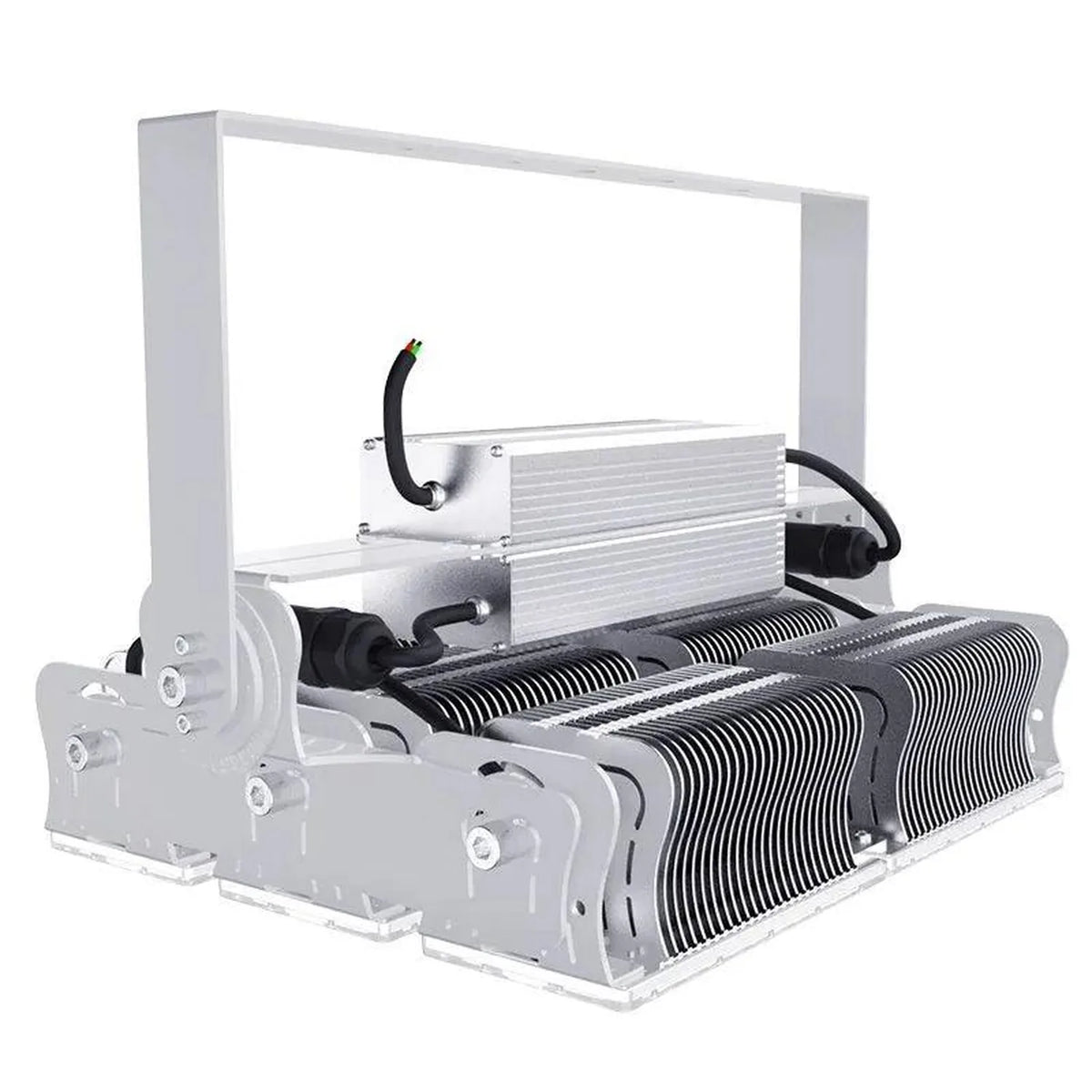

• Cooling, aluminium cooling fin heat sink
• Service life, 50,000+ hours, 5-year warranty

Applications

Suited to tennis courts, football pitches, industrial sites, warehouses and other large outdoor or commercial areas needing wide, uniform illumination. The range of beam angles lets installers choose narrow optics for distance throw or wider optics for area coverage on the same fitting family.

Build and finish

The aluminium heat sink and modular construction are designed to manage heat while keeping the unit lightweight to install. The luminaire has been tested for waterproofing, vibration, UV ageing and salt spray corrosion, alongside high and low temperature operation.

Electrical details

Colour temperature runs from 2700K to 6500K, with a CRI of Ra >70. Input voltage is 100-240VAC / 277VAC at 50/60Hz, with a power factor above 0.95. Model reference: T400A-600W.
