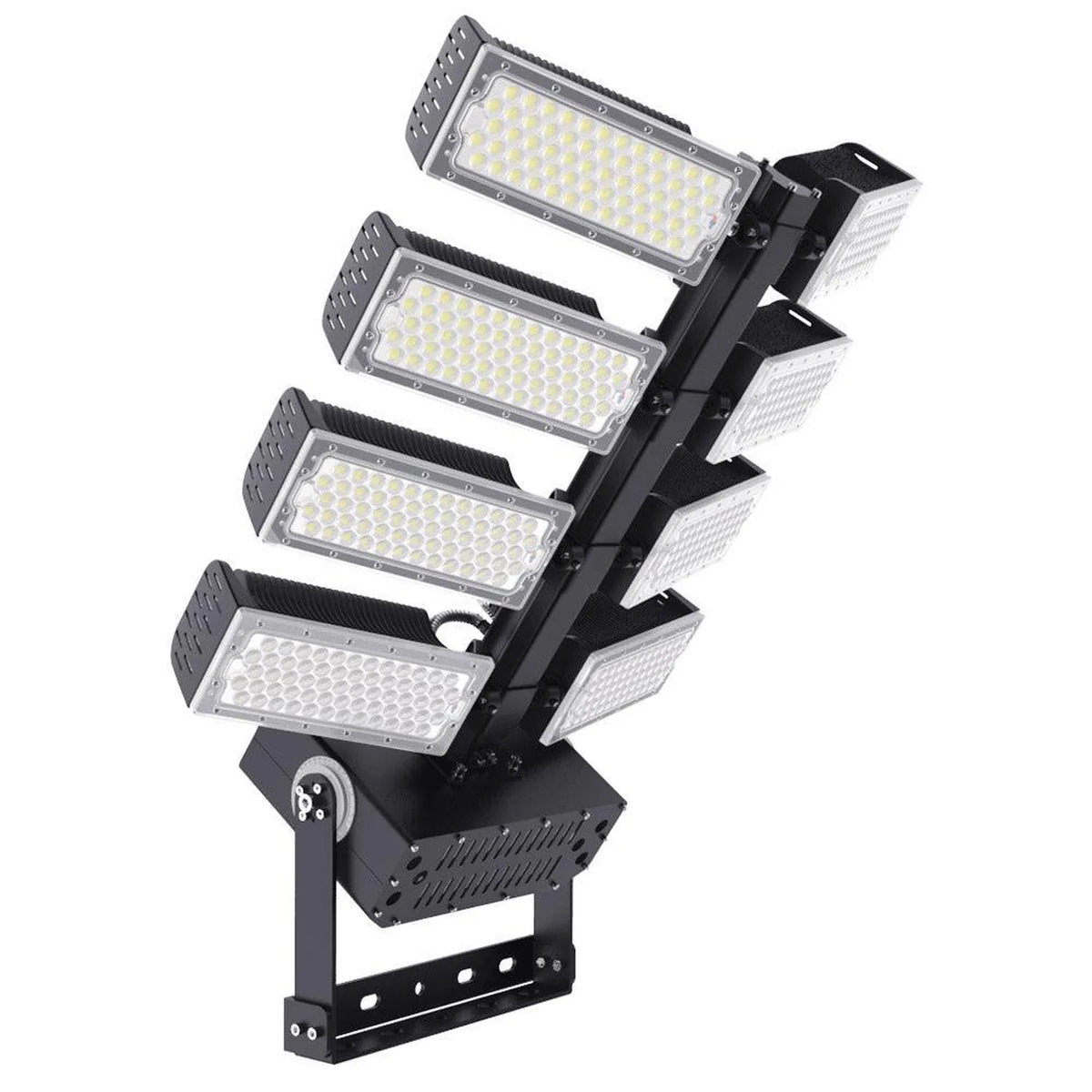

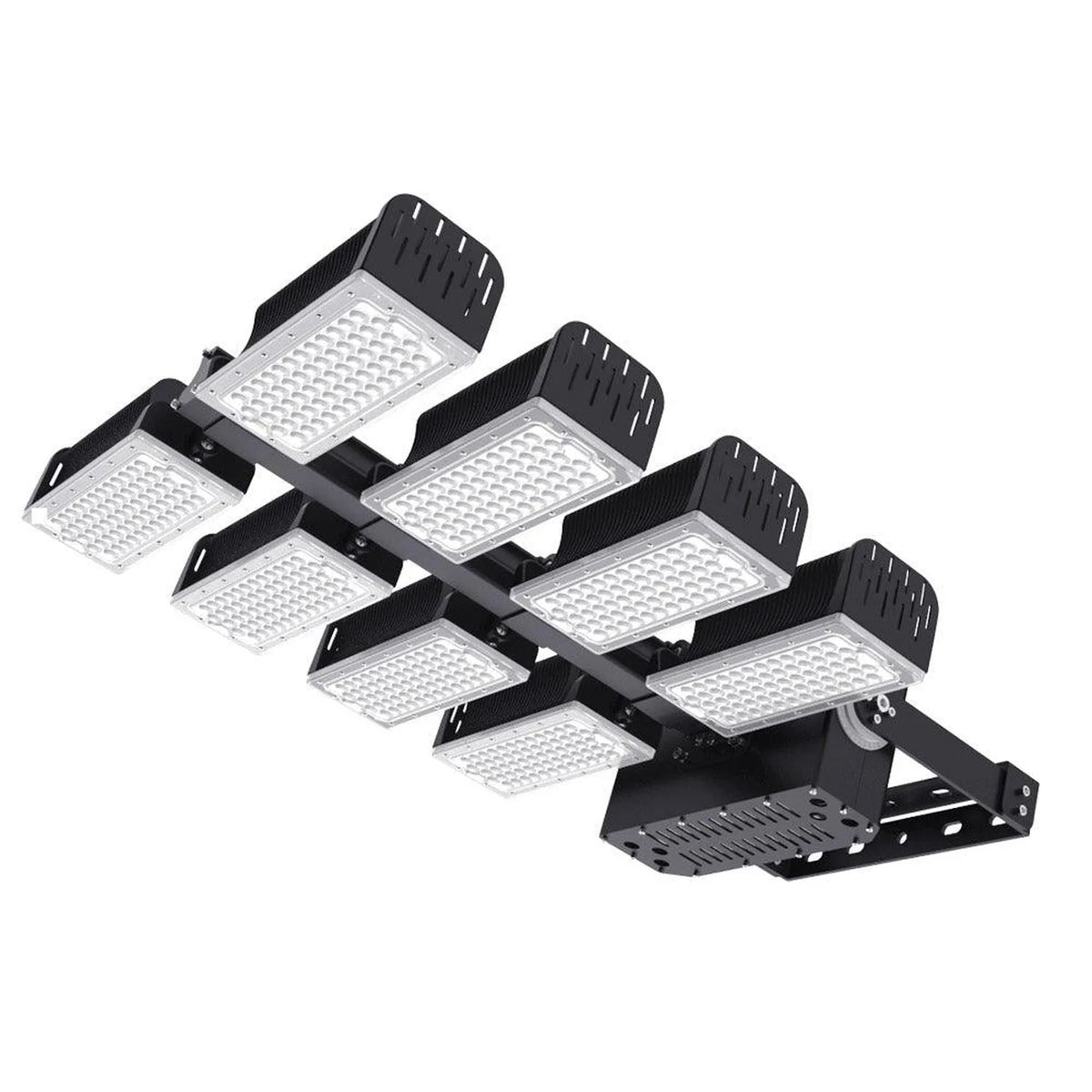

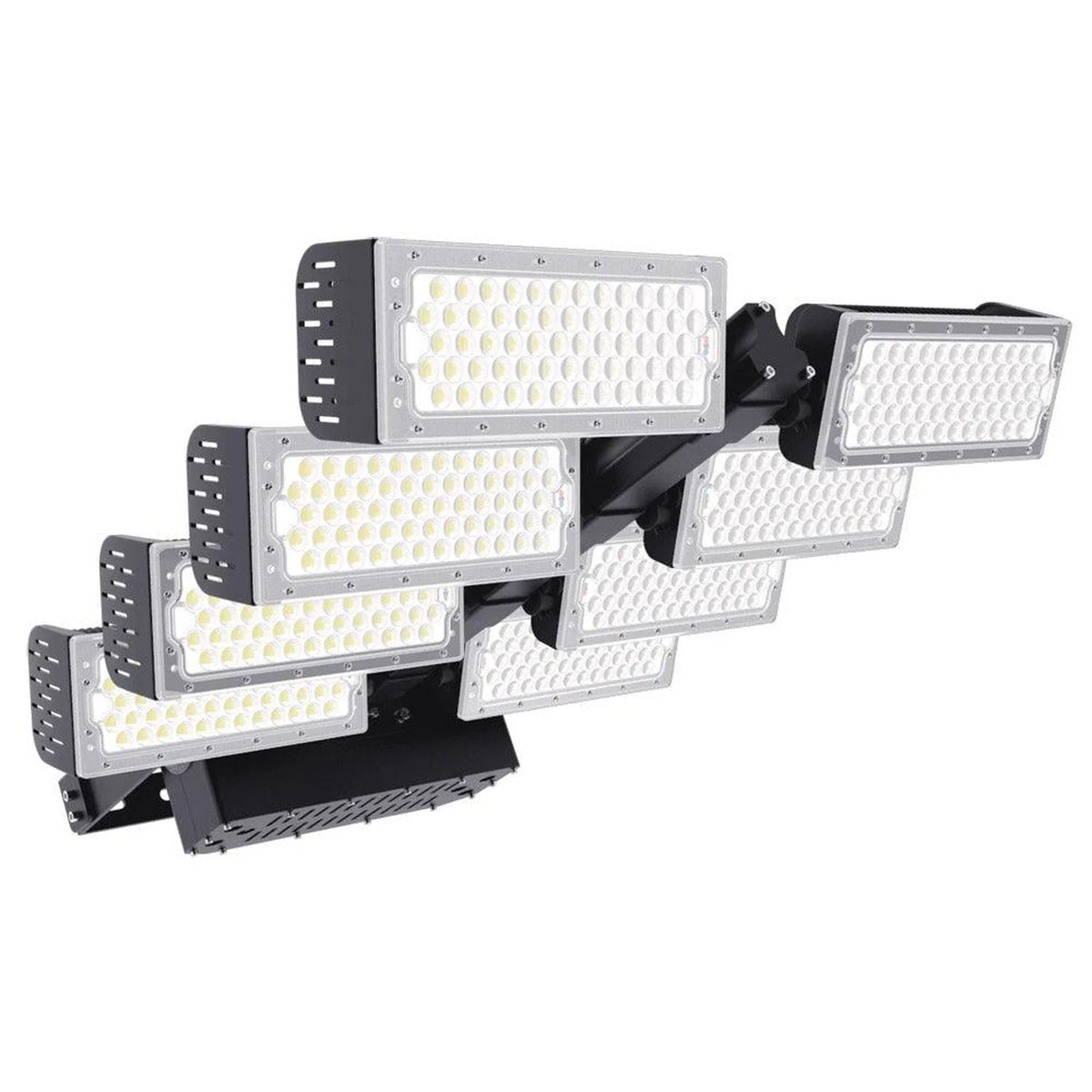

The Athled 960W LED flood light is built for football fields, tennis courts, stadiums and other large outdoor areas that need strong, even illumination. It produces 168,400 lumens and is part of the T500 Ultra Flood Light platform, model CO-T500-960W.

Led flood light for football field and stadium use

Large pitches and courts need consistent coverage with minimal shadowing. This fitting uses a modular optical design so installers can direct light where it's needed and cut down on glare and light spill across the site.

• Power, 960W
• Luminous flux, 168,400 lumens
• Efficiency, up to 175 lm/W
• Protection rating, IP66
• Colour temperature, 2700K to 6500K
• CRI, Ra >70
• Input voltage, 100-240VAC / 277VAC

Adjustable optics and mounting

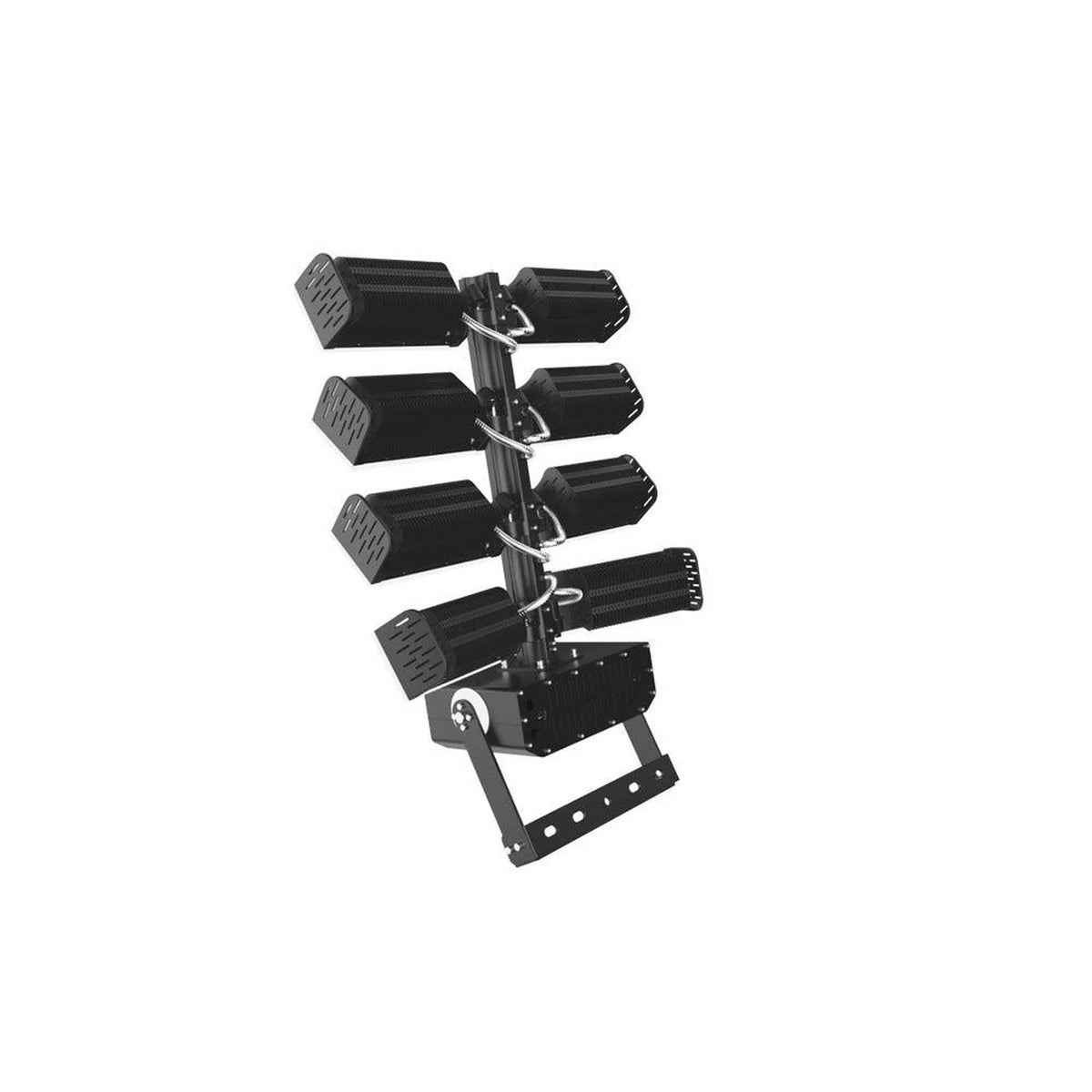

A replaceable lens system offers 10°, 30°, 60°, 90° and 120° beam angle options, so the same fitting can be set up for long-throw illumination or wide-area coverage. The LED modules rotate 360°, tilt up to 140°, and sit on a 250° rotatable arc bracket, with an angle scale printed on the housing to help installers aim it accurately and repeat the setting if the fitting is removed for maintenance. It suits both pole mounting and wall installation.

Built for outdoor conditions

The IP66-rated housing keeps out dust and rain, and an aluminium cooling fin heat sink manages heat from the LED array. The manufacturer states an operating range of -40°C to +60°C. The fitting carries a 5-year warranty.
