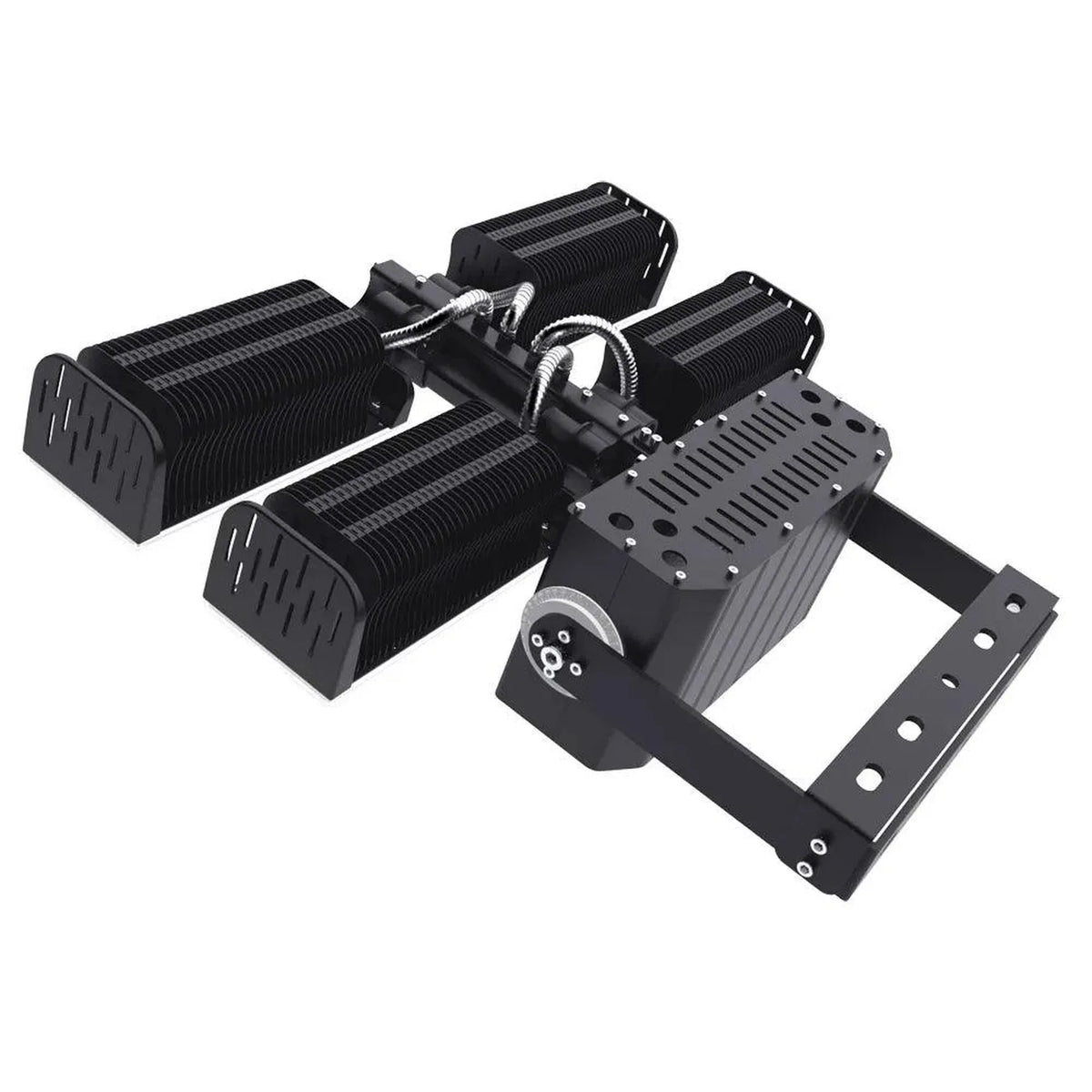

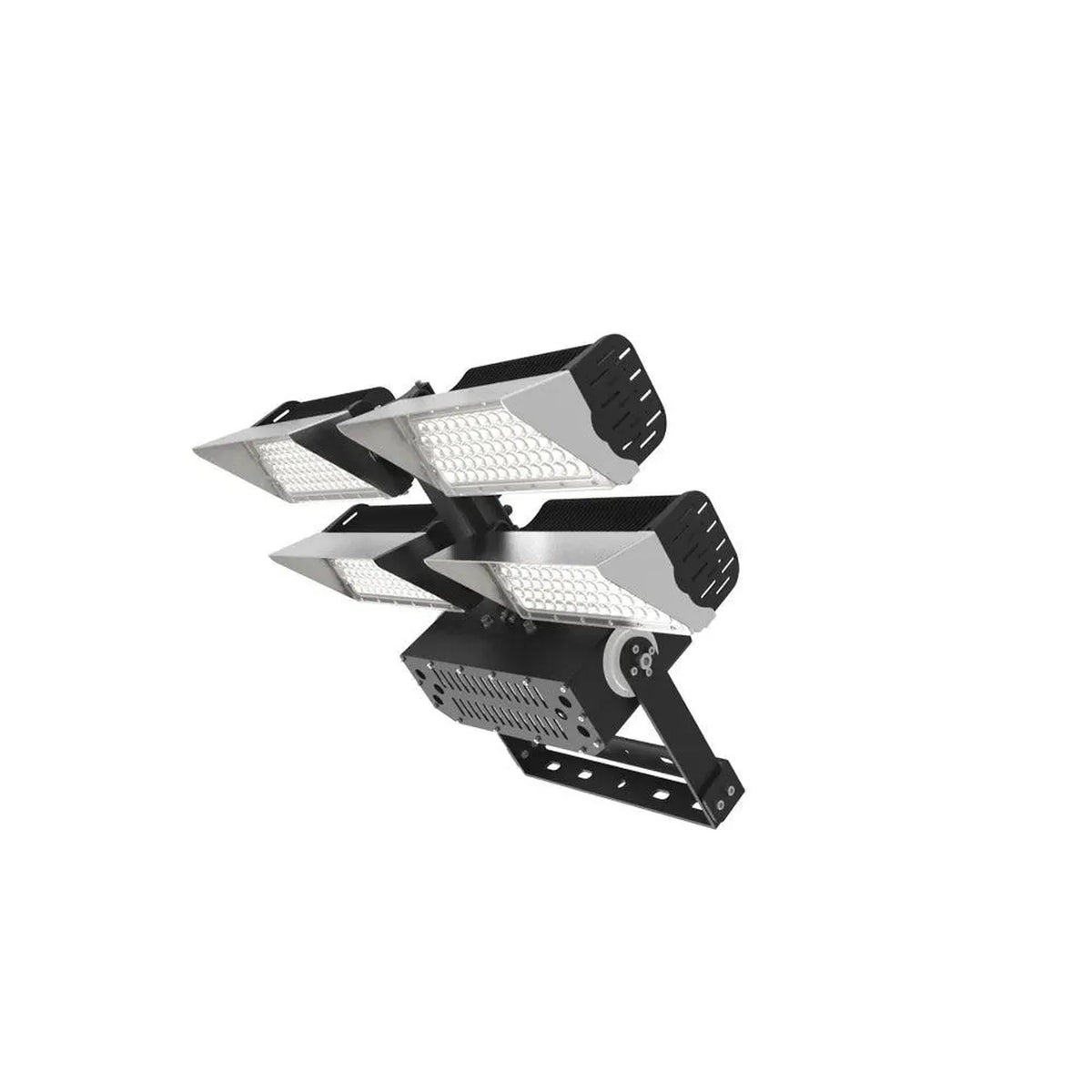

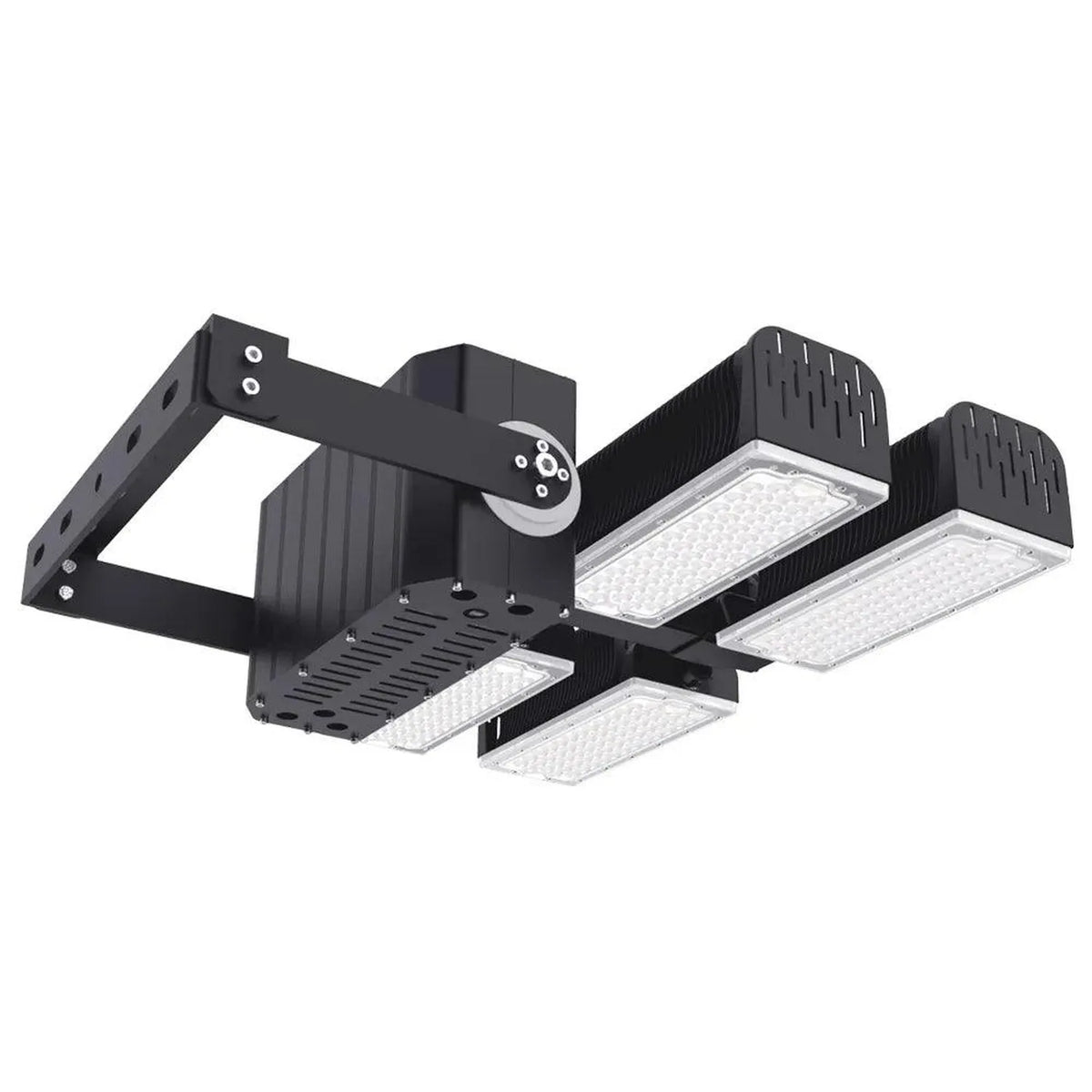

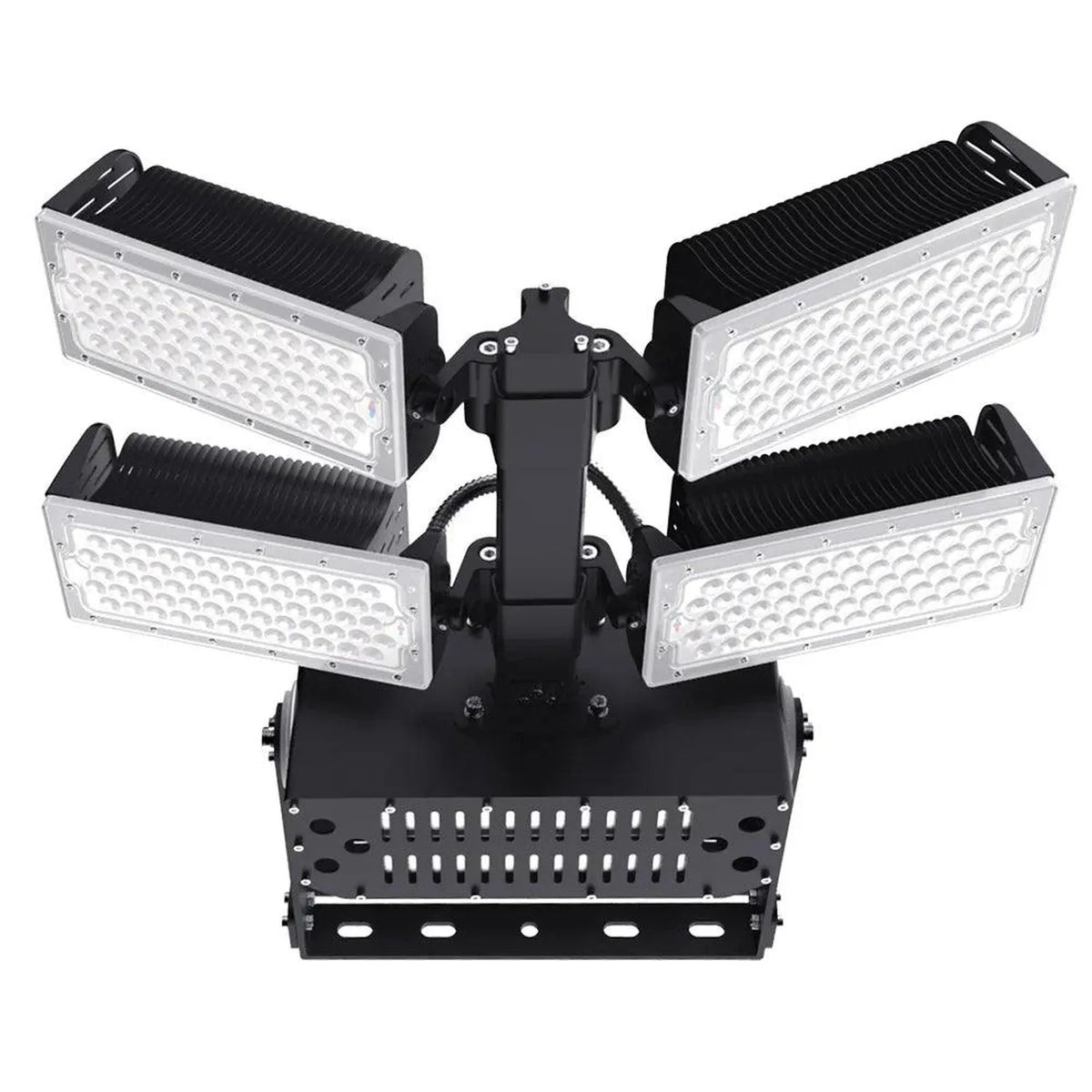

The Athled LED Flood Light 480W is a high-power fitting built for football fields, tennis courts, golf courses, ports, airports, petrol stations and industrial yards. Model CO-T500-480W produces 84,000 lumens (±5%) at an efficacy of 175 lm/W, with energy savings of up to 80% over older lighting.

Key features of this led flood light for football field and industrial use

• Luminous flux, 84,000 lumens ±5%
• Efficacy, 175 lm/W
• Colour temperature, 2700K to 6500K, Ra >70 / >80
• Protection rating, IP66
• Beam angles, 10°, 30°, 60°, 90° and 120° lenses, supplied at 30° by default unless another angle is specified
• Service life, 50,000 hours

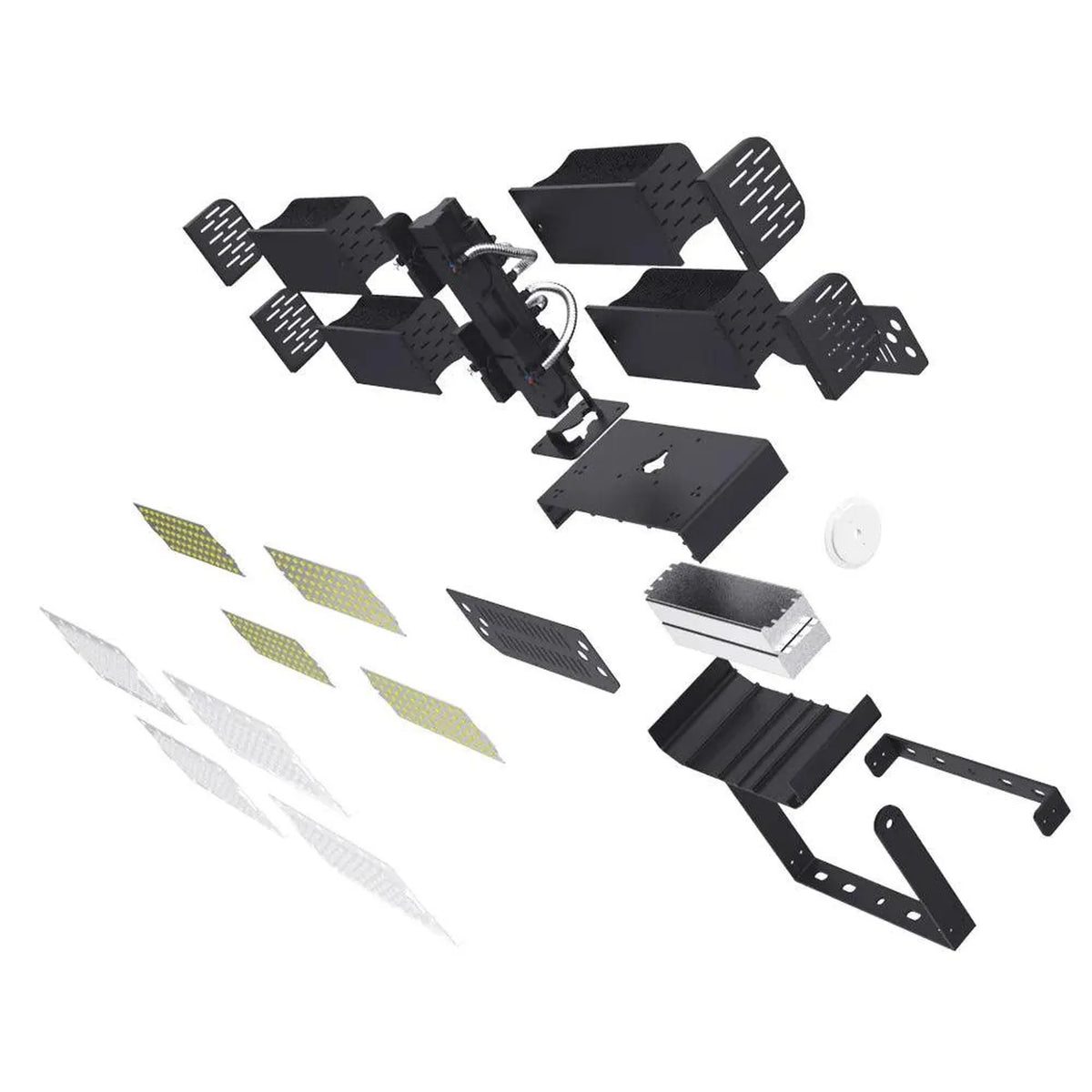

Adjustable modular design

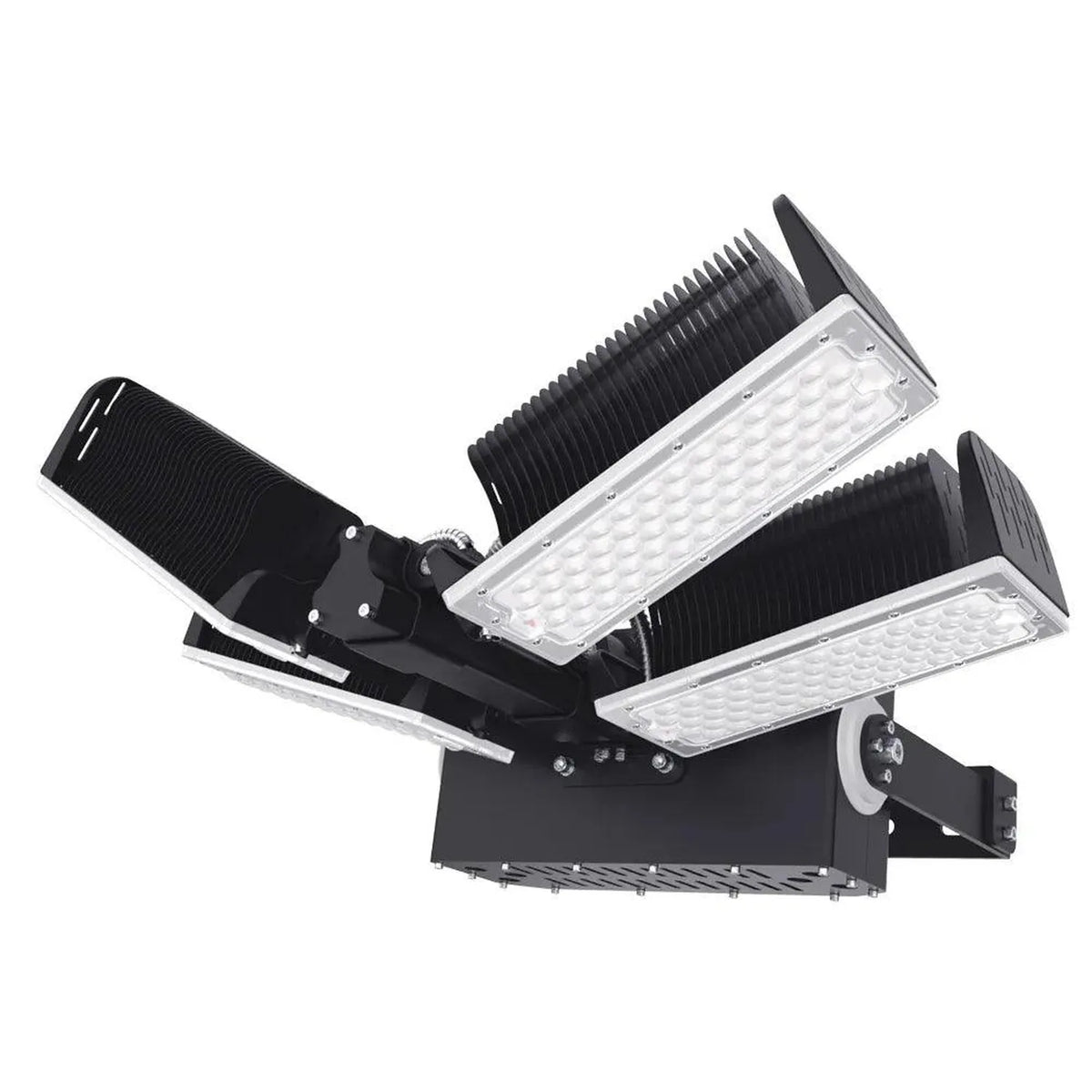

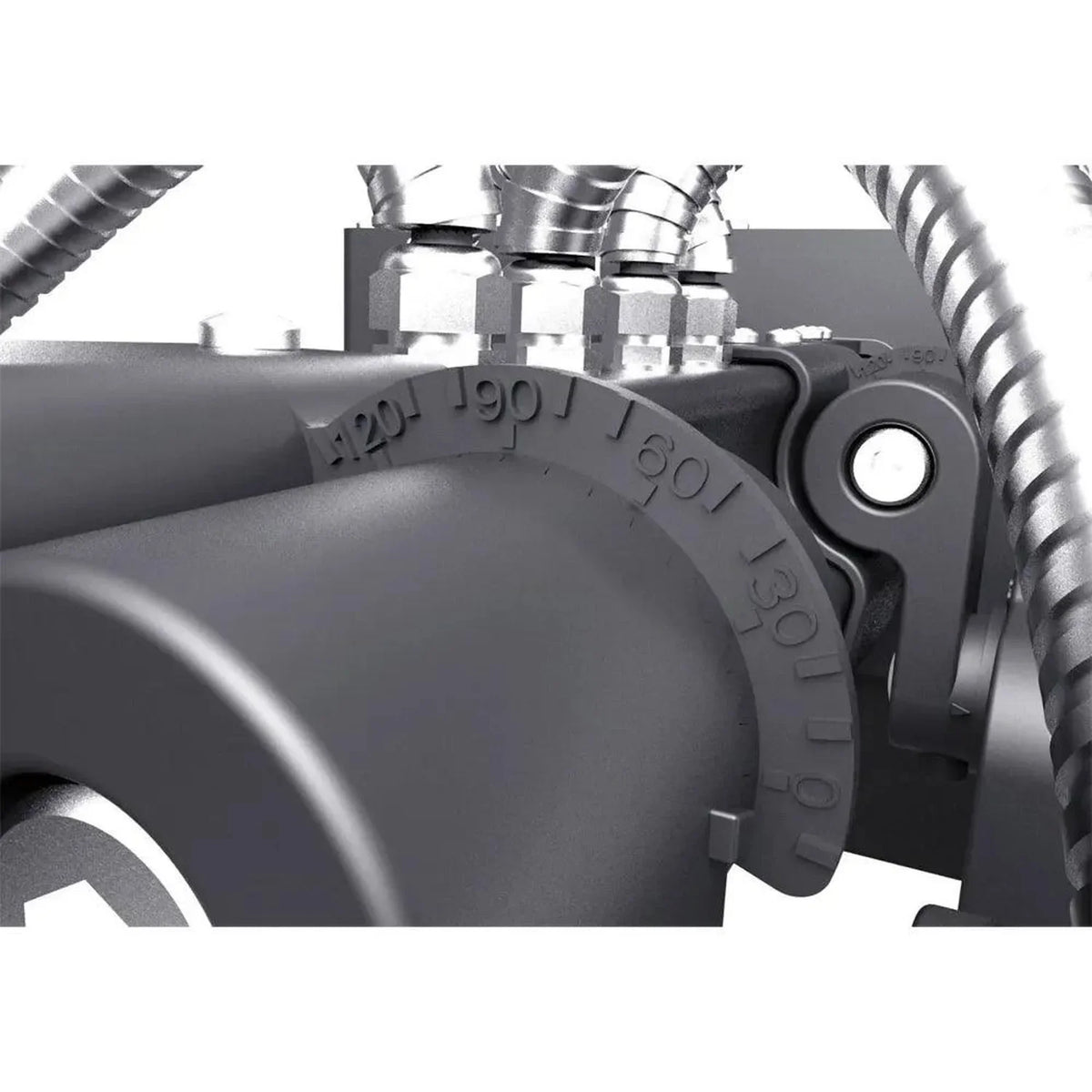

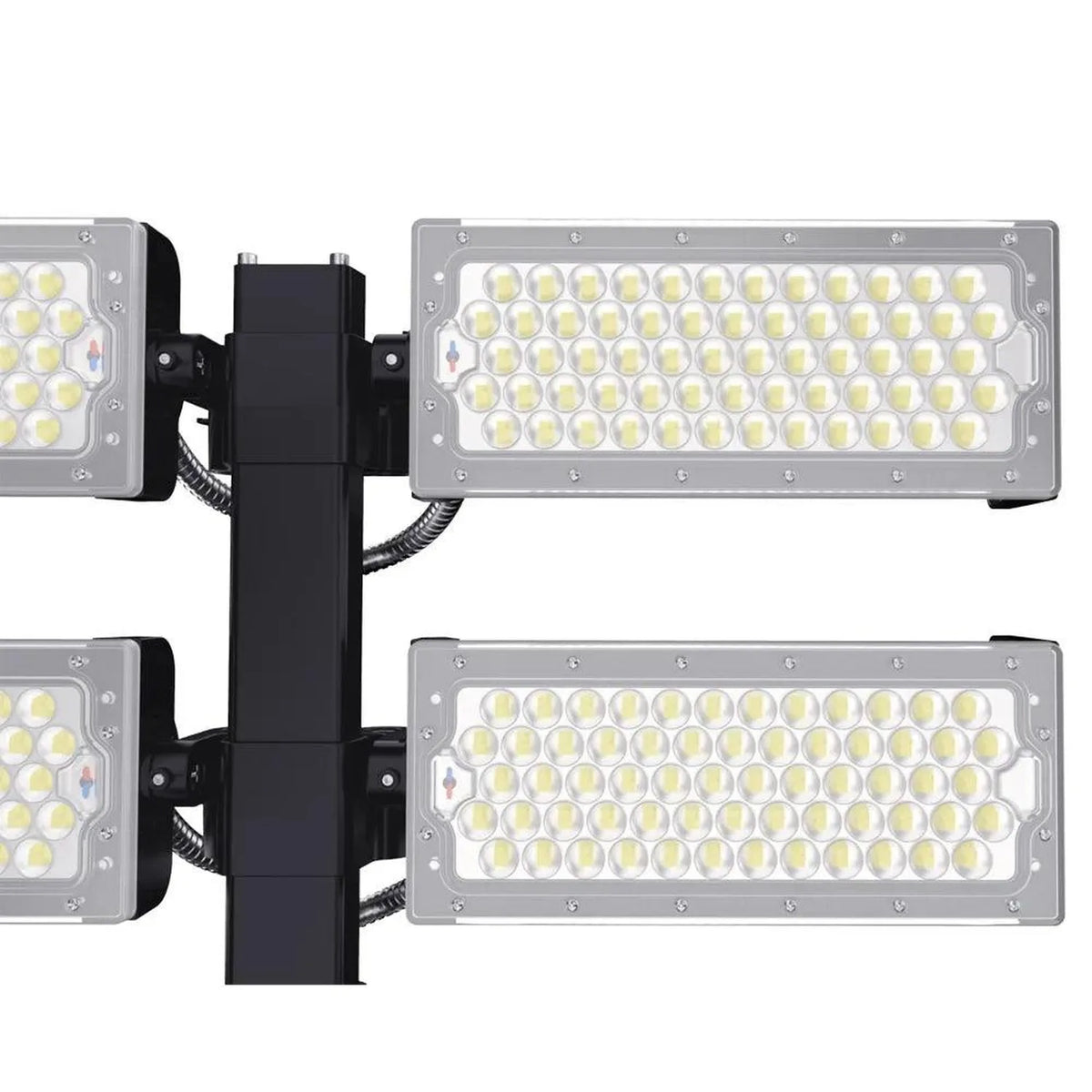

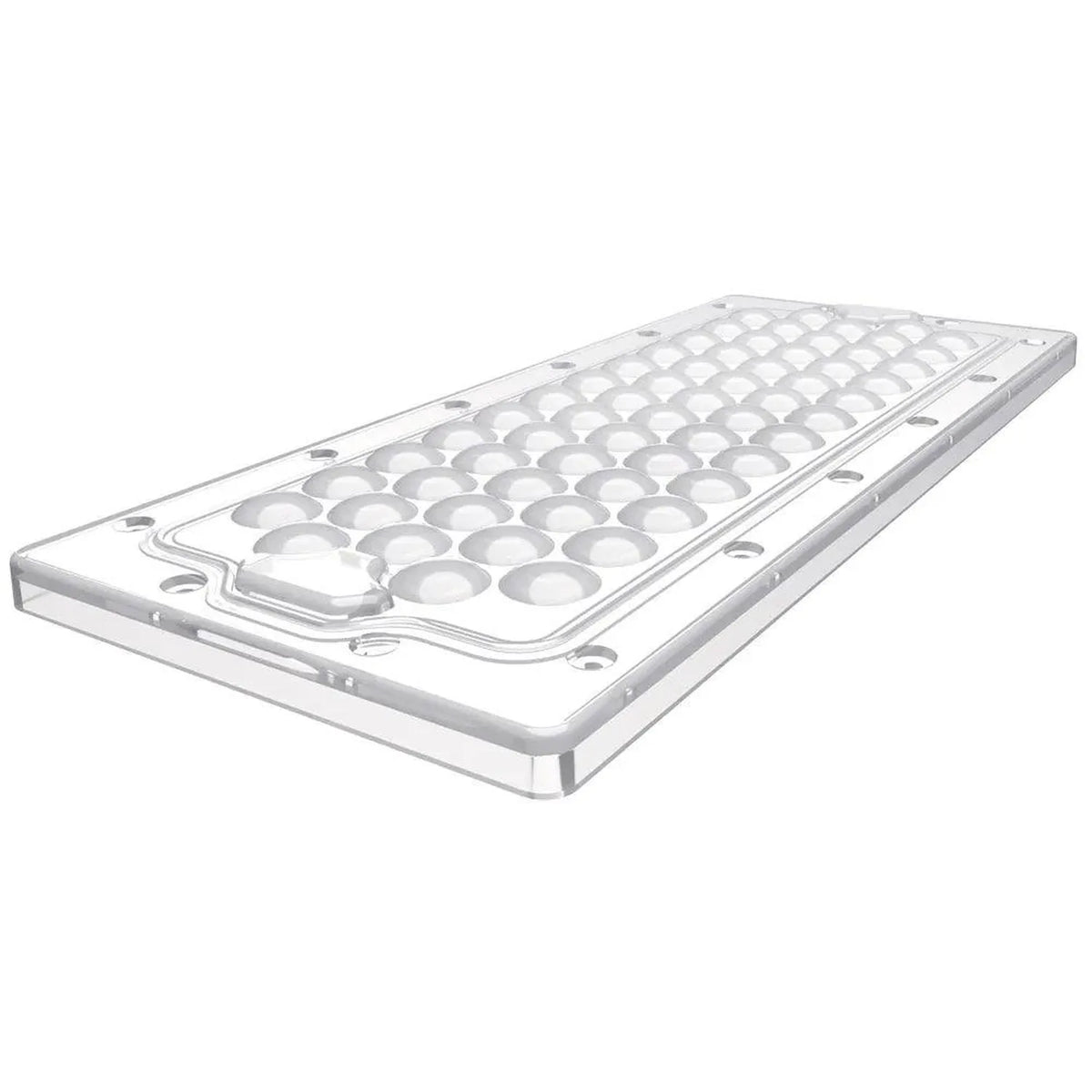

Each lighting module can be repositioned individually, giving installers accurate beam control across wide-area sites. The optical lenses are replaceable, so the beam angle can be changed to suit a football pitch, tennis court or an industrial yard without swapping the whole fitting.

Built for harsh outdoor conditions

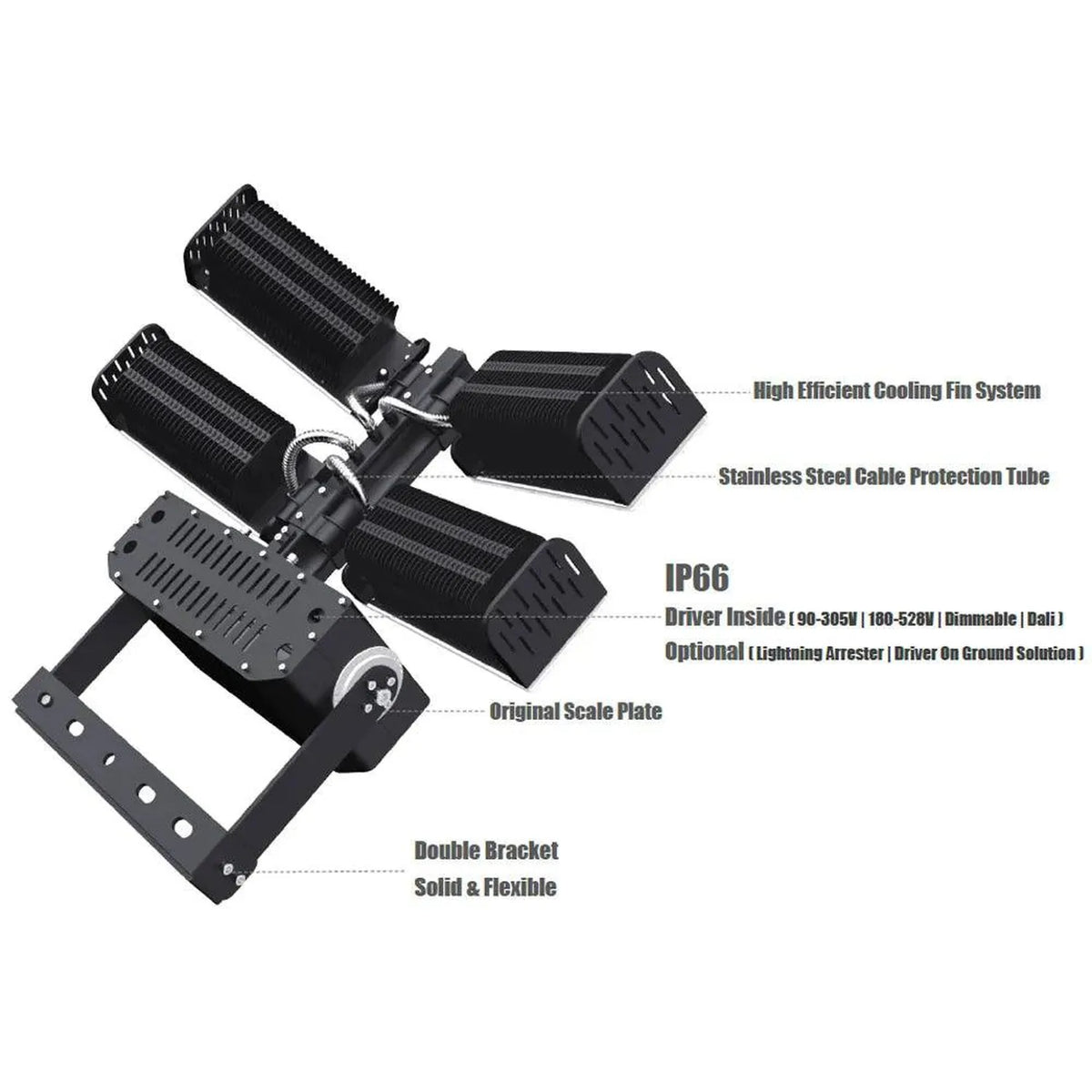

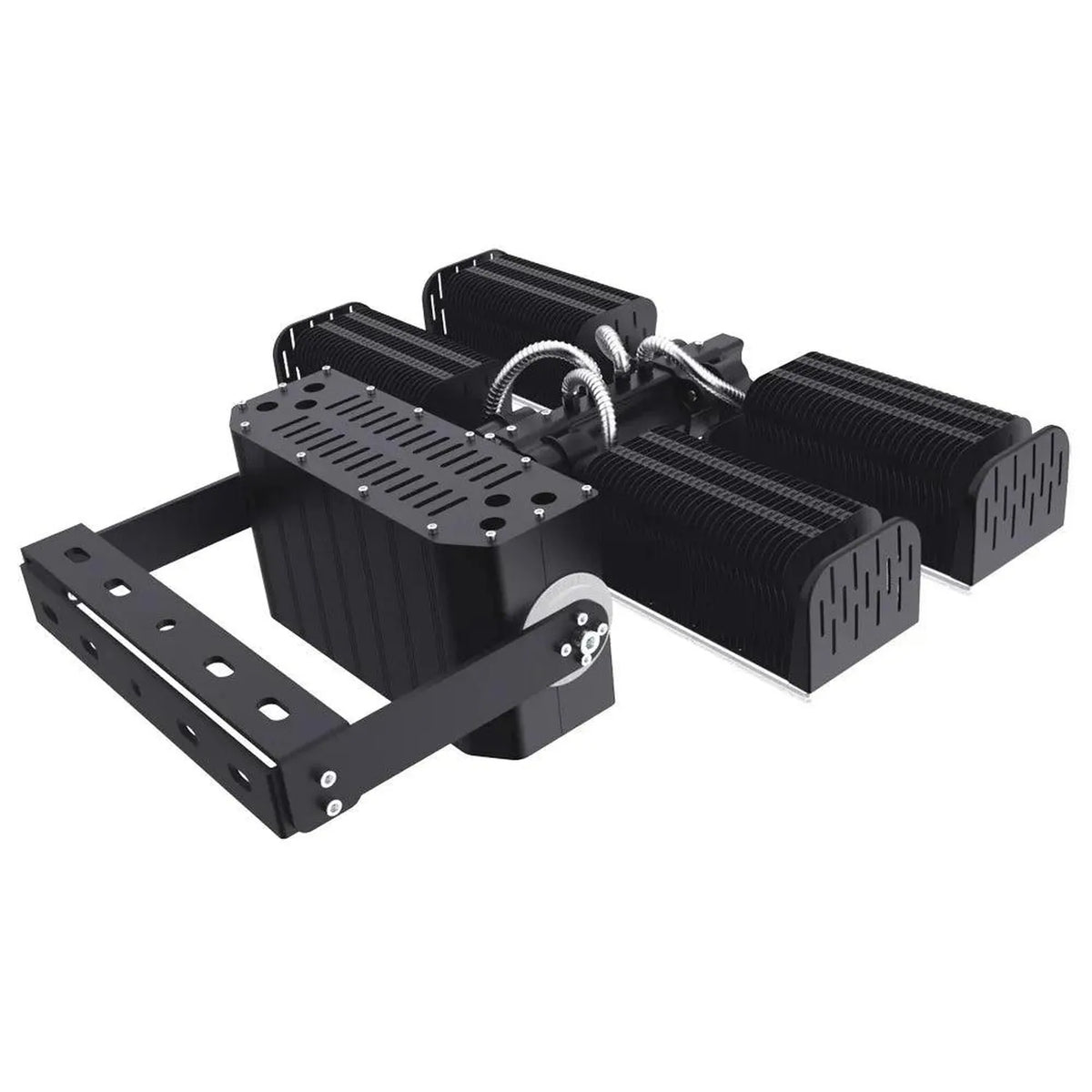

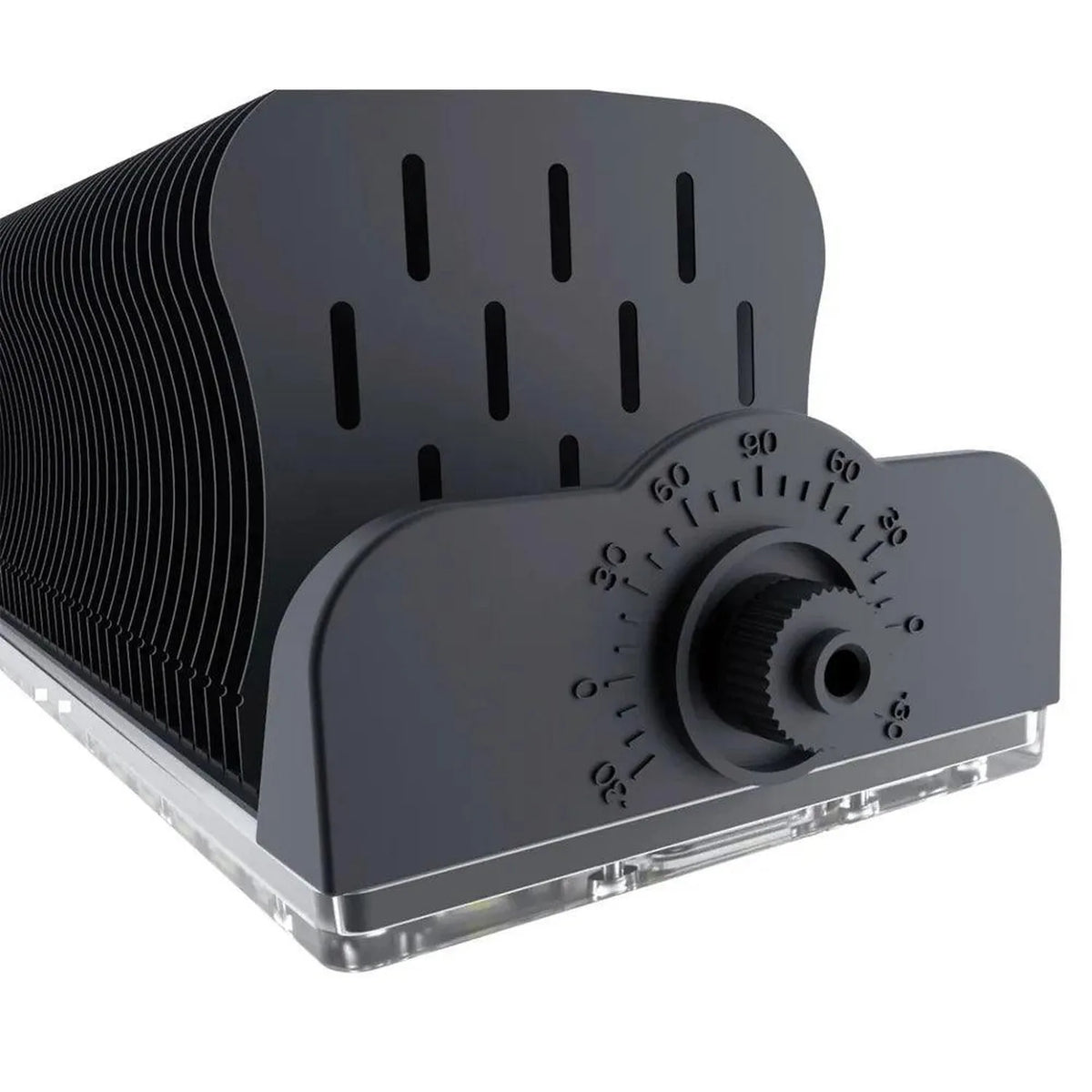

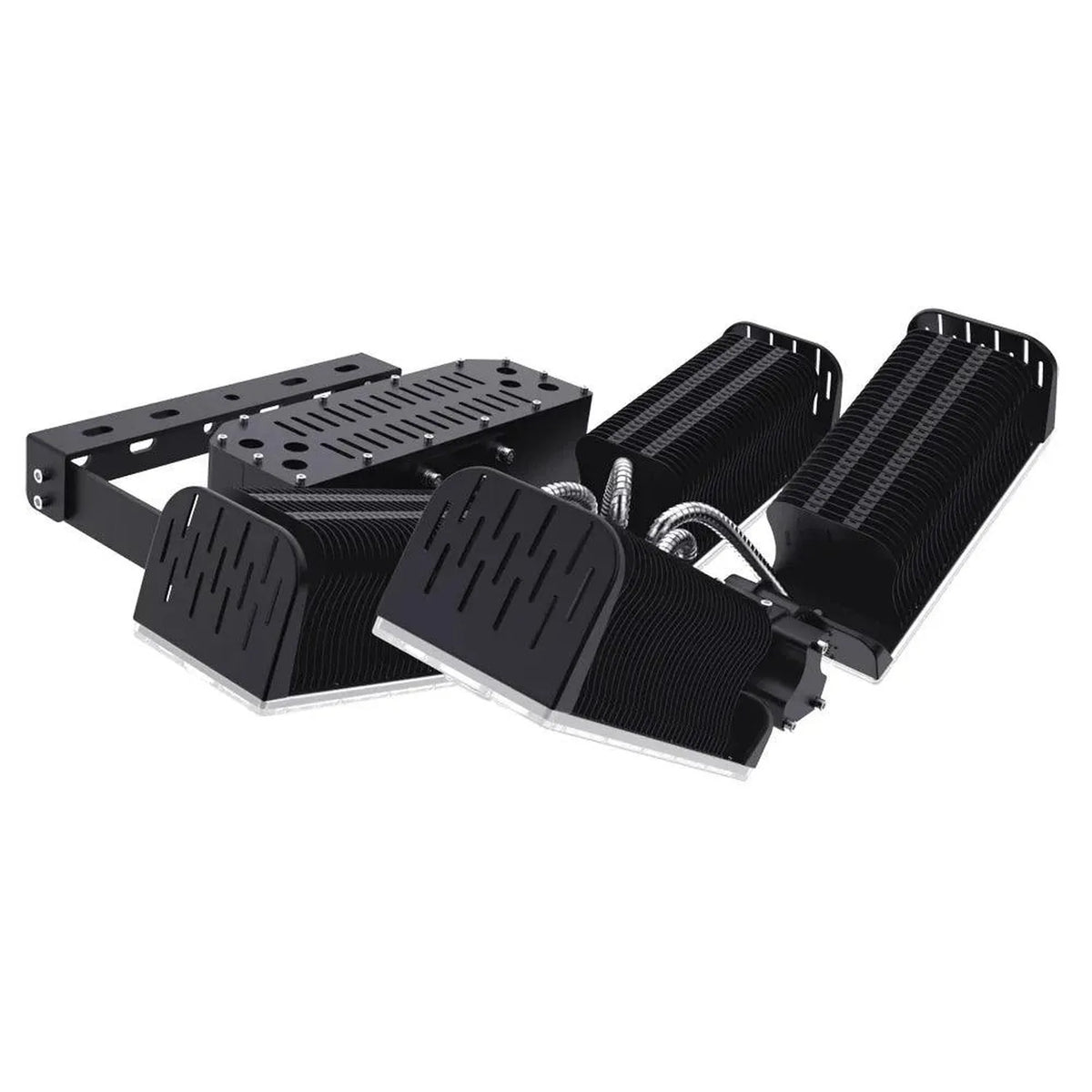

An aluminium cooling fin system manages heat dissipation and supports the stated 50,000-hour service life. The IP66-rated housing protects against rain and dust, and the fitting runs on 100-240VAC / 277VAC, 50/60Hz with a power factor above 0.95. It operates across a temperature range of -40°C to +60°C.

Mounting

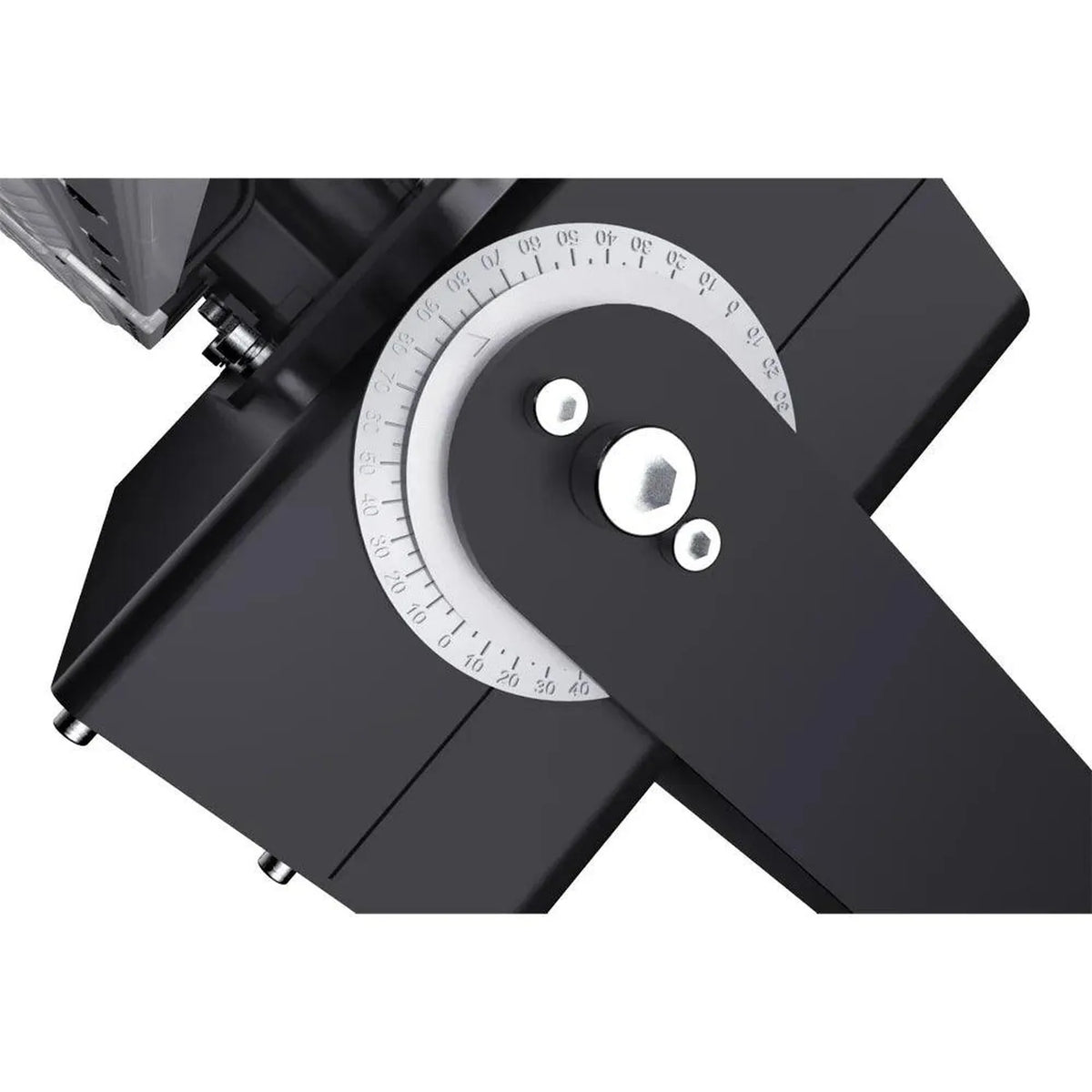

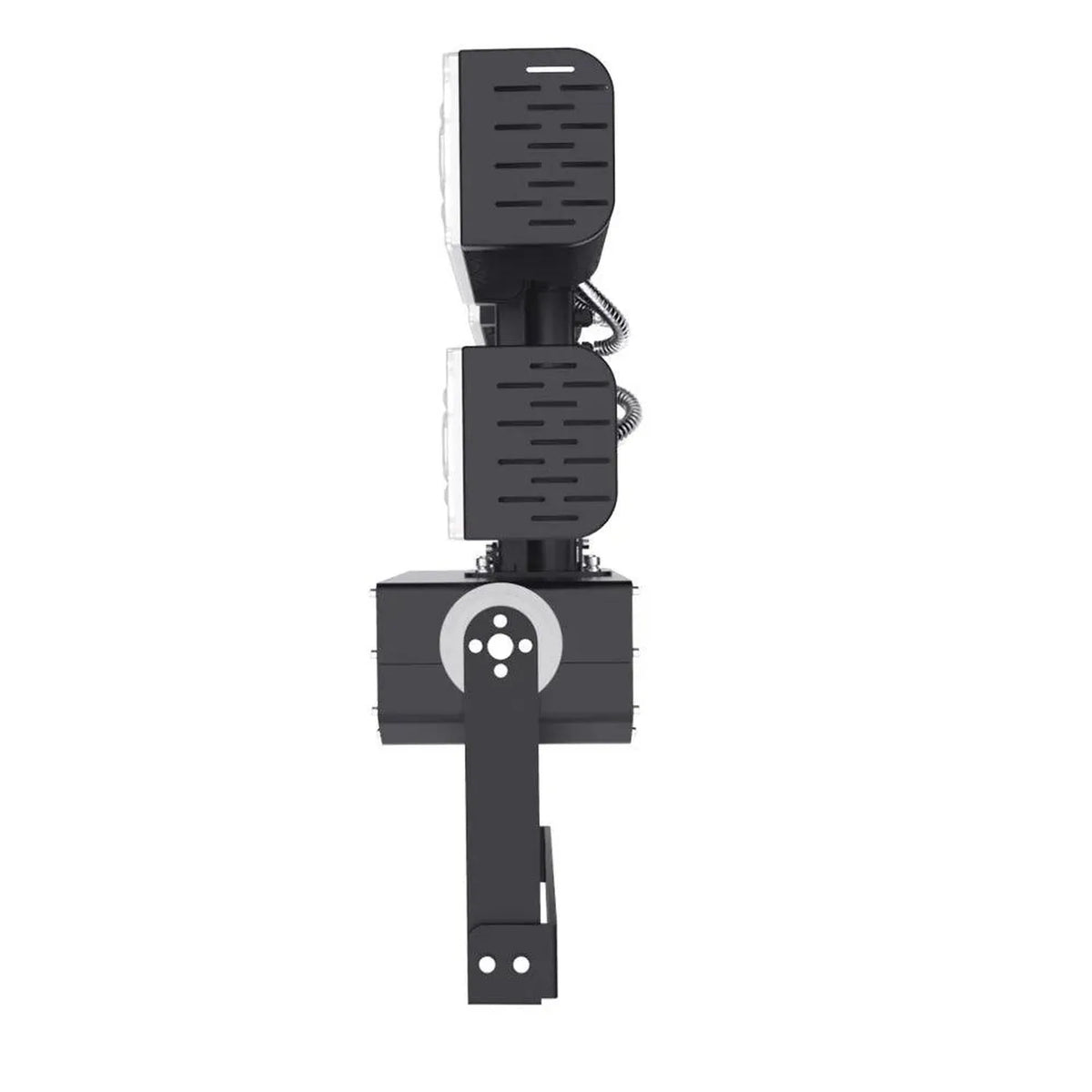

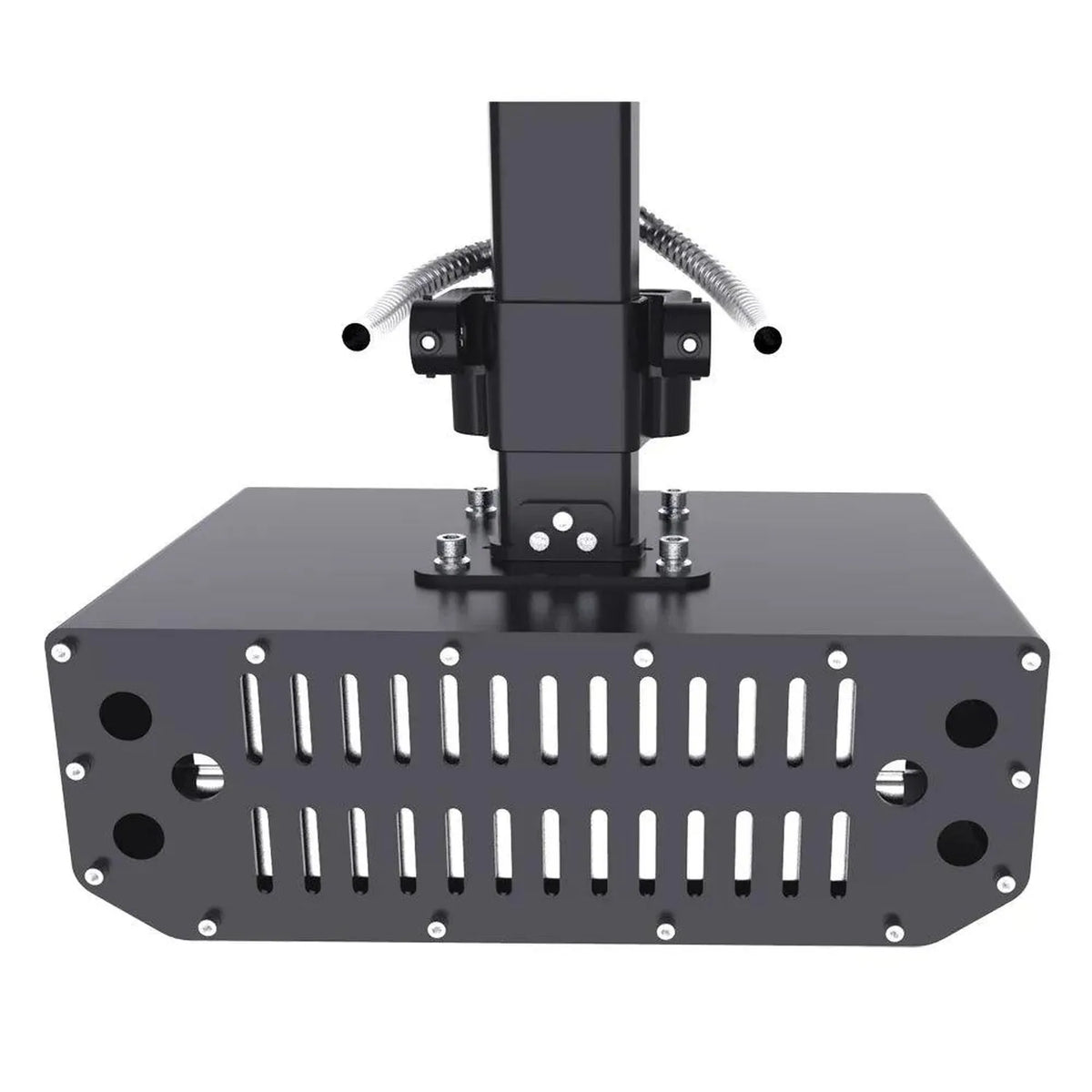

The Athled 480W can be pole or wall mounted, suiting sports lighting masts as well as industrial and airport installations.
