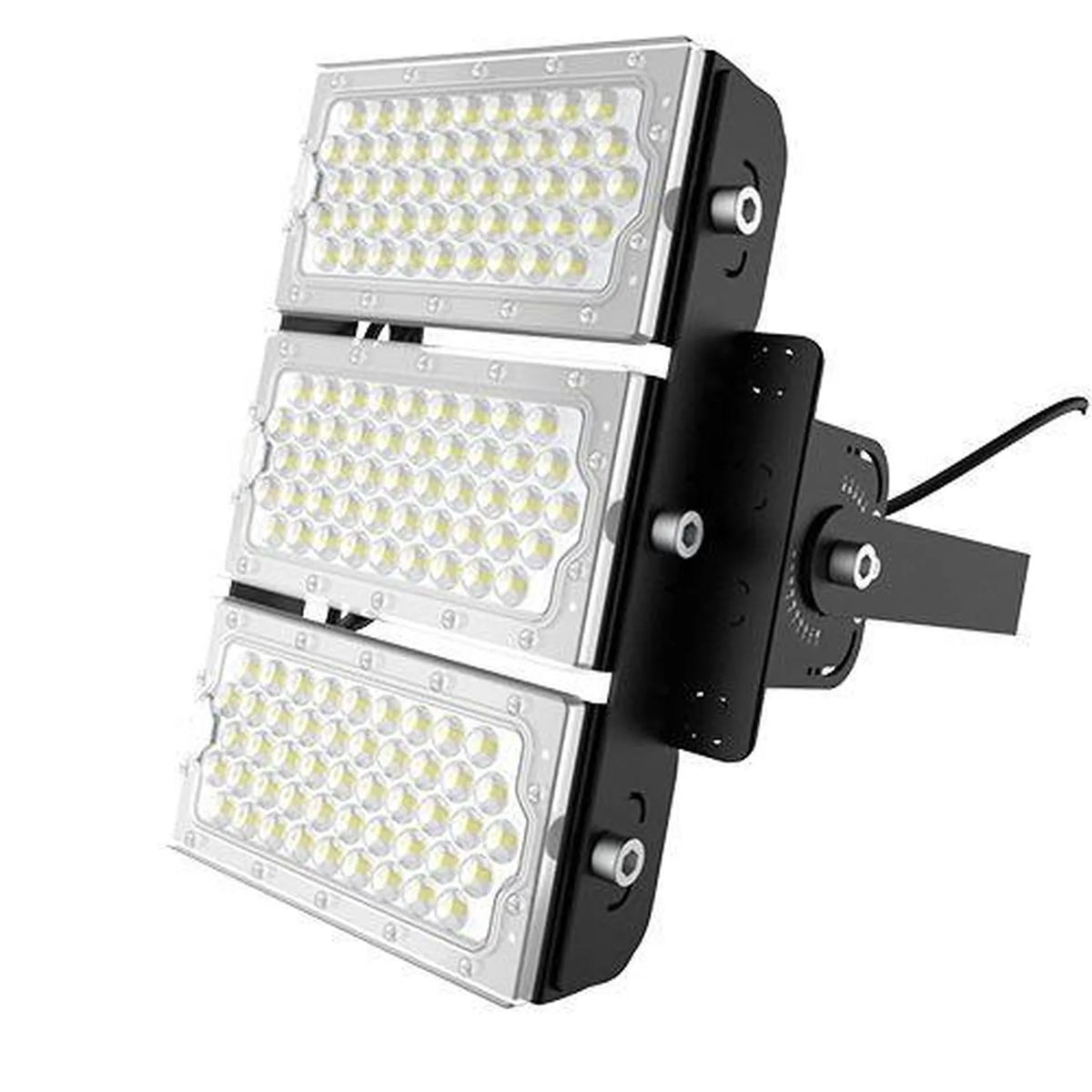

The Athled LED Flood Light 240W is built for large outdoor areas, from tennis courts to warehouses and industrial yards. It delivers 36,000 lumens at an efficiency of 150 lm/W, using the CO-T300A-240W modular platform for flexible aiming and strong heat dissipation.

LED flood light for tennis court and large area lighting

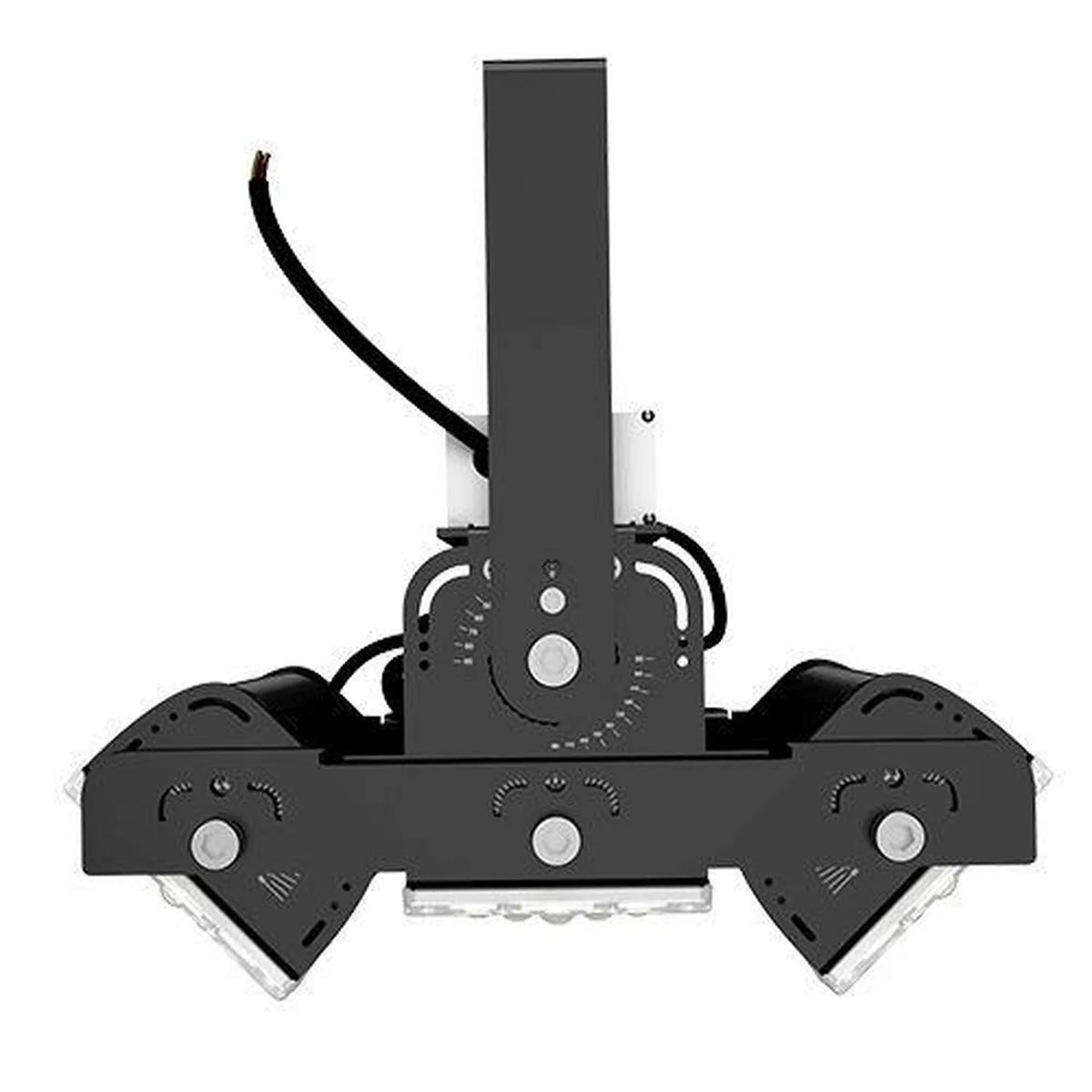

The modular design lets each LED module rotate for aiming control, while the mounting bracket adjusts up to 360°, giving installers direction over the light spread. A replaceable optical lens system supports multiple beam angle options to suit different sites, from tight courts to wide industrial yards.

Key features

• Output, 36,000 lumens at 150 lm/W
• Weatherproofing, IP65 rated for outdoor use
• Cooling, aluminium cooling fin heat sink
• Adjustability, rotatable LED modules and a 360° mounting bracket
• Service life, 50,000+ hours
• Warranty, 5 years

Applications

Suited to football pitches, tennis courts, warehouses, factories, loading bays, commercial yards and public spaces where uniform coverage over a large area is needed.

Build and electrical details

The fitting runs from a 100-240VAC / 277VAC supply at 50/60Hz with a power factor above 0.95. Colour temperature ranges from 2700K to 6500K, with a CRI of Ra >70 / >80. It measures 295 × 319 × 274mm and weighs 5.0kg.
