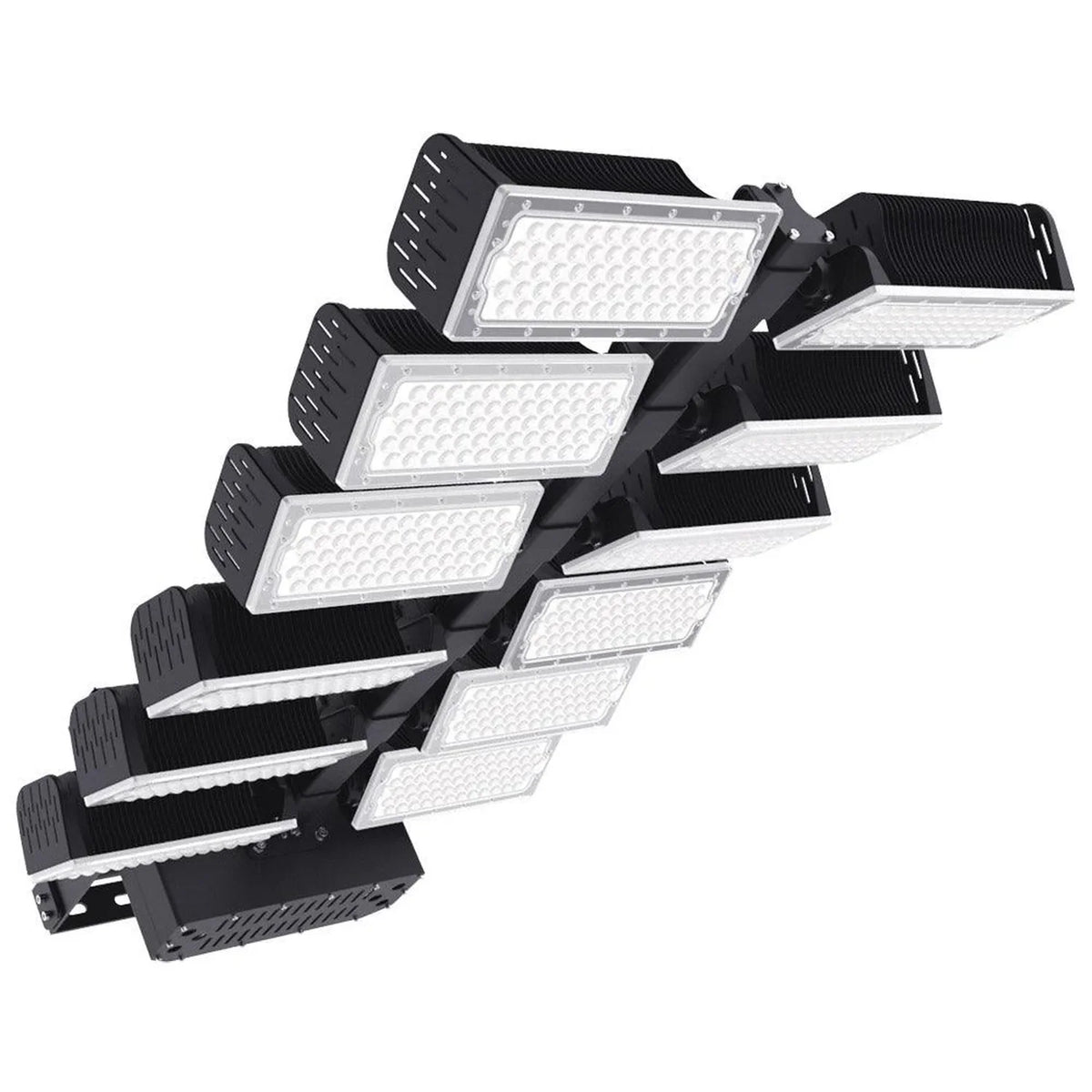

The Athled LED Flood Light 1440W is built for professional sports venues, stadiums, airports, ports and industrial yards where large areas need strong, even illumination. It produces 252,000 lumens and sits on the T500 Ultra Flood Light platform, pairing high-output LEDs with precision optics and an aluminium cooling fin heat sink for sustained operation.

Key features

• Luminous flux, 252,000 lumens
• Efficiency, up to 175 lm/W on the 60°, 90° and 120° optics, 165 lm/W on the 30° optic and 120 lm/W on the 10° optic
• Colour temperature, 2700K to 6500K, with a colour rendering index of Ra >70
• Weatherproofing, IP66 rated enclosure for dust and rain protection
• Beam angles, 10°, 30°, 60°, 90° and 120° interchangeable optical lenses
• Adjustability, 360° rotatable LED modules, 140° module tilt and a 250° rotatable arc bracket with an integrated angle scale
• Warranty, 5 years

Applications

The modular optic system lets lighting designers choose narrow beams for long throw or wide beams for area coverage, which suits football pitches, tennis courts, high-mast lighting, industrial yards and airport aprons. Pole or wall mounting options make it adaptable to different installation heights and structures.

Built for outdoor use

The IP66-rated housing keeps out dust and moisture, and the aluminium cooling fin design manages heat across long operating periods. Athled states the unit runs across a range of -40°C to +60°C, and the replaceable lens system means the same fitting can be reconfigured for different beam requirements on site.

Installation

Input voltage is 100-240VAC / 277VAC. The model reference is CO-T500-1440W, and the rotating bracket with angle scale helps installers keep multiple fittings aligned consistently across a large project.
