The Athled LED Flood Light 1200W is a high-power fitting built for large sports grounds, stadiums, airports, ports and industrial sites. It delivers 210,000 lumens of output, making it suited to wide-area lighting where strong, even coverage matters. It is part of the T500 Ultra Flood Light platform and combines replaceable optical lenses, adjustable modules and an aluminium cooling structure.

Key features of this led flood light for football field use

• Output, 210,000 lumens at up to 175 lm/W with 60°, 90° and 120° optics
• Optic efficiency, 165 lm/W with the 30° lens, 120 lm/W with the 10° lens
• Colour rendering, Ra greater than 70
• Colour temperature, 2700K to 6500K
• Input voltage, 100-240VAC / 277VAC
• Protection rating, IP66 weatherproof housing
• Warranty, 5 years

Optical design and adjustment

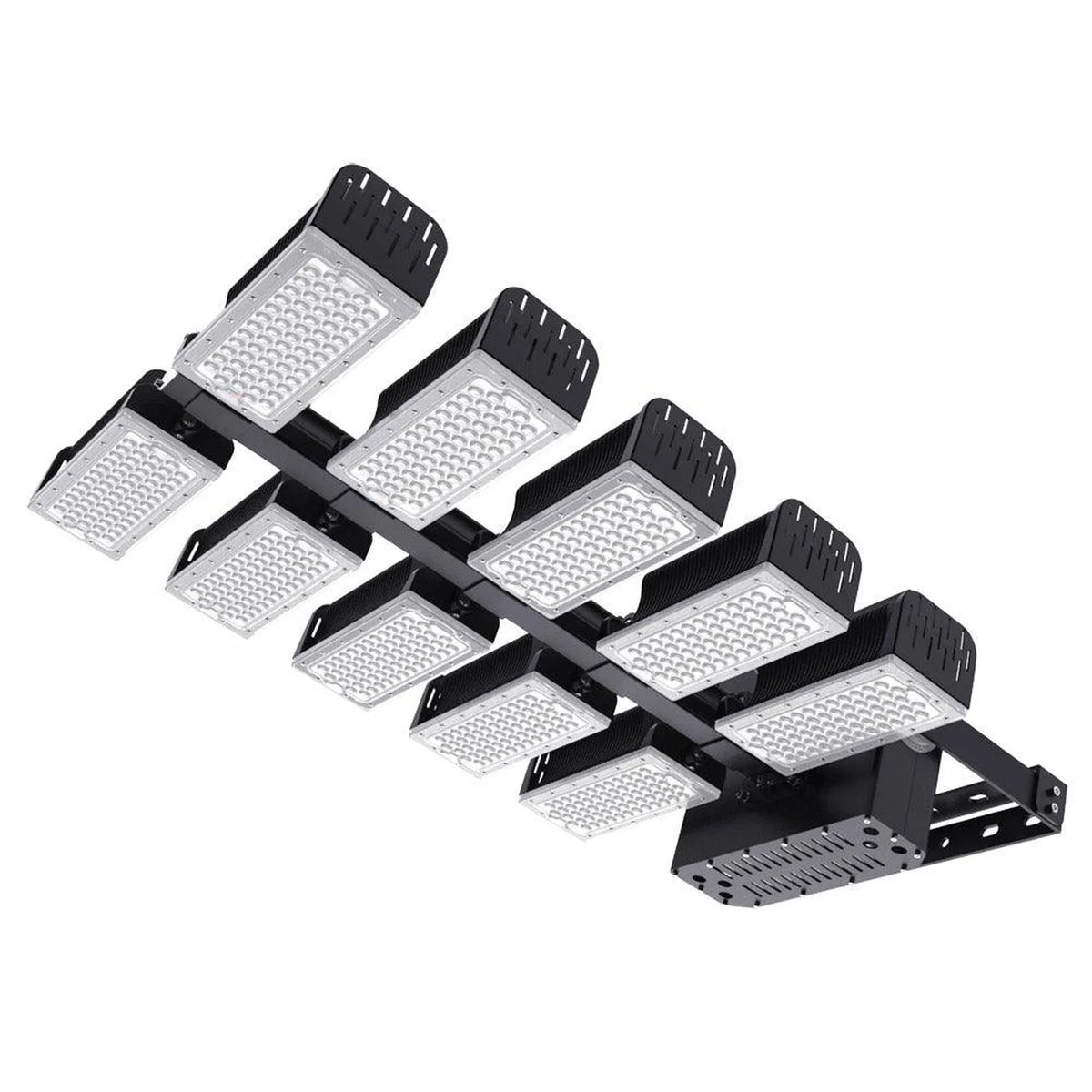

Beam angle options of 10°, 30°, 60°, 90° and 120° let installers choose between focused long-throw lighting and wide floodlighting. The LED modules rotate up to 360°, tilt through 140° and sit on a 250° rotatable arc bracket, with an angle scale printed on the bracket for repeatable aiming once the fitting is installed.

Built for outdoor and high-mast installation

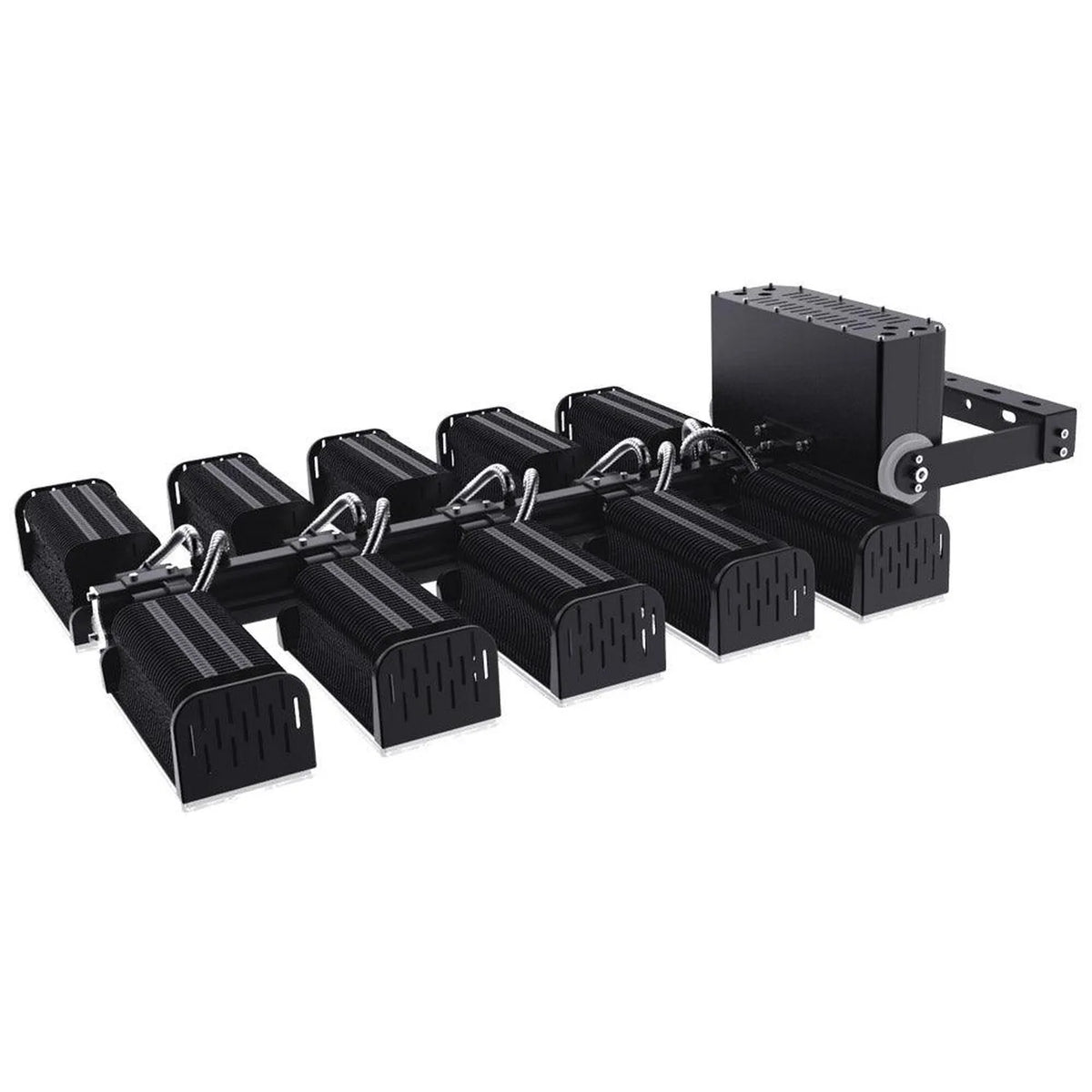

The housing is IP66 rated against dust and rain, and the aluminium cooling fin heat sink is designed to keep the LEDs running at stable temperatures. The fitting has an operating range of -40°C to +60°C, and can be pole mounted or wall mounted for stadium, high-mast, port and industrial lighting projects.

Applications

Suited to football pitches, stadiums, ports, airports, industrial yards, logistics depots and other large outdoor commercial areas where high-output floodlighting is needed.
