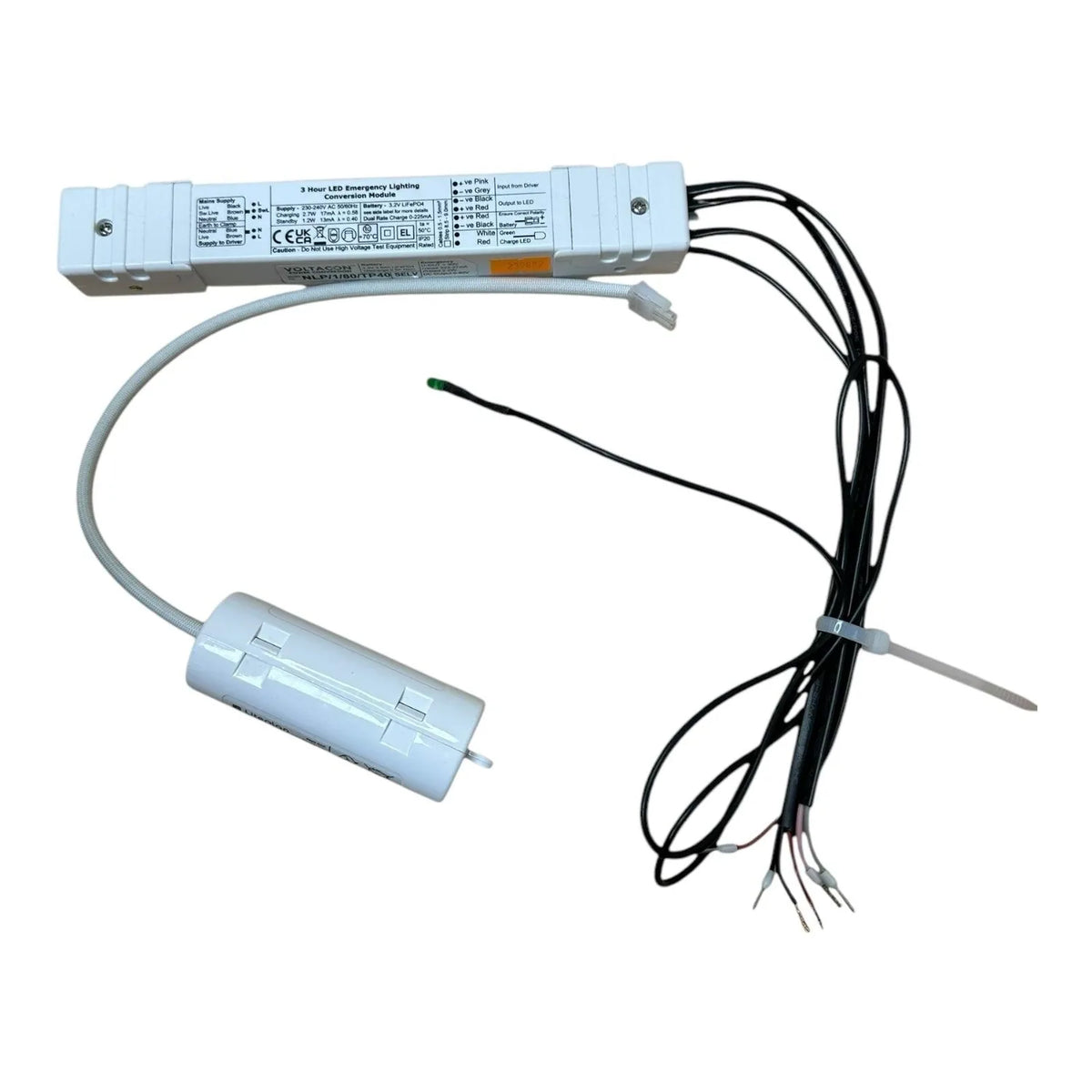

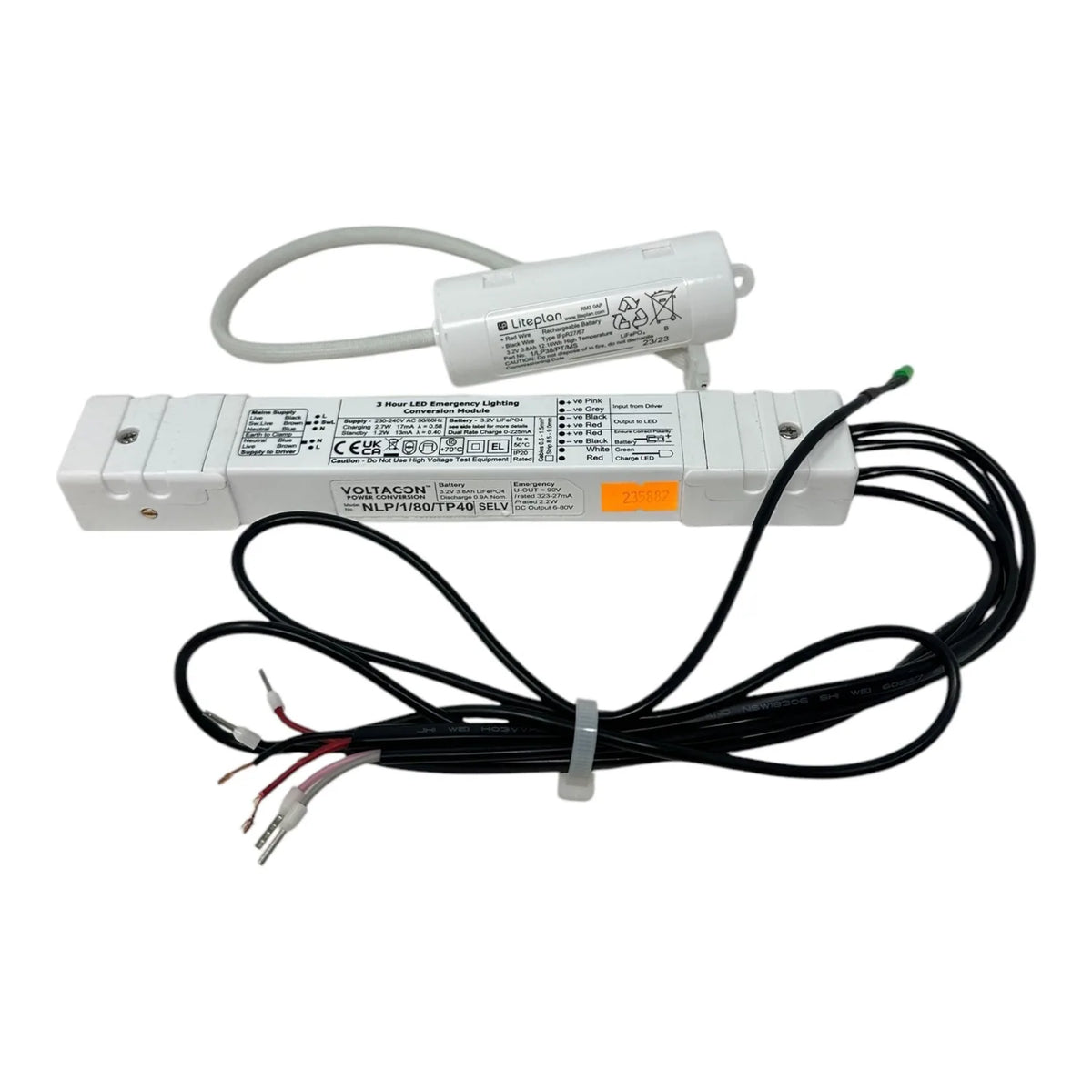

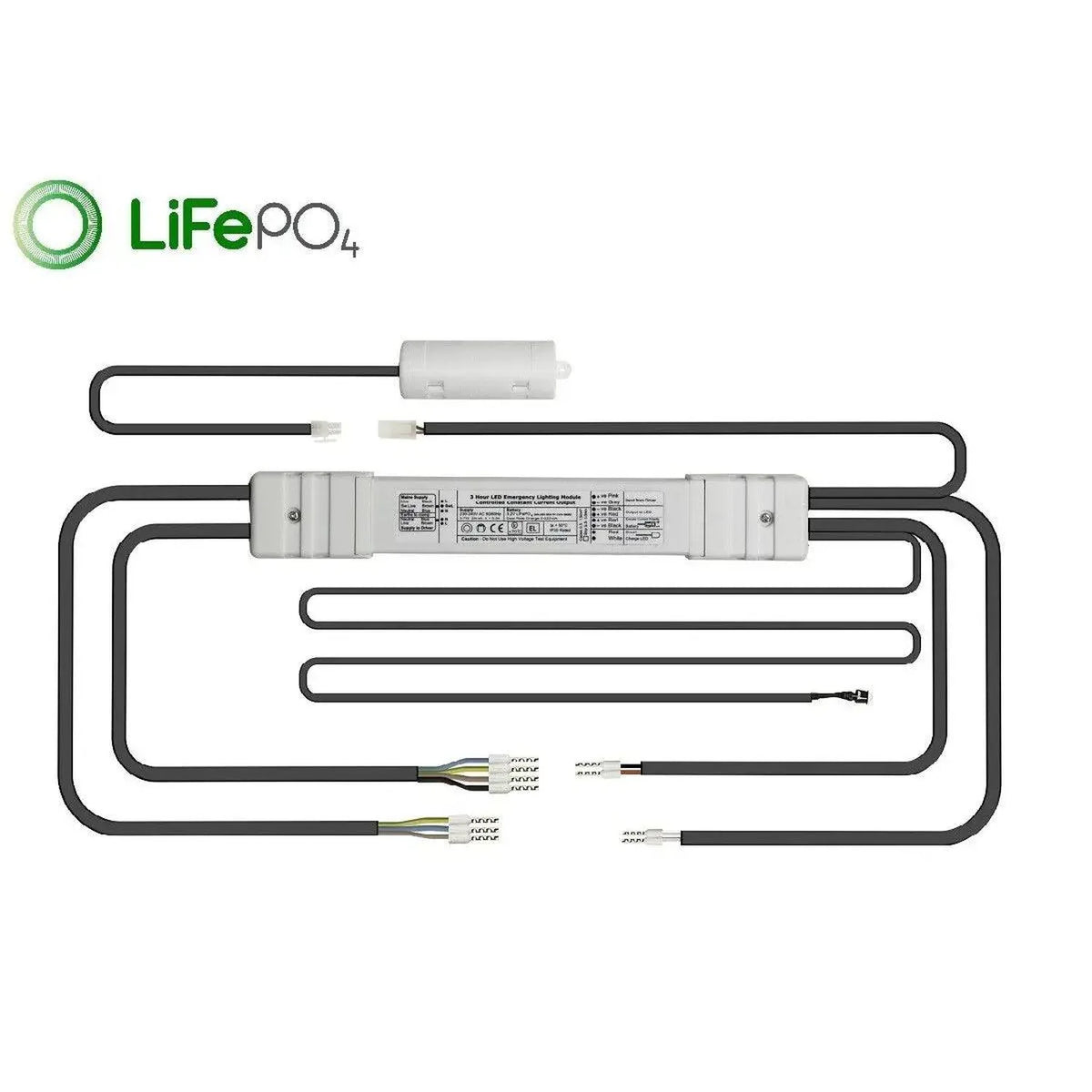

The Liteplan NLP/1S/80/TP40 is a 3-hour emergency lighting conversion kit built around a long life LiFePO4 battery. Supplied with strain relief cables for remote mounting, it converts a wide range of LED types and circuits using just two stock items, and fits into most standard existing fittings.

Key features of this led conversion kit

• Slim module, designed for linear applications with restricted space, suitable for apertures of 40mm or greater
• Battery type, Long Life LiFePO4, giving double the life of traditional emergency lighting batteries and lower power consumption
• Deep discharge protection, protects the battery pack during operation
• Average emergency power, 2.2W
• Certification, third party tested and certified by TÜV
• Status indication, a green LED shows the operating status of the unit

How it works

The unit automatically adjusts the output LED current to match the battery to the load, giving the best available illumination while keeping full battery duration. It provides autonomy to LED panels for up to 3 hours at 30% reduced power, meeting the minimum legal requirement for emergency lighting. The kit can run in maintained or non-maintained mode.

Compatible panels

Compatible with 99% of LED panels, T8 tubes and LED downlights, including CoB spot luminaires. If you need the version for tube lights specifically, the NLP/1S/80 covers that application.

Enclosure and dimensions

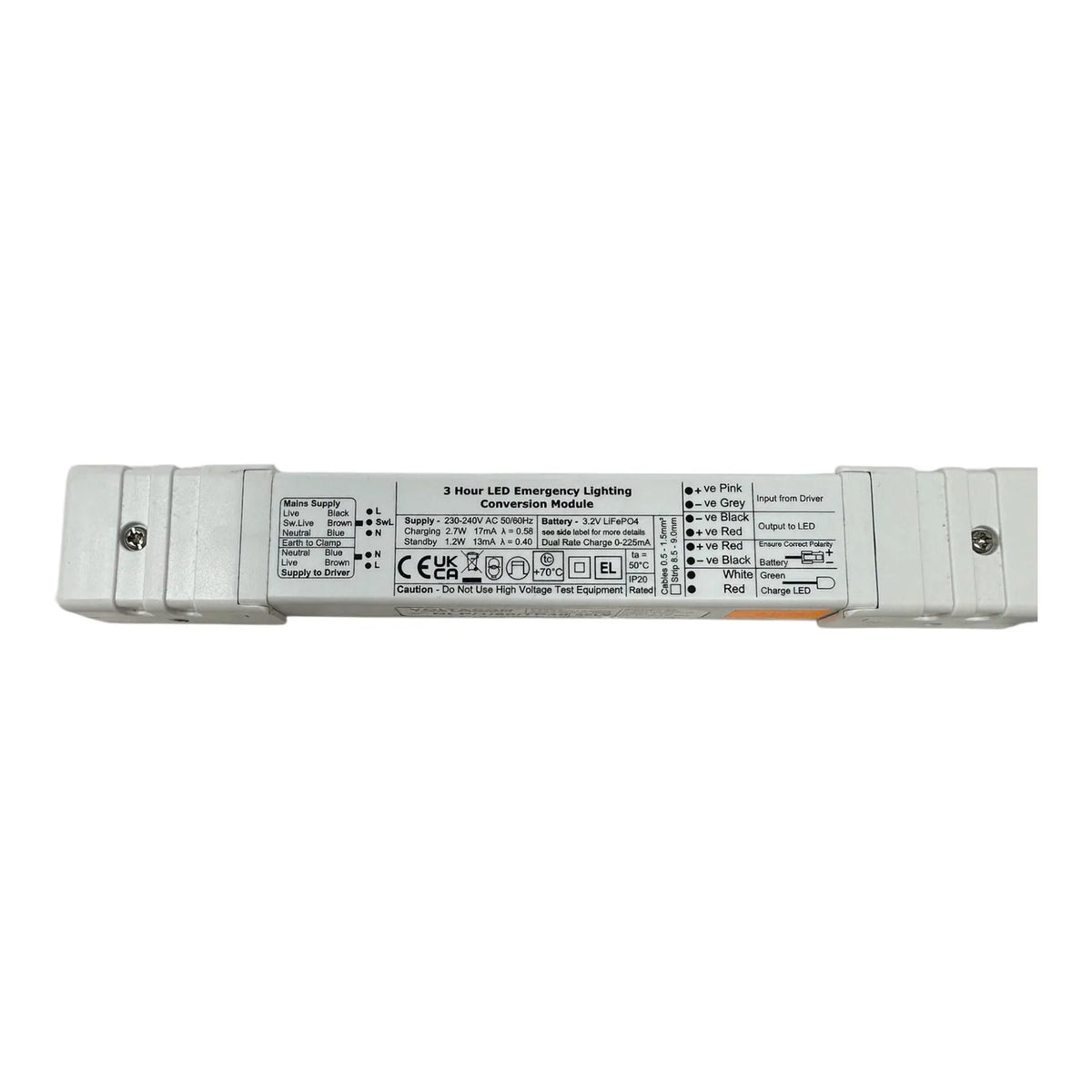

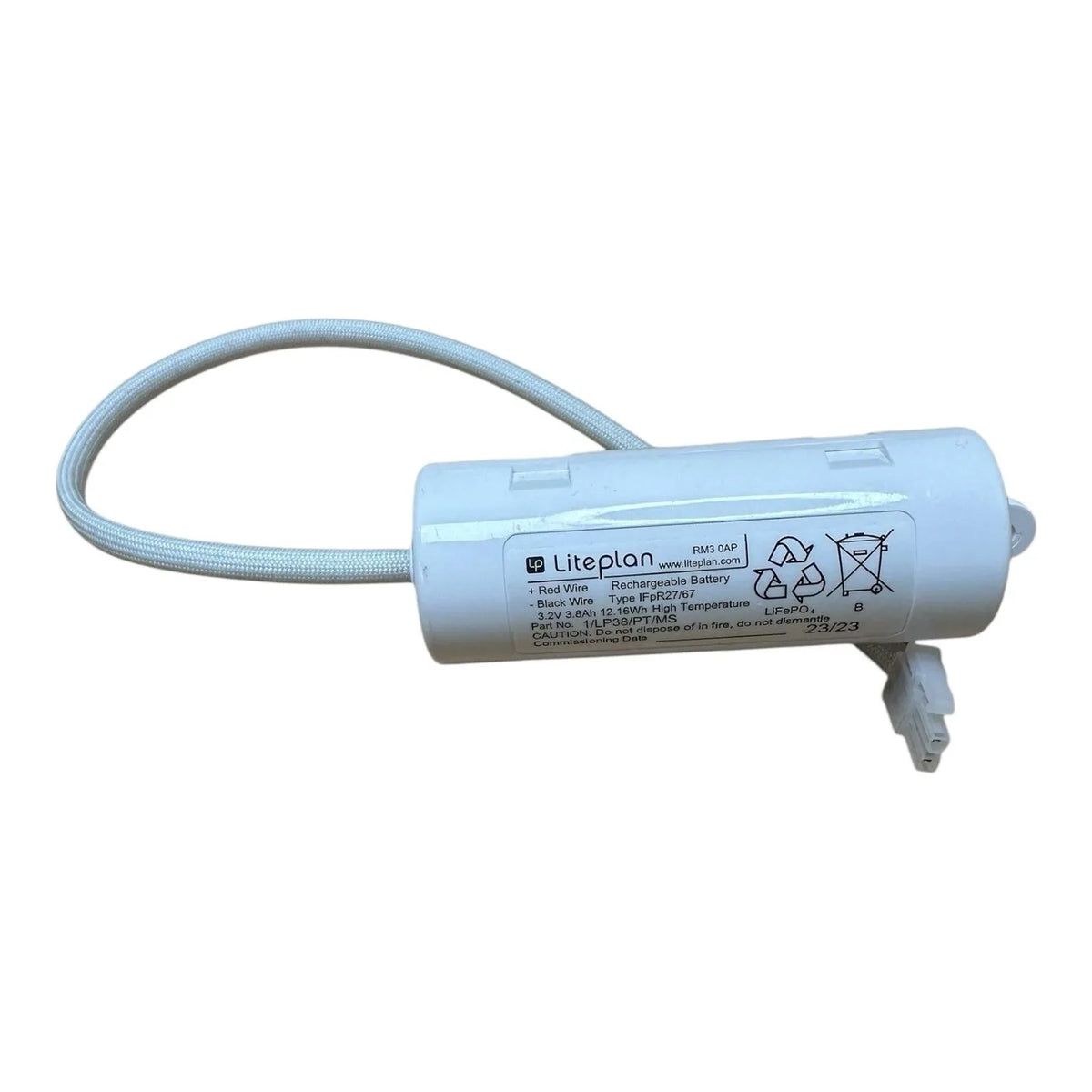

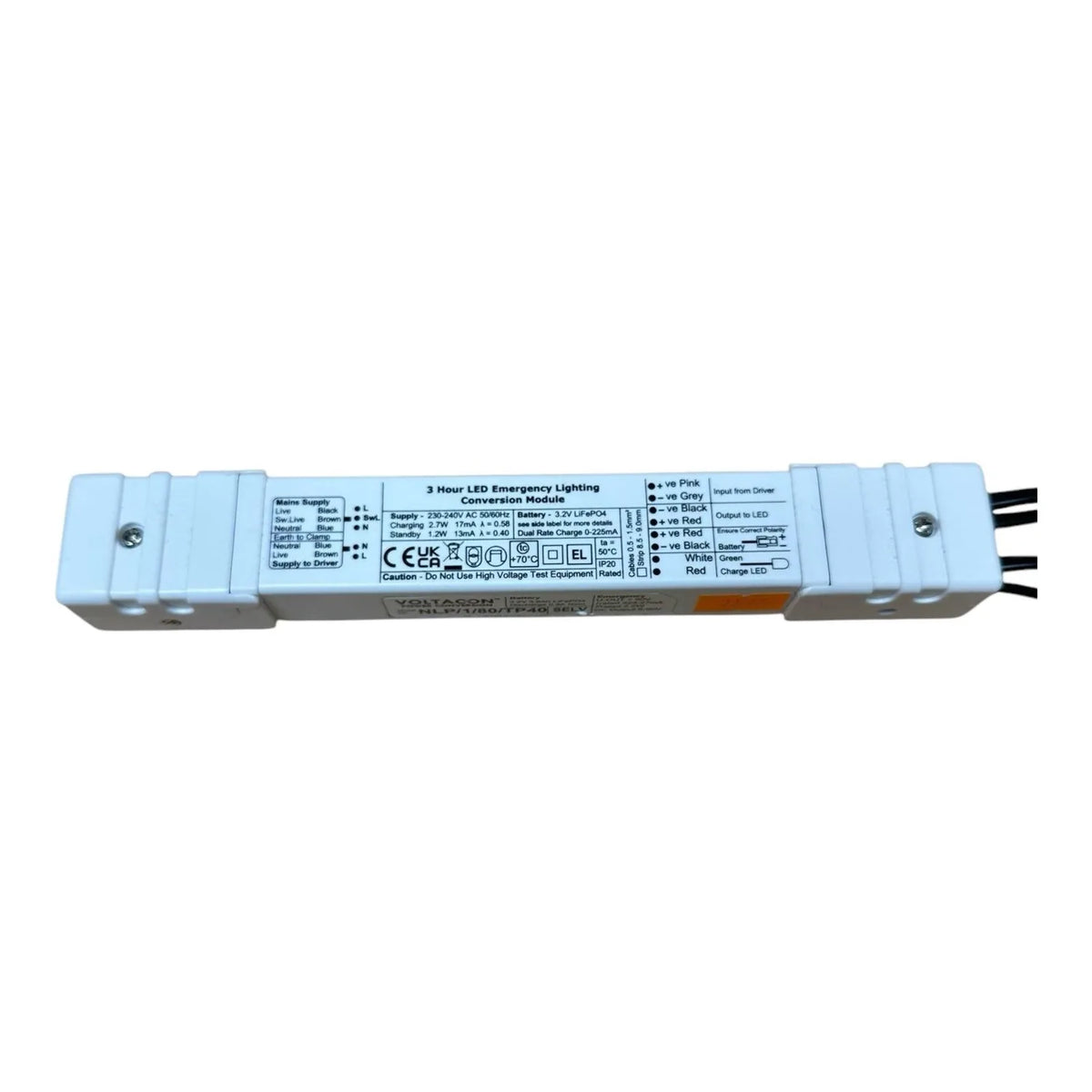

The inverter, battery and fused power connector block sit inside a galvanized enclosure. Module dimensions are 231 x 33.6 x 22.5mm, and the battery measures 94 x 34.5mm.
