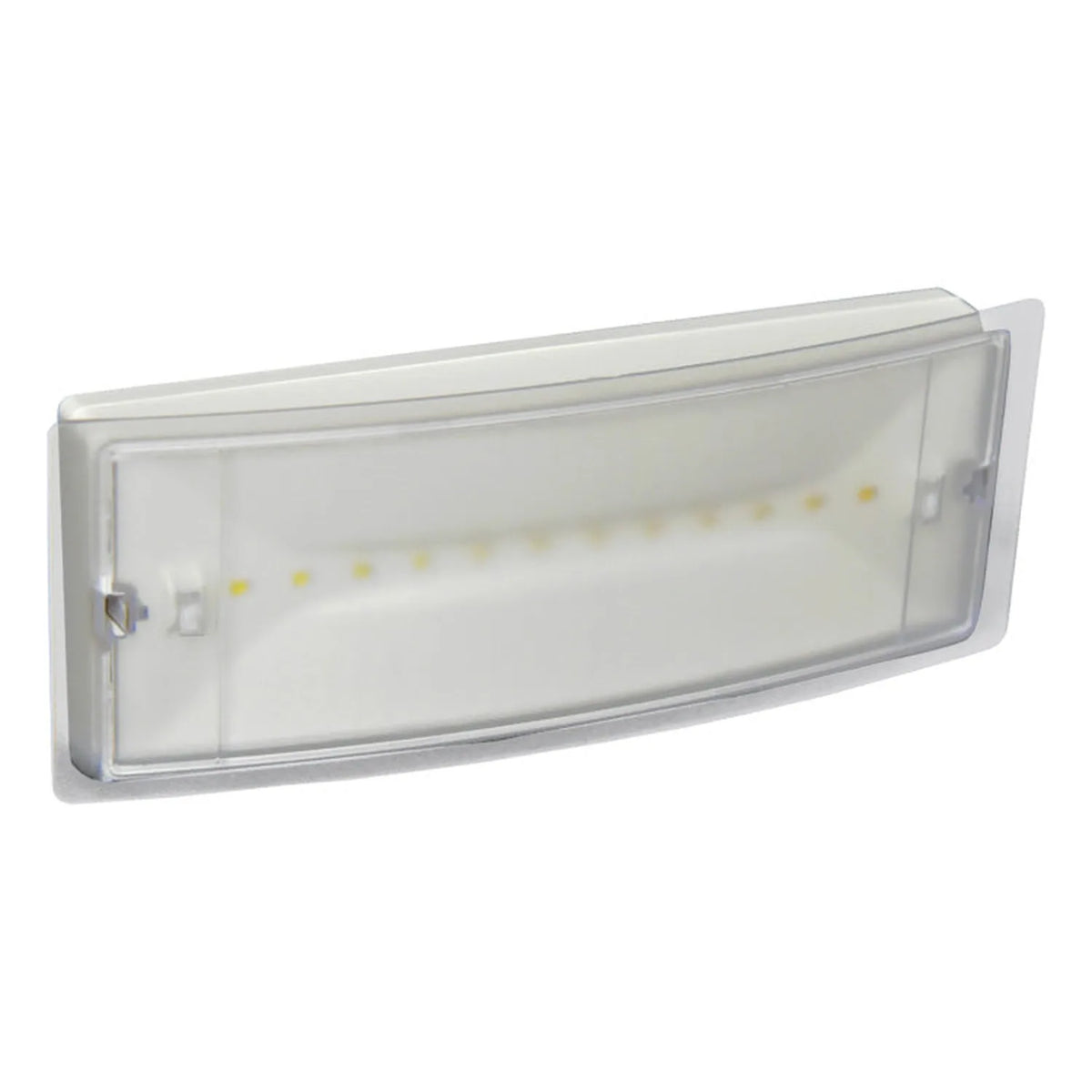

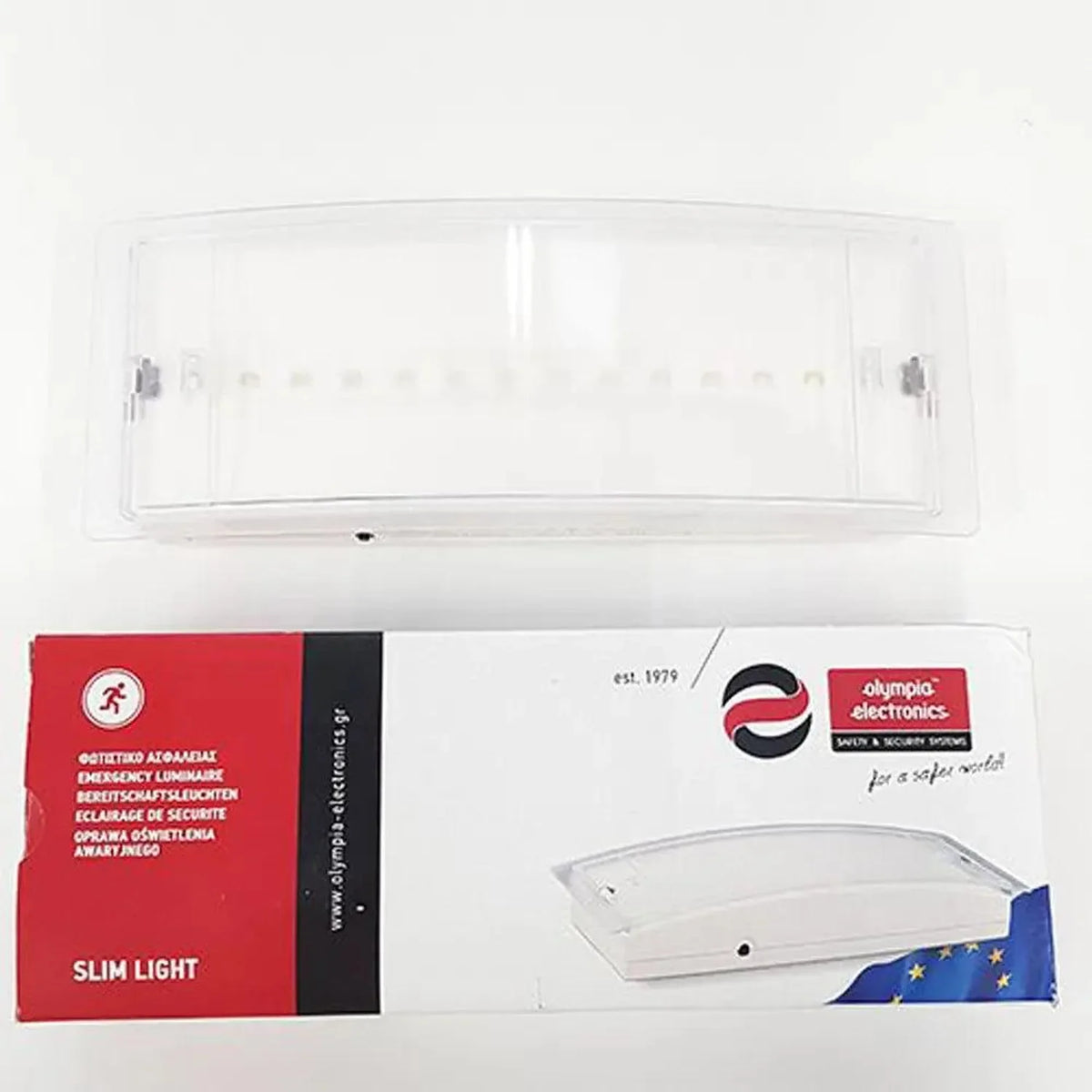

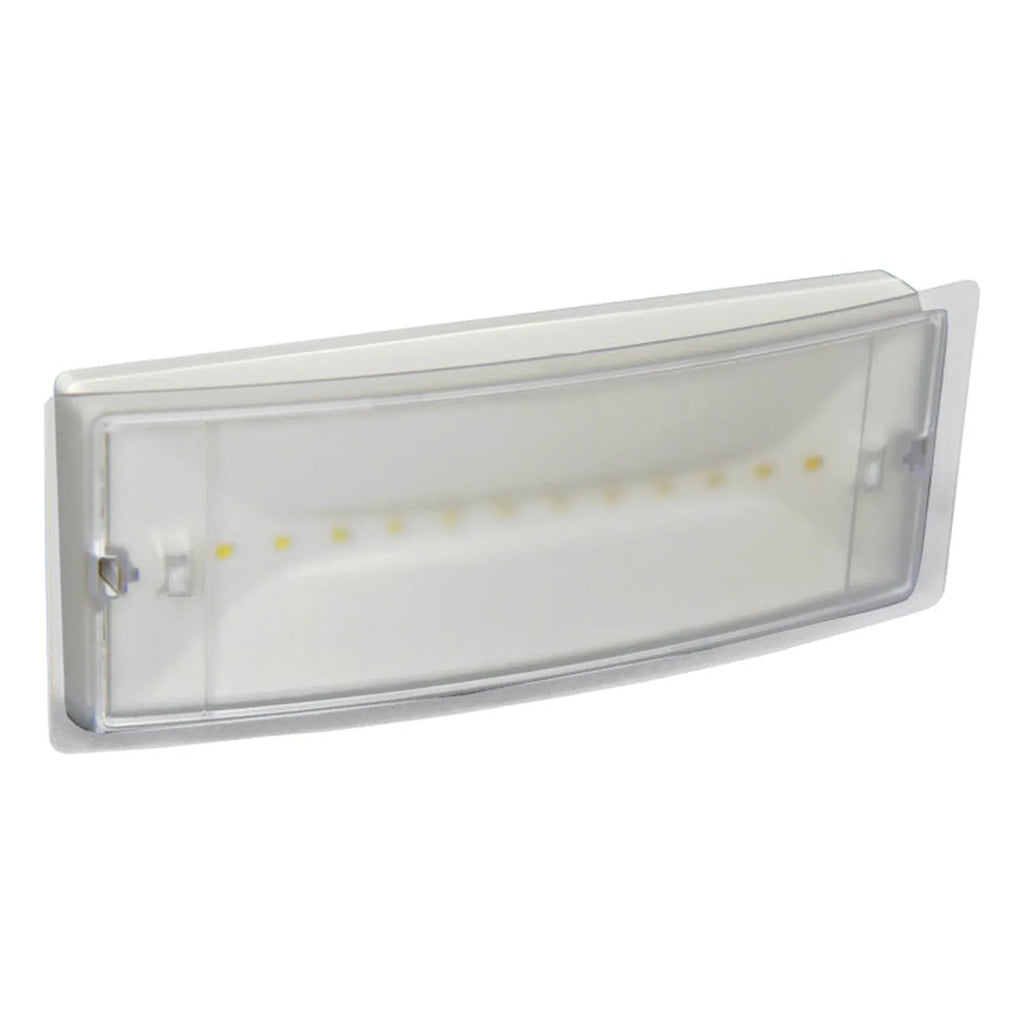

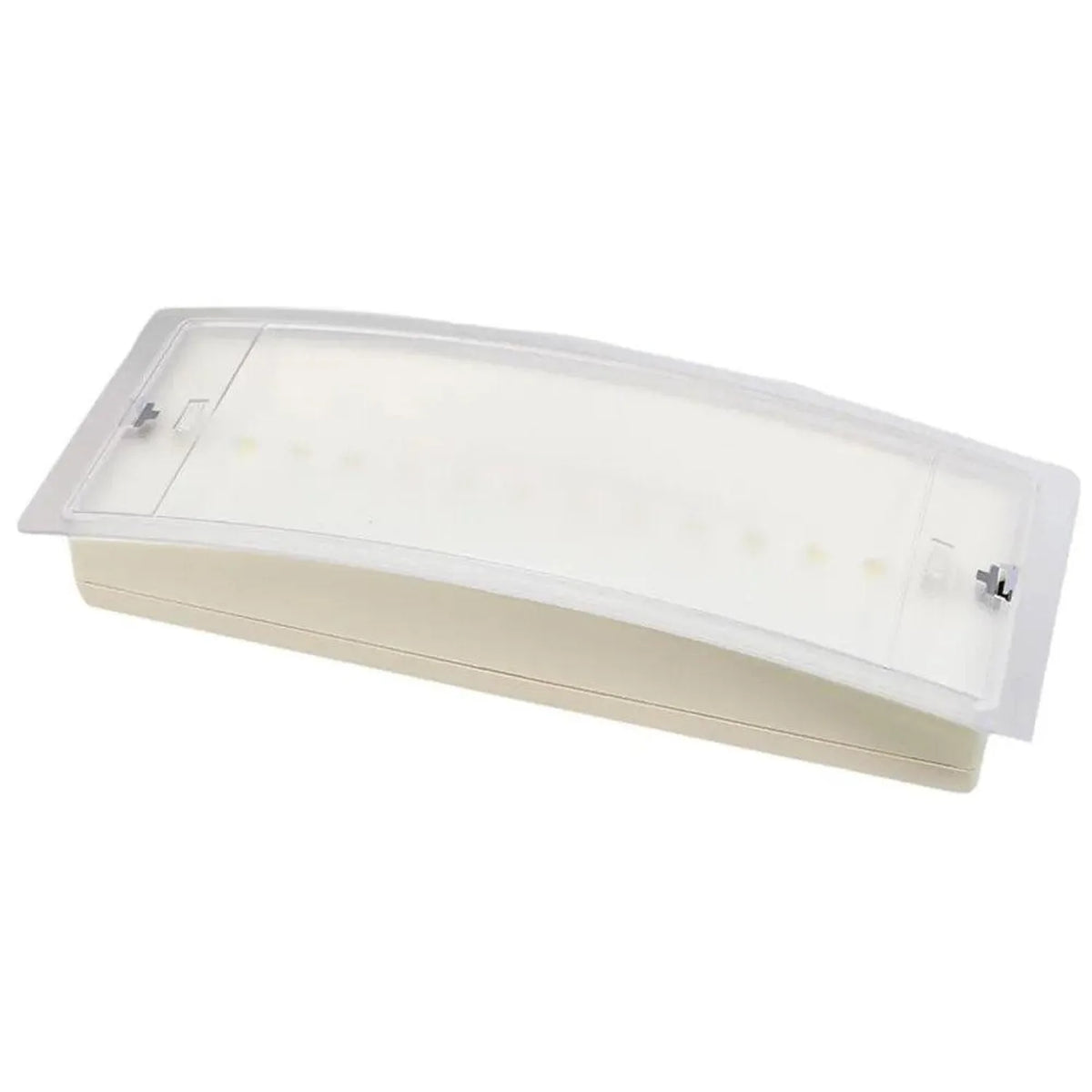

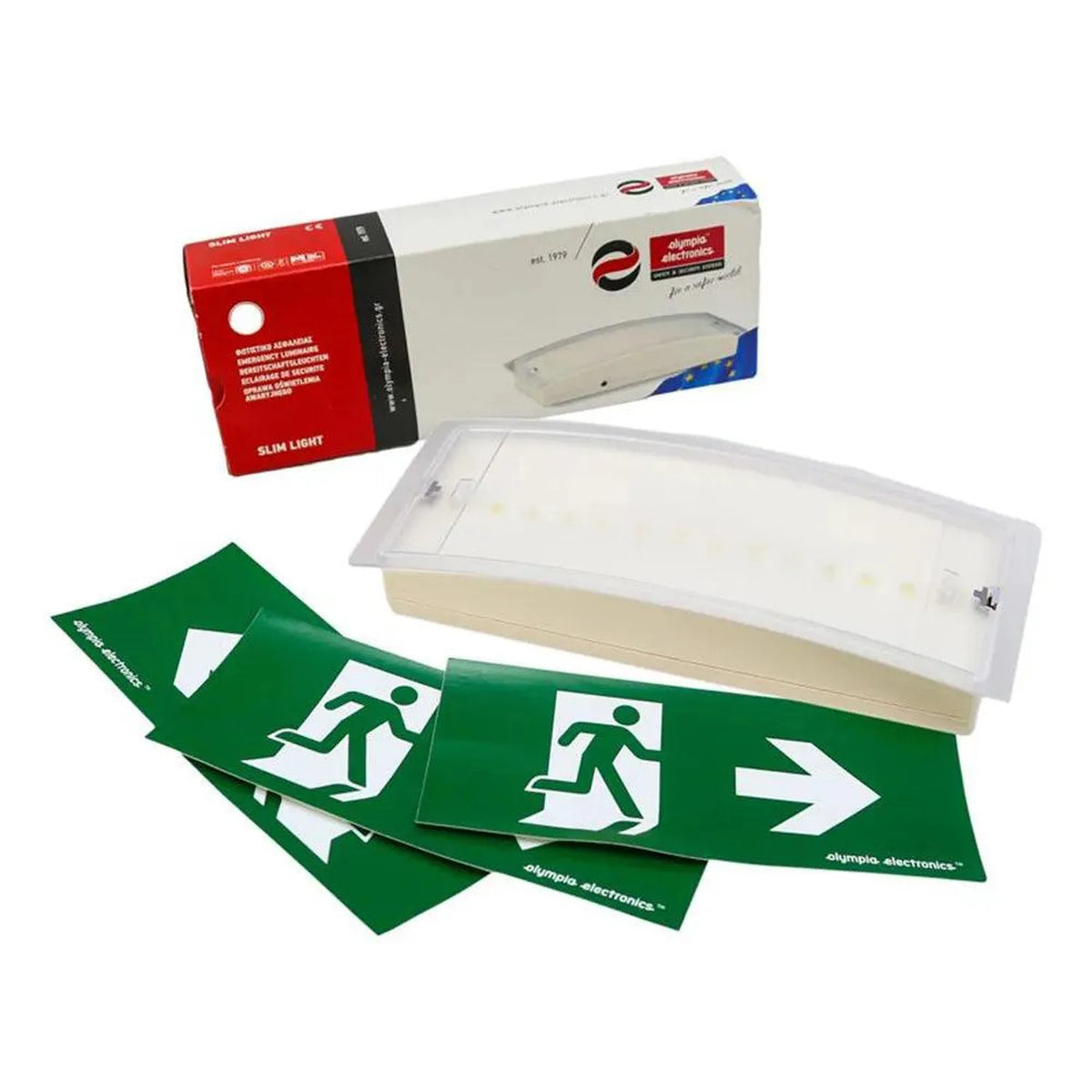

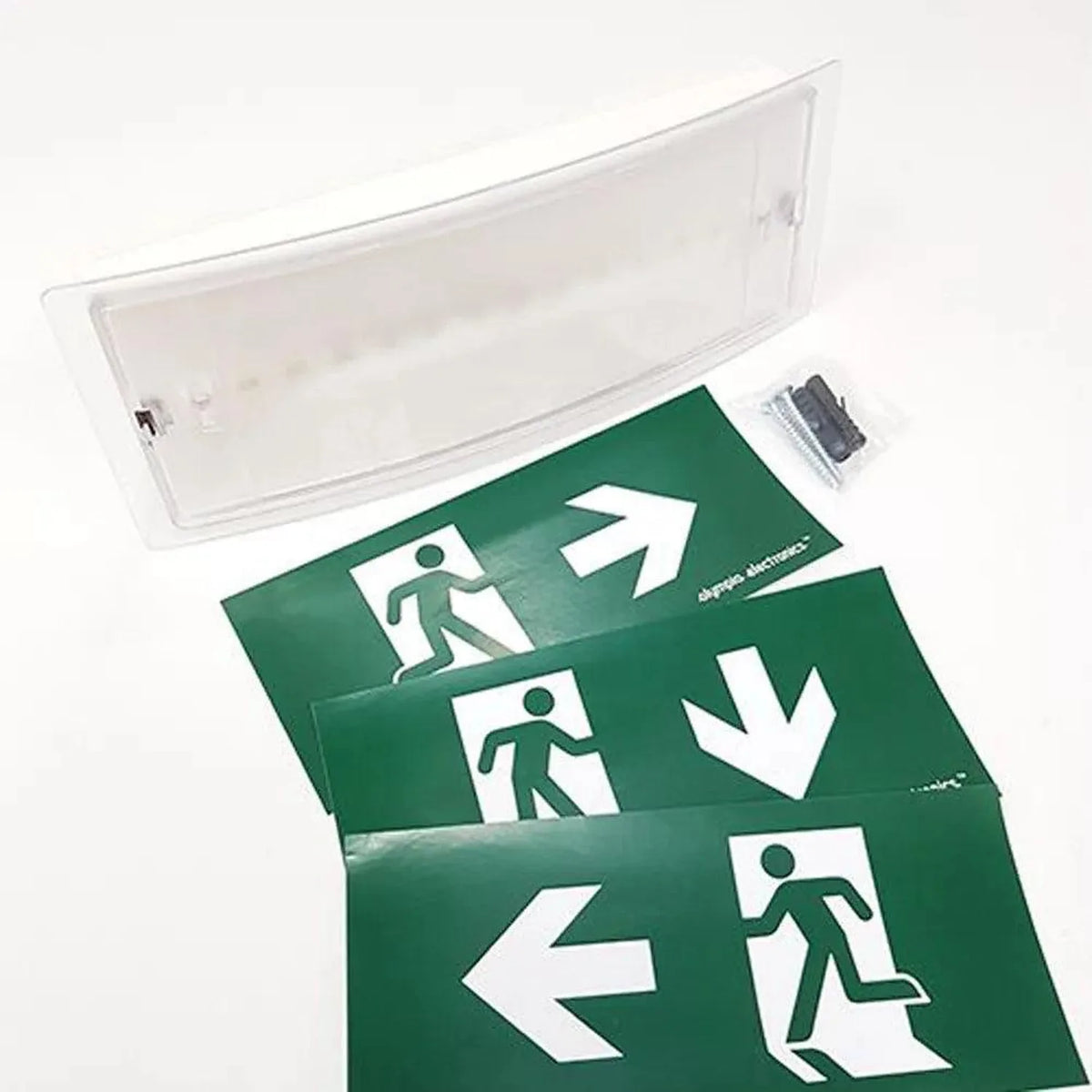

This Olympia emergency bulkhead is a non-maintained / maintained LED exit sign fitting for indoor use, supplied with stickers and a 3-hour minimum autonomy on its Ni-Cd battery. It runs from a permanent mains supply and switches automatically to battery power if the mains fails.

Key features for led emergency lighting bulkhead

• Operating voltage, 220-240VAC
• Maximum power consumption, 3Watt/3.5VA
• Battery, Ni-Cd, 3.6V / 1Ah
• Charging time, 24 hours
• Minimum autonomous duration, 3 hours
• Illumination source, 12 LEDs, 100lm on emergency mode (230V AC)

Operation

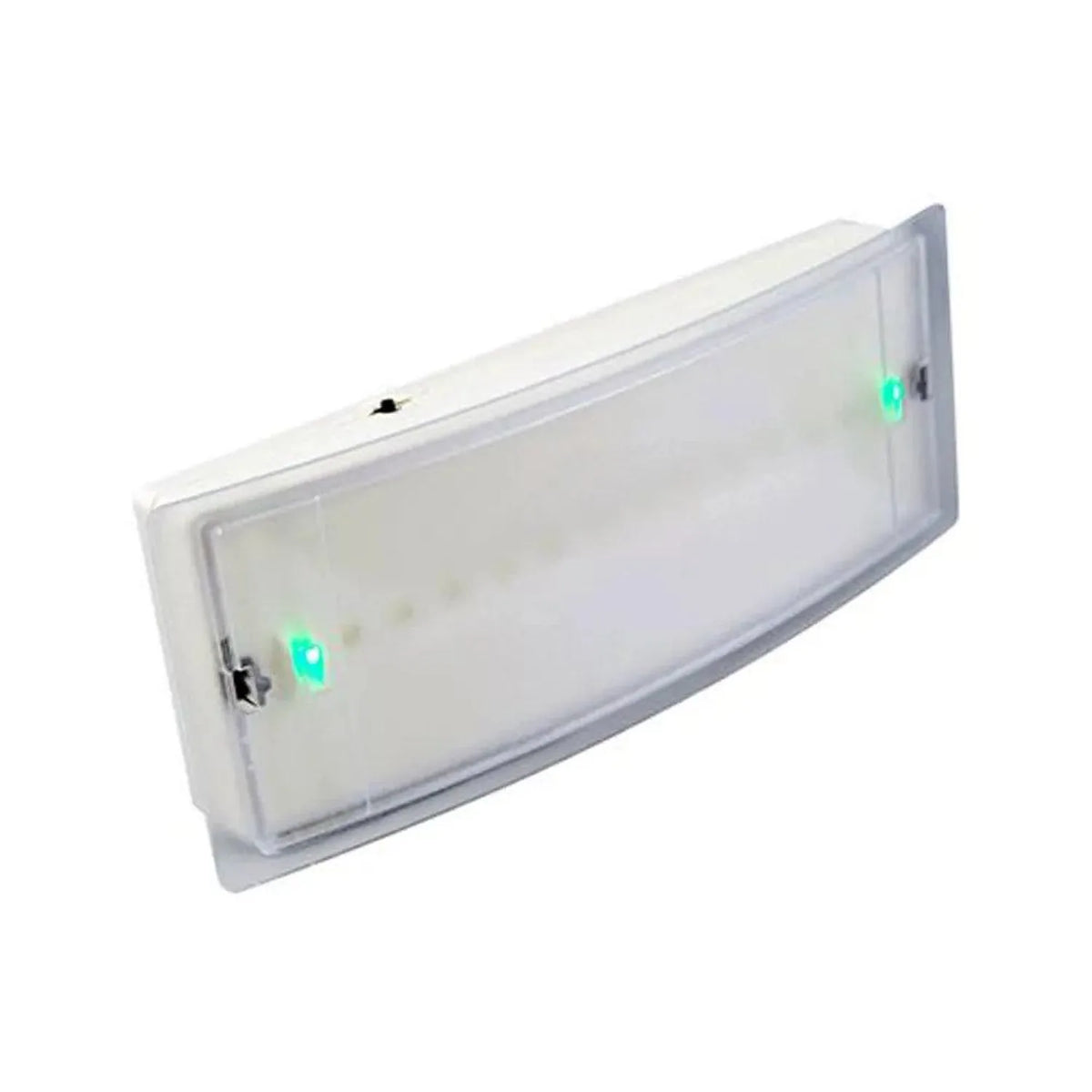

Under normal conditions the LED board stays lit and a green indicator shows the battery charging. On a power cut the LED strip is fed from the battery automatically, and normal mode resumes once mains power returns. A jumper lets the installer choose between non-maintained and maintained operation.

Testing

A TEST button checks the emergency circuit without cutting the mains supply. The indicator should be checked monthly, and the full 3-hour autonomy should be tested every 6 months by removing mains power and timing the duration. If autonomy has dropped well below 3 hours, replace the battery. Disconnect the battery via its connector if the fitting will be unused for more than 2 months.

Standards

Produced in Greece to EN 60598-1, EN 60598-2-22, EN 55015, EN 61547, EN 61000-3-2 and EN 61000-3-3, for use indoors at ambient temperatures up to 40C.
