Description

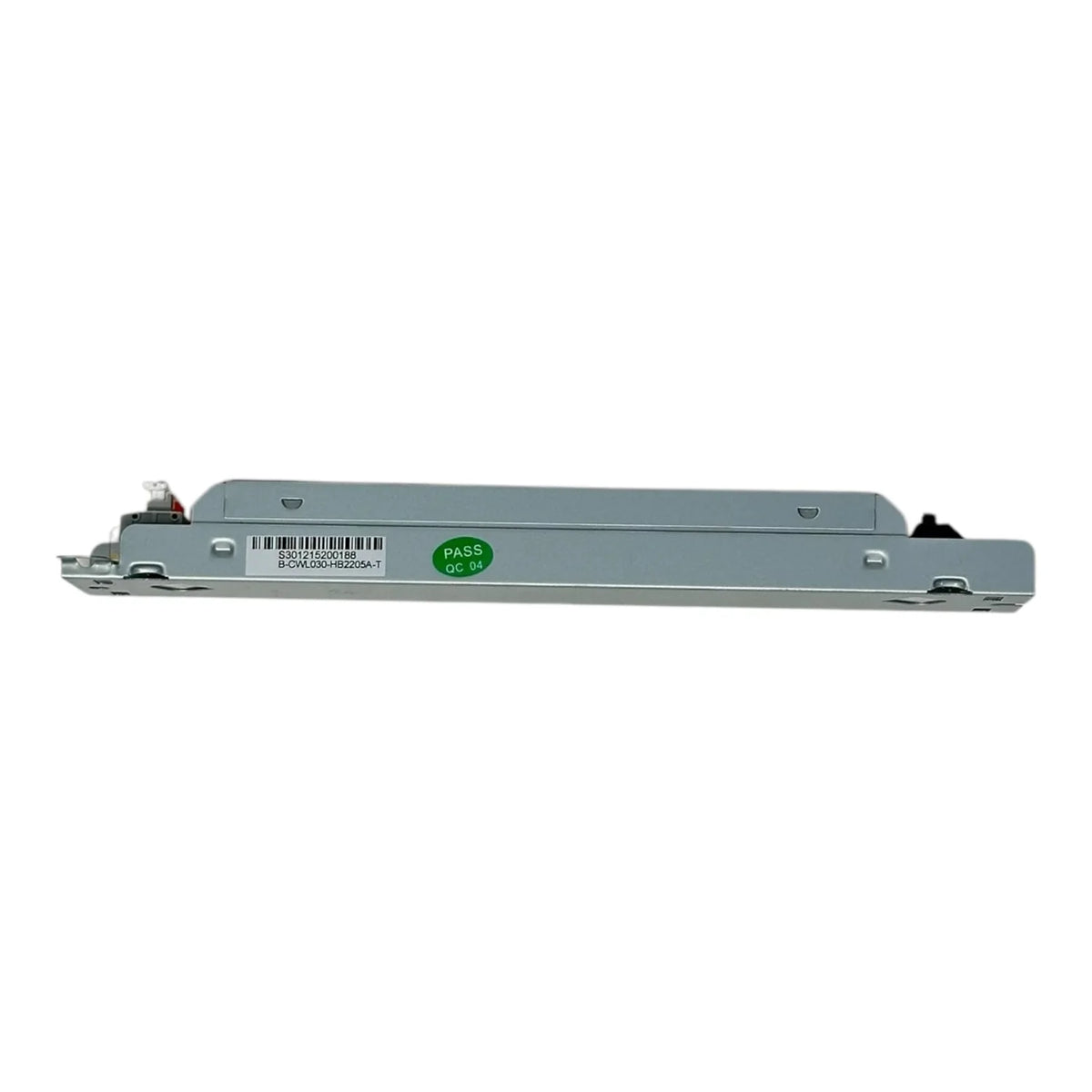

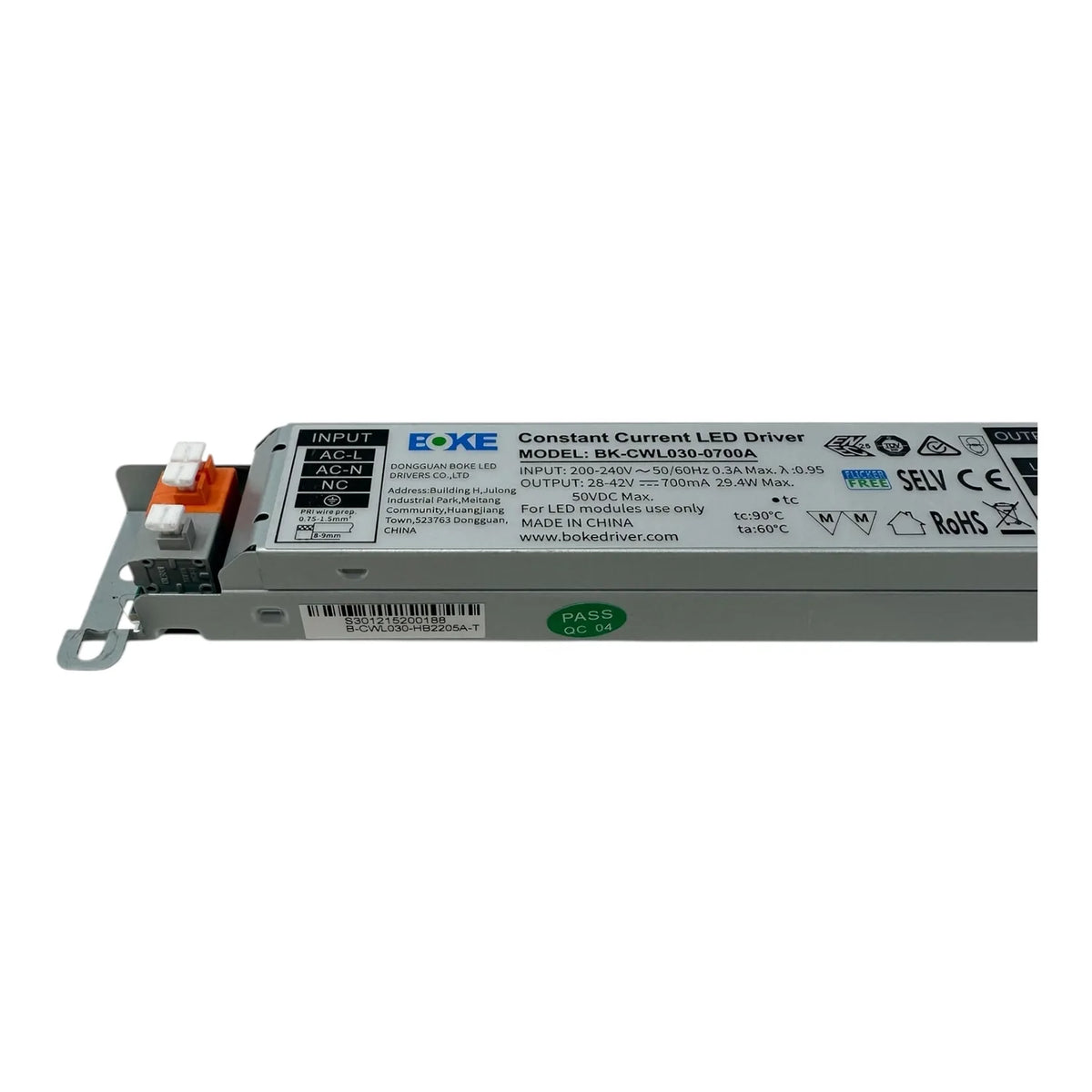

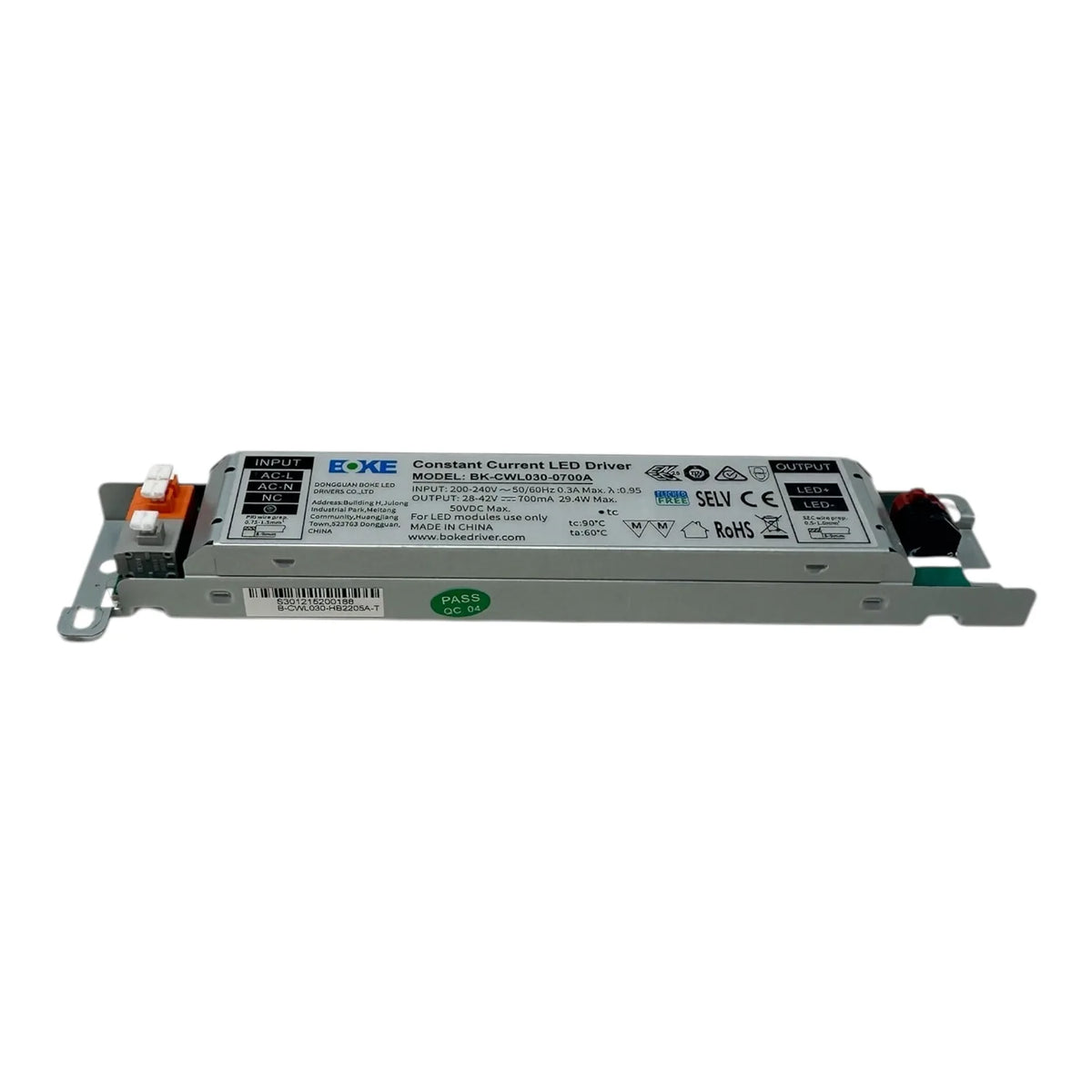

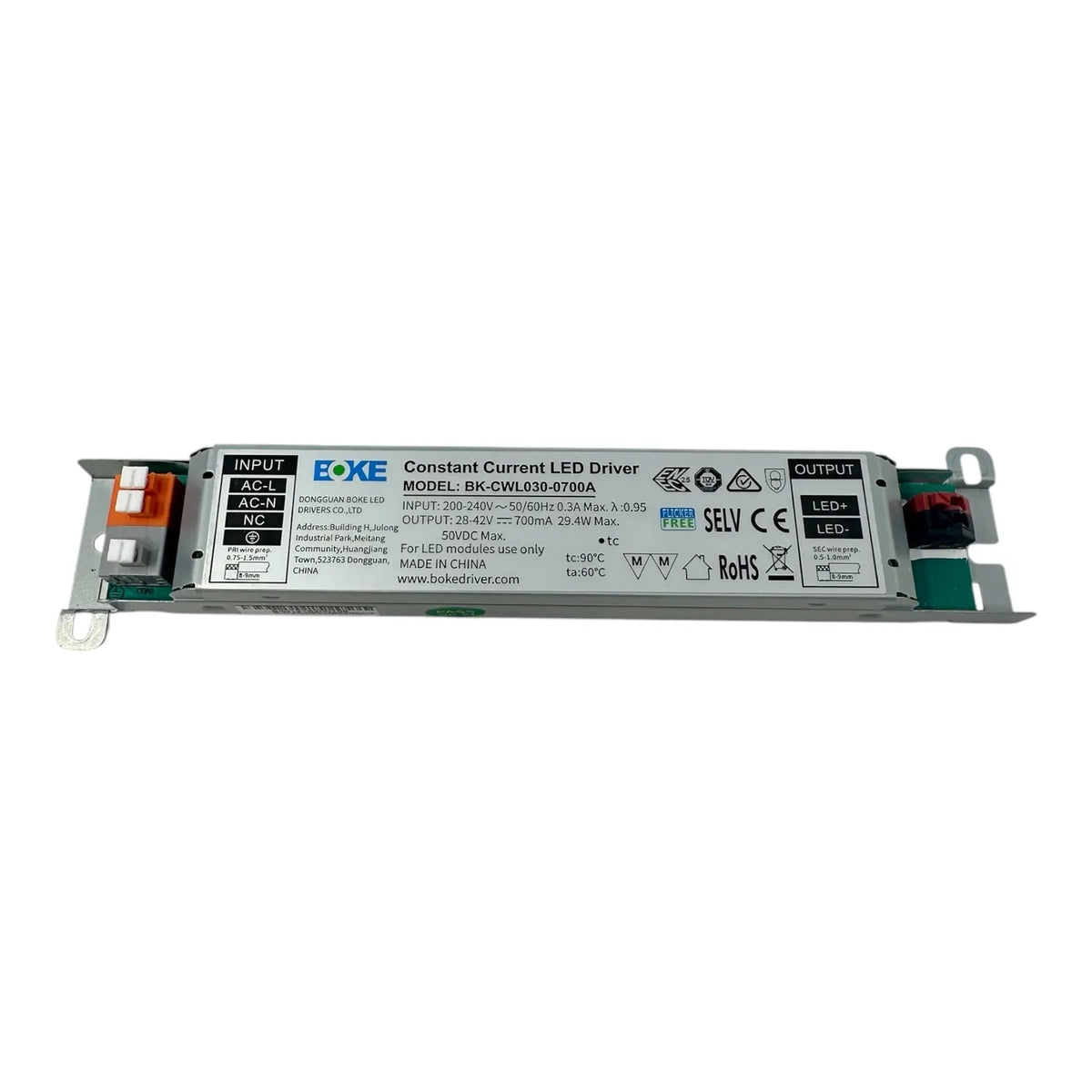

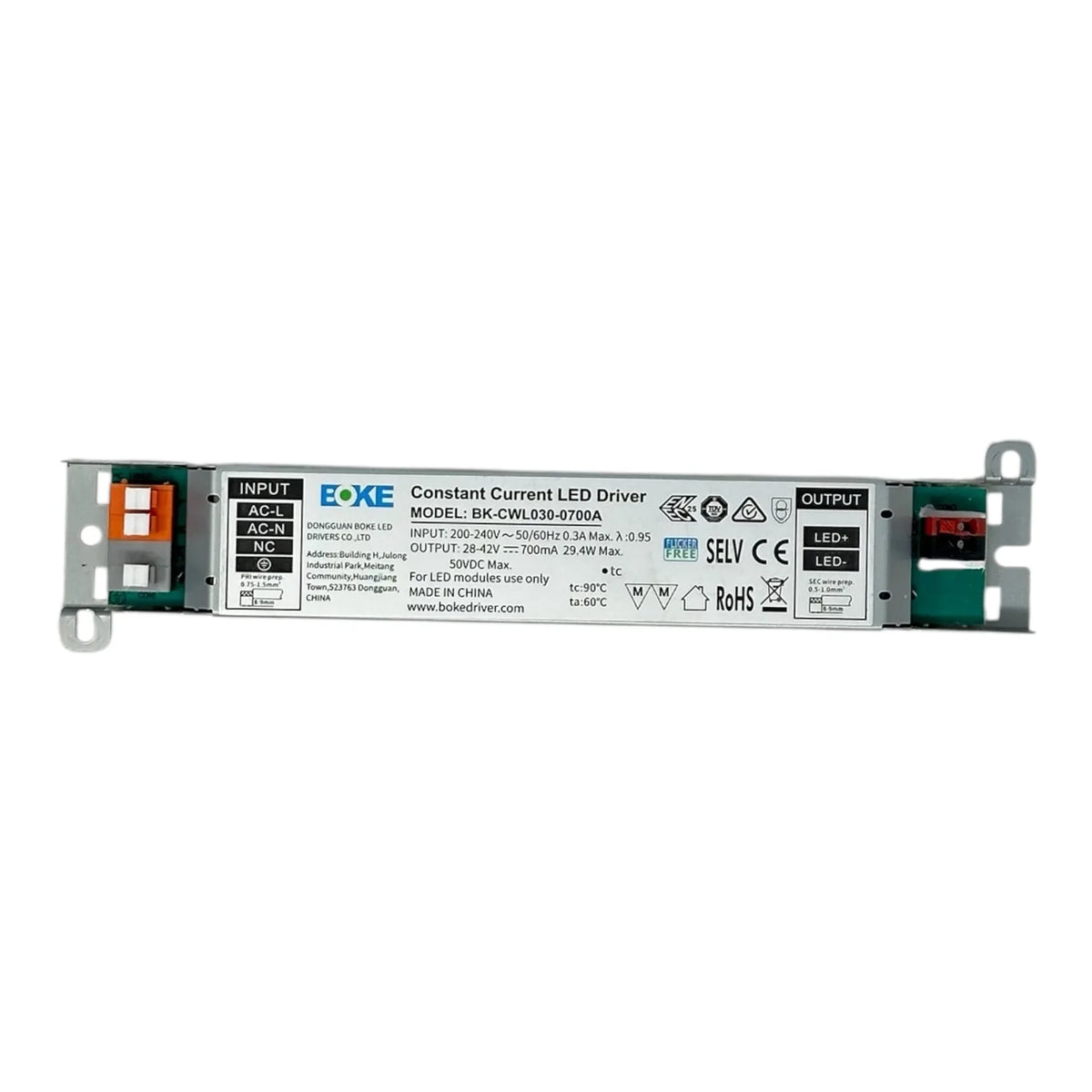

The Boke BK-CWL030-0700A is a constant current LED driver rated at 30W max, built into a linear aluminium case for slim panels and downlights. It replaces faulty power supplies rated around 30W with an output of 36-42VDC, giving an existing fitting a working driver instead of sending the whole unit to landfill.
Key features of this constant current led driver
- Flicker-free output, meets ErP standards for eye comfort.
- Certifications, CE, ENEC, UKCA, RCM and CCC.
- Surge protection, handles mains surges up to 2KV.
- Nominal life, up to 100,000 hours.
- Guarantee, 5-year warranty.
- Protection, short-circuit and no-load protection built in.
Design and wiring
The housing is compact and screw-free, with pushable strain relief for quick fitting. Dual terminals support loop-in and loop-out wiring without needing an external junction box. It is an SELV, Class II design suitable for use outside the light fixture, and it withstands a 380VAC high-voltage short-time shock.
Specifications
| Parameter | Value |
|---|---|
| Model | BK-CWL030-0700A |
| Input Voltage | 200-240V AC/DC |
| Input Frequency | 50/60Hz |
| Output Power | 30W Max |
| Output Voltage | 30-42V DC |
| Output Current | 0.5-1.1A, adjustable via DIP switch |
| Efficiency | Up to 93% |
| Power Factor | 0.98 |
| THD | Below 8% |
| Surge Protection | Up to 2KV |
| Operating Temperature | -20°C to 50°C |
| Humidity | 5-85% RH, non-condensing |
| Dimensions | L200 x W30 x H30 mm |
| Ingress Protection | IP20 |
| Certifications | CE, ENEC, UKCA, RCM, CCC |
Applications
Suited to LED indoor, office, commercial and educational lighting where a compact constant current driver is needed for panels or downlights.
