The Glacial GP‐LS60P‐24CA is a 24V constant voltage LED driver rated at 60W, built with an aluminium housing potted in heat-conductive silicone. The sealed IP67 construction lets it work in dusty, oily, high-vibration and humid conditions where an unprotected driver would fail.

Key features of this 24v led driver

• Power factor correction, active PFC rated at 0.98
• Cooling, free air convection, no fan required
• No load consumption, less than 0.5W
• Protection, OVP, OCP, SCP and OTP built in
• AC input, universal 90~305V AC
• Compliance, ErP EU_1194_2012 Stage 3

Operating mode

The GP‐LS60P Series runs in constant current mode, with short circuit protection in hiccup mode that recovers once the fault clears. Over voltage and over temperature faults trigger latch mode, requiring a re-power to reset. Set-up time is under 0.5 seconds at 230VAC.

Applications

Suitable as a power source for LED strips and moving sign installations, indoors or in exposed locations where the IP67 rating and wide temperature tolerance matter.

Safety and EMC

Certified to UL8750, EN61347-1 and EN61347-2-13, with EMI conduction and radiation compliant to EN55015 and FCC Part 15. Harmonic current output meets EN61000-3-2 Class C and EN61000-3-3, and EMS immunity is compliant to the EN61000-4 series and EN61547.

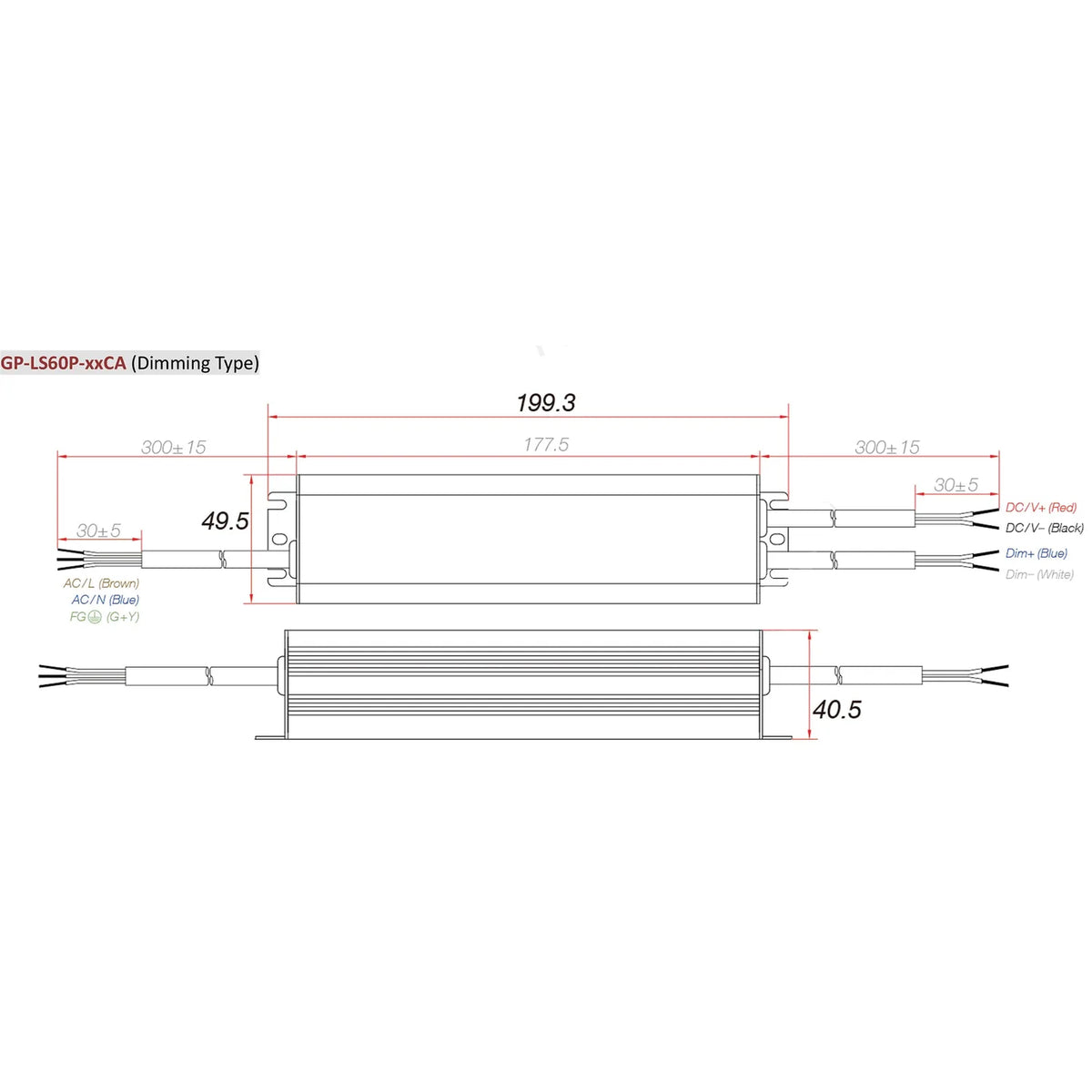

Dimensions

The unit measures 199.3 x 49.5 x 40.5mm and weighs 762g.
