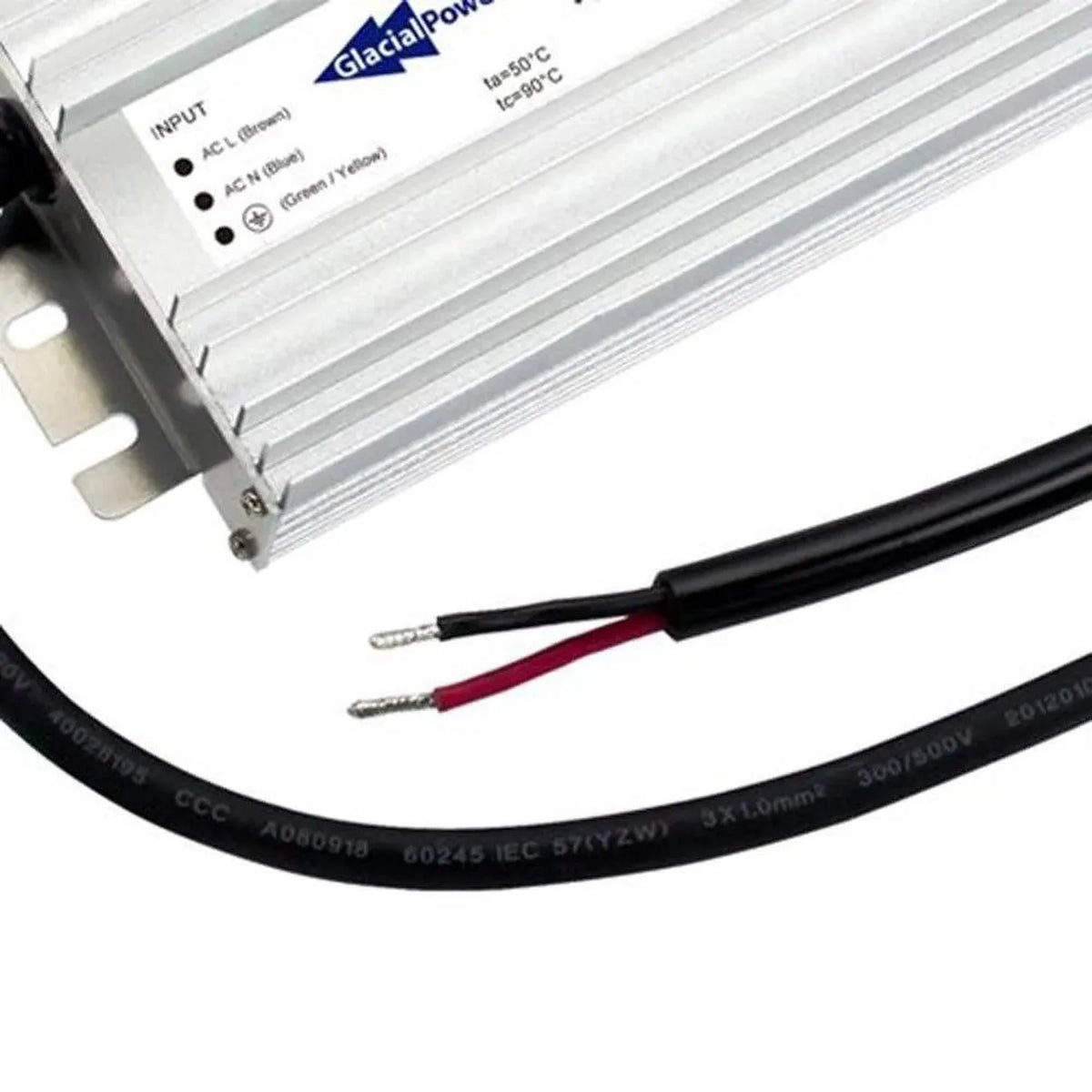

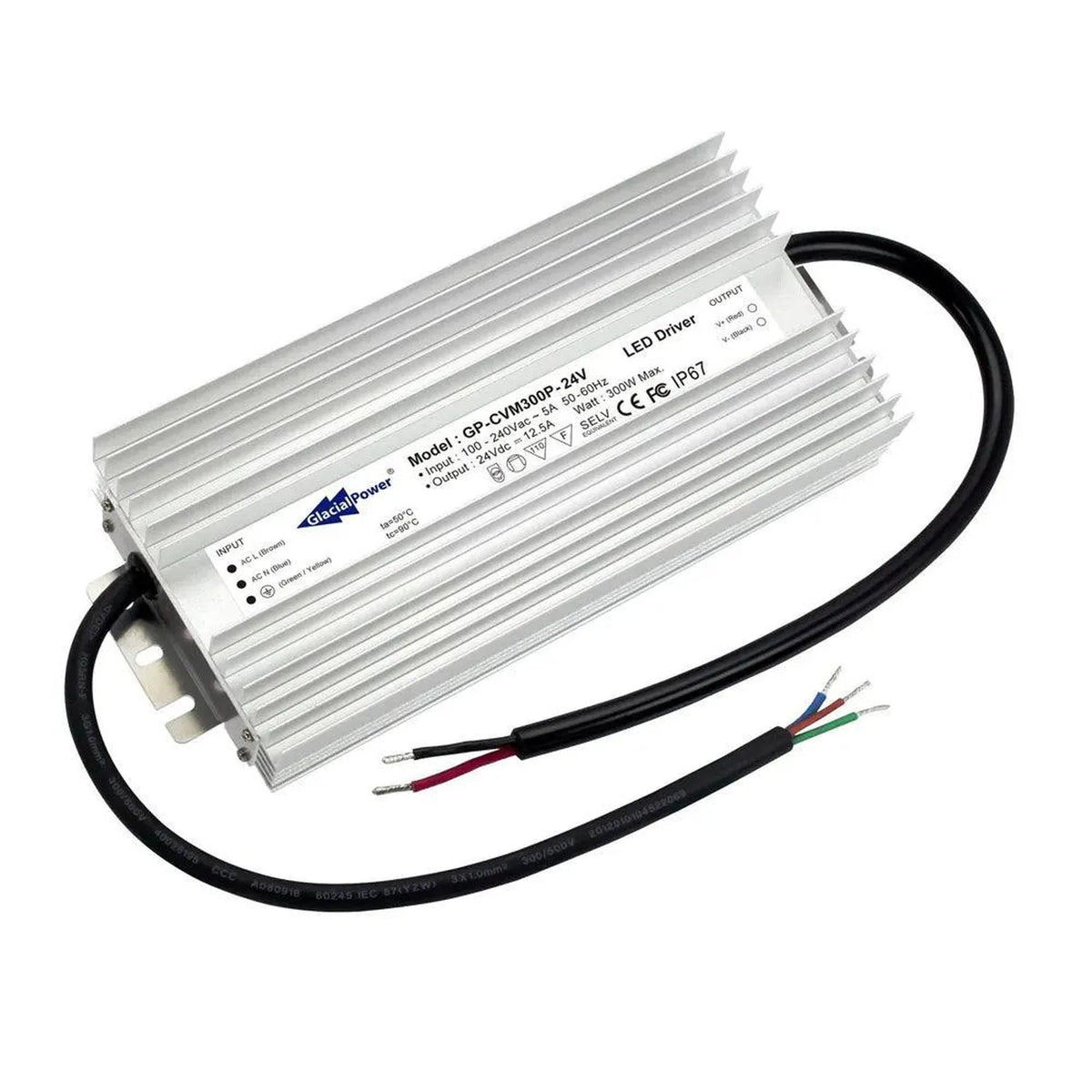

The Glacial GP-CVM300P is a 300W constant voltage LED driver built for 24V LED strip lighting. It runs in a fully isolated aluminium metal housing rated IP67 for dust and waterproof protection, so it suits outdoor runs as well as indoor installations in dusty, oily or humid spaces.

Key features

• Output, 300W constant voltage, rated current 0 to 12.5A
• AC input, universal range 90 to 264Vac
• Efficiency, total efficiency at full load 93%, up to 92.5% to 94% depending on load
• Power factor correction, built-in active PFC, 0.98
• Protections, over-current (OCP), short circuit (SCP), over-temperature (OTP) and over voltage (OVP)
• No load consumption, less than 0.5W at 230Vac

Build and cooling

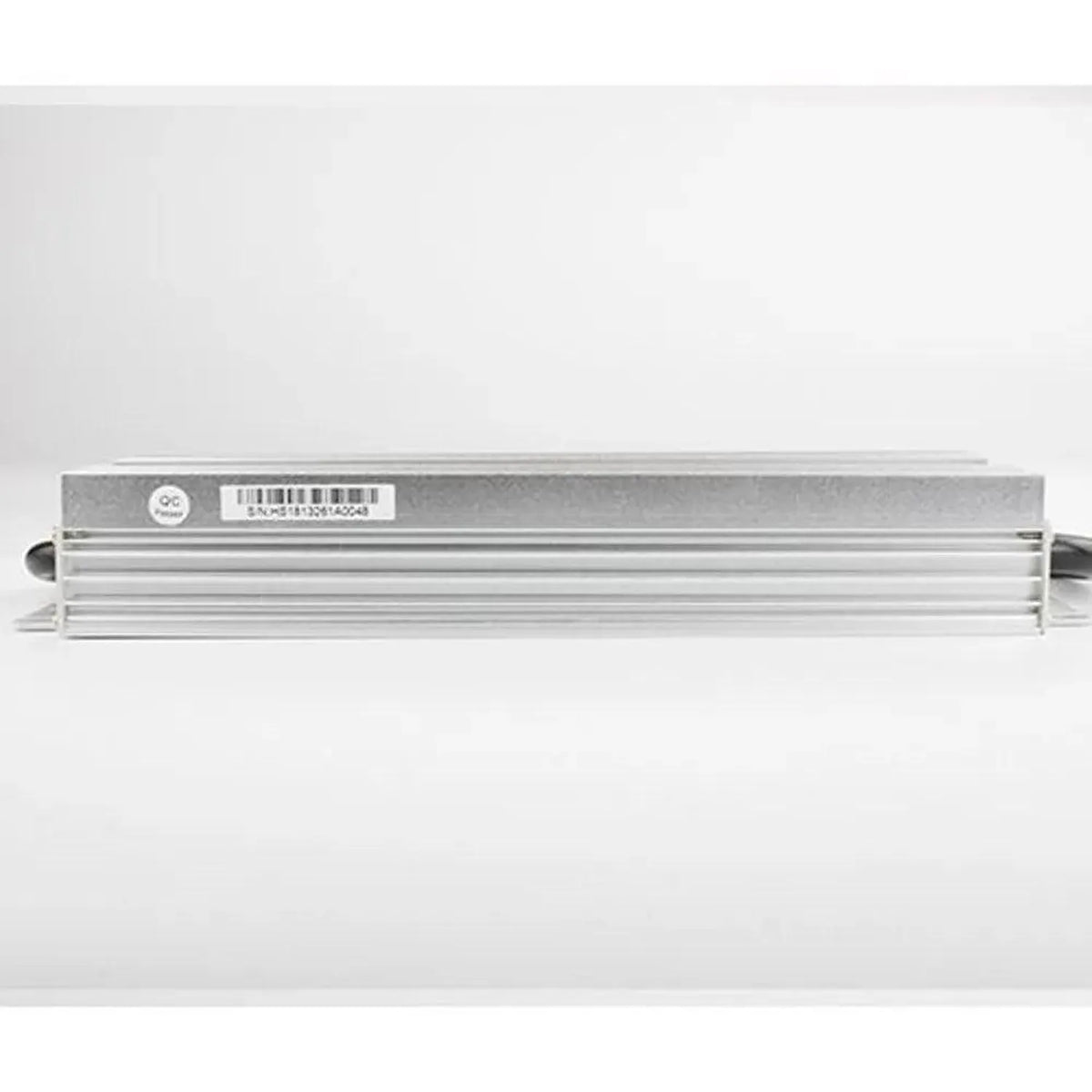

The aluminium housing is potted with heat-conducted silicone and cooled by free air convection, with no fans involved. Glacial states it operates without compromise between -30°C and +50°C. The enclosure measures 250 x 98 x 35mm.

Applications

Suited to LED strip lighting and moving sign applications where a steady 24V supply is needed in demanding environments. The IP67 rating and metal casing make it a practical choice for locations exposed to vibration, moisture or airborne contaminants.
