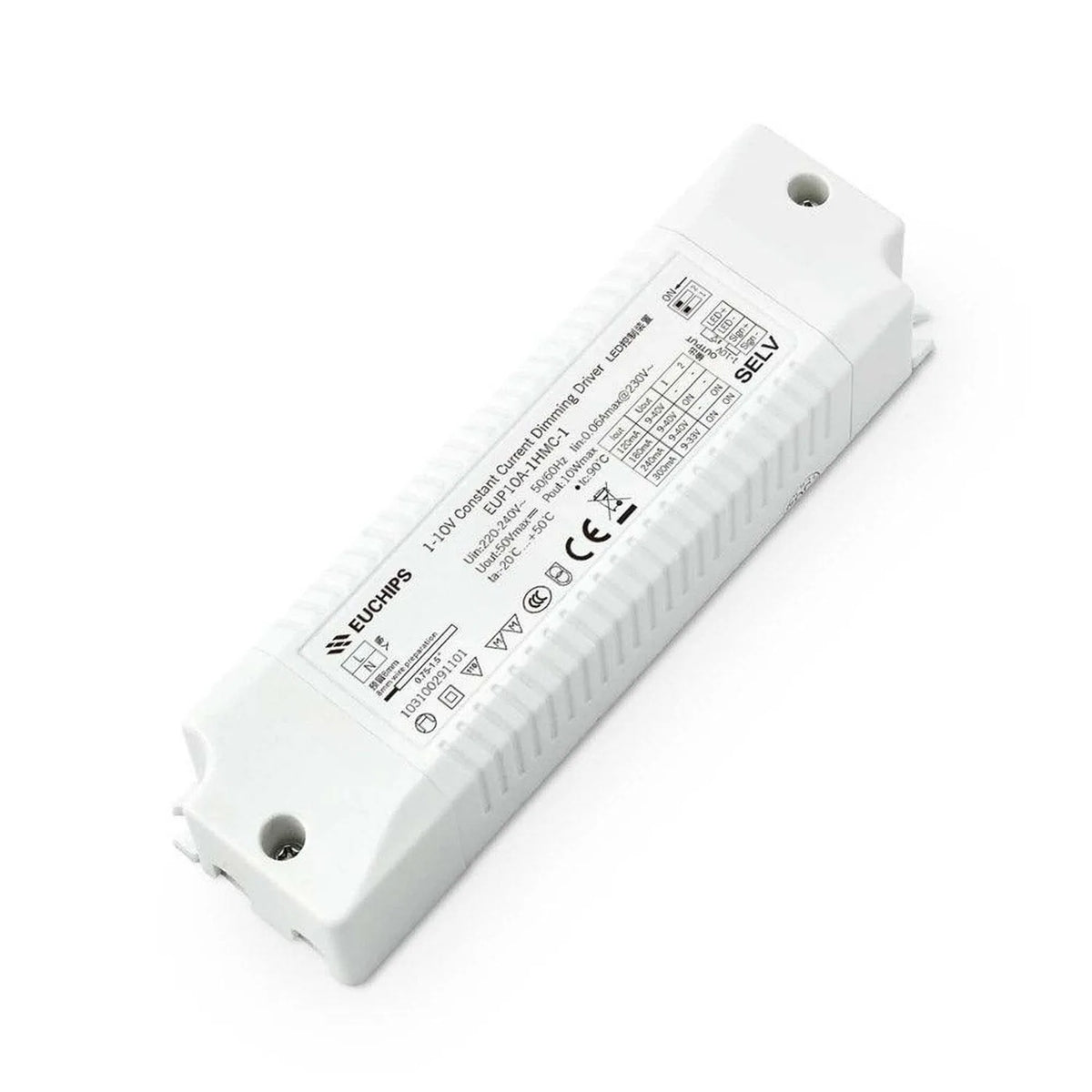

The Euchips LED Driver 10W is a compact constant current driver that works with both 1-10V and 0-10V dimmer switches. It runs flicker-free and suits installations where space around the fitting is tight.

Key features of this 1-10v led driver

• Single channel output, output current level is selectable by DIP switch
• 3-in-1 dimming mode, supports 1-10V active signal, adjustable resistance, and PWM control
• Input voltage, 220VAC to 240VAC
• Efficiency, up to 87%
• Built-in active PFC function
• Protections, short circuit, overload, and over temperature

The smallest model in the range, the EUP10A-1HMC-1, has an adjustable constant current output. Current is set via the DIP switch, and dimming can be controlled through an external 1-10VDC or 0-10V analogue active signal, a PWM signal, or a variable resistor. Dimming is proportional and steps down in 10% increments from 0%.

Applications

This driver is suited to indoor LED lighting such as down lights, panel lights, and LED T8 and T5 tubes. Where no dimming signal is present, it runs at 100% output and can be used as a standard power supply.

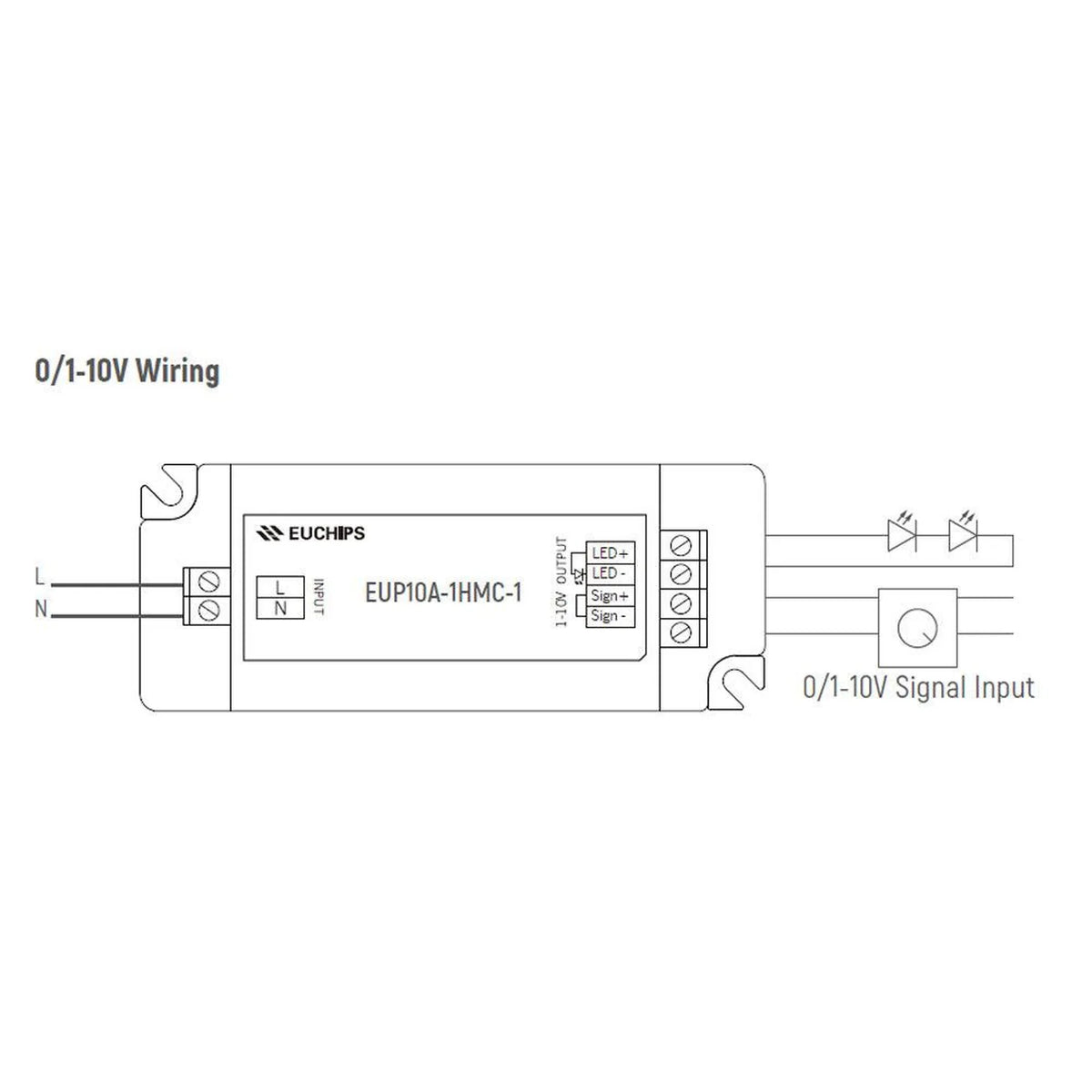

Wiring and control

The 3-in-1 dimming interface means installers can wire it to whichever control signal is already available on site, rather than sourcing a matching dimmer separately.
