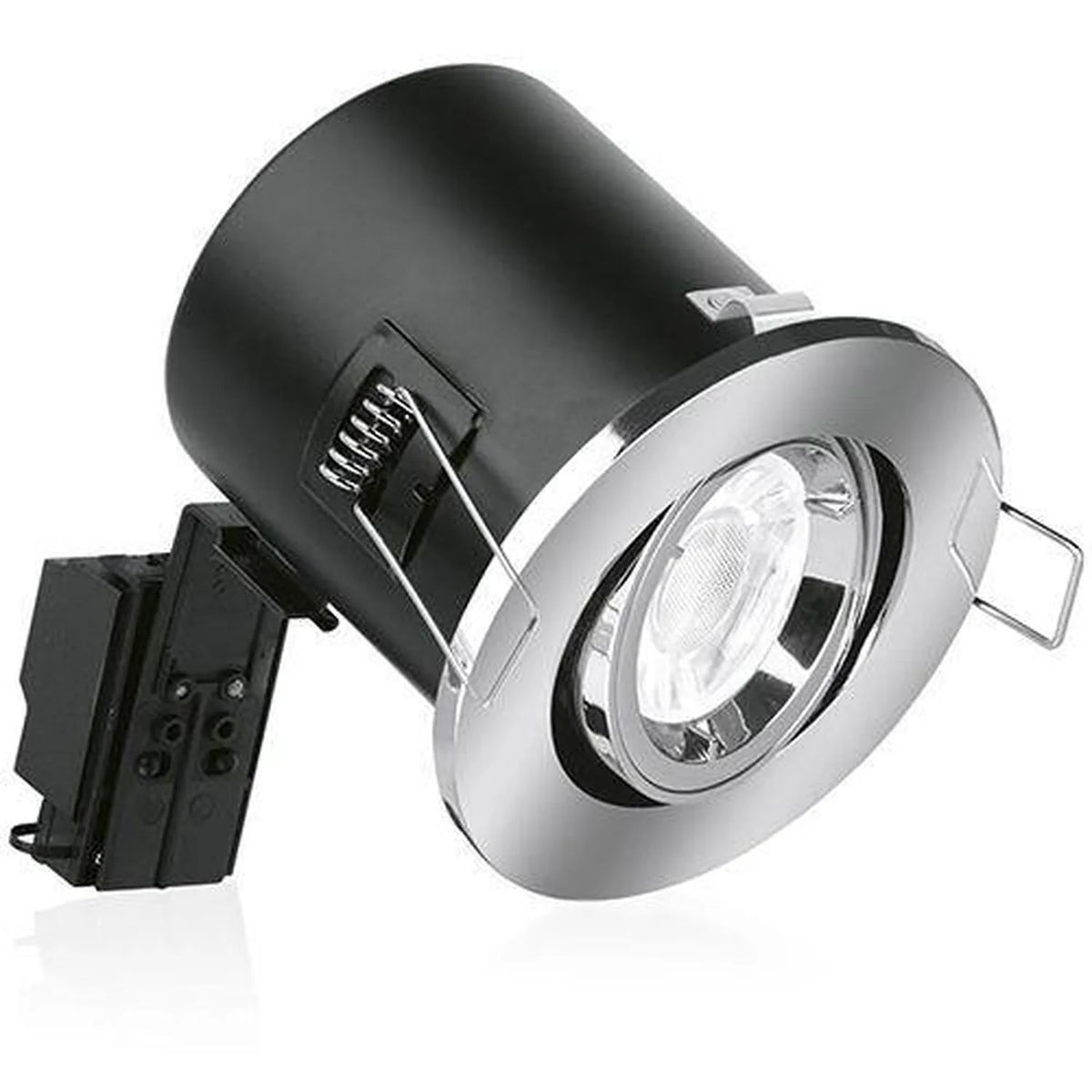

This Voltaled fire rated downlight is a tilted GU10 spotlight built for ceilings that need a fire safety rating. It runs at 6W, produces 550 lumens of warm white 2700K light and comes with the LED lamp included, ready to fit.

Key features of this fire rated downlight

• Dimmable GU10 LED fitting with a 60° beam angle and 1500cd output
• Adjustable lock mechanism for tilted positioning
• Supplied with 4 colour bezels for a single all-in-one solution
• Tested in 30, 60 and 90 minute fire rated ceilings
• Screwless quick connector terminals for faster installation
• 5 year warranty

Applications

The tilted, colour bezel design suits bathrooms, corridors, bedrooms, kitchens and retail spaces where directional light is needed. The warm white 2700K output at 550 lumens is intended as a replacement for 50W and 35W halogen downlights, without the running cost.

Construction and materials

The body is steel with a plastic housing around the power connections. The LED lamp itself is made from high-grade aluminium, chosen for heat dissipation during continuous use. Fixed and adjustable lock versions are available, along with IP20 and IP65 rated options in different colour bezels.

Dimensions

Cut-out is listed as 76mm in the main fitting description, with a separate dimensions note giving a 67mm cut-out, an overall diameter of 82mm and a height of 115mm including connectors.
