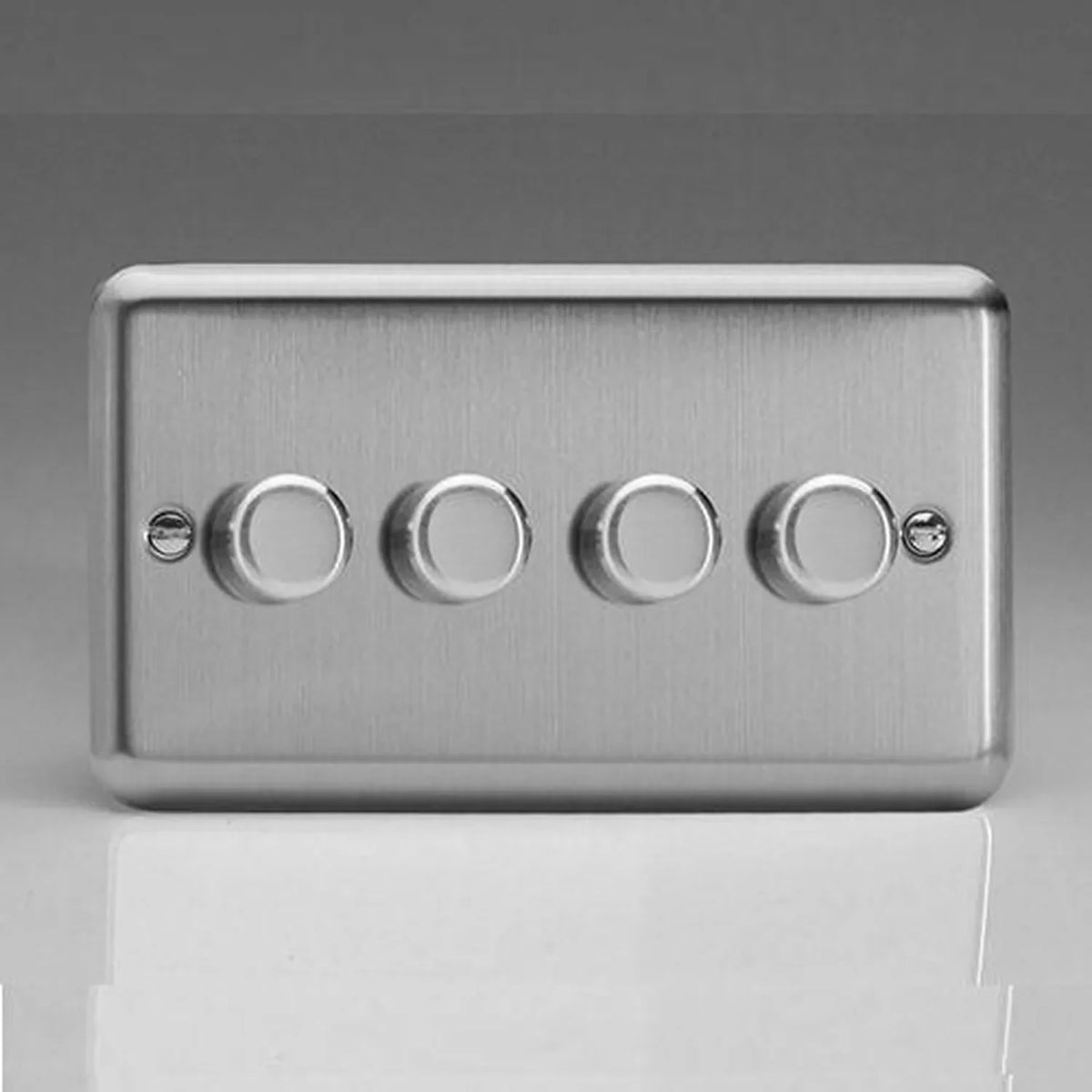

The Varilight V-Pro 4 Gang dimmer switch gives independent control over four separate lighting circuits, each rated 0-120W and suitable for up to 10 LEDs per gang. Finished in brushed steel, it combines a push-on-off button with a rotary dimming control for smooth adjustment of light levels.

Key features

• Gangs, 4 gang, each channel 0-120W (up to 10 LEDs)
• Control, push-on-off button with rotary dimming
• Minimum brightness, adjustable to match room or office luminosity in three steps
• Dimming edge, trailing-edge and leading-edge control from 0W to 120W
• Compatibility, works with the majority of dimmable LEDs, plus halogen, incandescent and dimmable transformers with no minimum load requirement
• Finish, brushed steel

2-way and 3-way circuits

This led dimmer switch is designed for 2-way circuits, where one lighting point is controlled from two locations. To set this up, pair the V-Pro dimmer with a standard 2-way switch. For 3-way switching, an intermediate switch needs to be added into the circuit.

A V-Pro dimmer itself is 2-way and must be paired with a switch at the second location, as it cannot be dimmed from two points on its own. For dimming from multiple locations, Varilight offers the V-Pro Multipoint Touch system, and the Touch and Multipoint Touch range is suited to 2-way and 3-way circuits generally.

Installation

• Fits in a 25mm deep wall box
• Clean the metal surface with a microfibre cloth

What's in the box

• Varilight V-Pro 4 Gang Dimmer Switch (JSDP254)
• Detailed data sheet
