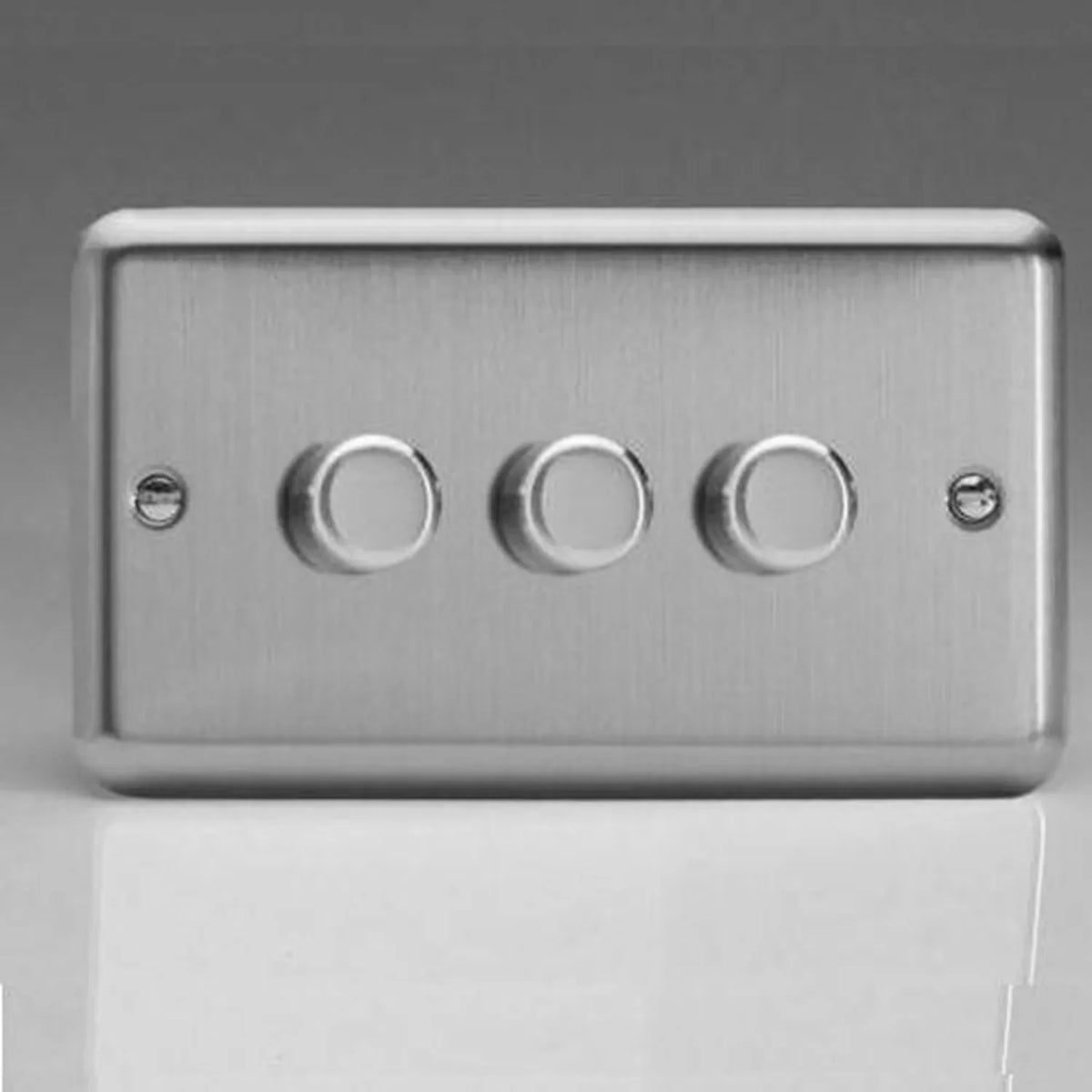

This Varilight V-Pro 3-gang rotary LED dimmer switch gives independent push-on/off and rotary dimming control over three separate lighting circuits, each rated 0-120W, finished in brushed steel. Model JSDP303 is built for 2-way circuits and handles trailing-edge and leading-edge dimming.

Key features

• Gangs, 3-gang, each controlling its own circuit independently
• Load range, 0-120W per gang (maximum 10 LEDs), suitable for dimmable LED, halogen and incandescent loads and dimmable transformers where no minimum load is required
• Control type, push-on/off button with rotary dimming
• Dimming technology, trailing-edge and leading-edge, wide LED compatibility
• Finish, brushed steel
• Installation depth, fits a 25mm deep wall box

Setting the minimum brightness

The minimum brightness for LED lighting can be adjusted to suit the room, following a three-step process. A detailed data sheet is included in the box to walk through this.

2-way and 3-way circuits

Used in a 2-way circuit, one lighting point is controlled from two locations: the V-Pro dimmer is paired with a standard 2-way switch at the second location. It cannot itself be dimmed from two points, only switched. For a 3-way circuit an intermediate switch must also be fitted. Where dimming from multiple locations is needed, Varilight's Touch and Multipoint Touch range is designed for that purpose instead.

Care and installation

Clean the metal surface with a microfibre cloth to keep the brushed steel finish looking right. The unit fits a standard 25mm deep wall box.
