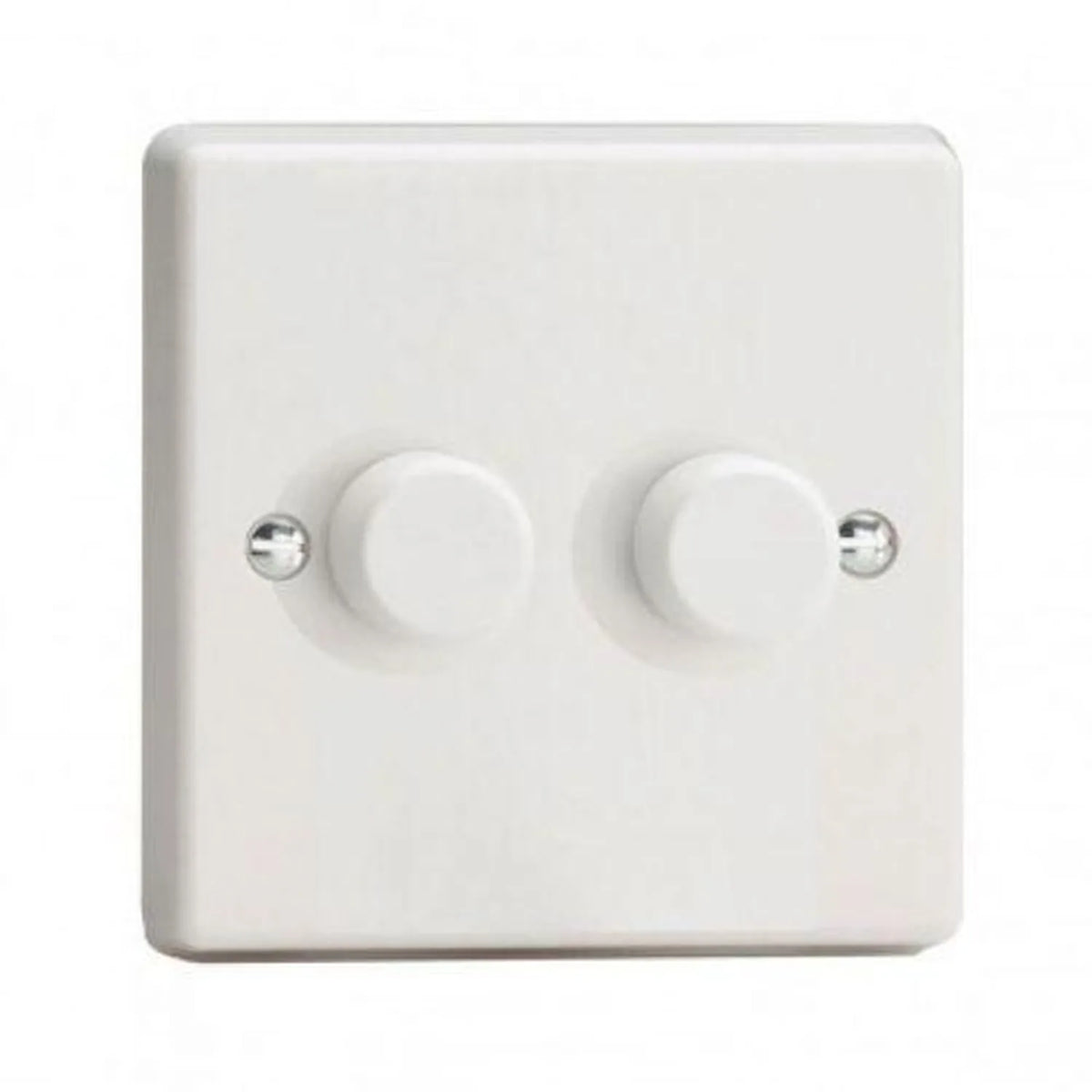

A trailing edge (AC triac) dimmer switch from the Varilight V-PRO range, fitted with a push-on/push-off rotary control and 2-way switching. It is built for mains lighting, dimmable transformers and dimmable LED fittings, with no minimum load required.

Key features of this LED dimmer switch

• Switching action, push-on/push-off rotary button, 2-way
• Dimmer type, trailing edge (AC triac)
• Overload protection, microprocessor controlled, dims or switches off automatically if the connected load is too high
• Maximum load, 0-100W (10 LEDs per gang); also rated LED 120W, Halogen 200W, Mixed Loads 120W (max 10 lamps for all lighting types)
• Operating voltage, 220/250V AC
• Maximum current rating, 0.9A

Dimensions and fitting

The faceplate measures 85x85x47mm with a faceplate depth of 11mm and fixing centres of 60.3mm. Product weight is 160g. A recommended back box depth of 25mm is needed for installation, and the terminal (live) diameter is 3.2mm with a capacity of 3 x 1.5mm².

Applications

Suited to standard mains lighting circuits and most dimmable electronic transformers, this switch also works with dimmable low-energy lighting, including many dimmable LEDs. It gives installers a rotary dimming option with a physical on/off push action rather than touch or remote control.
