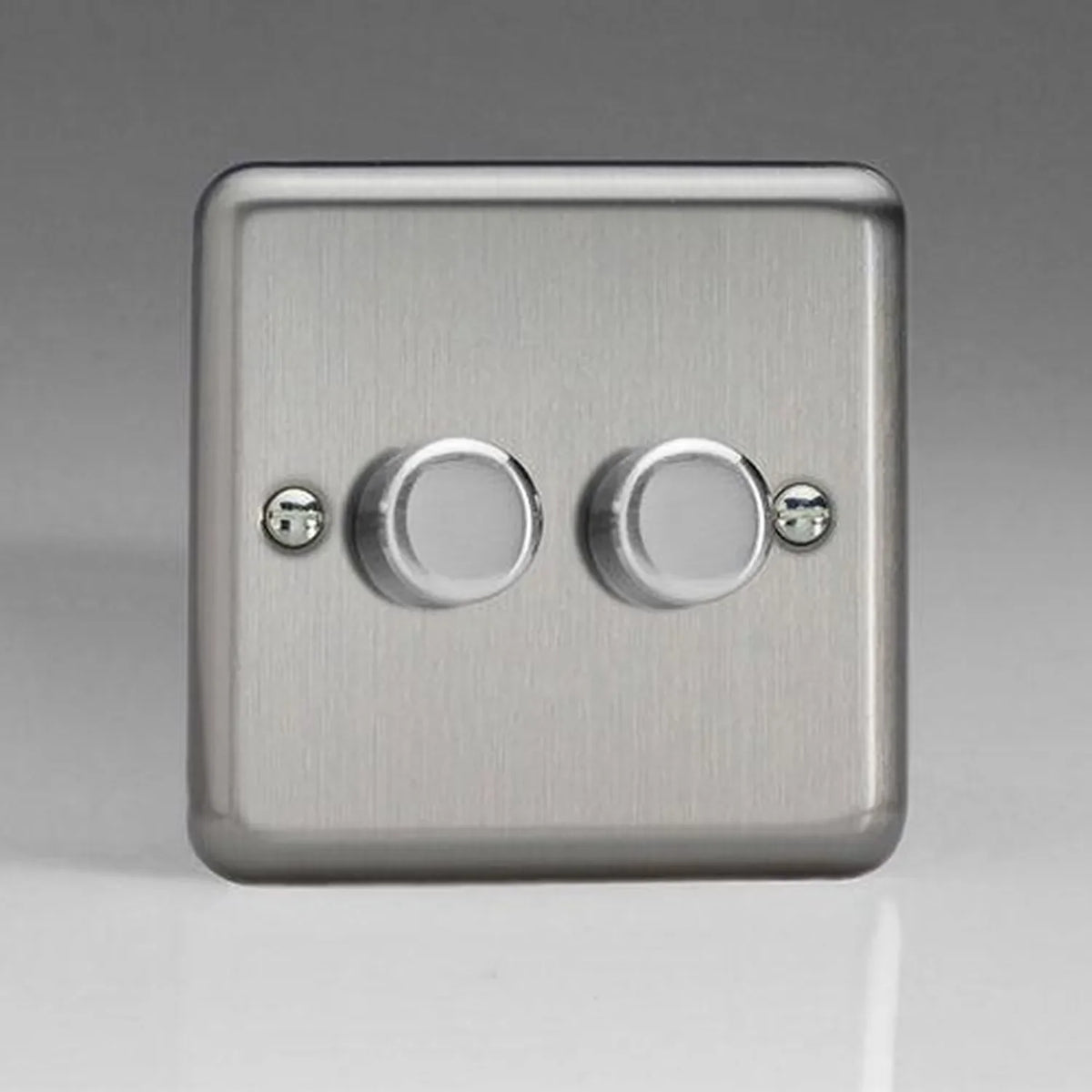

The Varilight V-Pro JSP252 is a 2 gang, 1 or 2 way dimmer switch finished in brushed steel. Each gang handles LED loads from 0W to 120W, up to 10 LEDs, giving a combined 2 x 120W across the switch.

Key features of this led dimmer switch 2 gang

• Load range, 0W to 120W per gang, trailing-edge and leading-edge, up to 10 LEDs
• Control type, push-on-off button with rotary dimming control
• Minimum brightness, adjustable to match the room, set in three steps
• Compatibility, dimmable LEDs, halogen, incandescent lights and dimmable transformers with no minimum load required
• Finish, brushed steel, 2 gang

Wiring and circuits

This dimmer works in a 2-way circuit, where one lighting point is controlled from two locations. To set up 2-way switching, pair the V-Pro dimmer with a standard 2-way switch. For a 3-way circuit an intermediate switch also needs to be added. The V-Pro dimmer itself cannot be dimmed from two locations at once; for that, Varilight's Touch and Multipoint Touch range is the better fit.

Installation

The switch fits into a 25mm deep wall box, which suits most standard UK installations. A detailed data sheet is included in the box to guide setup and load adjustment.

Care

Keep the brushed steel surface clean using a microfibre cloth.
