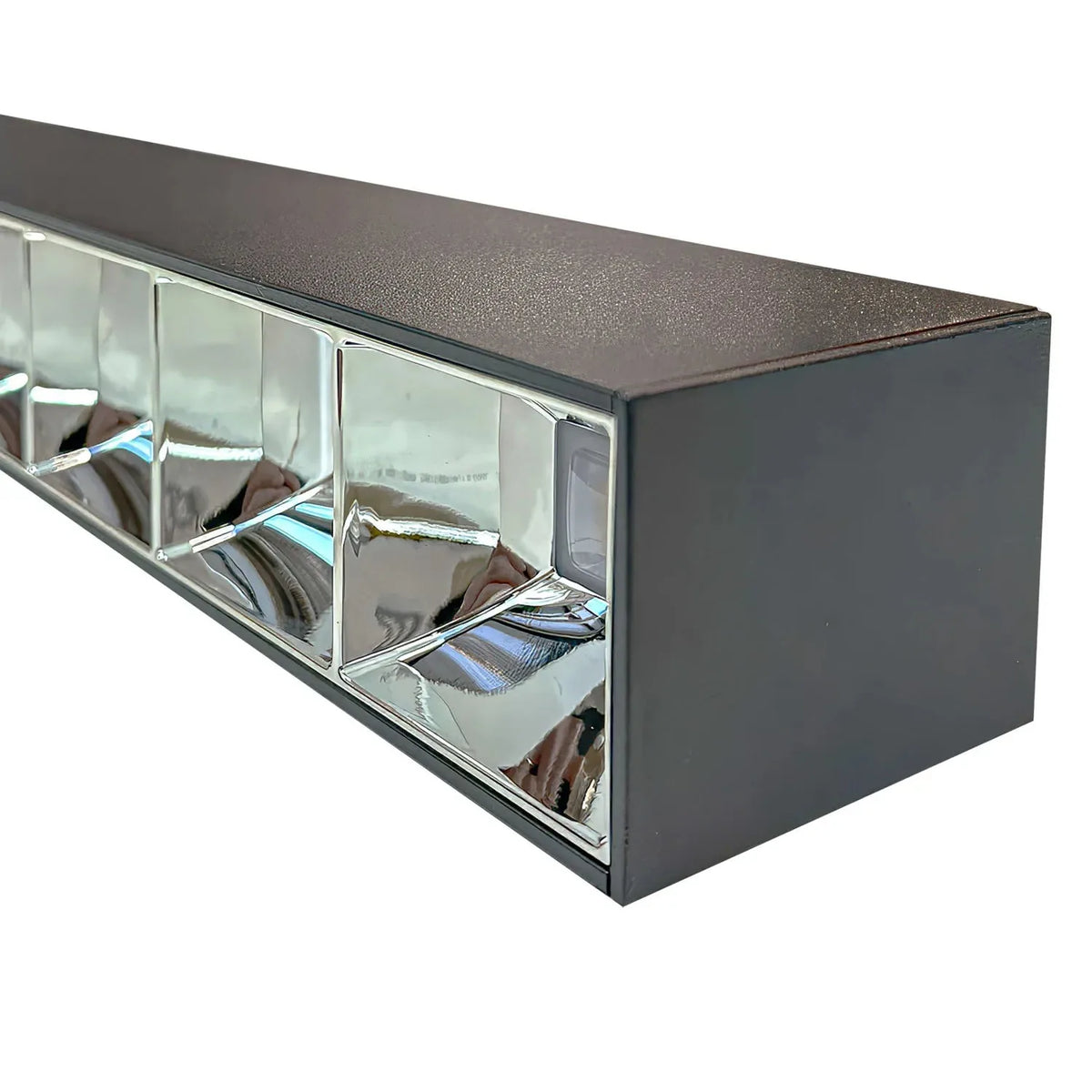

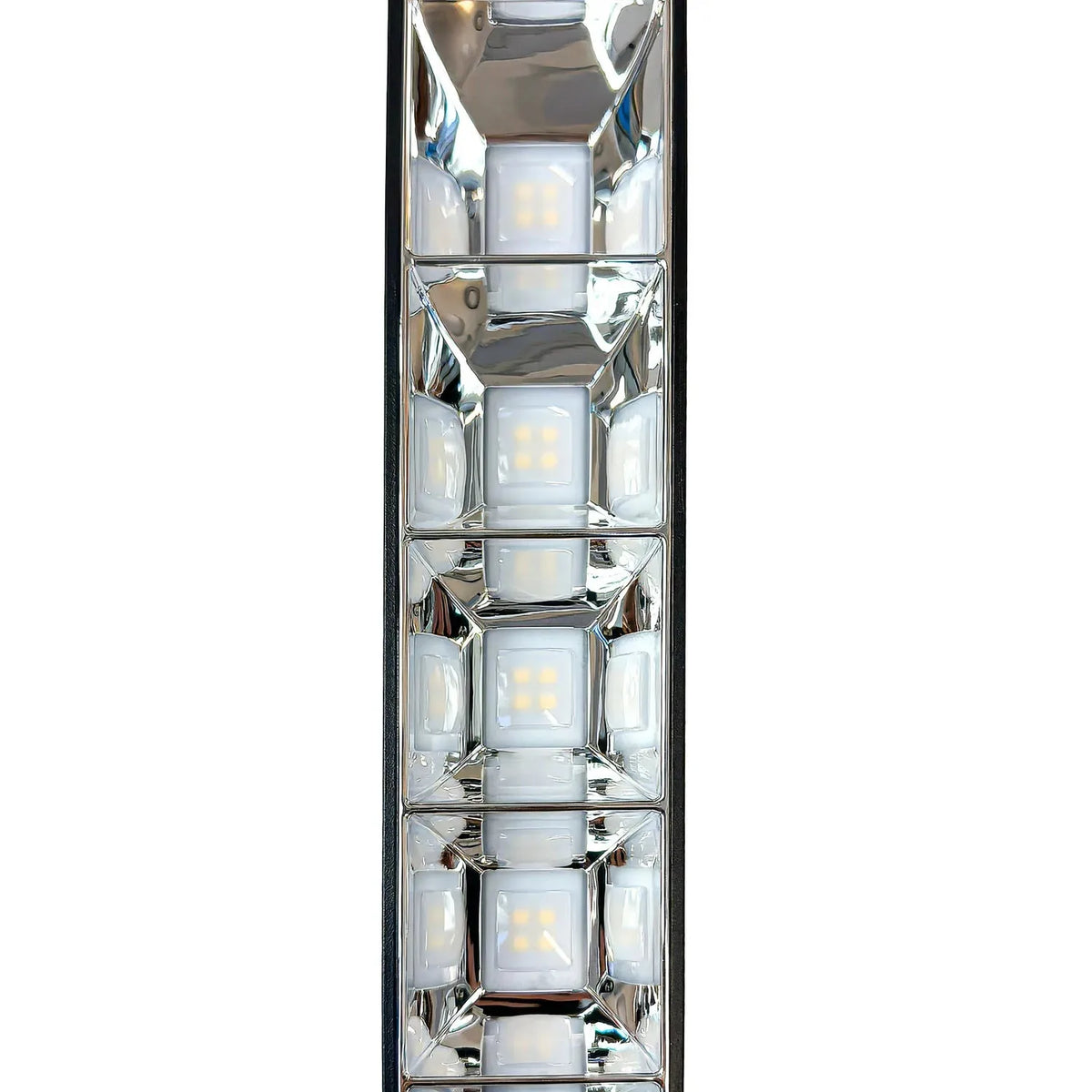

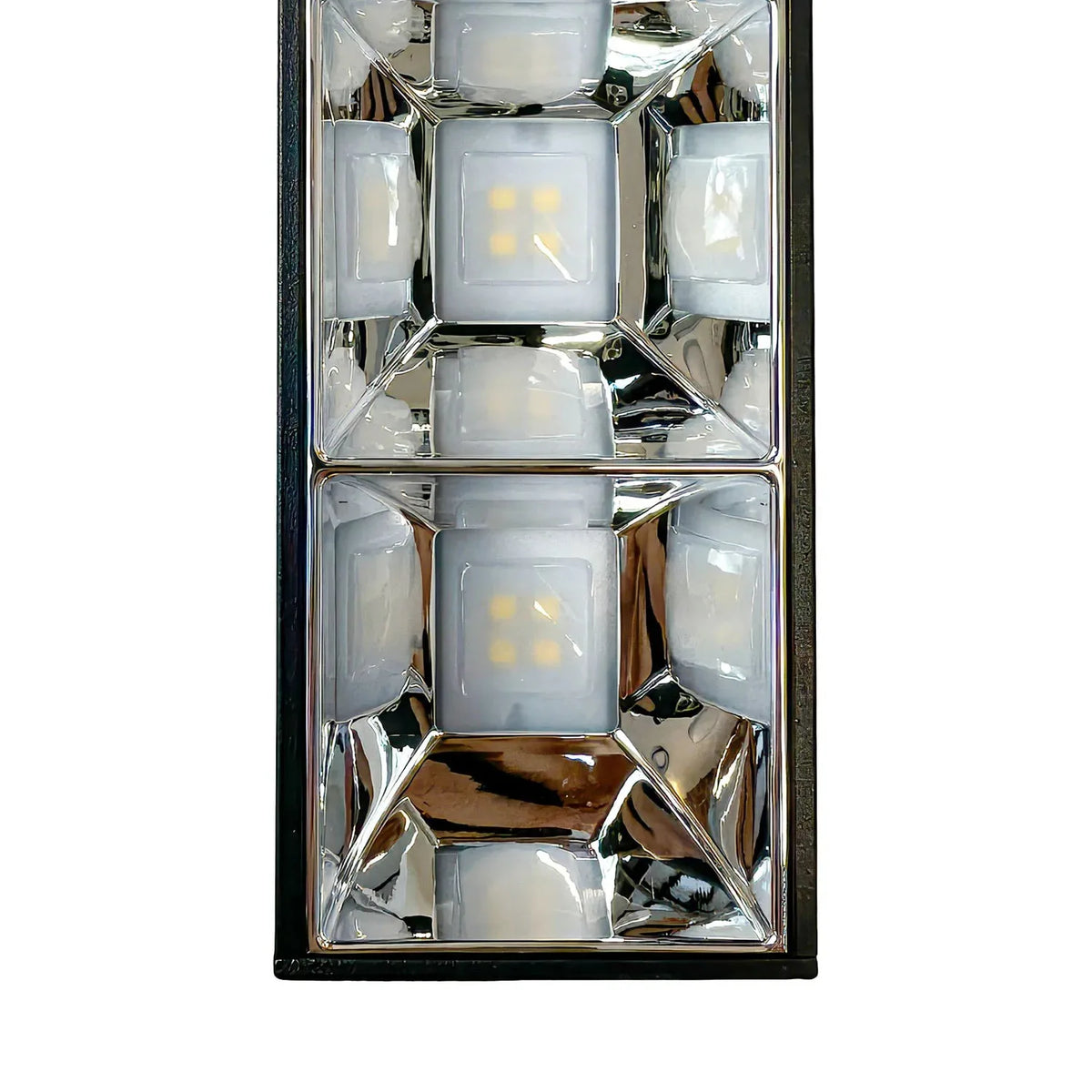

The Triumph LED fitting is a 36W batten light measuring 120cm, supplied with a reflector and available in white or black. Its modular aluminium body suits pendant, surface, wall, recessed or track mounting, and the fitting can be extended beyond its standard 1.2 metre length using L-shape, T-shape, corner and cross connectors.

Key features of this LED batten light fitting

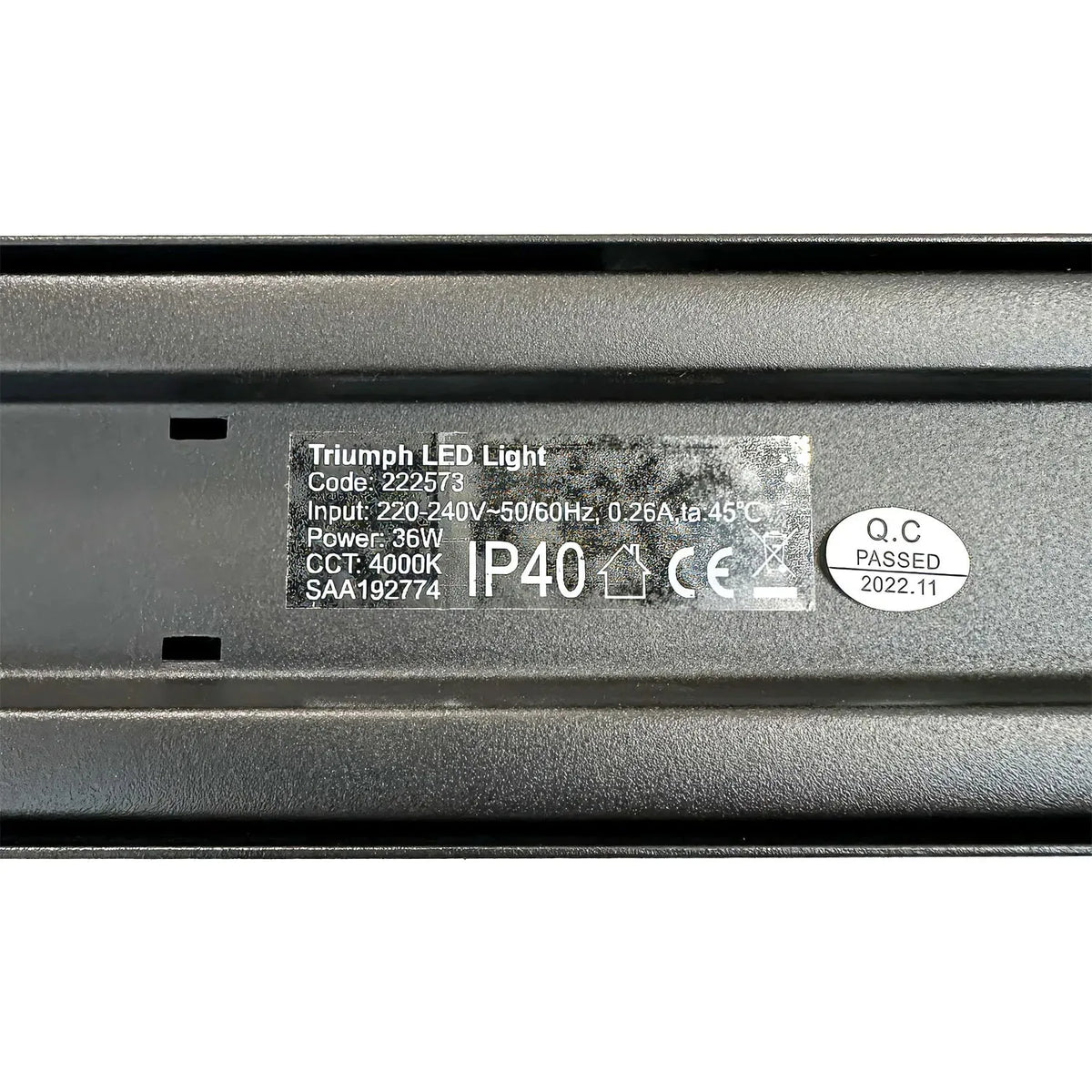

• Power, 36W
• Colour temperature, 4000K
• Efficiency, 110 lm/w
• Anti-glare, UGR<19

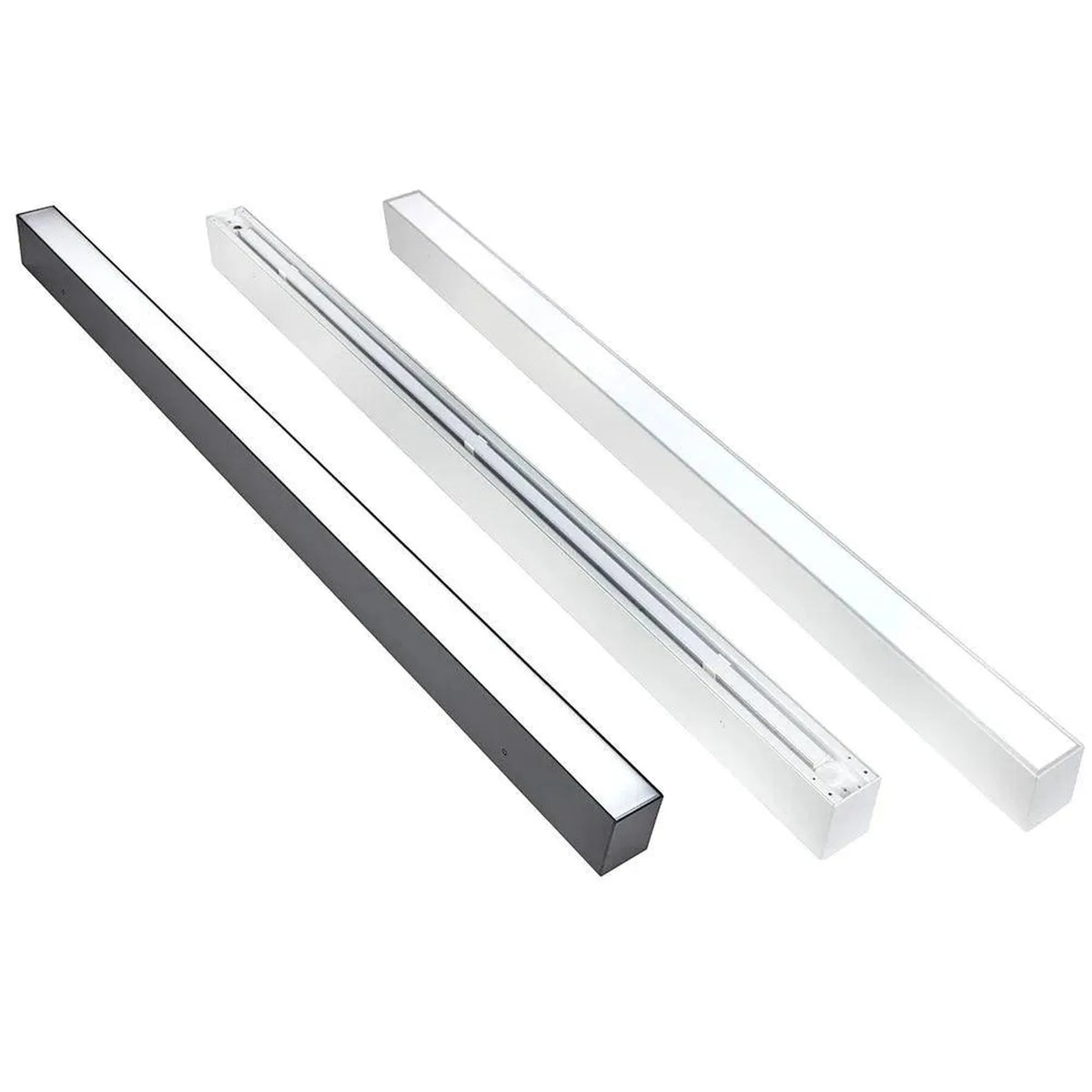

• Finish options, white or black
• Dimming, DALI or 0-10V versions available on request

Applications

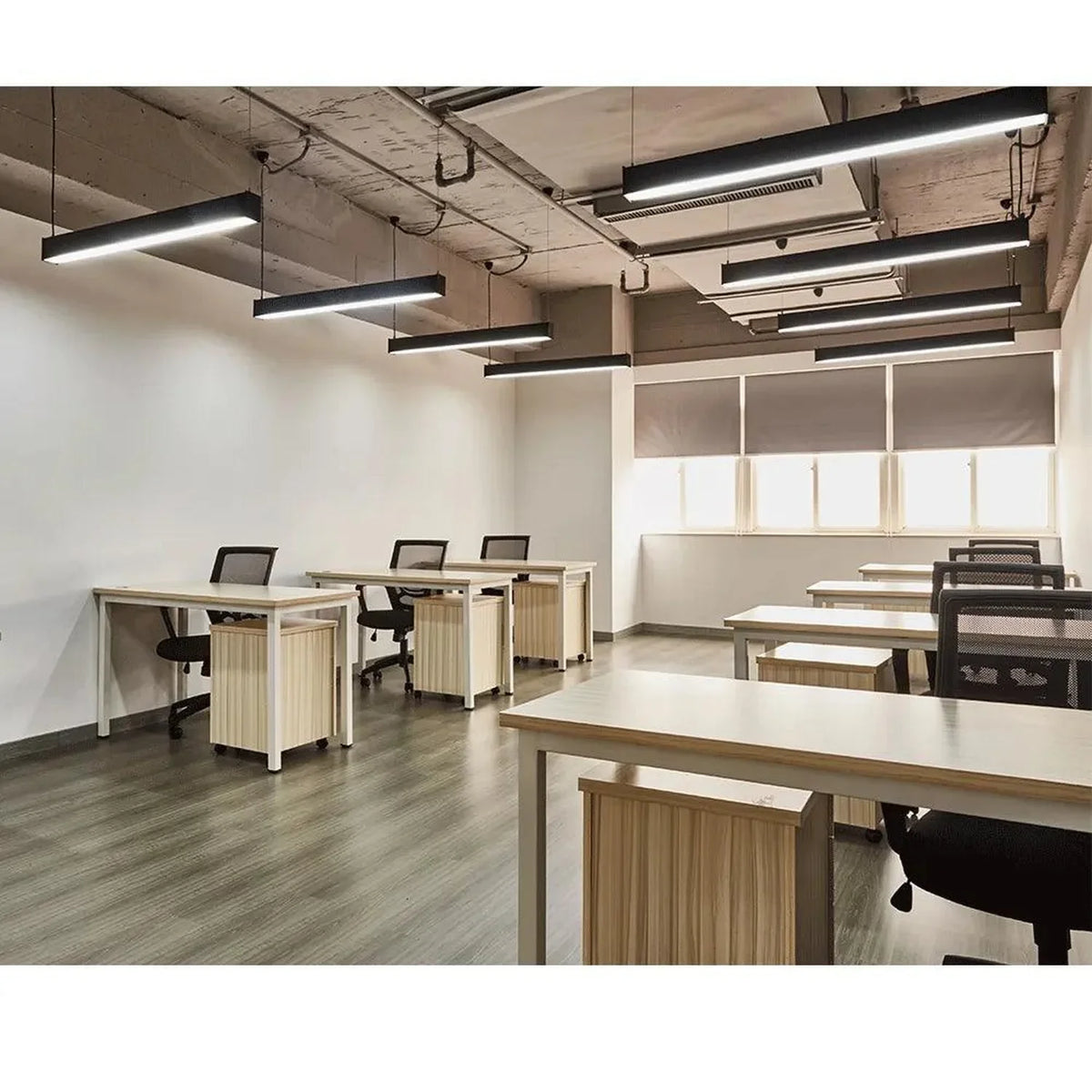

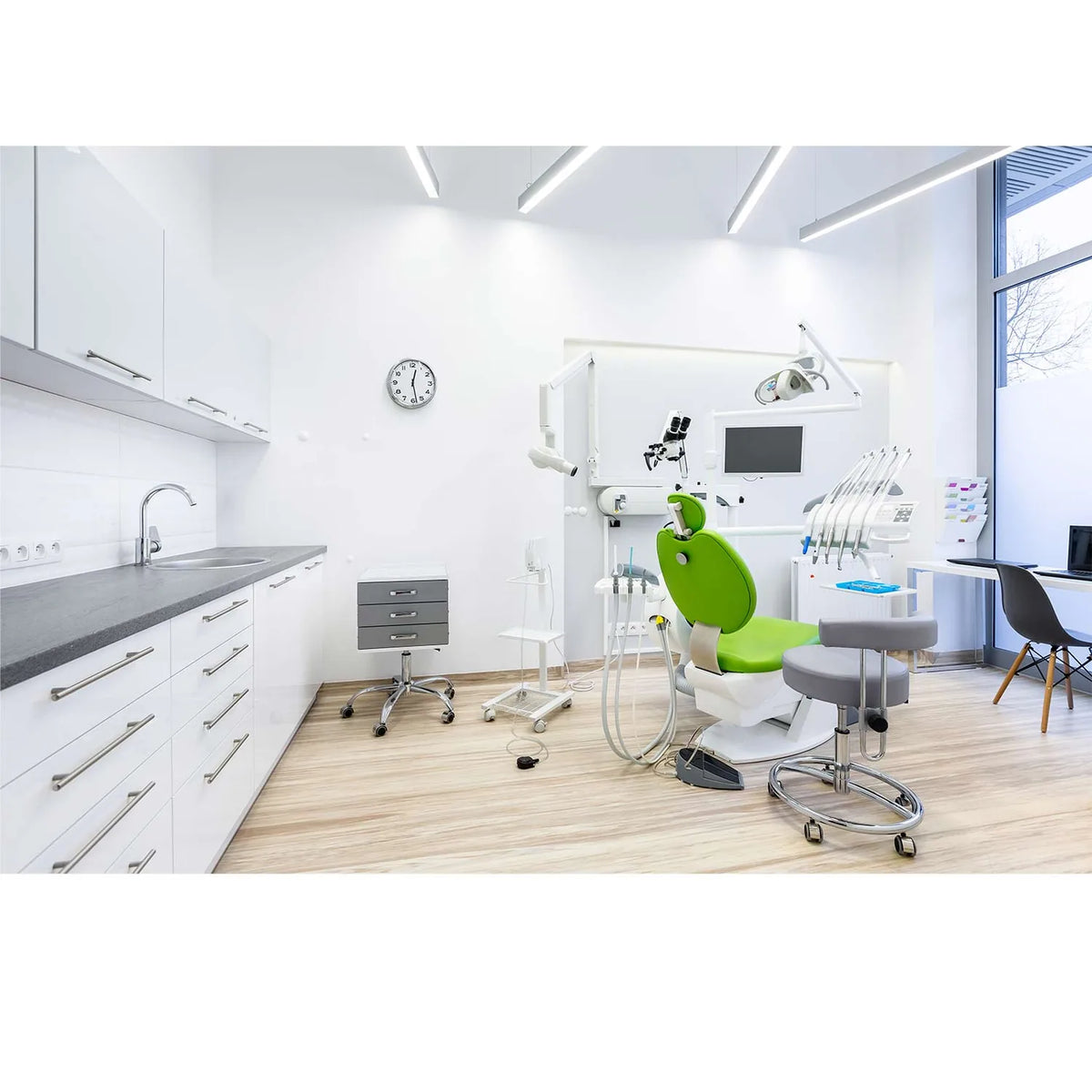

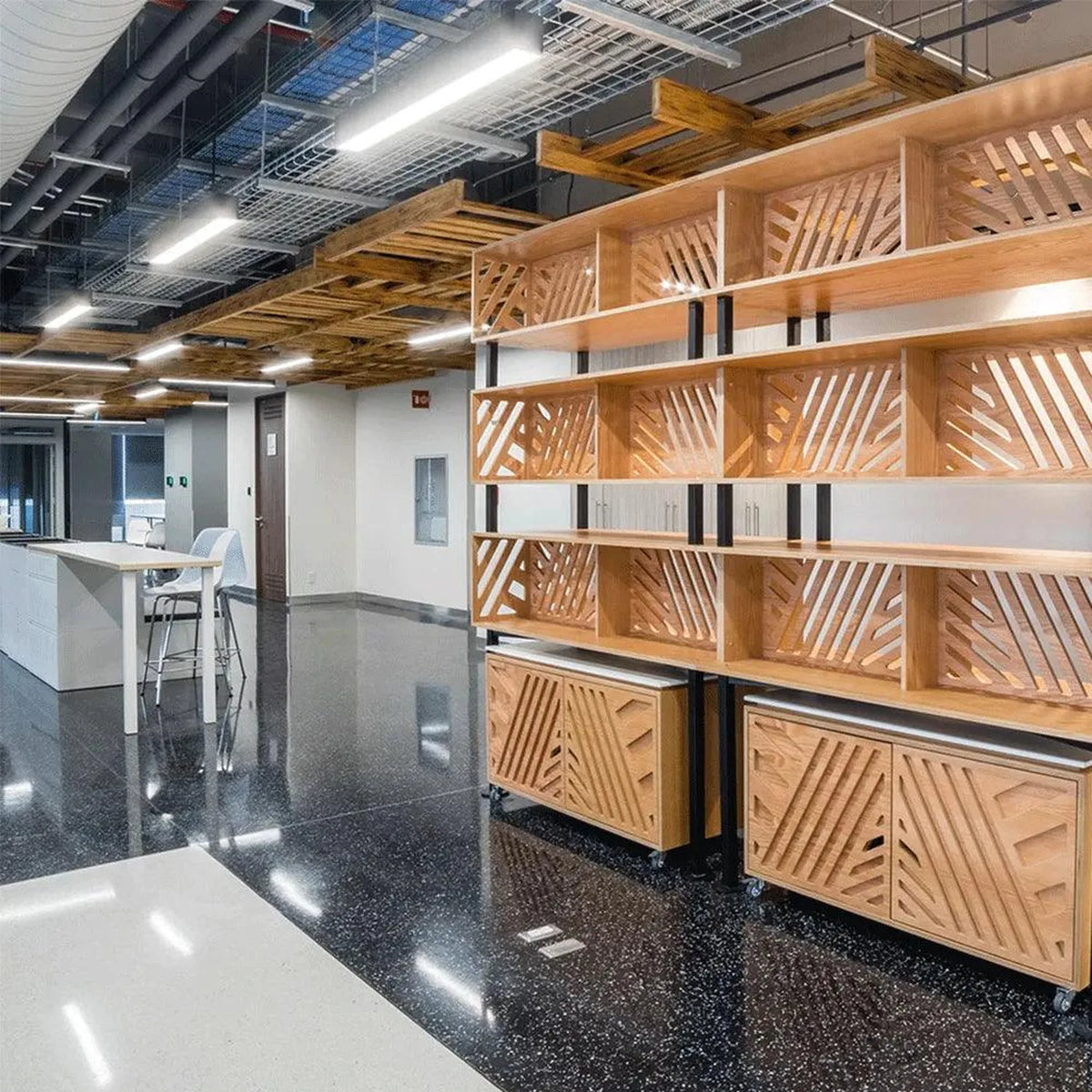

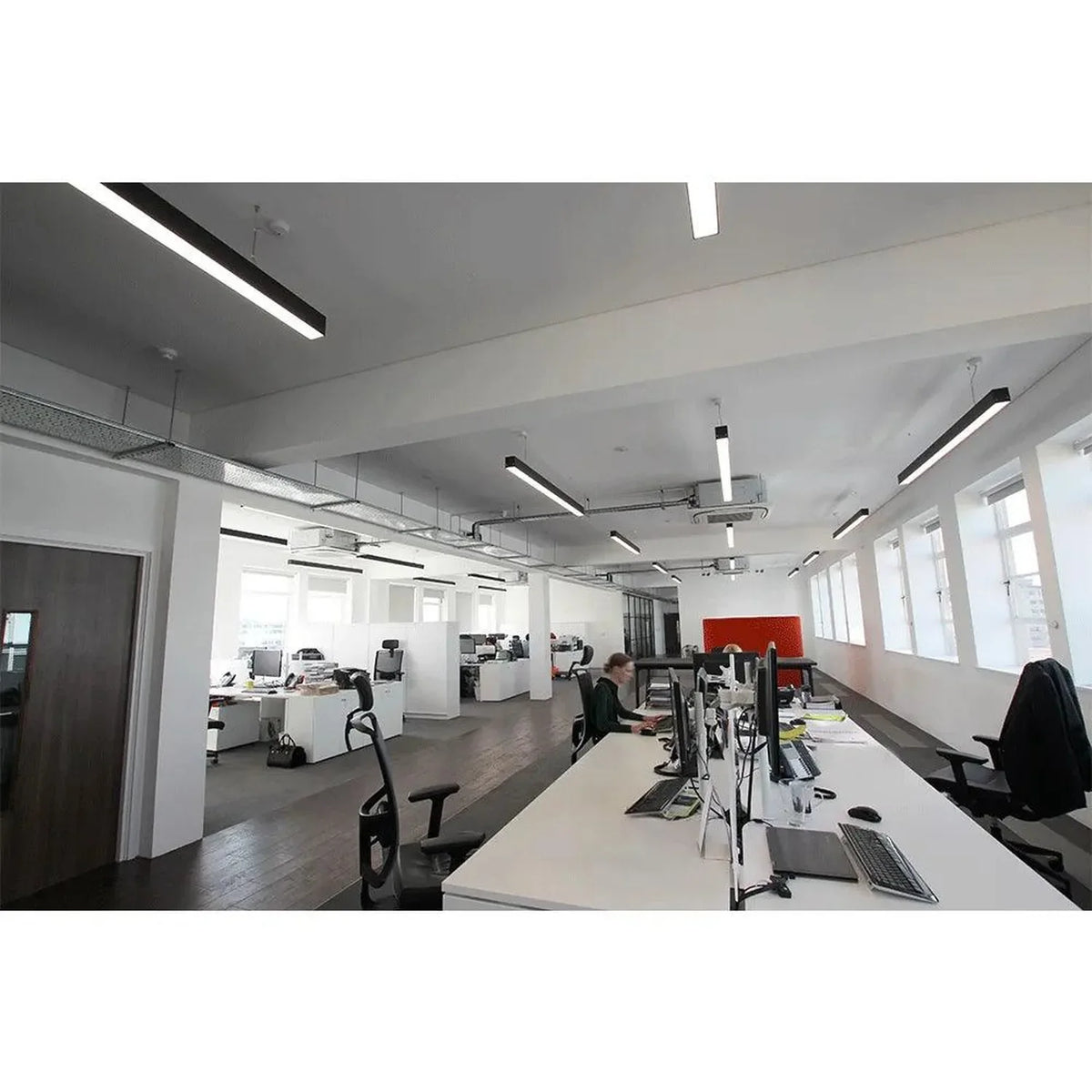

The Triumph is designed for traditional suspended lighting runs in workshops, utility rooms and garages, as well as commercial ceiling installations where a linkable, modular batten system is needed. It can be configured purely as a downlight, an uplight, or a hybrid giving 30% uplight and 70% downlight when wall mounted or suspended.

Connectors and shape options

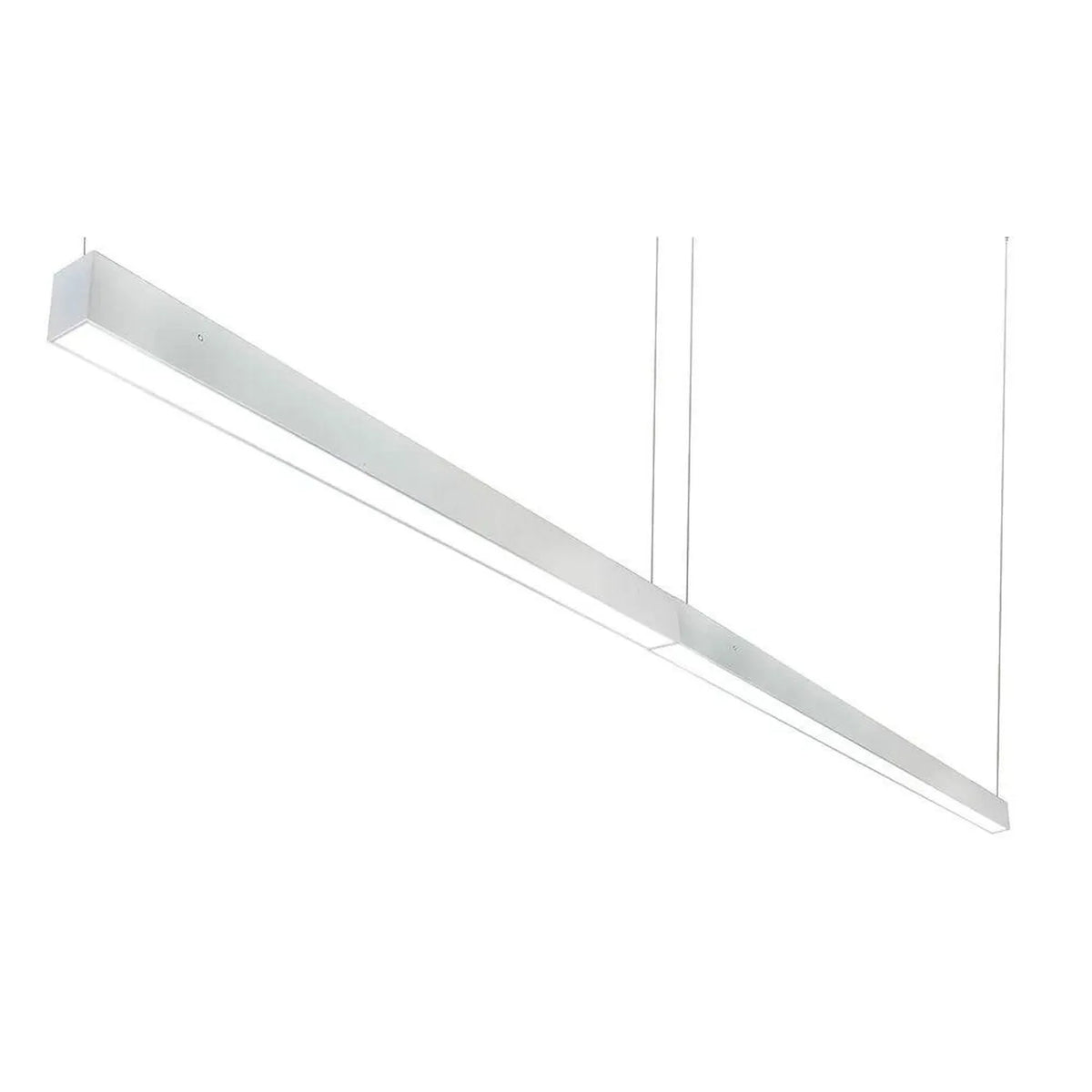

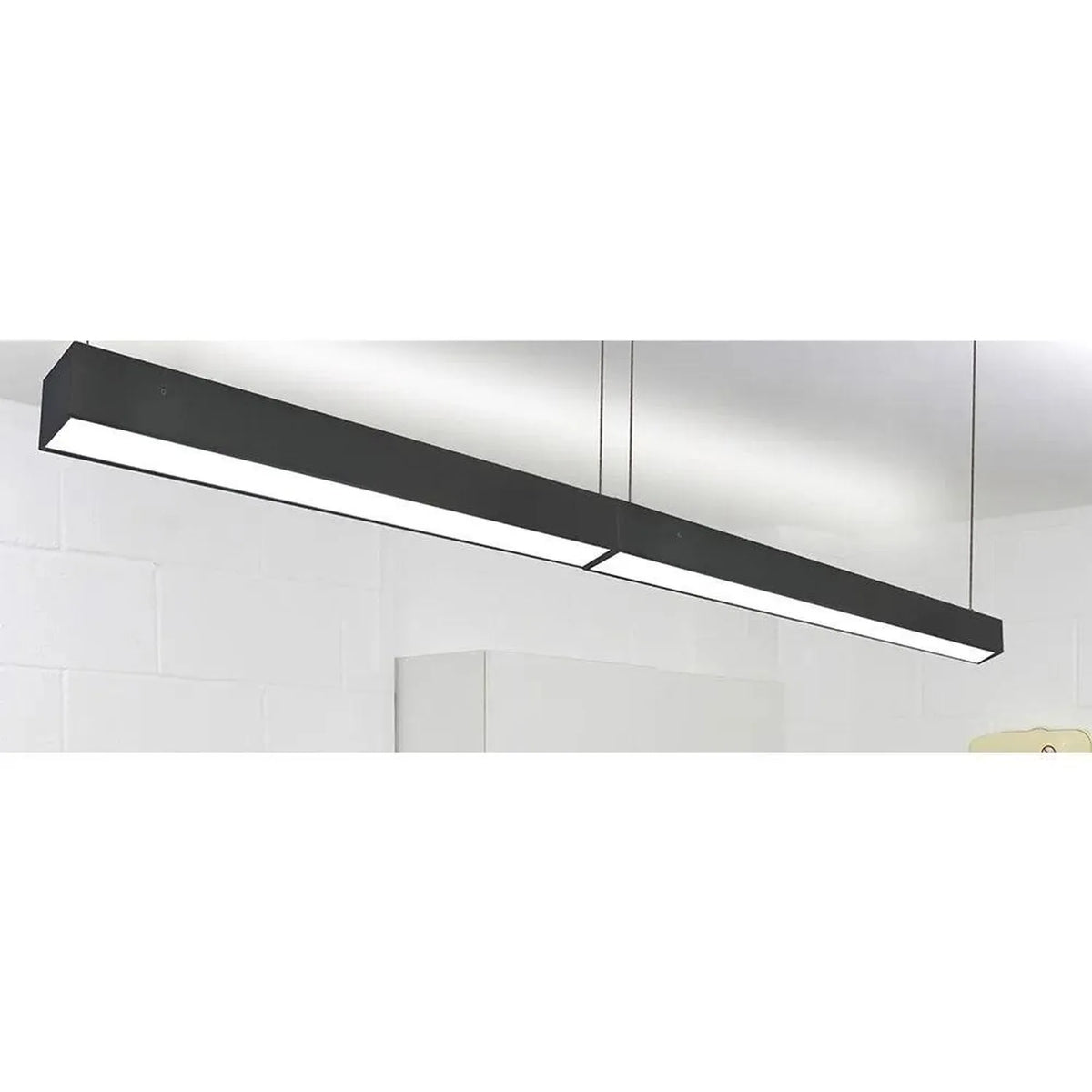

Straight, corner, cross and T-shaped connectors let you build the fitting into runs and layouts to suit the room, rather than sticking to a single straight batten.

Additional options

• Emergency version available on demand

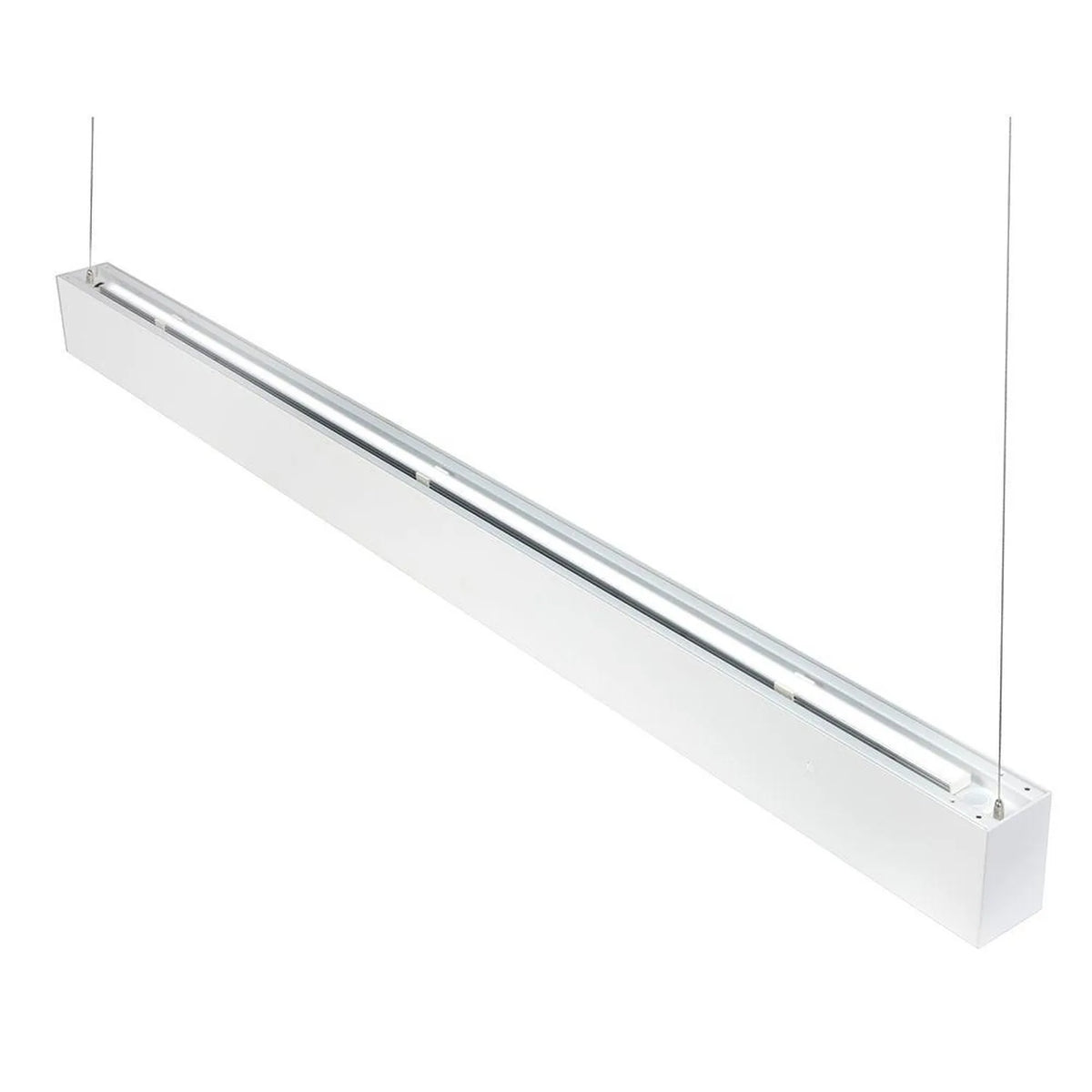

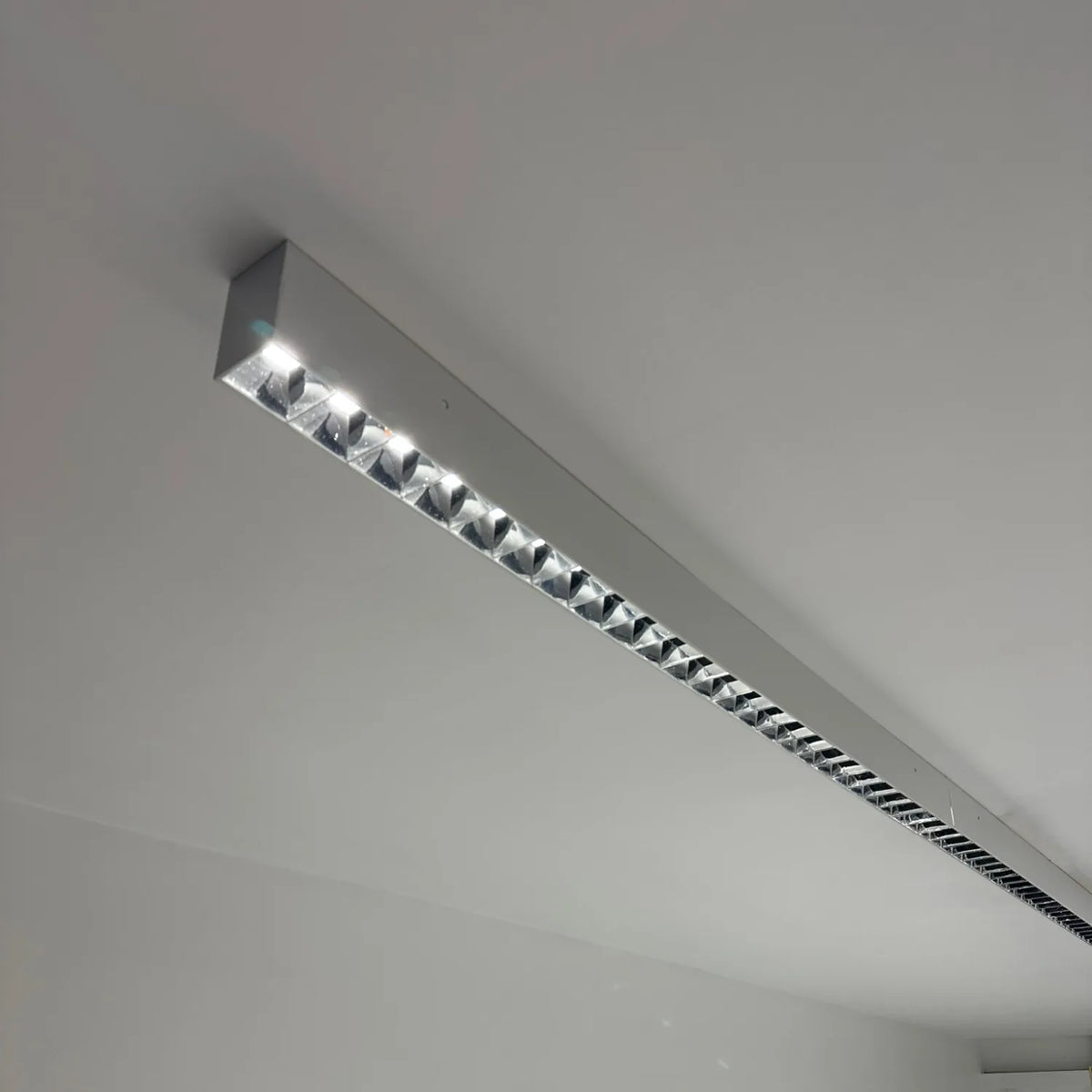

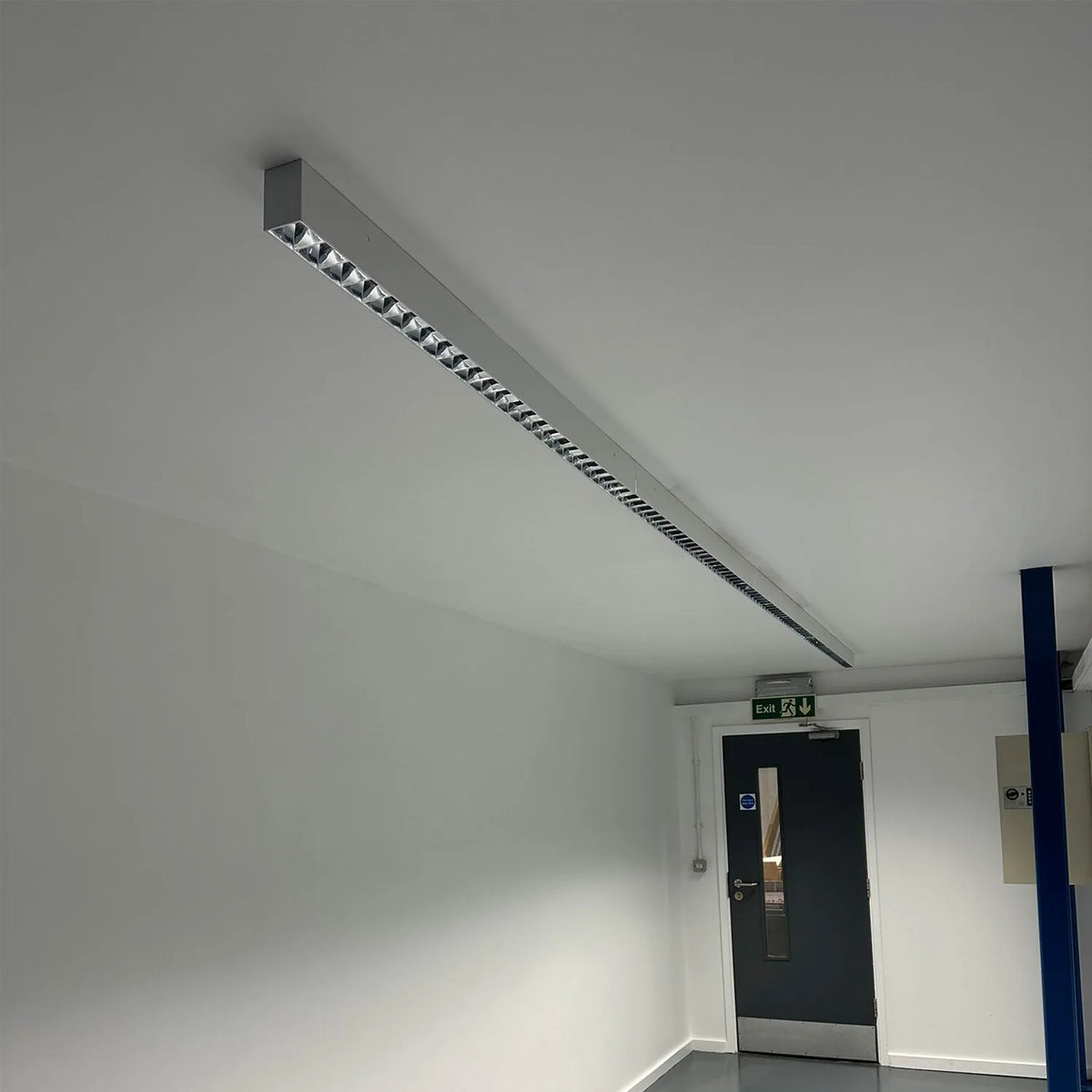

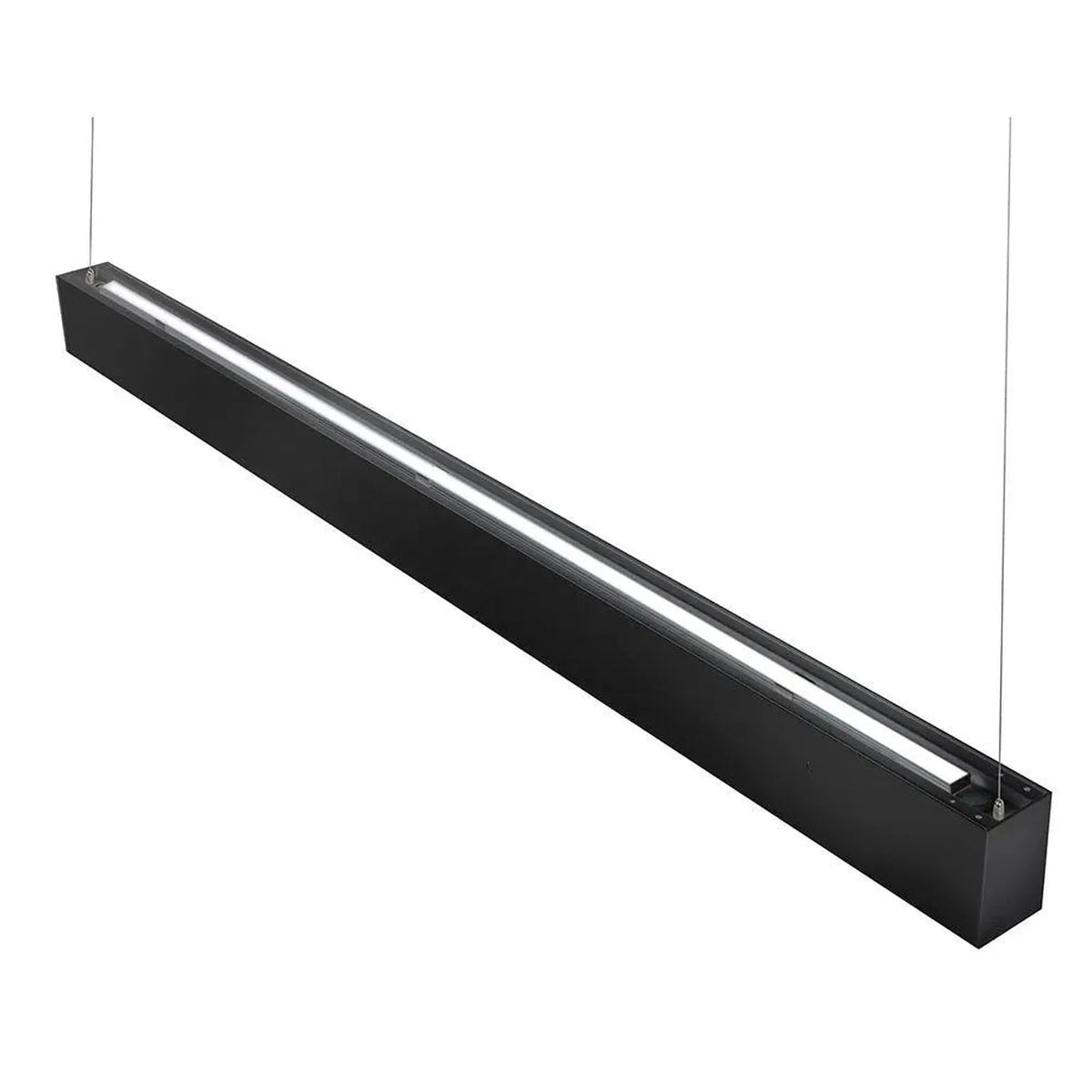

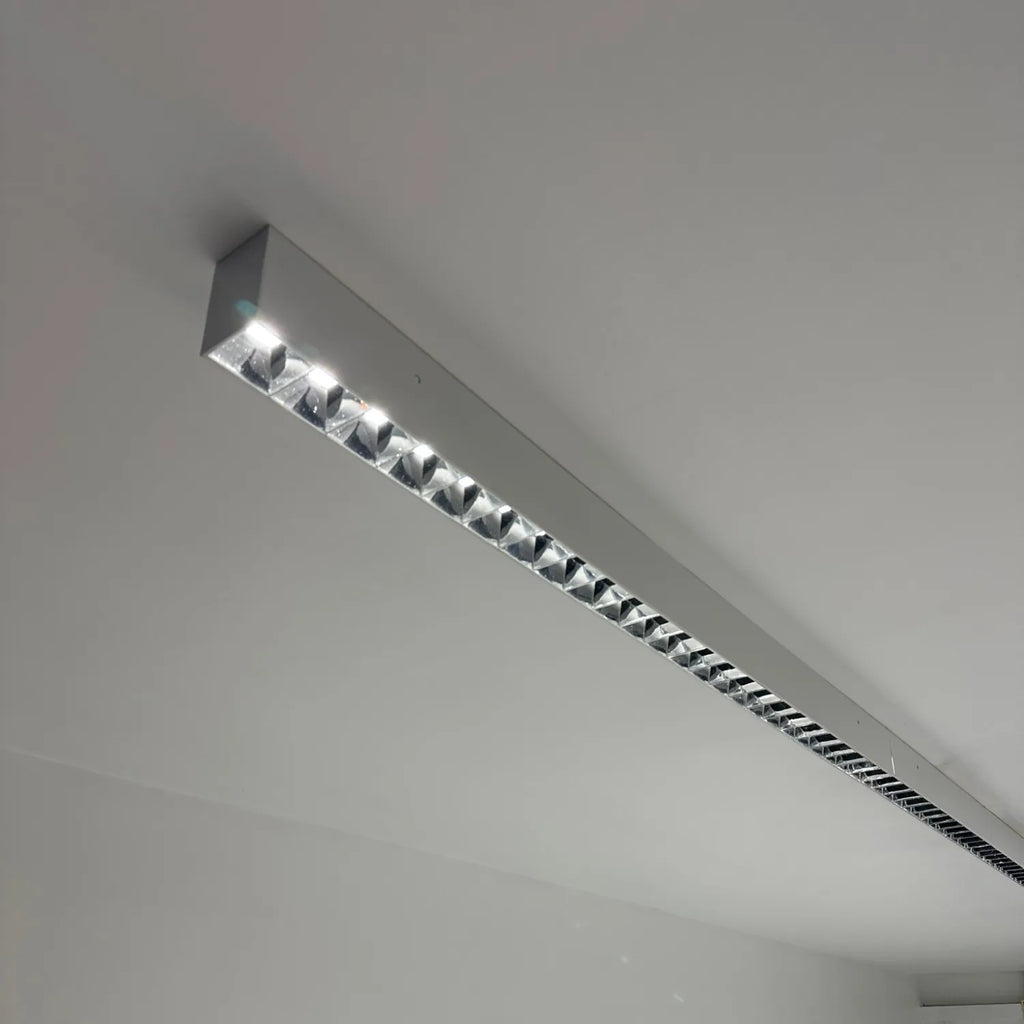

• Suspension by steel rope, round ceiling plate, or surface, wall, recessed and track mounting

Housed in aluminium for the light body, the fitting is built to be extended or reconfigured as a project grows, using the same connector system throughout.
