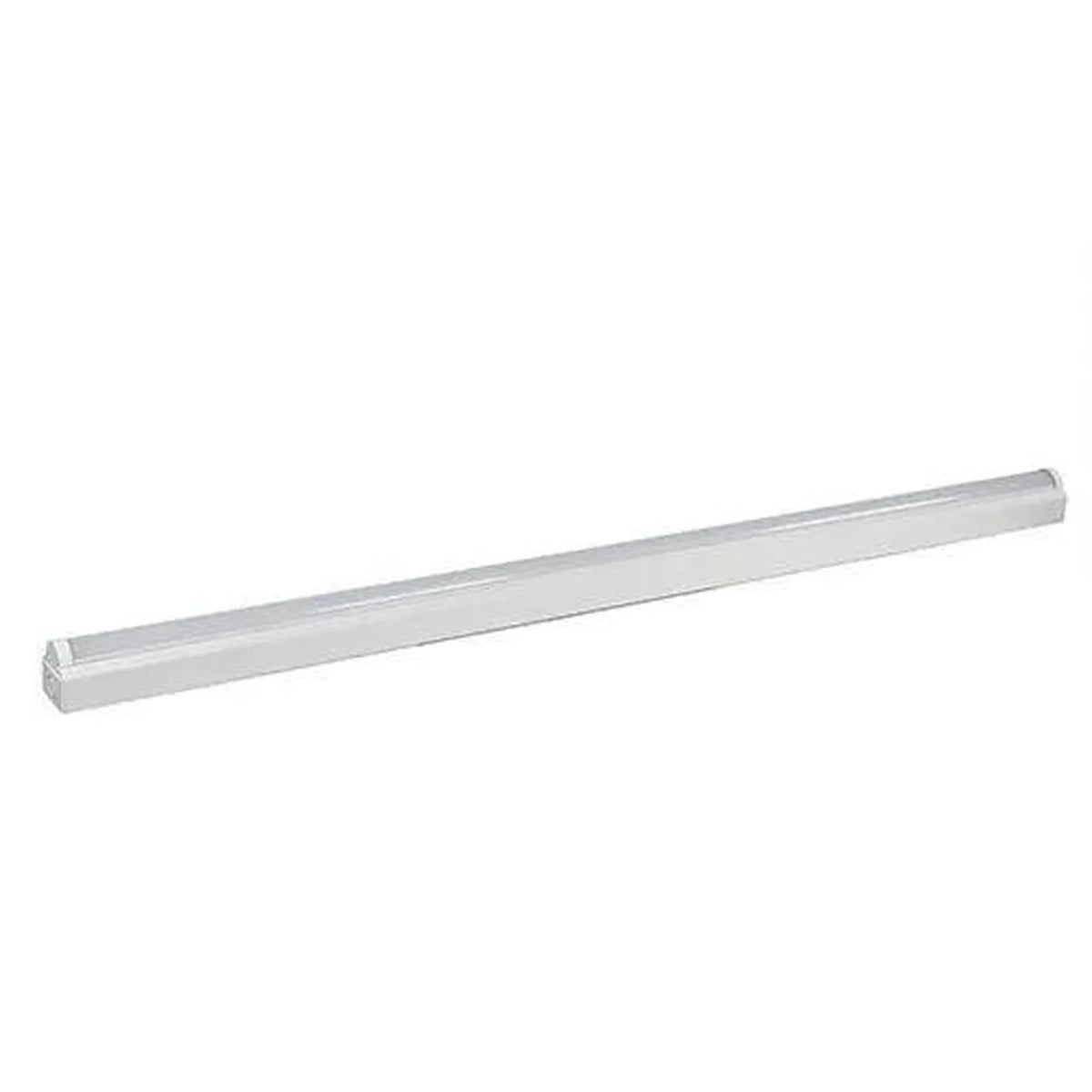

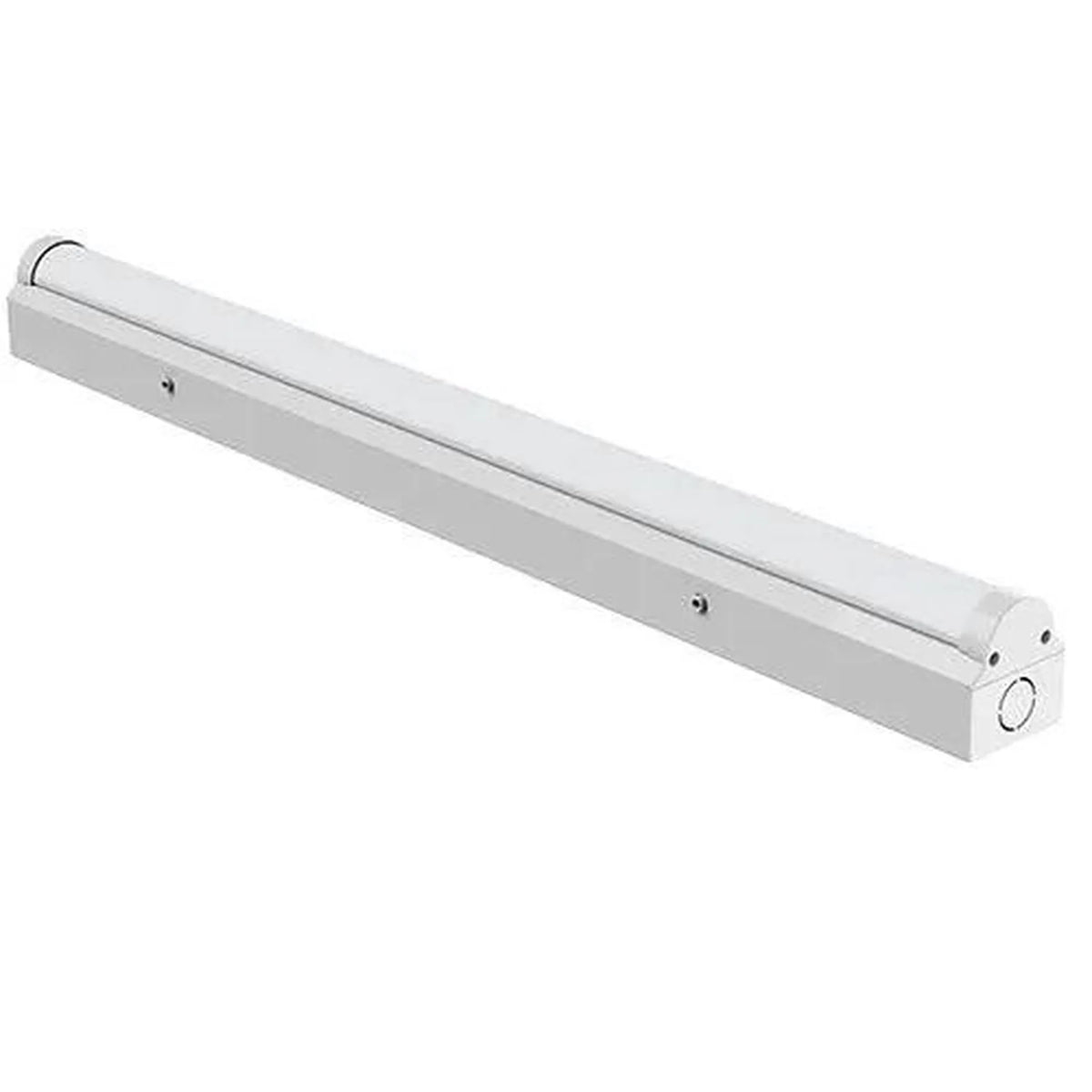

This slim LED batten light is a direct replacement for 6ft fluorescent T8 tubes, built into a slimline 180cm aluminium housing. Rated at 35W, it produces 4375lm and can be linked to other units to form continuous runs of light.

Slim led batten light features

• Light output, 4375lm from 35W, giving 125lm/W efficiency
• Colour temperature, switchable between 3000K, 4000K and 5500K using on-board dip-switches
• Colour rendering, CRI greater than 80
• Beam angle, 120 degrees
• Lifespan, 50,000 hours, backed by a 5 year warranty
• IP rating, IP20

Design and construction

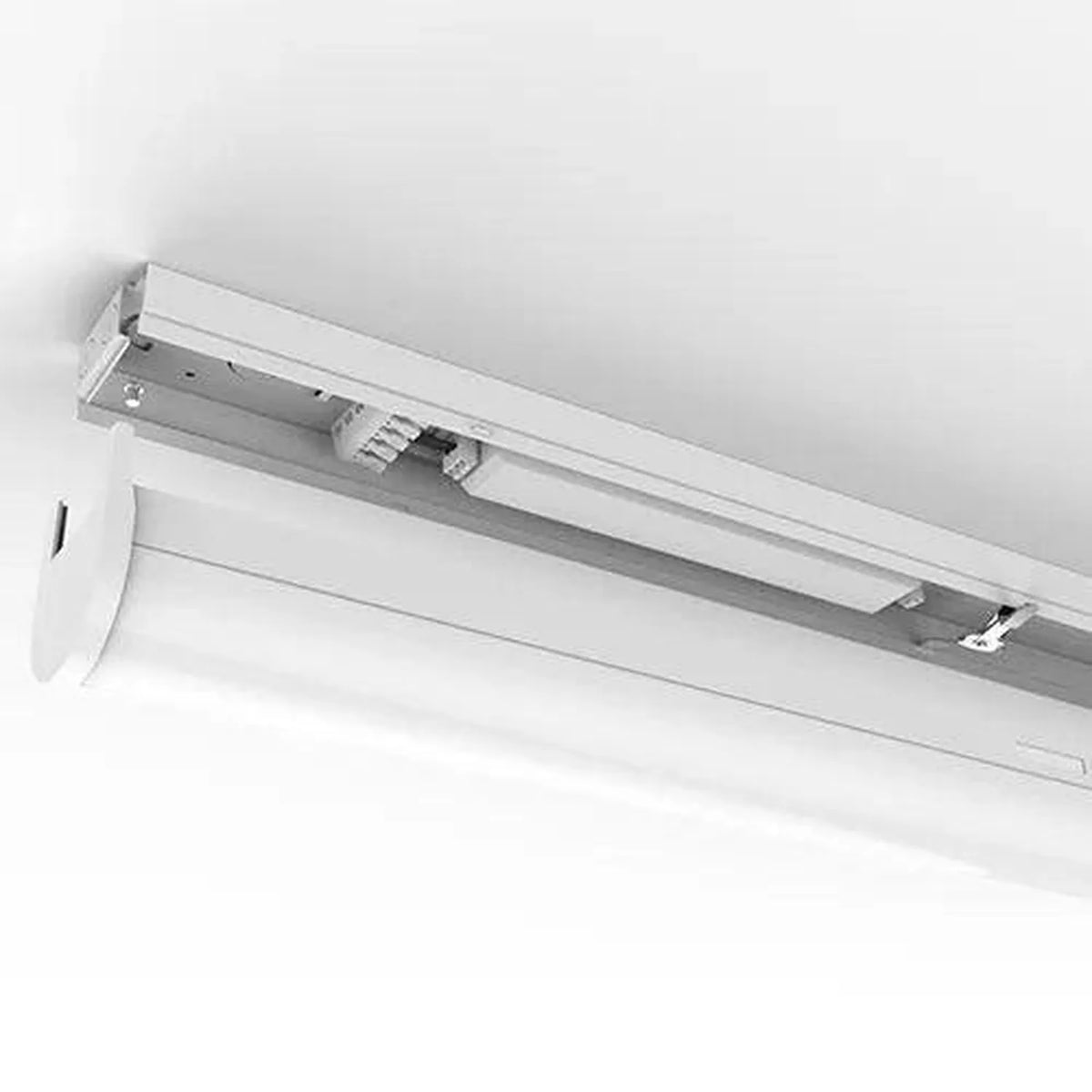

The LED board sits on a heat sink plate for heat dissipation, and the end cap has a 20mm knockout for wiring. A flat end profile allows end-to-end linking for long continuous lighting lines, and the fitting weighs 1295g. An advanced dimmable version is also available, switchable between 1-10V and AC-Triac dimming.

Applications

Suited to supermarkets, offices, corridors and warehouses where long runs of even light are needed. It is designed as a like-for-like swap for 6ft T8 fluorescent battens, whether surface mounted or suspended.

Electrical specification

Runs from AC90-277V at 50/60Hz, with an operating voltage of DC36-42V. Total harmonic distortion is below 10% and power factor is above 0.95. Operating temperature range is -15°C to +50°C, with storage from -25°C to +55°C. Rated for 100,000 switching cycles before failure.
